Thermal Grizzly Lapping Tool for 13th & 14th Gen. Intel CPU
- Producent: Thermal Grizzly
- Kod producenta: TG-LT-i13G
- Kod EAN: 4260711990717
- Gwarancja: 24 miesiące
Dostępność:
Dostępny
Dostępna ilość:
- Koszt wysyłki: od 0 zł
- Darmowa dostawa od 800,00 zł

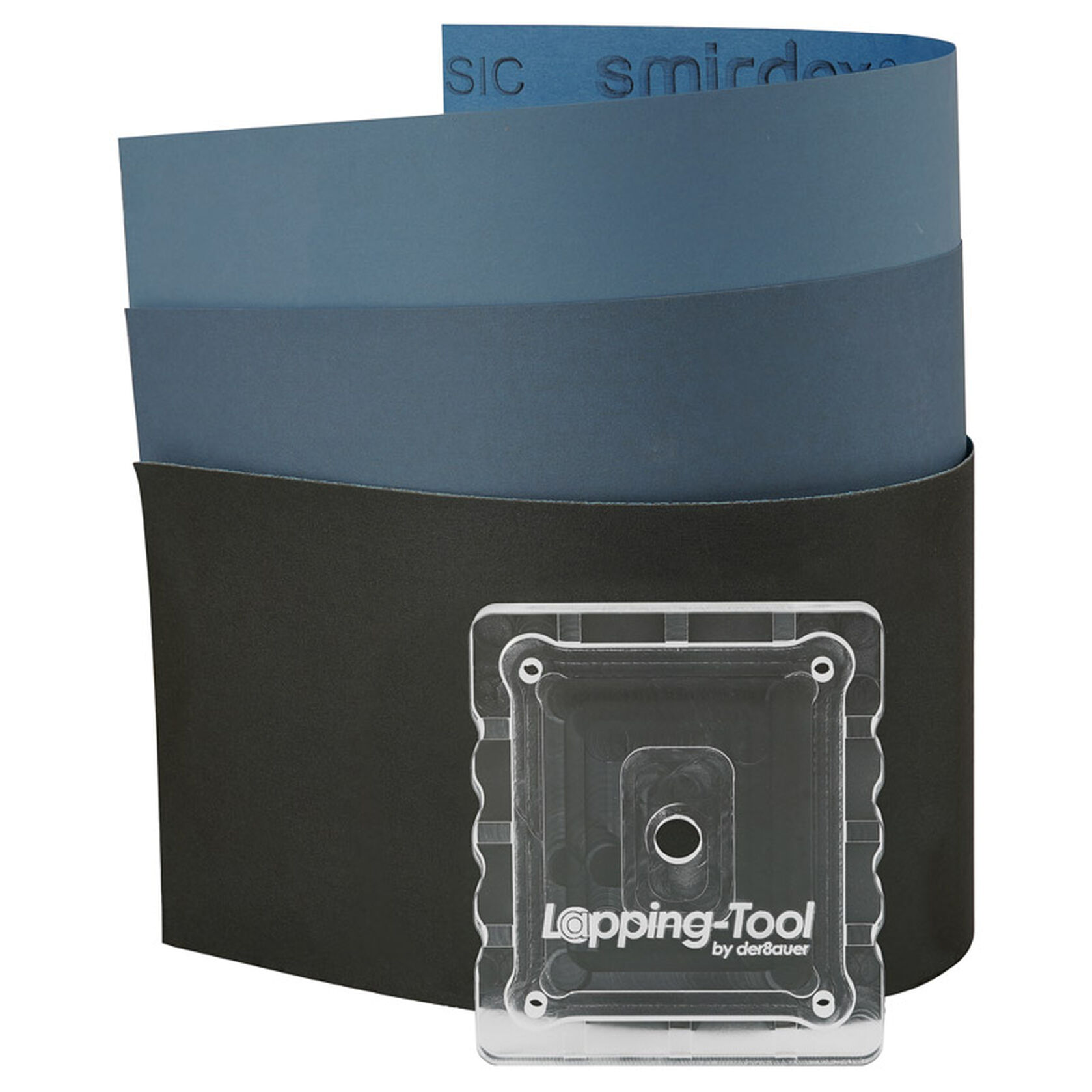

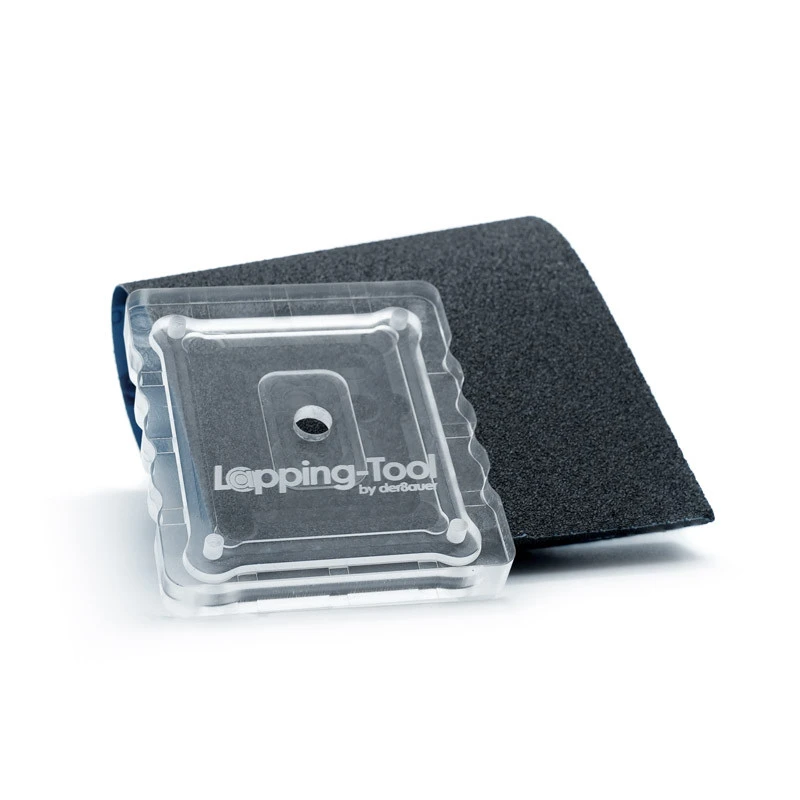

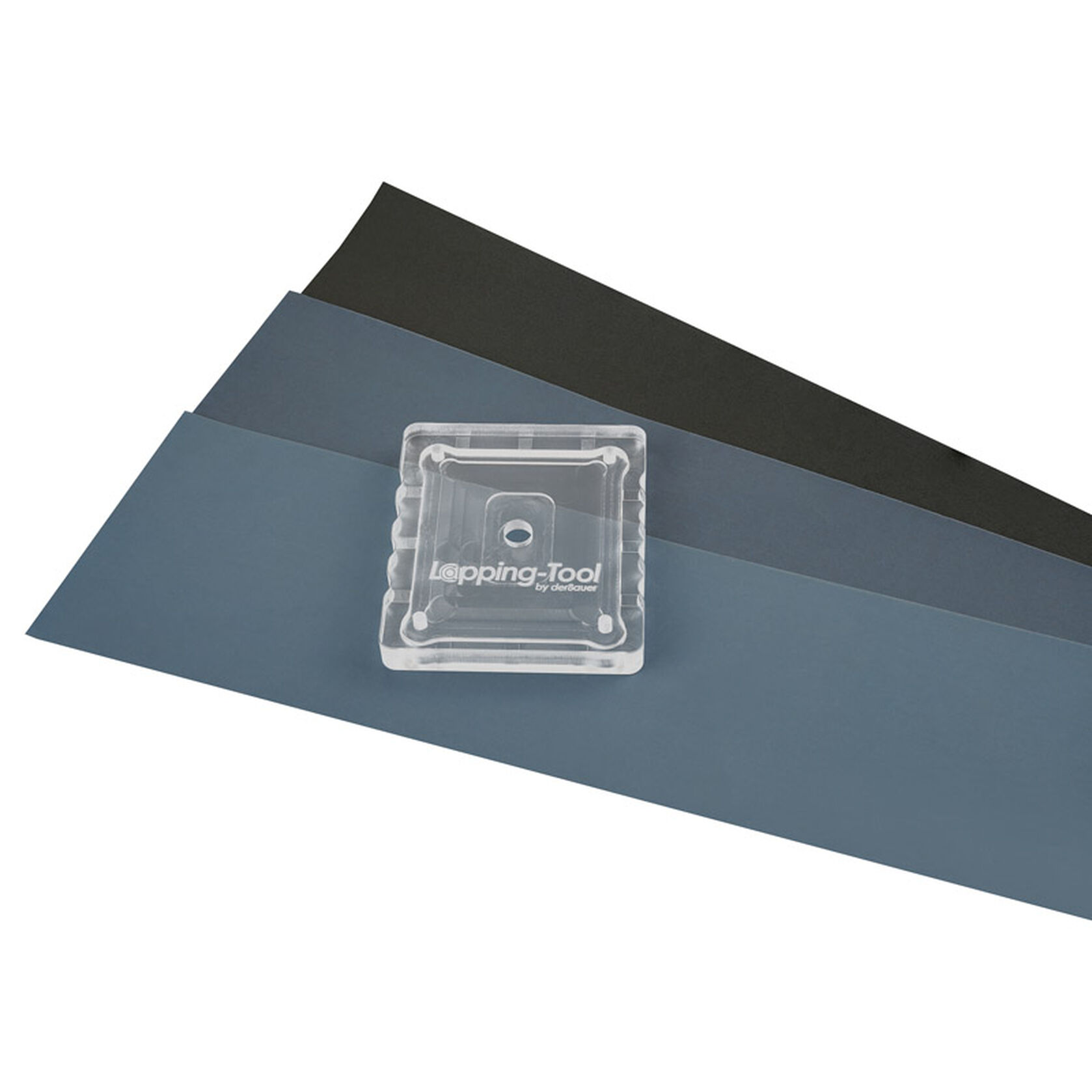

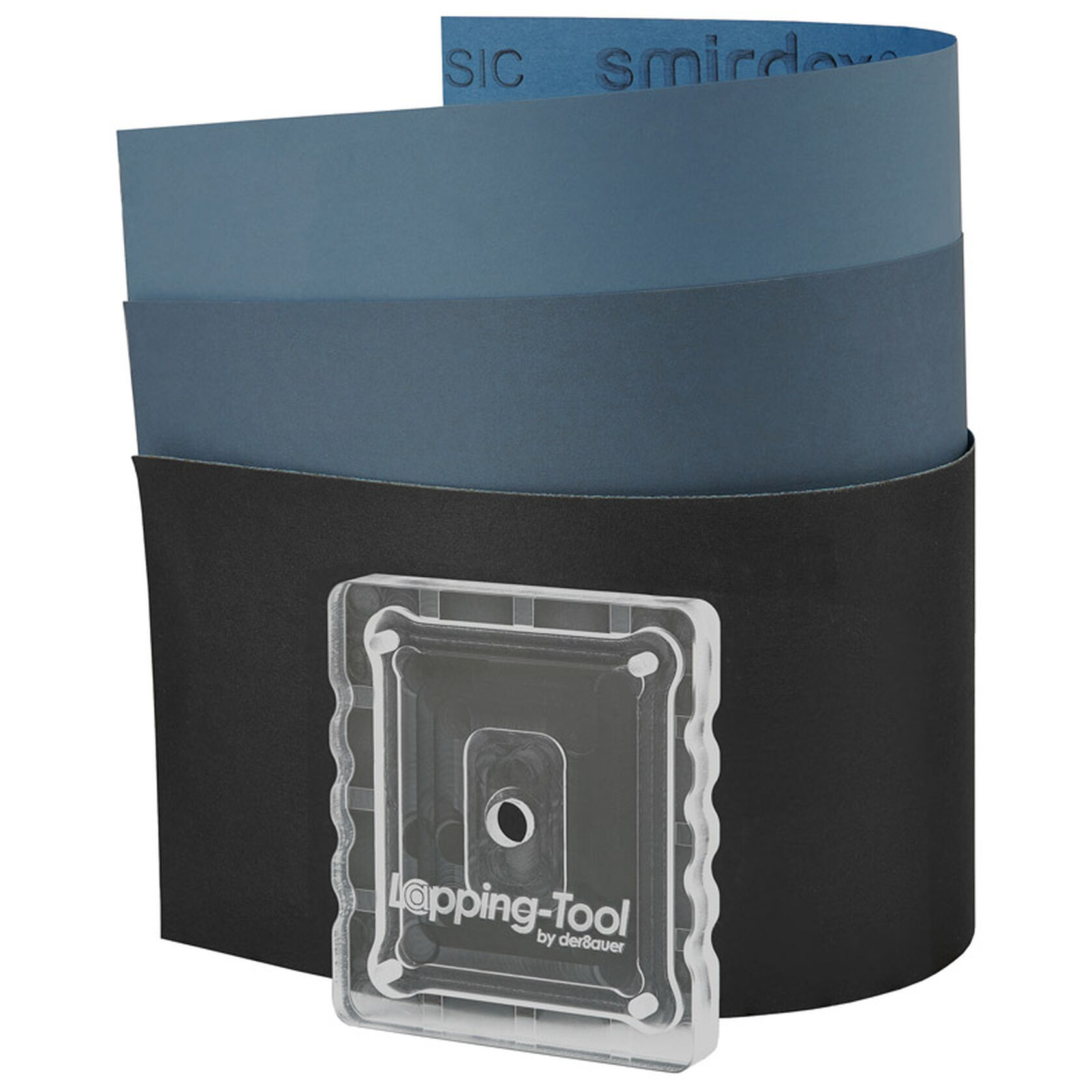

The lapping tool for Intel's 13th Gen processors allows the heat spreader to be safely lapped. The CPU is simply mounted on the lapping tool using the enclosed screws. The tolerances of the lapping tool allow the heat spreader to be ground down by 0.2 millimetres. The 13th Gen Lapping Tool is compatible with Intel 12th & 14th Generation Core CPUs. Sandpaper in grit sizes 400, 1200 and 2,500 is included.
- Simplifies CPU sanding
- For Intel Core 13th Gen (Compatible with 12th & 14th Gen)
- CNC-milled acrylic glass
- Complete set with sandpaper
- Single use recommended
On the lapping tool, there are ridges on the acrylic glass around the CPU. These ridges are 0.2 millimetres high. When the ridges are completely removed, stop sanding. Processors of the 12th, 13th and 14th generation are compatible with both the 12th and 13th Gen Contact Frame as long as they are not ground down more than 0.2 millimetres.
It should be noted that grinding the CPU will void the warranty. For the largest possible contact area between the IHS and the base plate of the CPU cooler, the latter should also be ground. The lapping tool for Intel's 13th Gen CPUs comes with a total of three sheets of sandpaper. The enclosed sandpaper has grits of 400, 1200 and 2,500 (one sheet each). The lapping tool for Intel's 13th Gen CPUs is intended for single use, but can also be used several times. When using multiple times, be especially careful not to sand too much material off the IHS.
Technical specifications
- Length: 65 mm
- Width: 58 mm
- Height: 9 mm
- Material: acrylic glass
- Colour: transparent

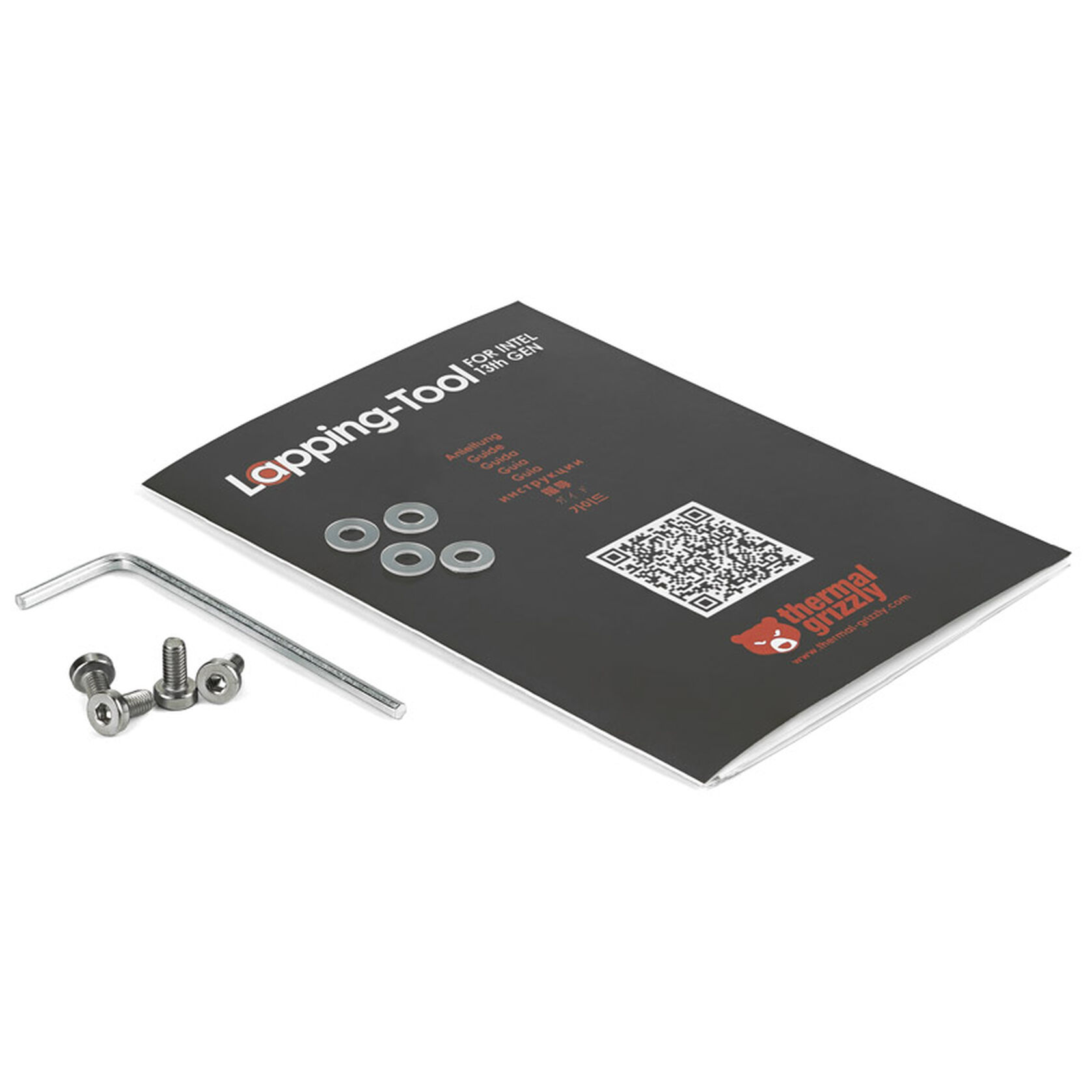

Scope of delivery
- 1x lapping tool
- 4x screw
- 4x PU washer
- 1x hexagon socket spanner 2,5mm
- 1x 400 grit sandpaper
- 1x Sandpaper 1.200 grit
- 1x Sandpaper 2.500 grit
