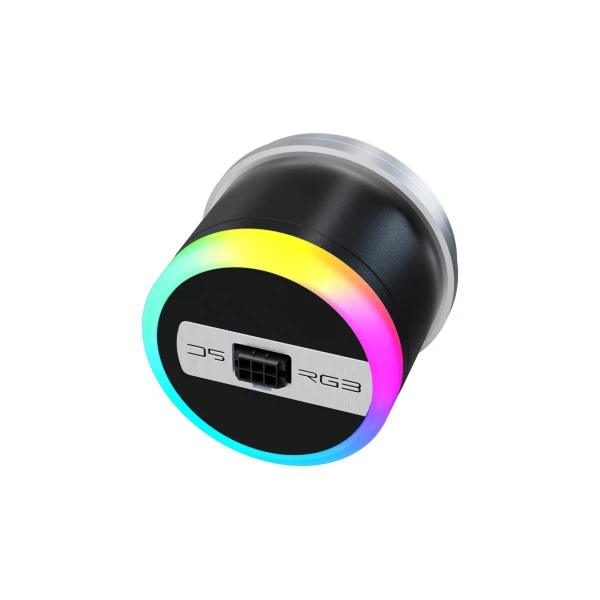

Watercool HEATKILLER D5 PWM aRGB

Brak ocen

Producent: Watercool
Kod producenta: 30061
Kod EAN: 4251312607494
Gwarancja: 24 miesiące

Dostępność:

Dostępny

Dostępna ilość:

Koszt wysyłki: od 0 zł
Darmowa dostawa od 800,00 zł

The HEATKILLER® D5 PWM aRGB pump combines legendary reliability with state-of-the-art technology and impressive lighting. Developed for demanding water cooling enthusiasts.

Original Xylem D5 PWM – Reliable, powerful, and quiet

At the heart of the HEATKILLER D5 aRGB is an original Xylem Lowara D5 pump. A pump mechanism that has proven itself over decades. Its patented designstands for maximum service life, high delivery rate, and silent operation.

Thanks to the shaftless spherical motor principle, there is no bearing play and therefore no increase in operating noise. The self-adjusting wet rotor bearing is lubricated and cooled directly by the coolant. The pump start reliably even after long periods of downtime. The efficient permanent magnet technology also ensures high Efficiency.

WPI Watercool Pump Interface – One cable, all functions

The Watercool Pump Interface (WPI) is the central interface for connecting HEATKILLER D5 PWM pumps. In addition to the supply voltages, PWM, RPM, and aRGB signals are also transmitted via a single cable. This makes cable Routing compact and elegant. Ideal in combination with Passive Control for the MO-RA IV series.

The pump can also be connected to a conventional motherboard using the included cable, regulated, and the aRGB LEDs controlled. The pump can also be connected to a conventional motherboard using the included cable, allowing you to regulate it and control the aRGB LEDs.

The connection cable for passive control (WPI) is available as an Option.

Shiny aRGB effects – flawless, uniform lighting

Sixteen individually controllable aRGB LEDs in combination with original PLEXIGLAS GS LED provide impressive lighting effects. This acrylic distributes the light homogously and prevents annoying light spots. The result is elegant, uniform illumination that integrates seamlessly into any aRGB setup and can be customized.

Perfectly matched to HEATKILLER TUBE & MO-RA IV TANK

The pump is delivered without attachments. A suitable pump attachment (e.g., HEATKILLER® D5-TOP) or a compensation tank with D5 option (e.g. MO-RA IV Tank or HEATKILLER TUBE) is required for operation. The electrical connection is conveniently made via the Watercool Pump Interface or directly via the motherboard with the included cable.

Specifications

Dimensions: Diameter 65mm, length with rotor 67mm

Motor design: Electronically commutated spherical motor

Materials: Stainless steel 1.4571, PPS-GF40, EPDM O-Rings, aluminium oxide, hard carbon

Rated voltage: 12V DC

Power consumption: Max. 30W

Voltage range: 8-24V DC

Pressure head at 12 V: 3,7 m

Max. flow rate: 1500 l/h

Acceptable media: Water, water-glycol mixtures

Max. System temperature: 60°C

Power connection: 6-pin WPI (includes RPM, PWM, aRGB)

Scope of delivery:

1 x HEATKILLER D5 PWM aRGB

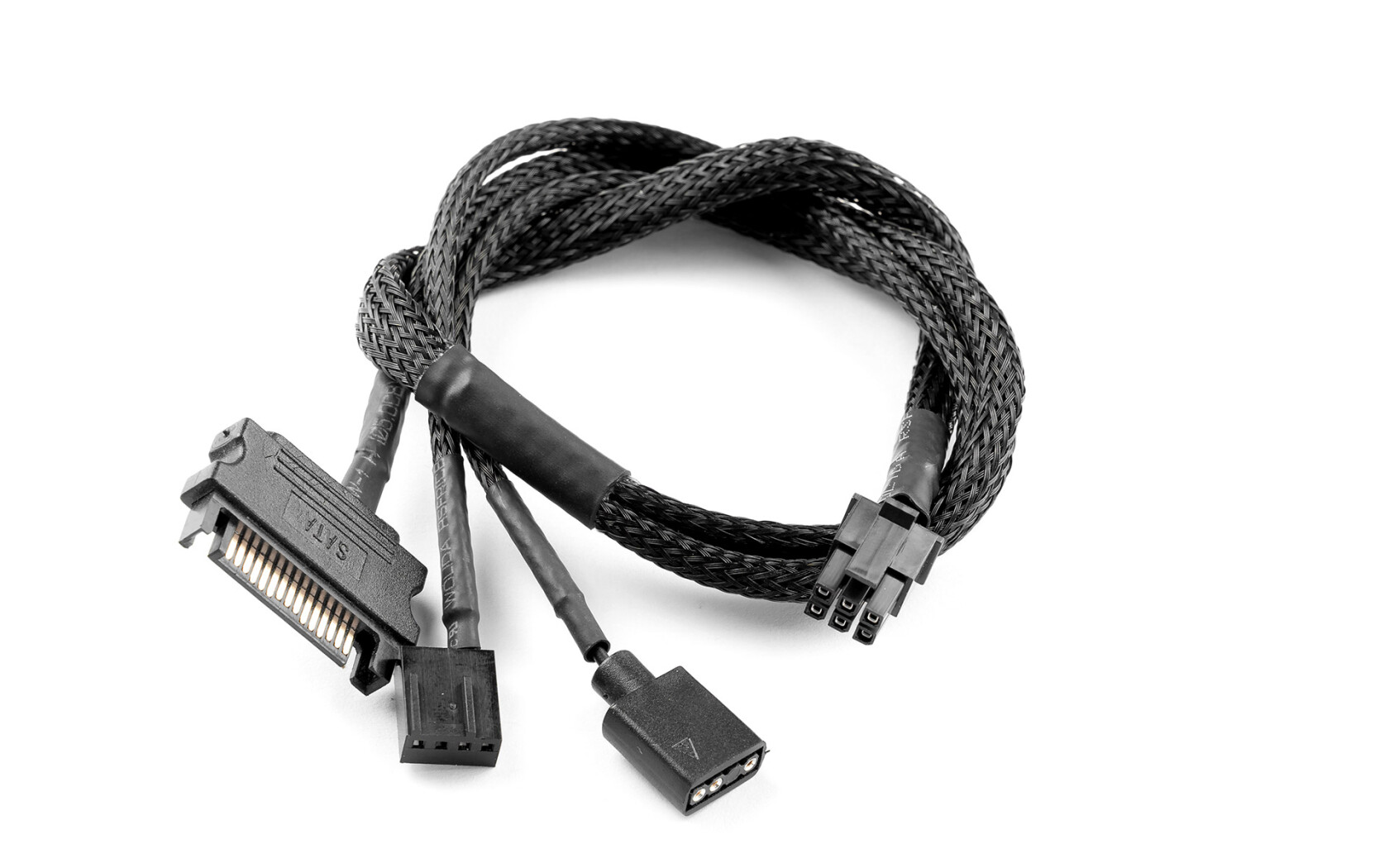

1 x Connection cable for motherboard, aRGB and SATA with a length of 40cm
