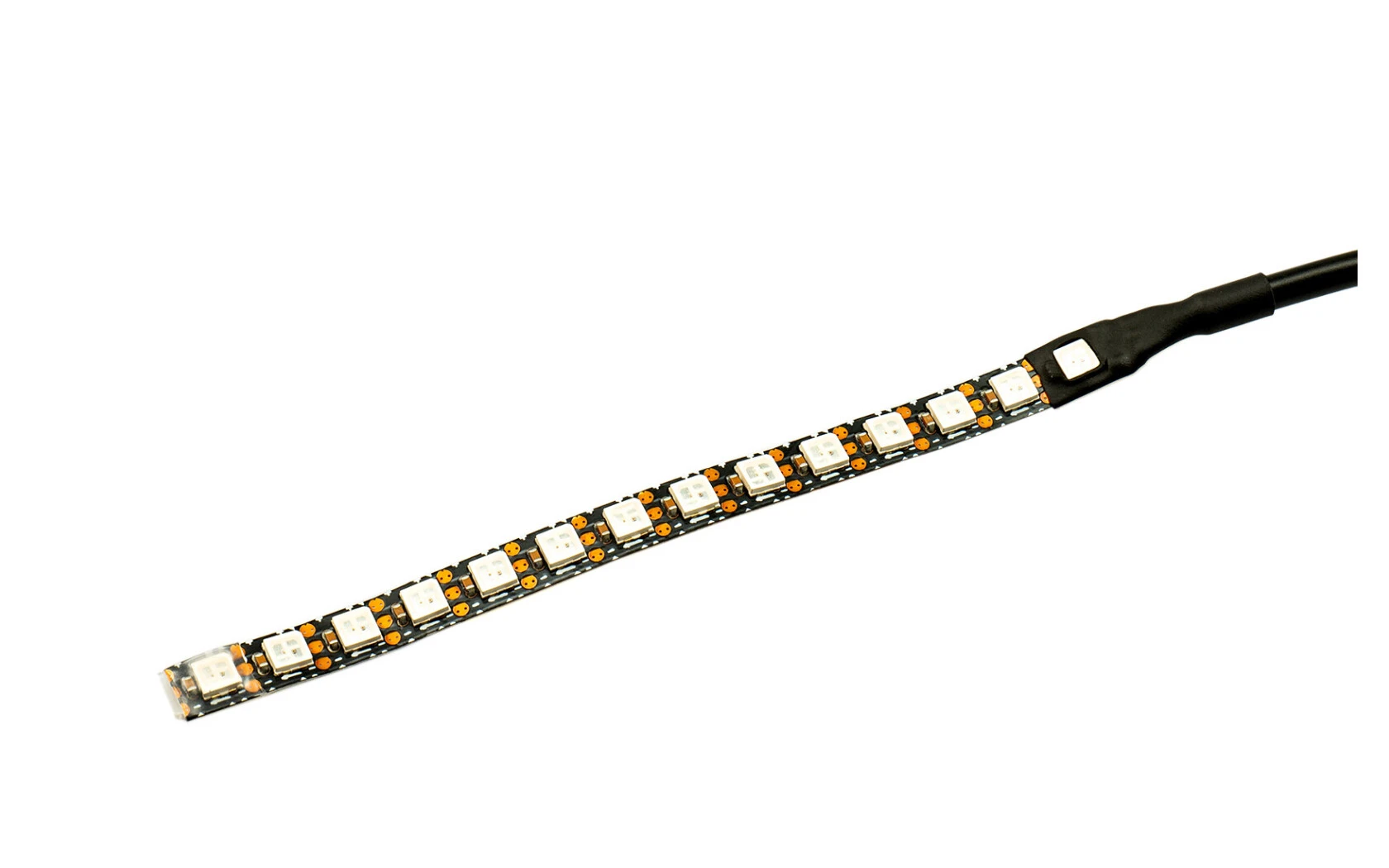

Watercool HEATKILLER High Luminous aRGB LED Stripe S

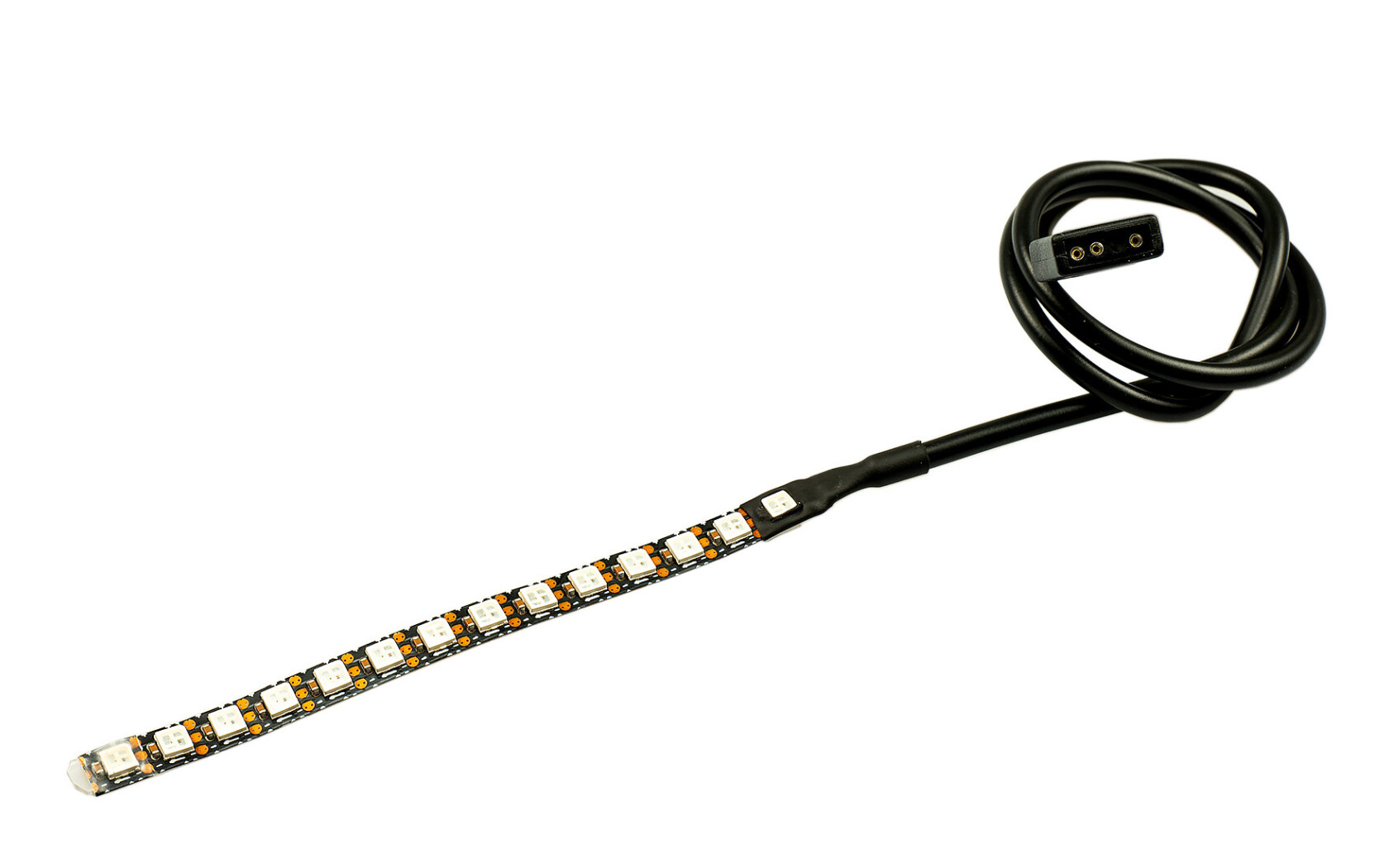

HEATKILLER High Luminous aRGB LED Stripes provide a stylish illumination for your high-end hardware. 144 LEDs per linear metre ensure an immense luminance and powerful colour representation. While the strips also look extremely appealing with a black PCB and a width of only 6mm. With a cable around 40cm long, the stripe can be connected directly to the mainboard using a 3-PIN aRGB connector. Thereby most common standards such as AURA from Asus, AORUS RGB Fusion, MSi Mystic Light etc. are supported.  If desired, the stripe can also be operated on a separate RGB controller with support for addressable LEDs.

By the way, the HEATKILLER High Luminous aRGB LED Strips are also used to illuminate different HEATKILLER® products.



The compatibility is defined as following:



Size XS

HEATKILLER® Tube 100

HEATKILLER® IV for GTX 1080 and 1070

HEATKILLER® IV for TITAN X and GTX 1080Ti



Size S

HEATKILLER® Tube 150

HEATKILLER® Tube 200



Size M

HEATKILLER® IV for Radeon RX 5700 / XT

HEATKILLER® IV for ASUS RTX 2080 Ti STRIX

HEATKILLER® IV for GTX 1080 and 1070 FTW/FTW2

HEATKILLER® IV for RTX 2080 and 2080 Ti Series

HEATKILLER® V for RTX 3080/3090 and 3080 Ti Series



Warning: this stripe can only be connected to an addressable RGB header. Using it on a regular RGB header can damage both the stripe and the header.



Specifications:

Voltage: 5V

Connector: 3-Pin (5VDG, 5V)

PCB Width: 6 mm

PCB length: 100mm

LED / Meter: 144
