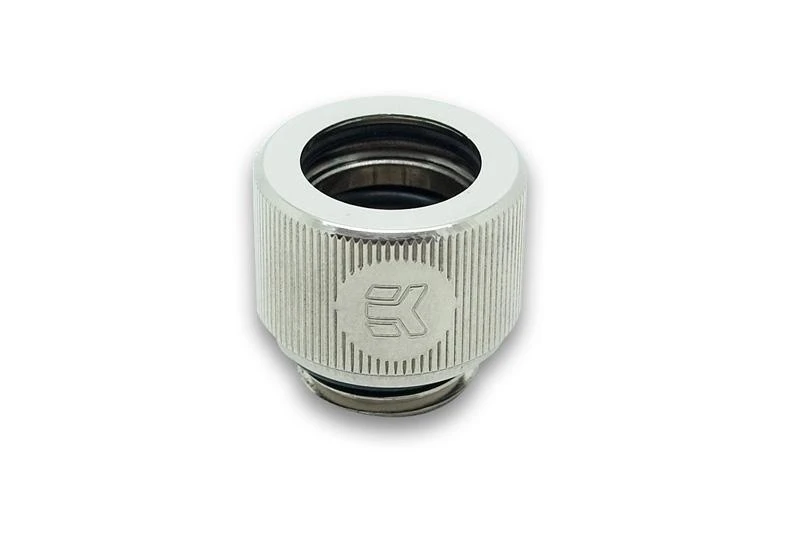

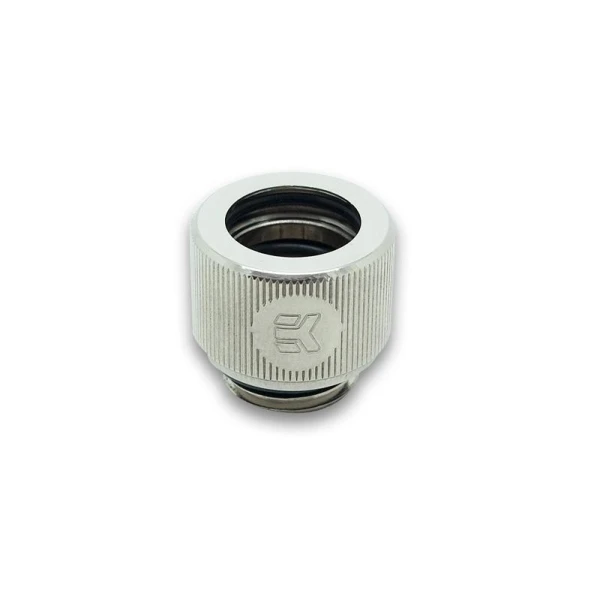

EK Water Blocks EK-HDC Fitting 12mm G1/4 - Nickel

EK-HDC Fitting is a solid-tube compression fitting, designed for use with solid tubing such as Acrylic, Copper, Stainless Steel or any other type of compatible hard tube.

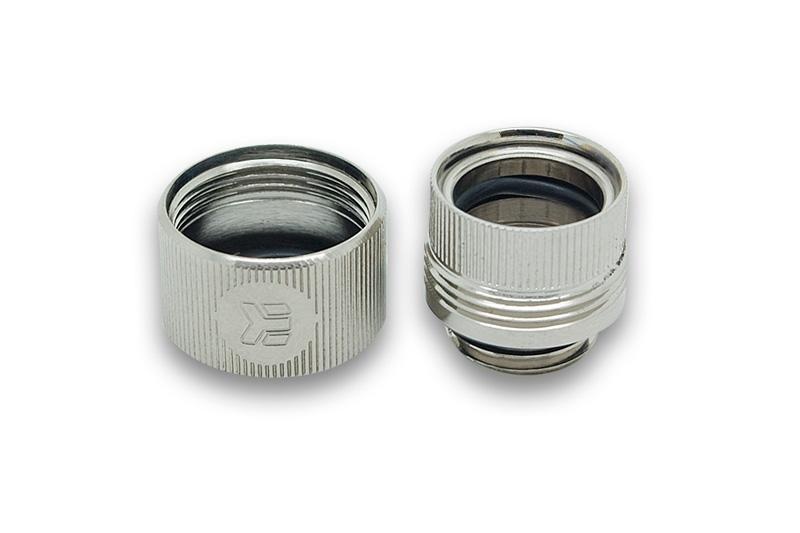

EK-HDC Fitting is a more secure variant of the EK-HD Adapter fitting as it prevents solid tube to be pulled out of the fitting by compressing the rubber gasket underneath the ring.



The barb is made of black nickel-plated CNC machined brass while the ring is made of red anodized CNC machined aluminum and feature quality O-rings. These fittings are fully compatible with EK-AF series (45°/90°) angled adapters.



Best practice is to install these fittings using Allen Key 9mm (not included, available for separate purchase).



Technical data:

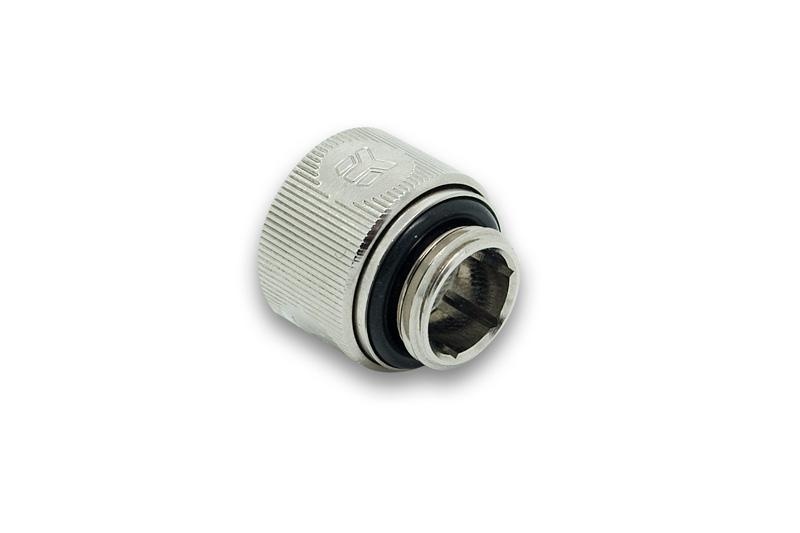

- thread: G1/4" BSP; 4.5mm male thread lenght

- supported tube: 12mm (OD)

- outer diameter of a fitting: 18.8mm

- installed height: 17mm

- compatible tubing: solid Acrylic-, Copper-, Brass- or Stainless Steel tube



ROHS Compliant!



Made in Slovenia - Europe!



PLEASE NOTE:

• Please wet the gasket (o-ring) using drops of water prior to installing solid tube.
• Do not use excessive force when inserting solid tube!
• It is mandatory to chamfer the edges of freshly cut solid tube in order to prevent gasket (o-ring) damage. EK recommends a 0.5mm x 45° chamfer.
