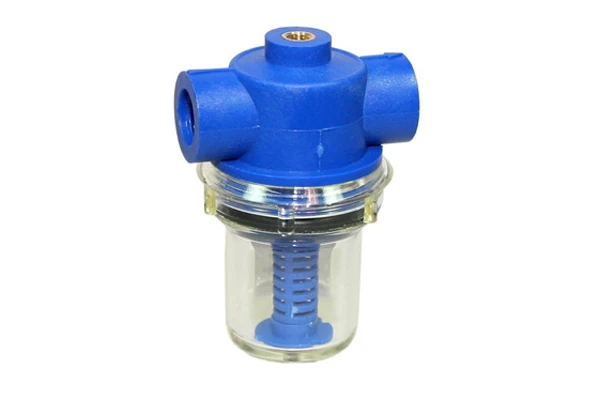

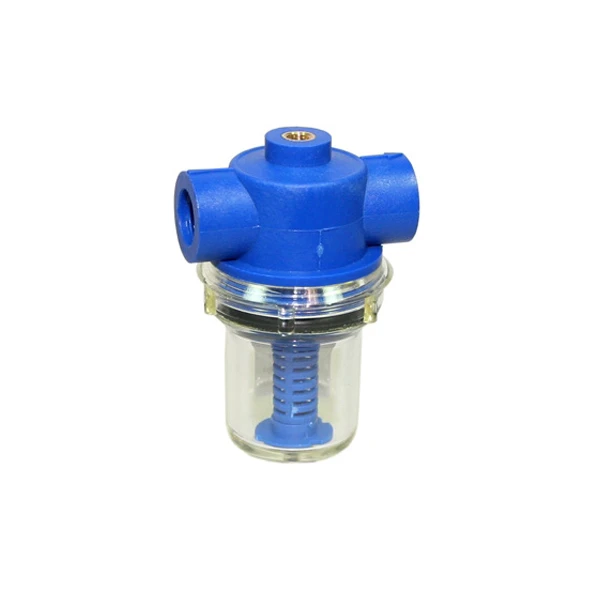

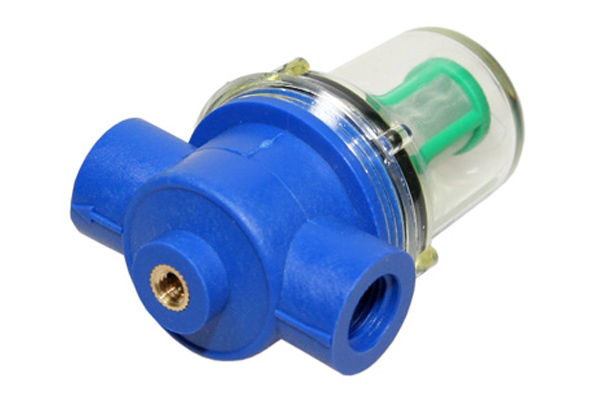

Innovatek particle filter (without cartridge)

The Innovatek particle filter is extremely efficient and compact. It can be equipped with multiple different filter cartridges (not included) with different filtering grades.



Of course a data sheet is available upon request.



The filter is suitable for liquid filtering (but also gases). With the choice of cartridge the fineness of filter can be chosen to be retained.

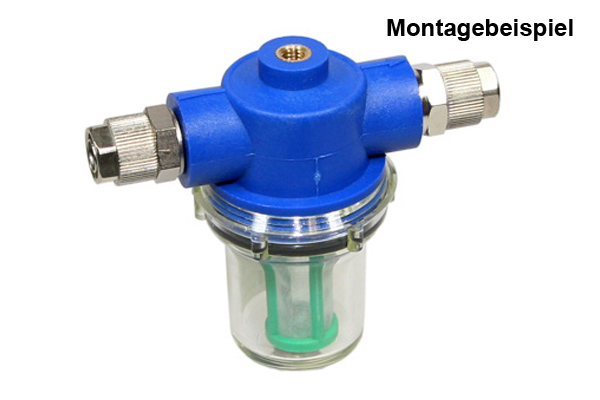

The filter is equipped with G1/4" threads and can hence be used with virtually all standard watercooling fittings (not included). The top of the unit is equipped with a M6 thread for quick and easy mounting.



Overall dimensions: 56 x 72,5 x 50mm

Connection thread: G1/4" DIN ISO 228-1

Volume: approx. 0,1l

Material: PP / Trogamid

Colour: Blue / transparent

Seal: Perbunan

Operating pressure: Max. 4 bar

Temperature range: Max. 60°C

Mounting thread: 1x M5, 5mm deep inner thread



-filter cartridge type 150μm

-filter cartridge type 220μm

-filter cartridge type 350μm

Filter material: Nylon with reinforcement cage



Particle filter



Please note: Fittings and filter cartridge not included!
