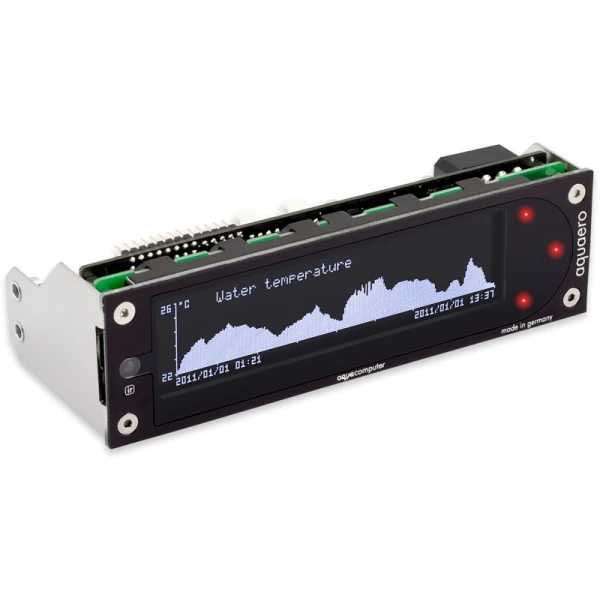

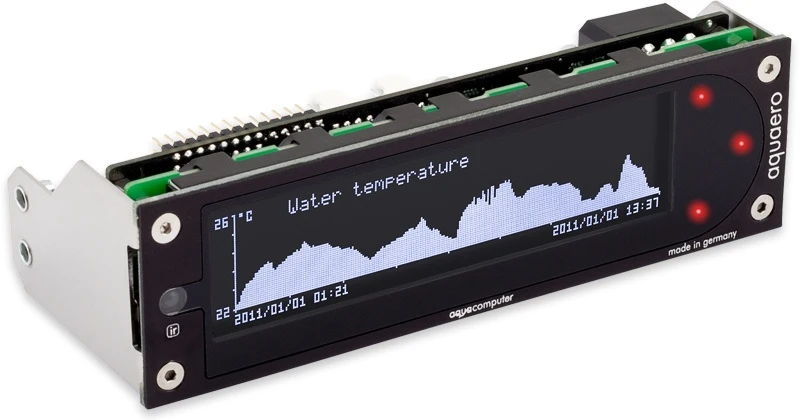

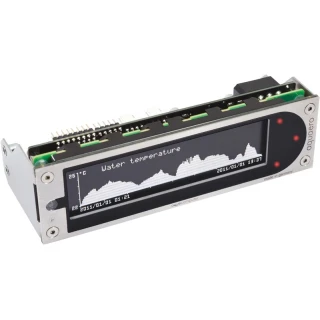

Aquacomputer aquaero 6 XT black/red USB fan controller, graphic LCD, touch control, IR remote control

Aquacomputer aquaero 6 XT black/red USB fan controller, graphic LCD, touch control, IR remote control

Brak ocen

Producent: Aqua Computer
Kod producenta: 53250
Kod EAN:
Gwarancja: 24 miesiące

Dostępność:

Oczekujemy na dostawę

Koszt wysyłki: od 0 zł
Darmowa dostawa od 800,00 zł

The aquaero is an absolutely autonomous working microprocessor-controlled device with USB 2.0 interface. All speed parameters and sensor values can be set and visualized in an user-friendly menu or through an even easier to use PC-software. Additionally, the graphic LC display can be used to display almost any information using the popular LCD software LCDHype.

The key features of the aquaero 6 include:

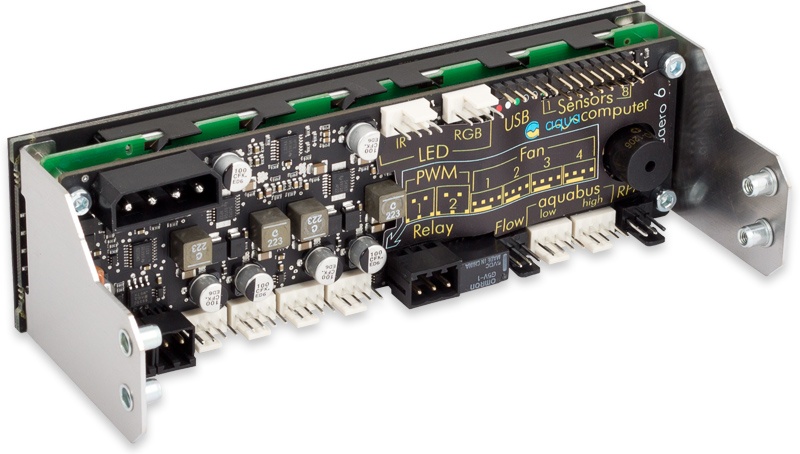

· Programmable four channel fan controller
· Graphic LC display with backlight (except LT version)
· USB 2.0 and aquabus interface
· Four fan outputs with up to 30 Watt of power per channel
· All fan outputs with 4-Pin plug, switchable between coltage and PWM control
· Versatile control options
· Eight temperature sensor inputs
· Flow sensor input
· Universal IR receiver (except LT version)

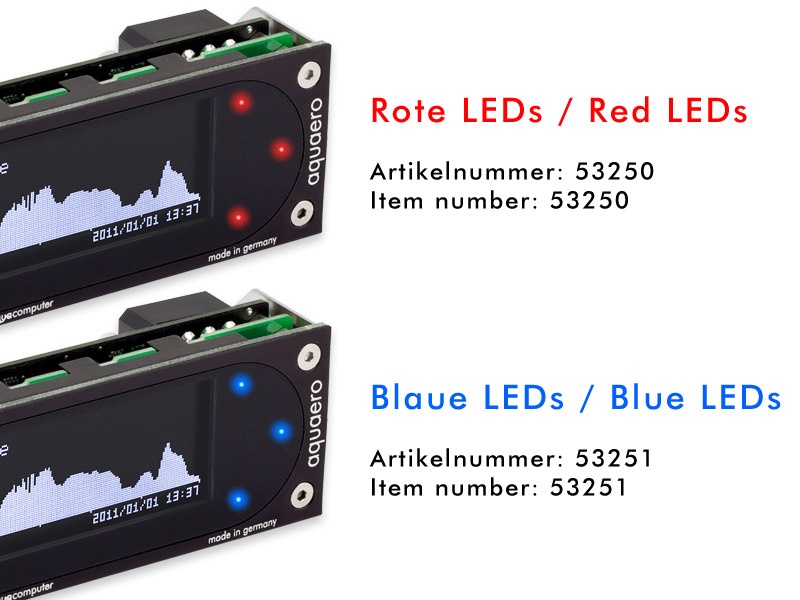

· Three LED outputs
· Potential-free switch
· Two additional power outputs
· Extensive alarm options
· Acoustical alarm
· Speed signal output for status evaluation
· Expandable to a maximum of 12 fan channels

For a more thorough feature description, we recommend to download the manual: aquaero_5_aquaero_6_english.pdf

Several Aqua Computer products can be used to expand the functionality of the aquaero 5 Controller. These expansions are dynamically mapped into the device, creating a consistent control system rather than individual devices.

In maximum configuration, the following devices can be connected to an aquaero via aquabus to expand functionality:
4x Calitemp
2x aquaero 5/6 LT
2x QUADRO
1x OCTO
8x poweradjust 2/3
2x aquastream ULTIMATE or aquastream XT pump
2x D5 NEXT pump
4x VISION based products
4x mps based devices (flow sensor, pressure/fill level sensor or D5 pump with aquabus)
2x farbwerk
1x Real Time Clock expansion module

When connecting aquabus devices to expand functionality, overlapping assignments will restrict the maximum number of inputs and outputs that can be used. The aquaero can control a total of:
12 fan outputs
64 temperature sensors
6 pumps
14 flow sensors
4 fill level or pressure sensors
9 RGB outputs
1 relay contact

In case of overlapping assignments, predefined priorities determine which device will be used by the aquaero. Details can be found in the manual, which is also available as a download.

Scope of delivery:
- aquaero 6 XT controller

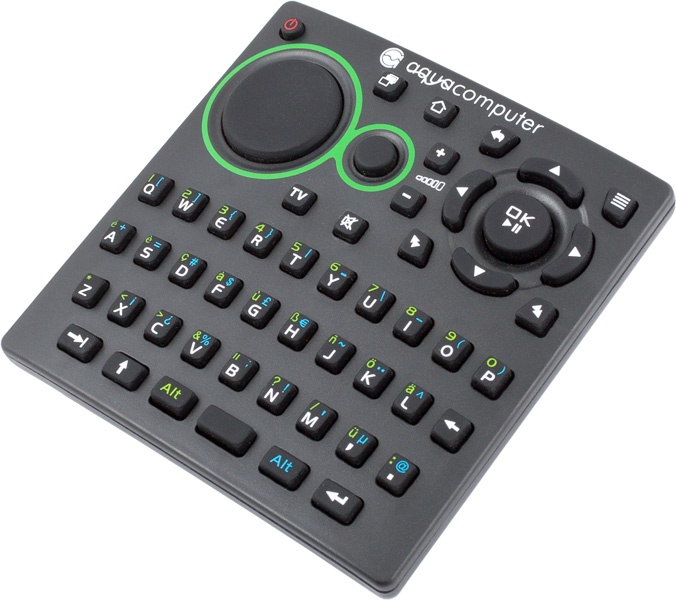

- remote control aquaremote
- four temperature sensors, length approx. 70 cm
- one internal USB cable, length approx. 100 cm
- one connection cable for speed signal or aquabus
- manual
- mounting material for installation into a free extension bay

Notes on the aquasuite software:
When you activate this product you will receive the current version of the aquasuite software including an upgrade service for at least thirty (30) months. After the expiration of the upgrade service you may use and reinstall the latest version available during the upgrade period without a time limit.
The update service can optionally be extended or renewed at any time for a fee.
Please note that an internet connection is required for the installation and activation of the aquasuite software.
Further information about the update service and the activation of the aquasuite software can be found here.
