Alphacool ES RTX 5080 Reference 1-slot design with backplate
- Producent: Alphacool
- Kod producenta: 10261
- Kod EAN: 4250197102612
- Gwarancja: 24 miesiące
Dostępność:
Oczekujemy na dostawę
- NOWOŚĆ
- Koszt wysyłki: od 0 zł
- Darmowa dostawa od 800,00 zł

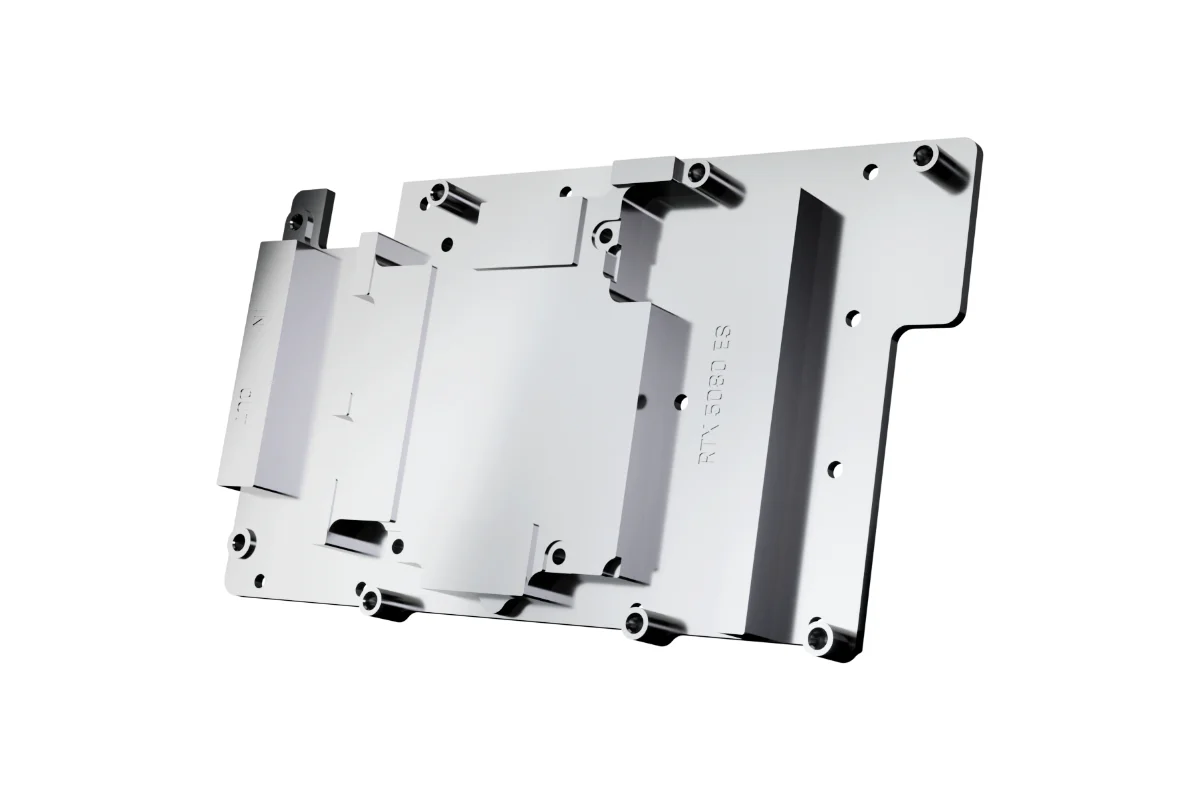

Alphacool ES RTX 5080 Reference 1-slot design with backplate
Alphacool is expanding its Enterprise series with the latest 1-slot water coolers for the current Nvidia GeForce RTX generation. These solutions are specifically designed for use in server cases and workstations and enable efficient cooling, even in densely populated systems.

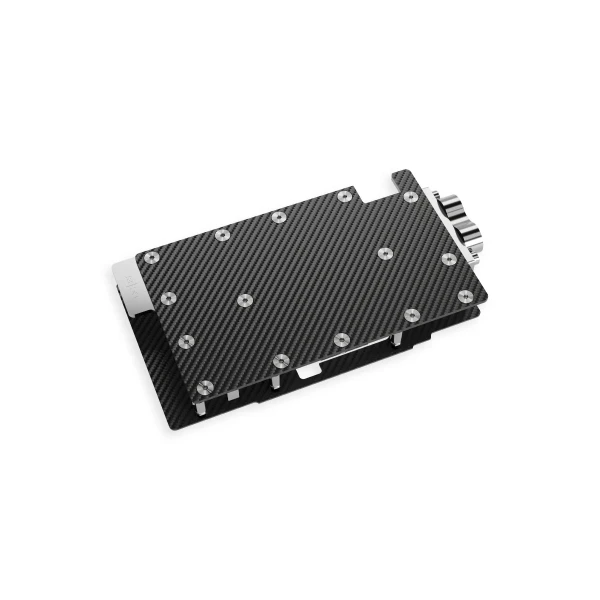

By using a thin and extremely stable carbon plate, this cooler could be designed as a single-slot cooler without compromising on the copper block. Combined with the rear-mounted brass connectors, multiple coolers can be easily stacked on top of each other or side by side in the server case. This sophisticated design saves space, simplifies piping, and enables seamless integration into the water loop.
High-quality copper is used for all water-carrying parts, which offers almost twice the thermal conductivity of aluminum. Furthermore, the copper is chrome-plated instead of nickel-plated, providing additional protection for the cooler. Chrome plating is more resistant to acids, scratches, and other damage, effectively preventing coatings from chipping.
Technically, the GPU water cooler has been completely redesigned. To optimize cooling performance, the gaps between the cooler and the PCB components were redefined and tested. The water flow was simulated using state-of-the-art software and verified in practical tests. These extensive tests enabled improvements to the cooler base and nozzle to ensure the best possible cooling performance for the new Nvidia GeForce RTX generation.
Compatibility:
- MSI GeForce RTX™ 5070 Ti 16G INSPIRE 3X OC
- MSI GeForce RTX™ 5070 Ti 16G SHADOW 3X OC
- MSI GeForce RTX™ 5070 Ti 16G VENTUS 3X OC (V531-092R)
- Inno3D GeForce RTX™ 5080 iChill Frostbite (C50803-16D7X-1760FB)
- Inno3D GeForce RTX™ 5080 iChill X3 (C50803-16D7X-176069H)
- Inno3D GeForce RTX™ 5080 X3 (N50803-16D7-176068N)
- Inno3D GeForce RTX™ 5080 X3 OC (N50803-16D7X-17603930)
- Inno3D GeForce RTX™ 5080 X3 OC White (N50803-16D7X-17605211)
- MSI GeForce RTX™ 5080 16G SHADOW 3X OC (G5080-16S3C)
- MSI GeForce RTX™ 5080 16G VENTUS 3X OC (V531-095R)
- MSI GeForce RTX™ 5080 16G VENTUS 3X OC Plus (V531-001R)
Alphacool is expanding its Enterprise series with the latest 1-slot water coolers for the current Nvidia GeForce RTX generation. These solutions are specifically designed for use in server cases and workstations and enable efficient cooling, even in densely populated systems.
By using a thin and extremely stable carbon plate, this cooler could be designed as a single-slot cooler without compromising on the copper block. Combined with the rear-mounted brass connectors, multiple coolers can be easily stacked on top of each other or side by side in the server case. This sophisticated design saves space, simplifies piping, and enables seamless integration into the water loop.
High-quality copper is used for all water-carrying parts, which offers almost twice the thermal conductivity of aluminum. Furthermore, the copper is chrome-plated instead of nickel-plated, providing additional protection for the cooler. Chrome plating is more resistant to acids, scratches, and other damage, effectively preventing coatings from chipping.
Technically, the GPU water cooler has been completely redesigned. To optimize cooling performance, the gaps between the cooler and the PCB components were redefined and tested. The water flow was simulated using state-of-the-art software and verified in practical tests. These extensive tests enabled improvements to the cooler base and nozzle to ensure the best possible cooling performance for the new Nvidia GeForce RTX generation.
Compatibility:
- MSI GeForce RTX™ 5070 Ti 16G INSPIRE 3X OC
- MSI GeForce RTX™ 5070 Ti 16G SHADOW 3X OC
- MSI GeForce RTX™ 5070 Ti 16G VENTUS 3X OC (V531-092R)
- Inno3D GeForce RTX™ 5080 iChill Frostbite (C50803-16D7X-1760FB)
- Inno3D GeForce RTX™ 5080 iChill X3 (C50803-16D7X-176069H)
- Inno3D GeForce RTX™ 5080 X3 (N50803-16D7-176068N)
- Inno3D GeForce RTX™ 5080 X3 OC (N50803-16D7X-17603930)
- Inno3D GeForce RTX™ 5080 X3 OC White (N50803-16D7X-17605211)
- MSI GeForce RTX™ 5080 16G SHADOW 3X OC (G5080-16S3C)
- MSI GeForce RTX™ 5080 16G VENTUS 3X OC (V531-095R)
- MSI GeForce RTX™ 5080 16G VENTUS 3X OC Plus (V531-001R)
Technical data cooler | |
Complete dimensions (L x W x H) | 186.50 x 95.75 x 21.19mm |
Radiator base material | chrome-plated copper |
Material radiator top | Acrylic |
Material Terminal | Brass |
Material connection thread | Brass |
Maximum working temperature | 60°C |
Pressure tested | 0.8 bar |
Connections | 2 x G1/4" |
Thickness of radiator base | 3.25mm |
Thick cooling fins | 0.4mm |
Distance between cooling fins | 0.4mm |
Color | transparent |
Technical data backplate | |
Dimensions (L x W x H) | 171.50 x 95.75 x 3mm |
Thick backplate without spacers | 1mm |
material | aluminum |
