Alphacool Core Geforce RTX 5090 EPIC-X with backplate

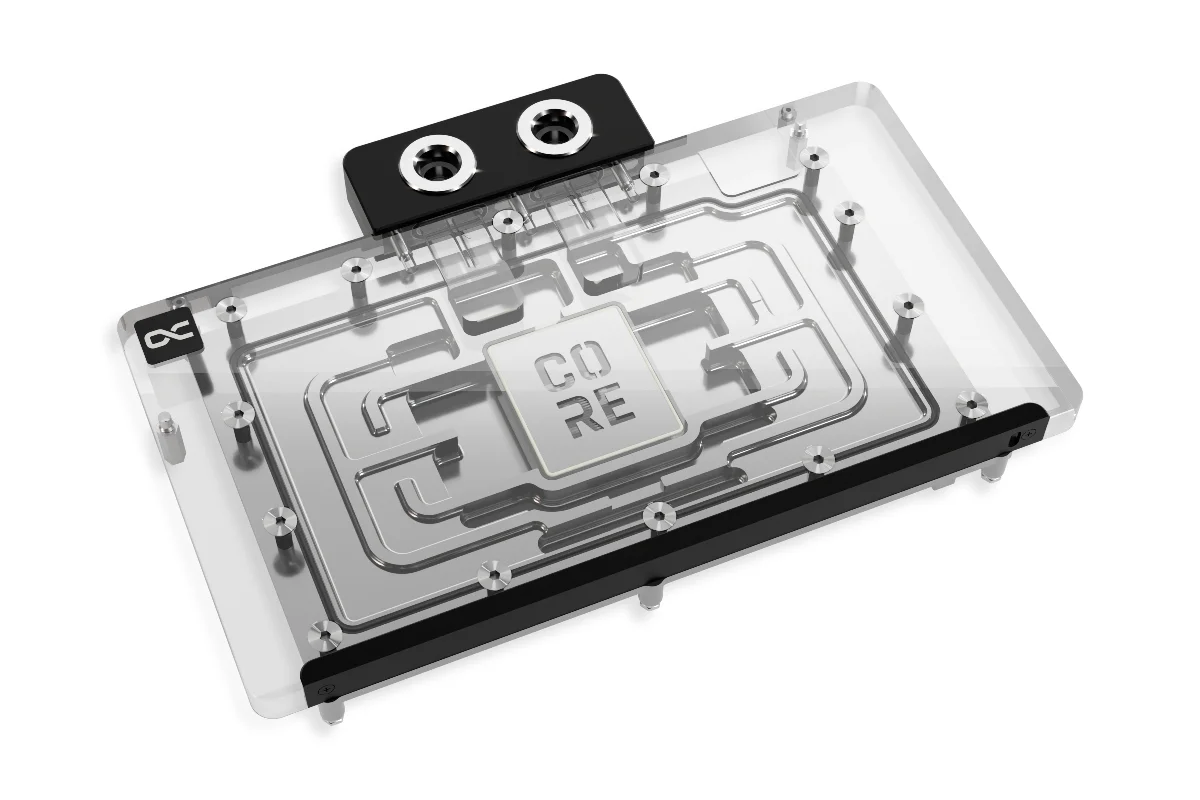

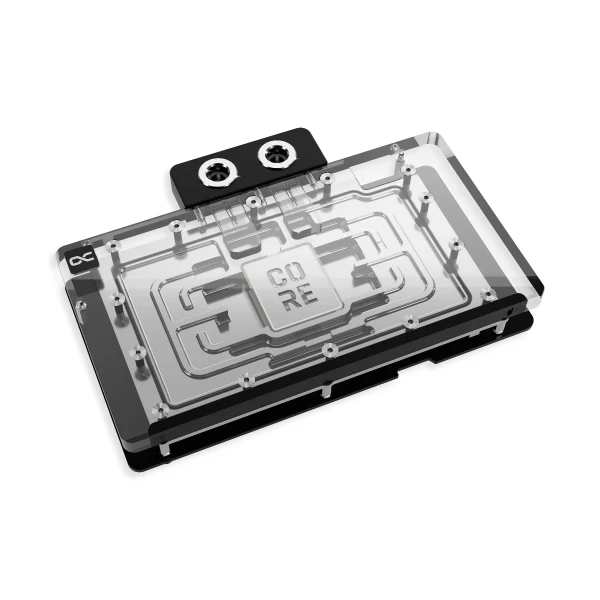

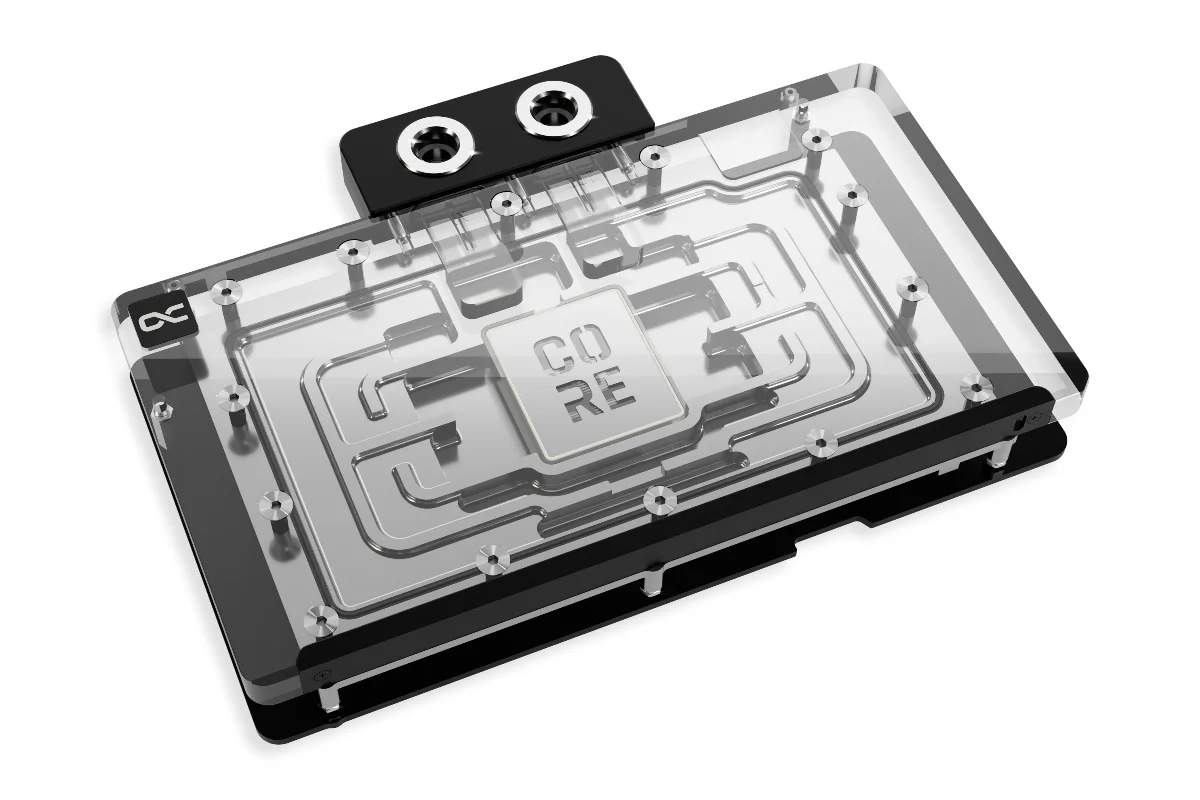

Alphacool presents its new graphics card water coolers for the latest Nvidia GeForce RTX generation. They are part of the Core product series and combine the highest quality with exceptional performance. Thanks to an optimized technical design, these GPU coolers offer outstanding cooling performance.

At the center of the cooler is the one-piece milled copper cooler, complemented by a precision-machined brass terminal with a nylon cover. Chrome plating makes the copper cooler more durable and provides a smoother, brighter surface than conventional nickel plating.

The visual design of the GPU water cooler has been changed only slightly. A special highlight is the newly added Core emblem above the jet plate, which underscores its affiliation with the Core series and visually enhances the design. The series continues to rely on high-quality brass fittings, guaranteeing optimal quality and safety. The specially adapted aluminum backplate covers the entire rear of the copper cooler and ensures a clean and uniform appearance. The acrylic, in combination with the aRGB lighting, enables even and impressive illumination of the entire cooler.

Technically, the GPU water cooler has been completely redesigned. To optimize cooling performance, the gaps between the cooler and the PCB components were redefined and tested. The water flow was simulated using state-of-the-art software and verified in practical tests. These extensive tests enabled improvements to the cooler base and nozzle to ensure the best possible cooling performance for the new Nvidia GeForce RTX generation.
Compatibility:
- PNY GeForce RTX™ 5090 ARGB EPIC-X RGB™ Overclocked Triple Fan GPU
- PNY GeForce RTX™ 5090 ARGB EPIC-X RGB™ Triple Fan GPU
- PNY GeForce RTX™ 5090 Overclocked Triple Fan GPU
- PNY GeForce RTX™ 5090 Triple Fan GPU

Technical data cooler
Complete dimensions (L x W x H)	218.40 x 148.57 x 34.38mm
Radiator base material	chrome-plated copper
Material radiator top	Acrylic
Material Terminal	Acetal
Material connection thread	Brass
Maximum working temperature	60°C
Pressure tested	0.8 bar
Connections	4 x G1/4"
Thickness of radiator base	3.25mm
Thick cooling fins	0.4mm
Distance between cooling fins	0.4mm
lighting	digital aRGB LEDs
Power connection digital aRGB LEDs	3-pin JST
Voltage digital aRGB LEDs	5V
Number of digital aRGB LEDs	9
Color	transparent

Technical data backplate
Dimensions (L x W x H)	218.40 x 120.00 x 6.00mm
Thick backplate without spacers	3mm
material	aluminum
