Alphacool Eisblock Aurora Plexi GPX-A AMD Radeon RX 5700/5700XT Reference
- Producent: Alphacool
- Kod producenta: 11742
- Kod EAN: 4250197117425
- Gwarancja: 24 miesiące
Oczekujemy na dostawę
- Koszt wysyłki: od 6,90 zł
- Darmowa dostawa od 800,00 zł

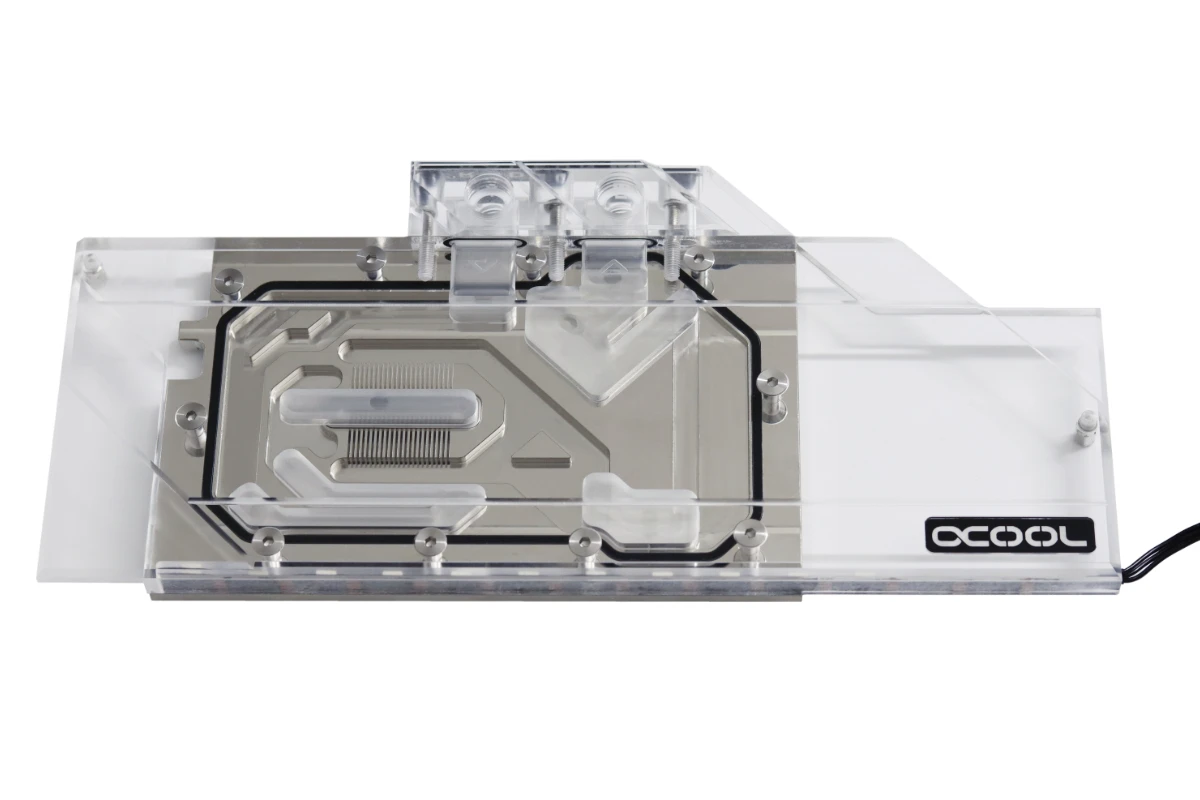

The Alphacool Aurora Plexi GPX Eisblock combines style with performance and extensive digital RGB lighting. With experience of over 16 years, Alphacool the ability to create GPU blocks that represent high quality and fantastic performance. This perfectly describes the Aurora Plexi GPX Eisblock
During the development of the EIsblock Aurora GPX graphic card GPU block, we wanted to further increase the performance. The first step was to move the cooler closer to the individual components by reducing the thermal pads to a thickness of 1 mm. Next, we reduced the thickness of the nickel-plated copper block. Instead of 7 mm, it is now only 5.5 mm thick. The water flow inside the cooler has also been optimized. All important components such as the voltage transformers and the memory are now significantly better and more effectively cooled by the water. All this ensures a significant increase in cooling performance.

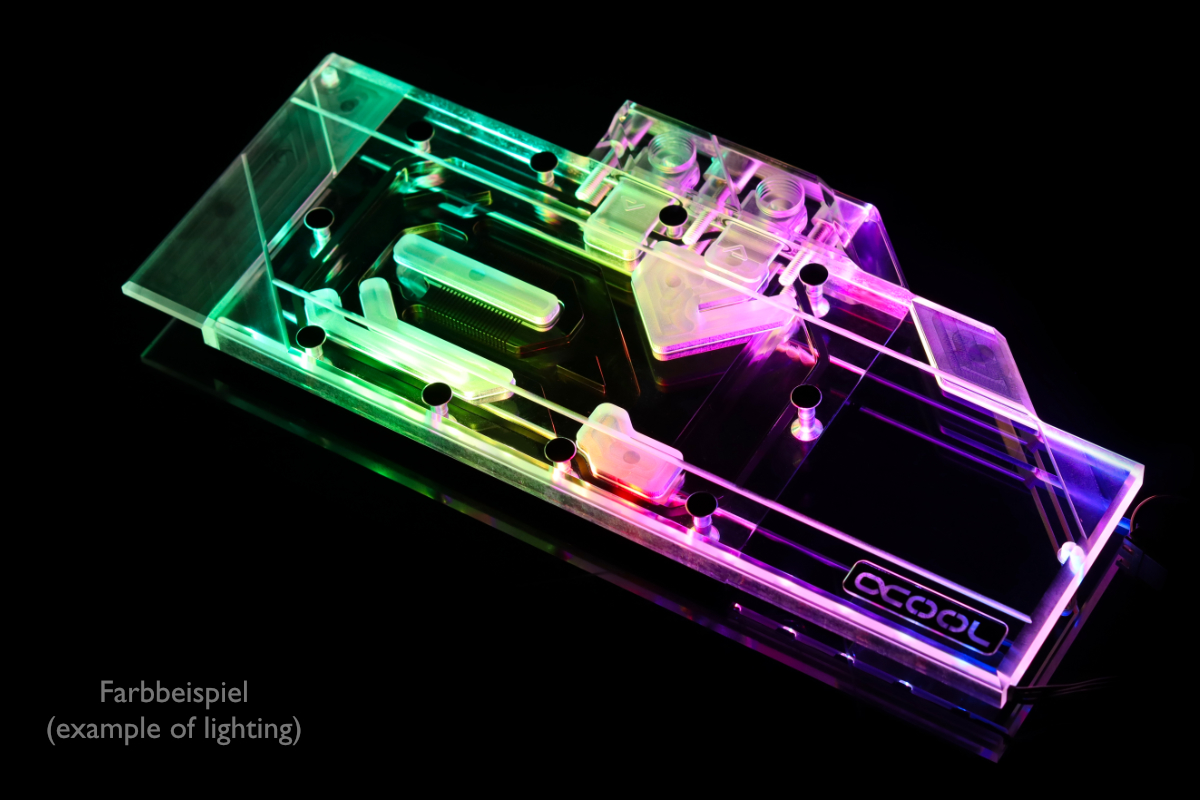

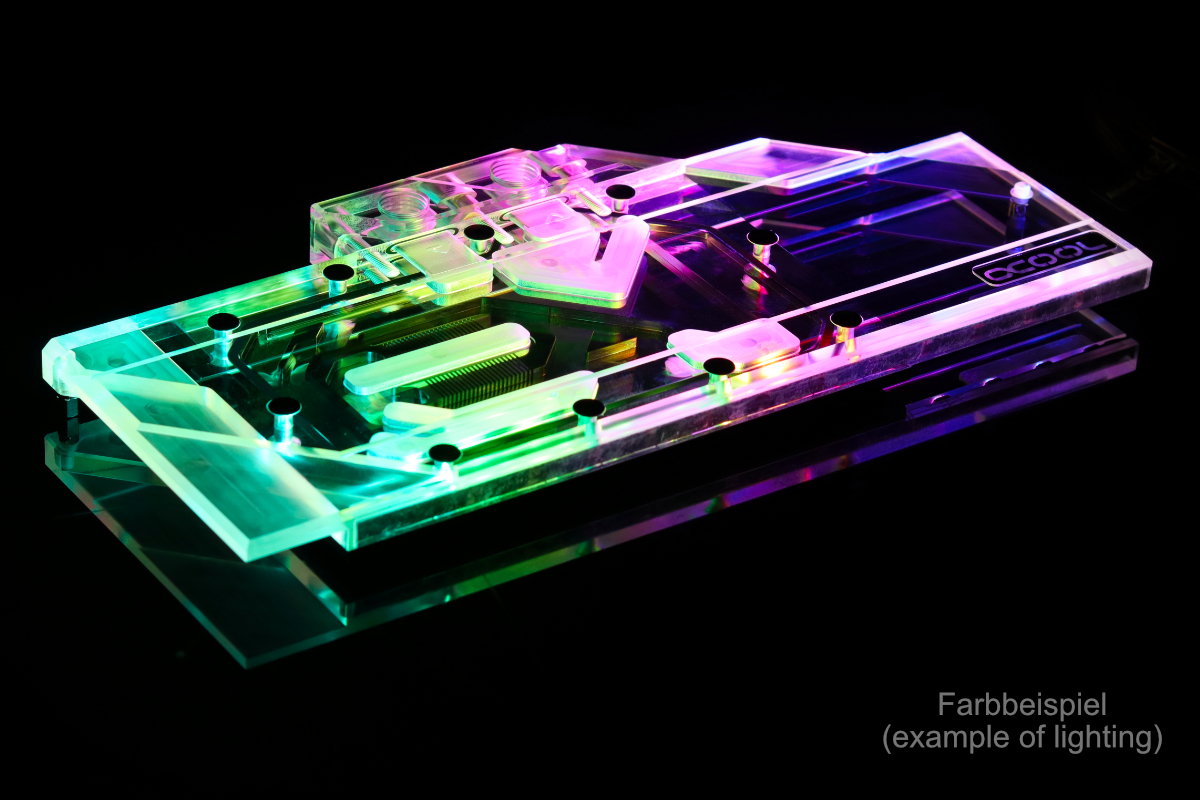

The Eisblock Aurora GPX cooler has been designed so that lighting is more important than the previous models. The addressable digital RGB LEDs are embedded directly into the cooling block and run along the entire cooling block. The effect is an illumination of the entire cooling block. No corner or edge remains unlit by the aRGB LEDs. The new design is more angular with all edges bevelled. This promotes better light diffusion in the water cooler due to the reflections on these bevels. In addition, they create various contours, which give the Aurora GPX Eisblock cooler its very own unique identity.
Copper or Aluminium?

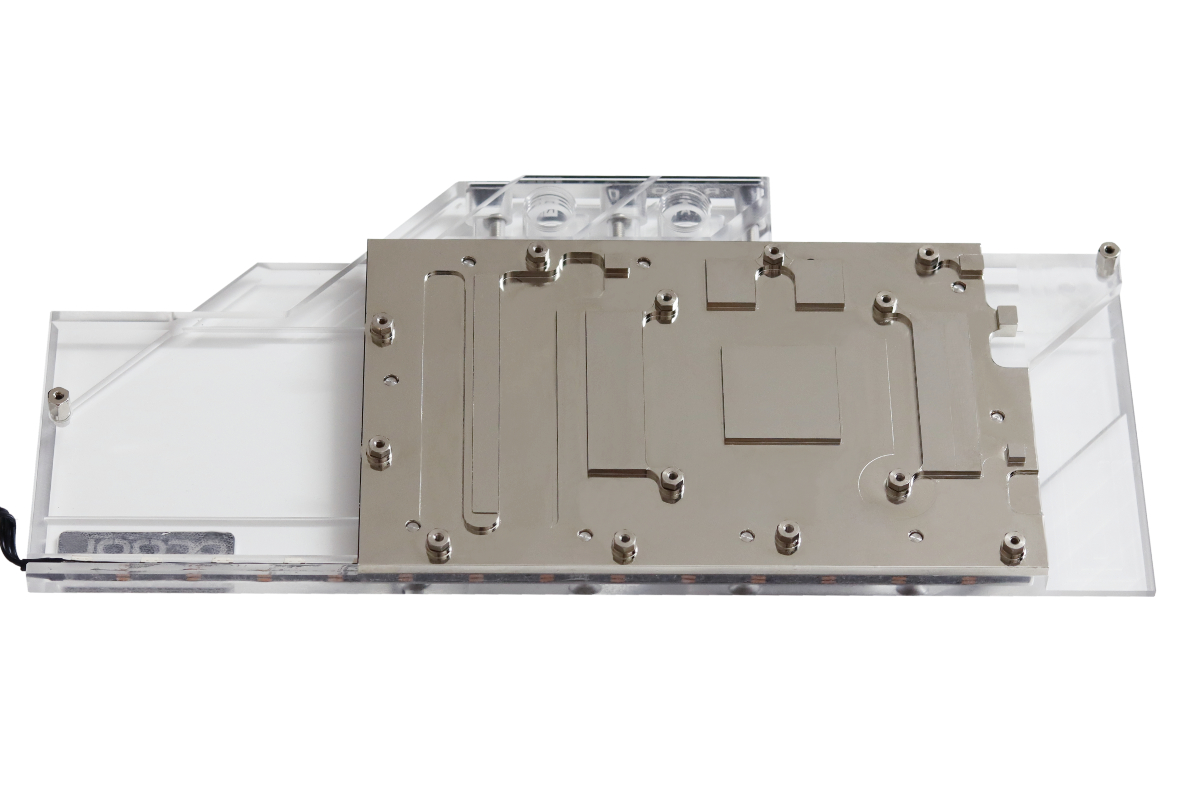

Of course, Alphacool only uses copper for its water coolers. With the Aurora GPX Eisblock, the copper is nickel-plated. Compared to its predecessor models, Alphacool has improved the nickel plating even further, which has considerably increased the acid resistance. This means that the nickel should resist flaking. Why does Alphacool rely on copper instead of aluminium? Simply, copper has almost twice the thermal conductivity of aluminium and is therefore clearly the better material for water cooling.
Is There Anything Else New?

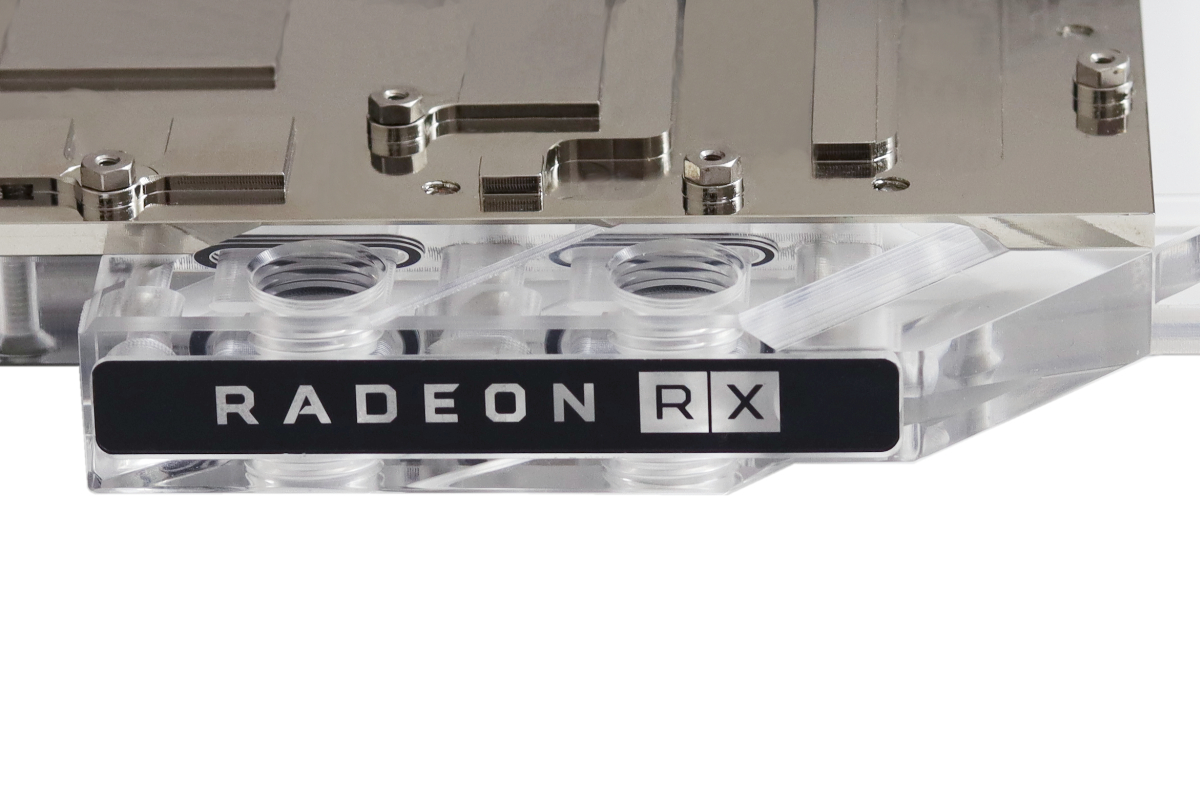

The Eisblock Aurora GPX also relies on the new patented stop fittings, which sit flush with the surface of the terminal. The Alphacool logo now sits in the corner on the top and is also fully illuminated. On the front of the terminal you can see the corresponding names of the compatible graphic card types. Of course, these are also fully illuminated by the digital LEDs. IN and OUT are now marked by small triangles. They are easily recognizable and fit perfectly into the entire aesthetics of the graphic card water cooler.
The Alphacool Aurora GPX Plexi is a complete redevelopment of the previous Alphacool graphics card water coolers. No technical compromises were made, but the entire technical know-how flowed into the development and implementation.
- W x T x H: 120,4 x 266,7 x 25,3 mm
- Net weight: 726 g
- Max working temperature: 60 °C
- Material cooler: nickel plated copper
- Material top: plexiglass
- Thikness of fins: 0,6 mm
- Threads: 4 x G1/4“
- Power supply Digital RGB: 3-Pin 5V
- Pressure tested: 1,5 Bar
- AMD RX 5700 Reference Design
- AMD RX 5700XT Reference Design
- AMD Radeon RX 5700 XT 50th Anniversary, 8GB GDDR6
- AMD Radeon RX 5700 XT, 8GB GDDR6
- ASRock Radeon RX 5700 XT, 8GB GDDR6, (90-GA15ZZ-00UANF)
- ASRock Radeon RX 5700, 8GB GDDR6, (90-GA16ZZ-00UANF)
- ASUS Radeon RX 5700 XT, RX5700XT-8G, 8GB GDDR6, (90YVOD8O-UONA00)
- ASUS Radeon RX 5700, RX5700-8G, 8GB GDDR6, (90YVOD7O-UONA00)
- Gigabyte Radeon RX 5700 8G, 8GB GDDR6, (GV-R57-8GD-B)
- Gigabyte Radeon RX 5700 XT 8G, 8GB GDDR6, (GV-R57XT-8GD-B)
- MSI Radeon RX 5700 8G, 8GB GDDR6, (V803-891R)
- MSI Radeon RX 5700 XT 8G, 8GB GDDR6, (V803-890R)
- PowerColor Radeon RX 5700 8G, 8GB GDDR6, HDMI, 3x DP (21294-01-40G)
- PowerColor Radeon RX 5700 XT 8G, 8GB GDDR6, (AXRX 5700XT 8GBD6-M3DH)
- Sapphire Radeon RX 5700 8G, 8GB GDDR6, (21294-01-20G)
- Sapphire Radeon RX 5700 XT 8G, 8GB GDDR6, (21293-01-40G)
- XFX Radeon RX 5700 XT, 8GB GDDR6, (RX-57XT8MFD6)
Graphics card configurator: click here
List of compatibility: AMD cooler
Download manual PDF: Alphacool Eisblock Aurora Plexi GPX-A AMD Radeon RX 5700/5700XT Reference
Download data sheet PDF: Alphacool Eisblock Aurora Plexi GPX-A AMD Radeon RX 5700/5700XT Reference
