Alphacool Core Geforce RTX 4090 Master with Backplate

Alphacool's Core product series is known for its high quality, outstanding performance, and uniform and functional design language.

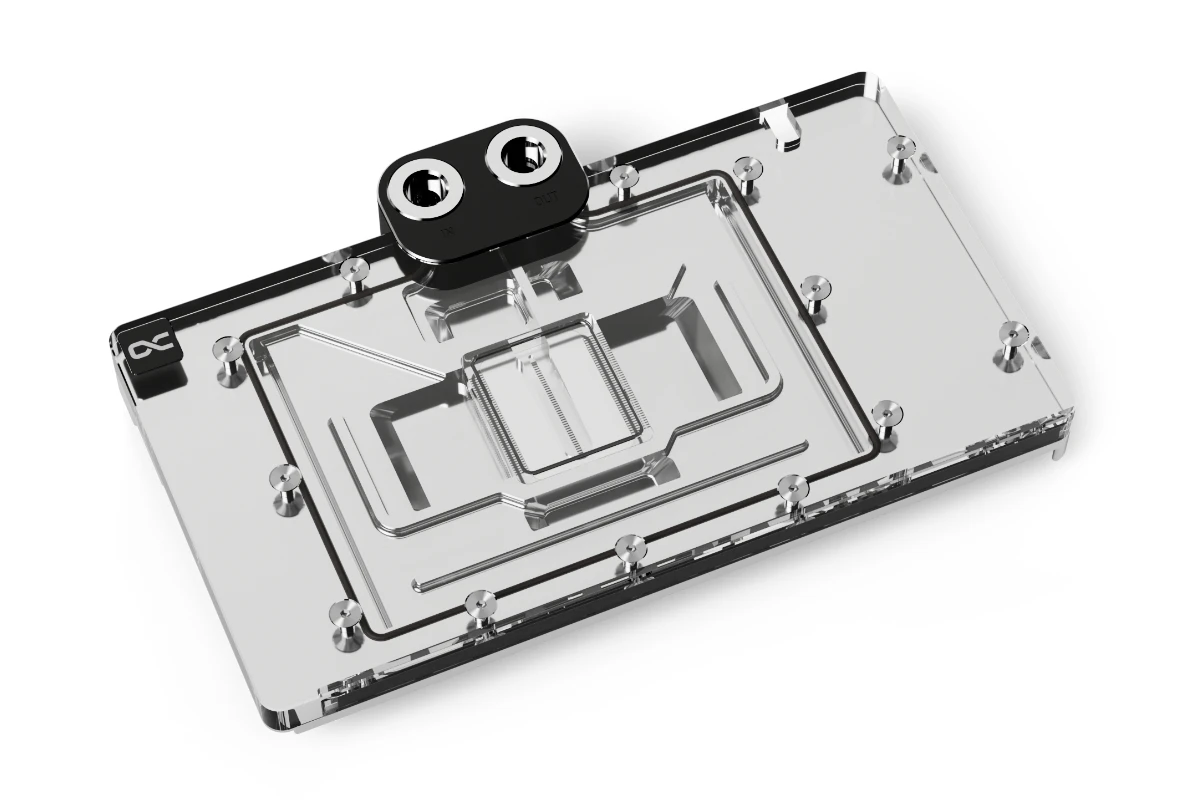

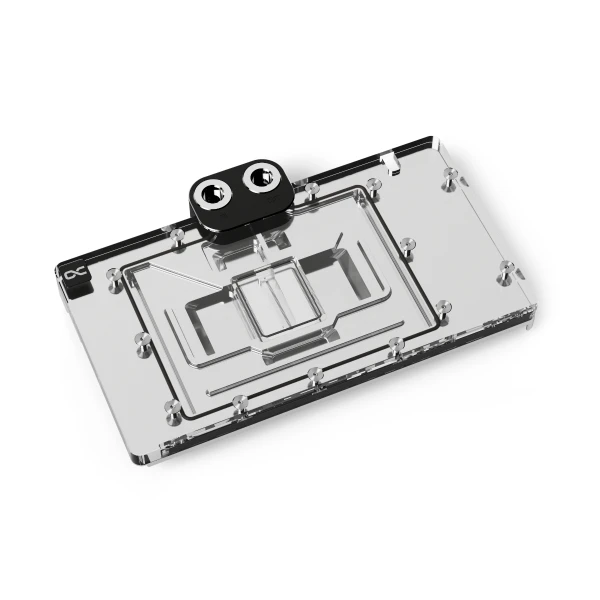

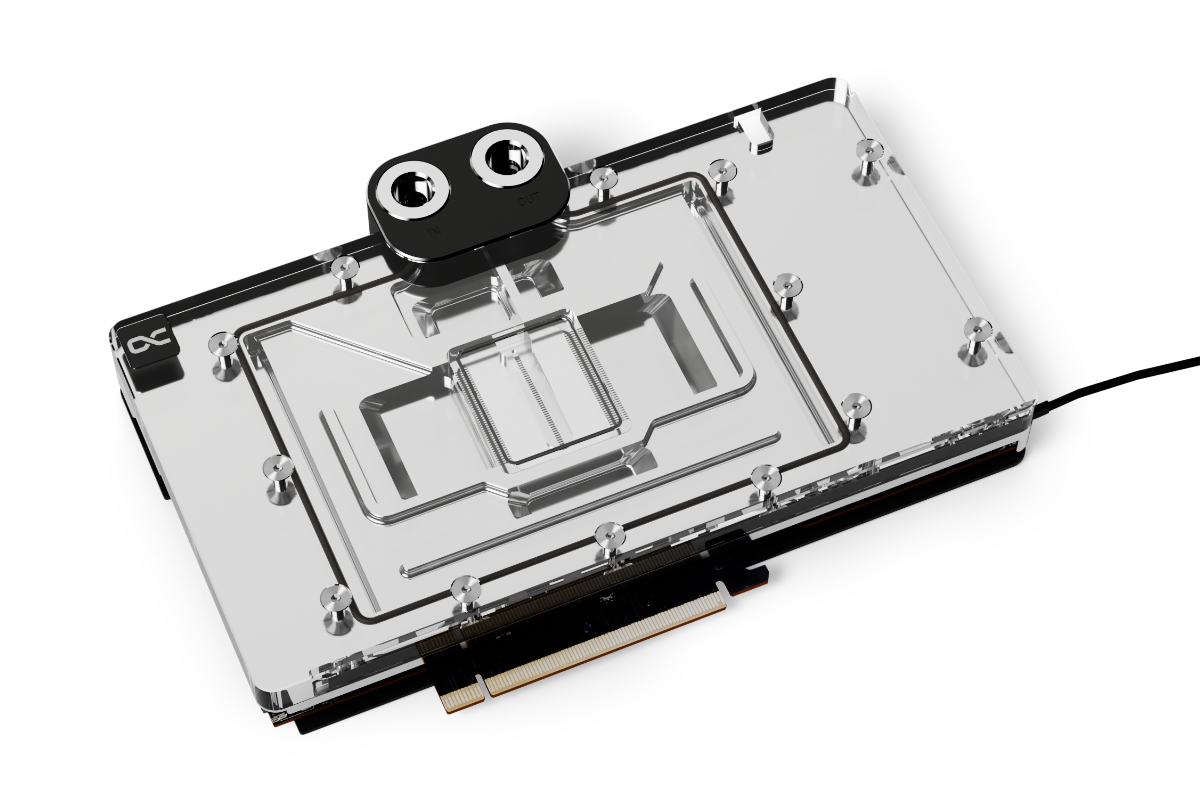

The copper cooler, which is milled from a single piece along with the end terminal, forms the base of this cooler. The fine craftsmanship, combined with the hard and resistant chrome plating covering the entire copper cooler, meets the highest quality standards. The chrome-plated brass G1/4" threads integrated on both sides stand out visually from the terminal and are a key feature of the new design language that will be evident in all products in the Core series.

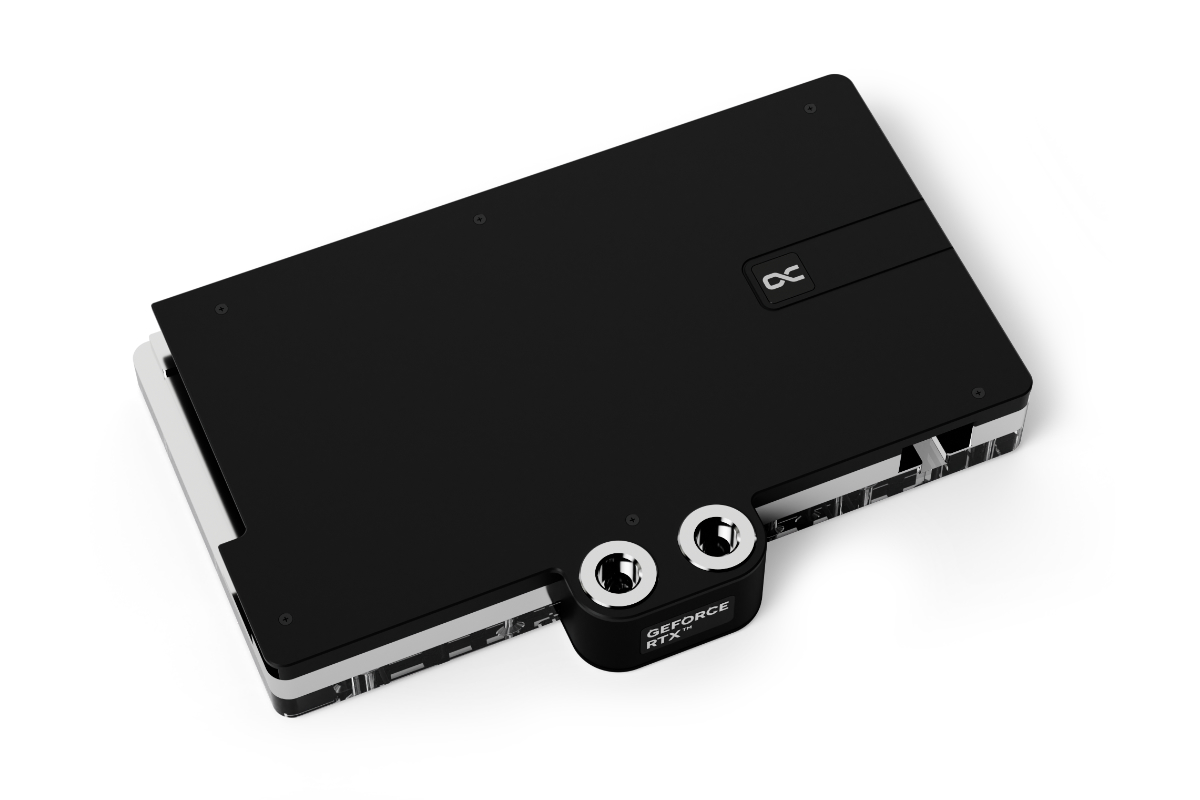

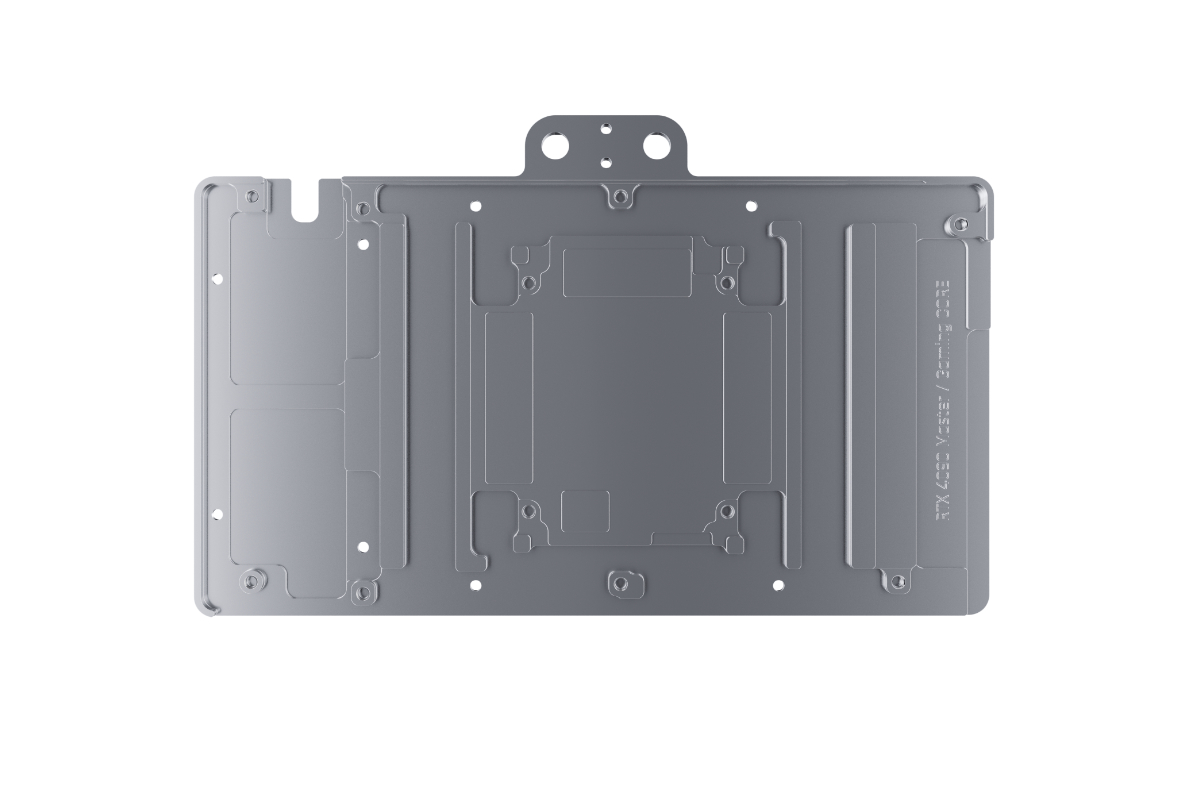

The aluminum backplate, which is adapted to the design, along with the terminal, forms the entire unit and enhances the back of the cooler with a clean and homogeneous look. The lighting consists of digitally addressable RGB LEDs, which evenly and effectively illuminate the entire cooler.

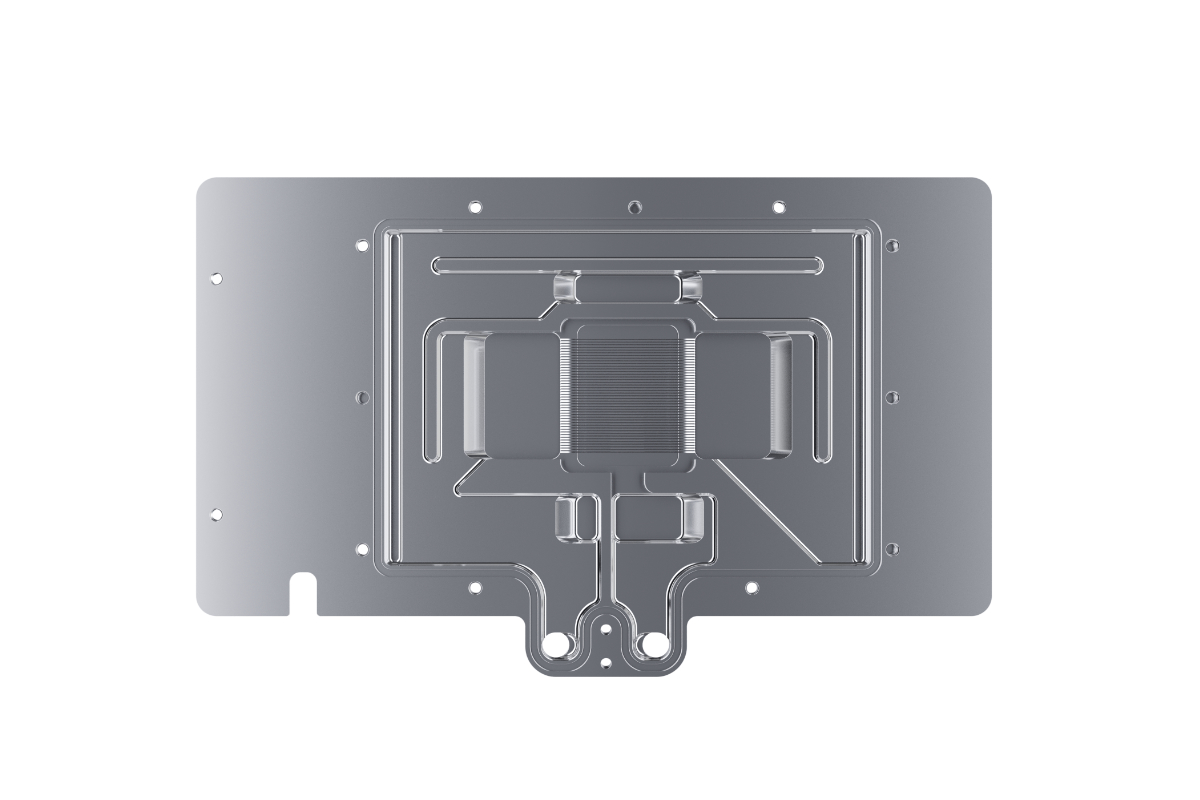

The technical advancements are evident in the water supply to the jet plate as well as in the optimization of the jet plate itself. The jet plate has been completely redesigned based on many simulations and practical tests in collaboration with board partners. The fin thickness and spacing have been enhanced, the cooling surface has been increased, and the water flow to the core components with the greatest heat output has been optimized. The enclosed special soft thermal pads with up to 7 W/mK adapt perfectly to even the smallest tolerances.

Compatibility:
- GIGABYTE GeForce RTX 4090 Gaming OC 24G, 24GB GDDR6X (GV-N4090GAMING OC-24GD)
- GIGABYTE AORUS GeForce RTX 4090 Master 24G, 24GB GDDR6X (GV-N4090AORUS M-24GD)
