Alphacool Eisball Digital RGB - Plexi (D5/VPP Ready)

Alphacool Eisball Digital RGB - Plexi (D5/VPP Ready)

Brak ocen

Producent: Alphacool
Kod producenta: 15362
Kod EAN: 4250197153621
Gwarancja: 24 miesiące

Dostępność:

Czas realizacji orientacyjnie 5 dni roboczych

Koszt wysyłki: od 0 zł
Darmowa dostawa od 800,00 zł

The Alphacool Eisball reservoir with integrated pump presents itself with a completely unique design. With a digital RGB ring that runs completely around the circumference of the Eisball, beautiful eye-catching illumination is guaranteed. Thanks to the versatile mounting options, the Eisball can be accommodated in many cases.

Unique Design

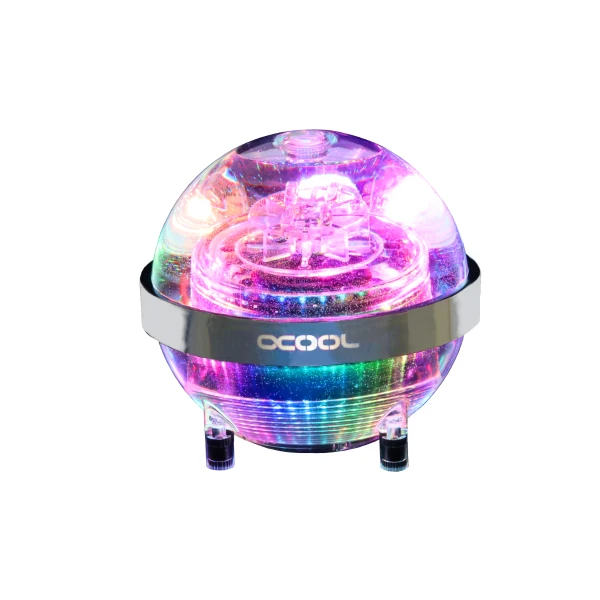

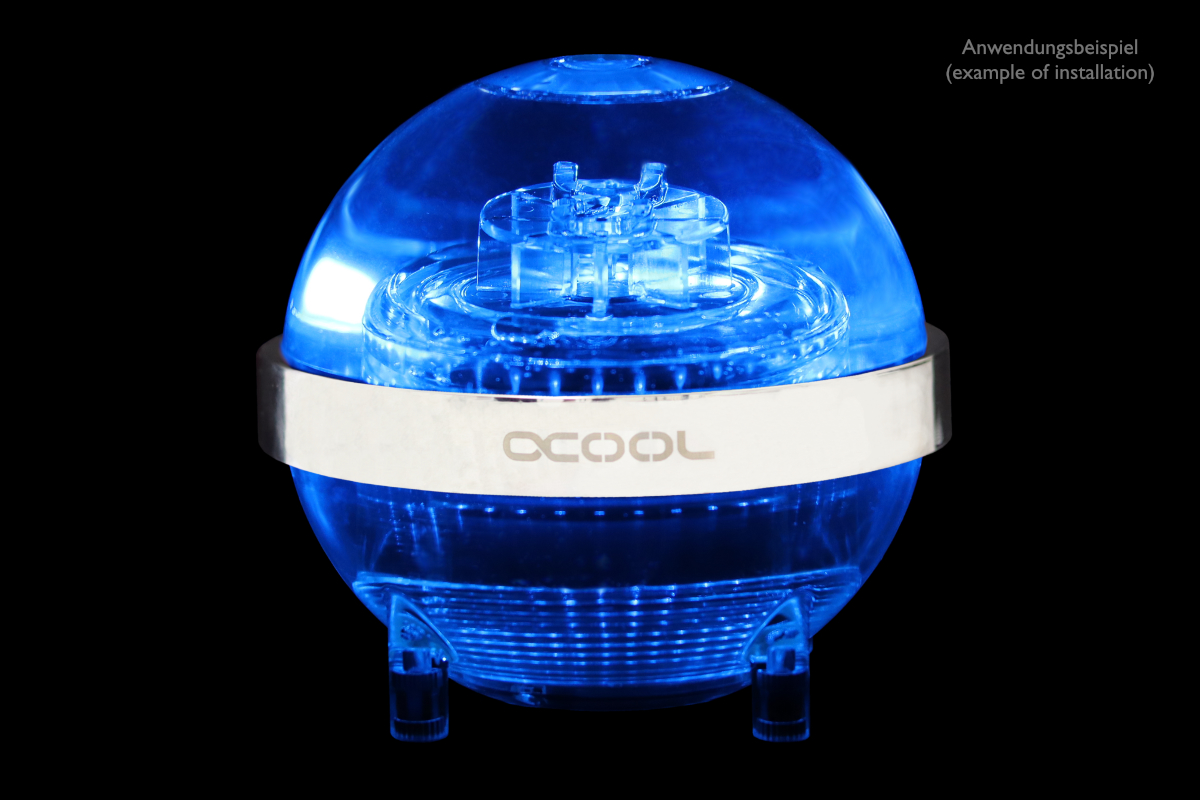

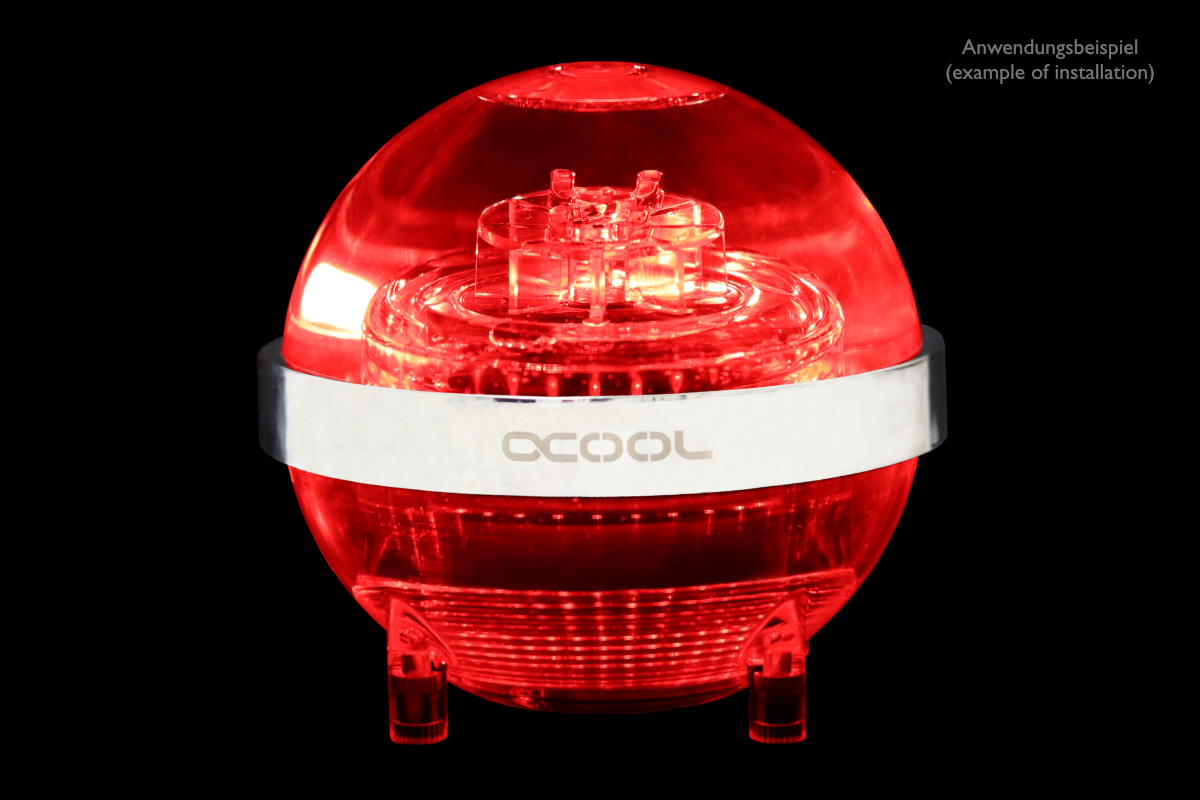

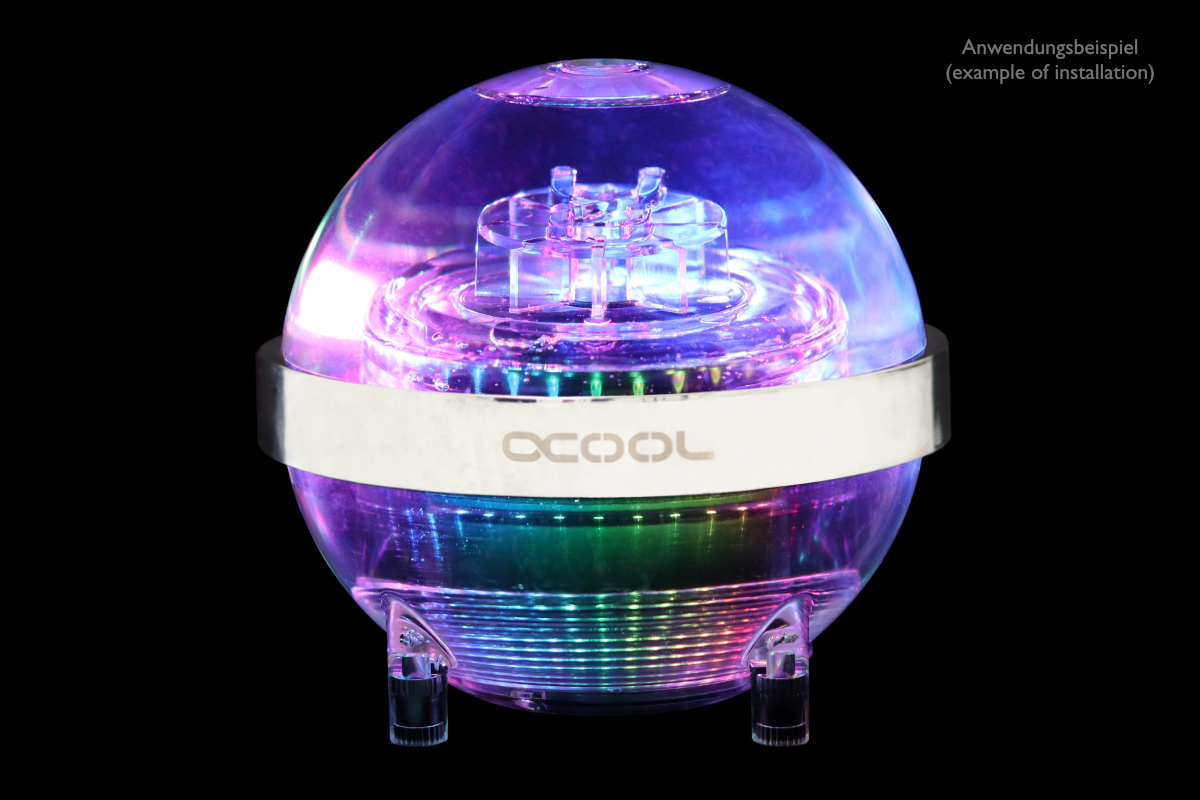

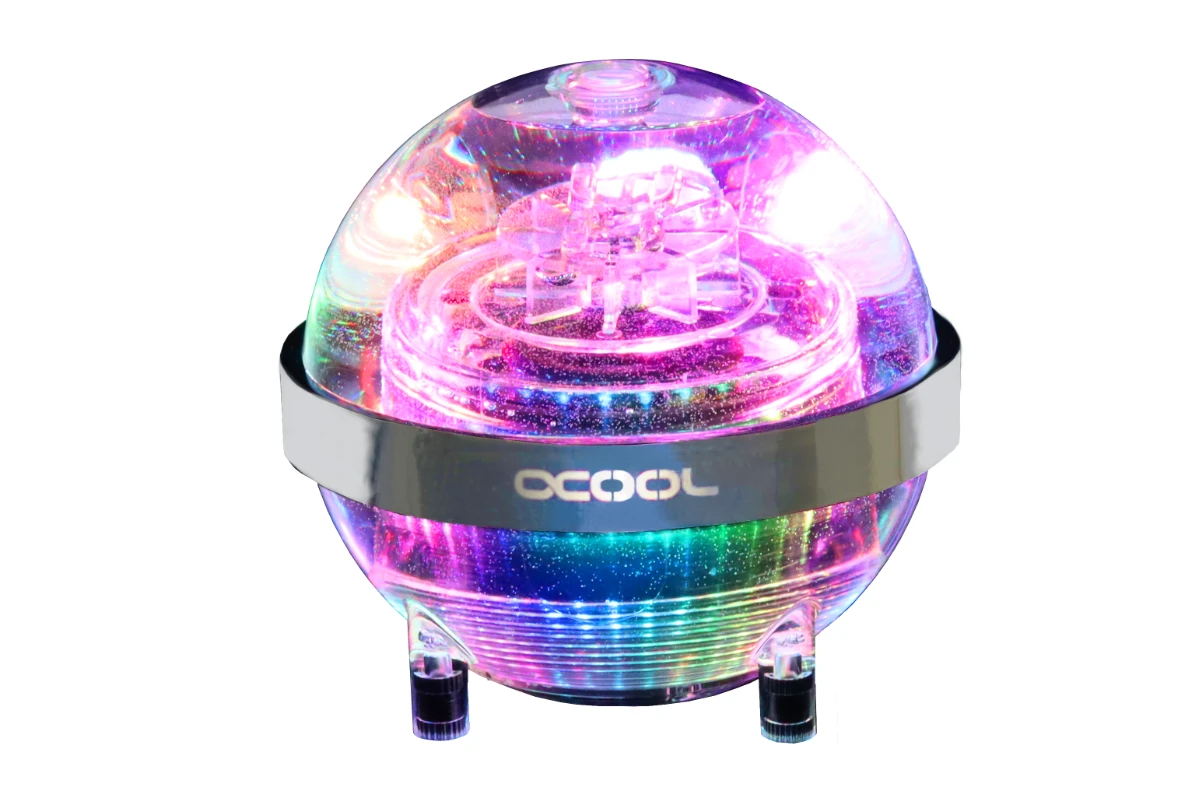

The Alphacool Eisball is the first reservoir in the form of a sphere. This makes it an absolute eye-catcher in any water-cooled system. The 22 digital RGB LEDs, which run once completely around the circumference of the Eisball, illuminate the Eisball perfectly. The addressable digital RGB LEDs are housed in an elegant chrome-plated ring, which further enhances the outstanding appearance. A digital RGB controller is of course part of the accessories. The Alphacool logo is a simple matt silver and fits perfectly to the overall look.

Versatile Mounting Options

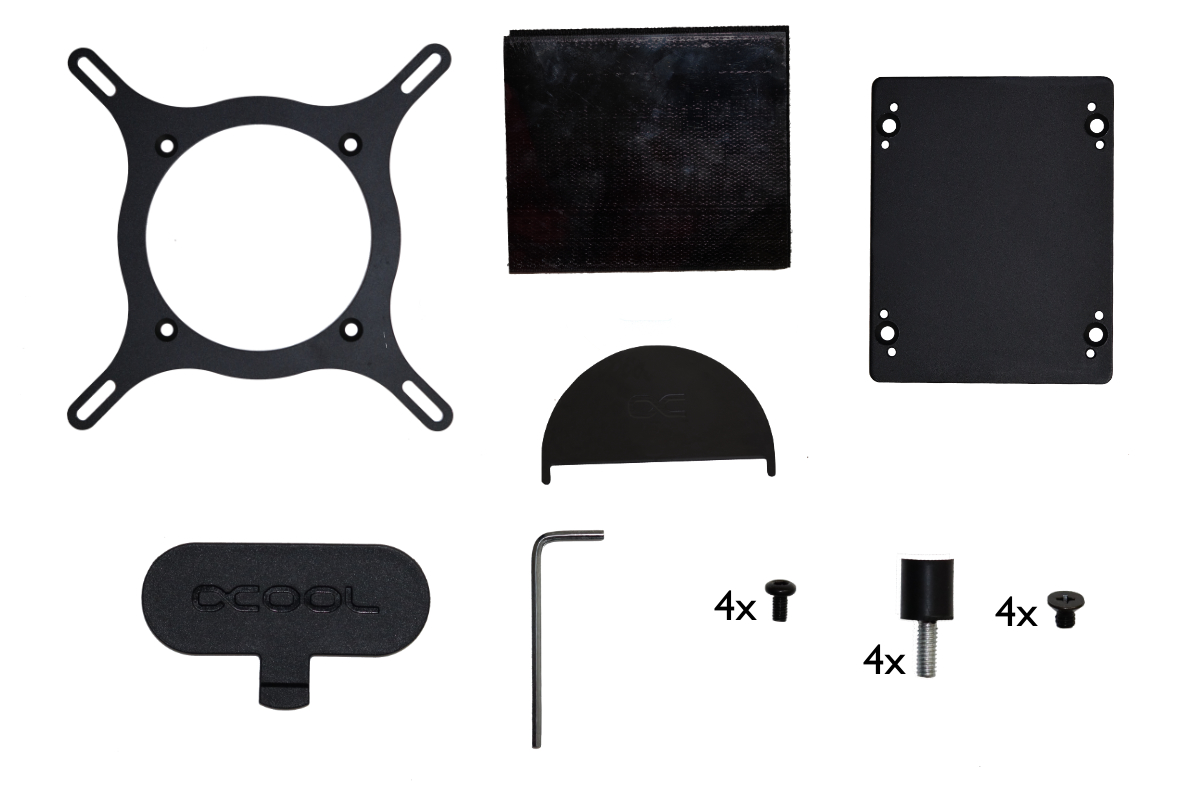

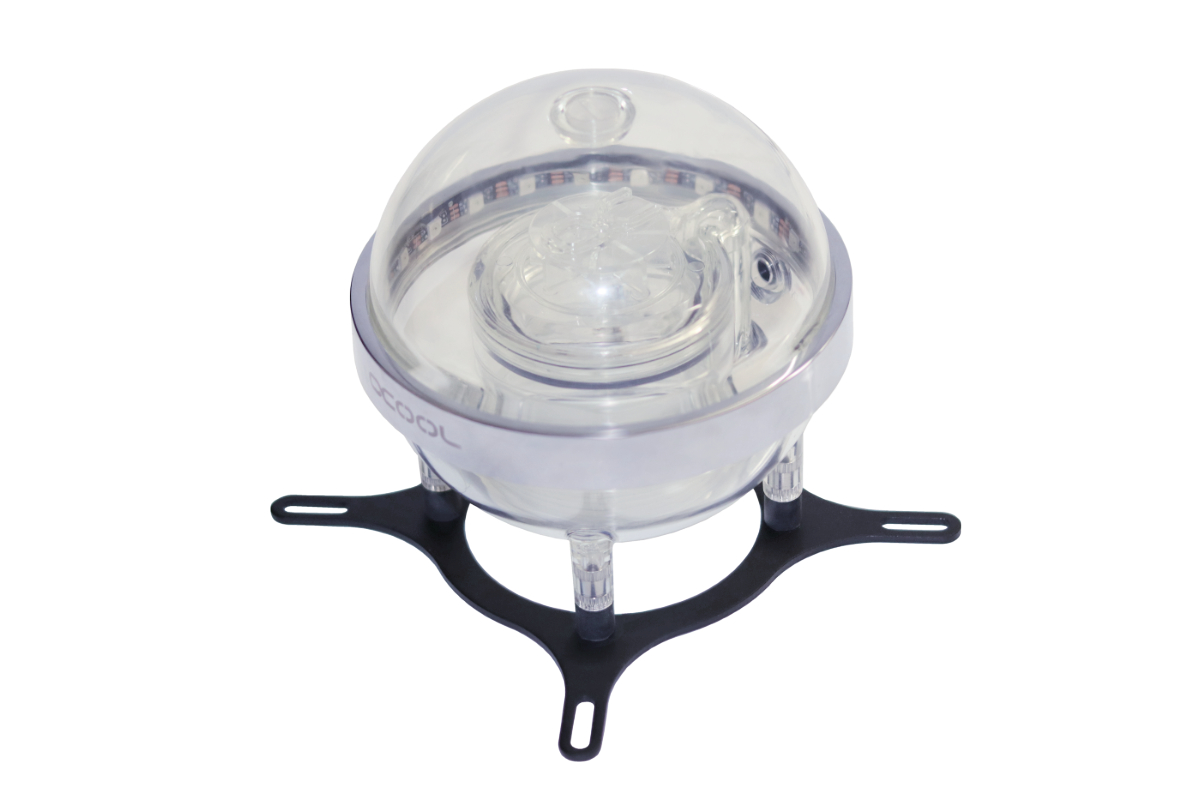

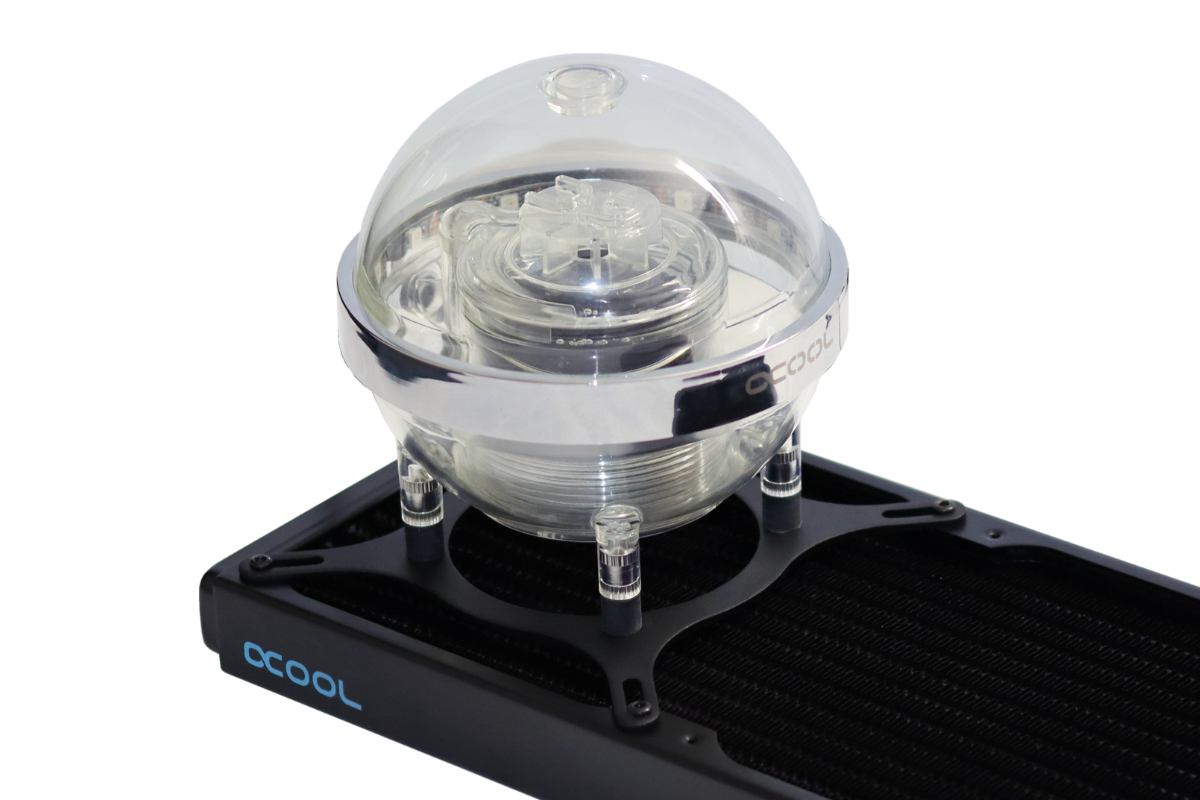

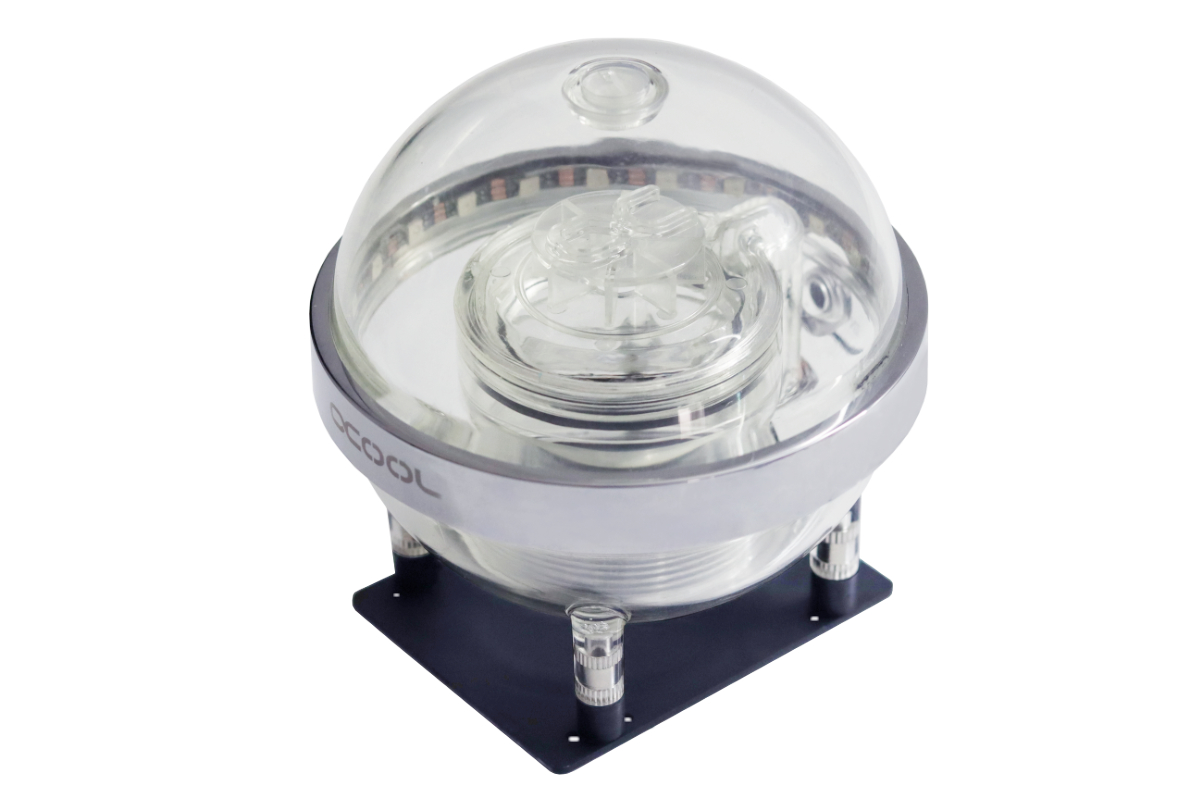

A Velcro mat and two different mounting plates are included in the delivery giving you multiple mounting options. One mounting plate is used to mount the Eisball on radiators and 120 or 140mm fan mounts. The second mounting plate offers several possibilities for mounting. One side of the Velcro mat can be stuck onto the plate and the other side can be placed anywhere in the case. This allows you to simply stick the Eisball on to the Velcro mat inside the case and remove as and when you need to. The mounting plate also allows you to mount the Eisball to a 2.5" SSD bay. The outer mounting holes are suitable for mounting the Eisball to the universal Alphacool pump mount.

Where’s the Pump?

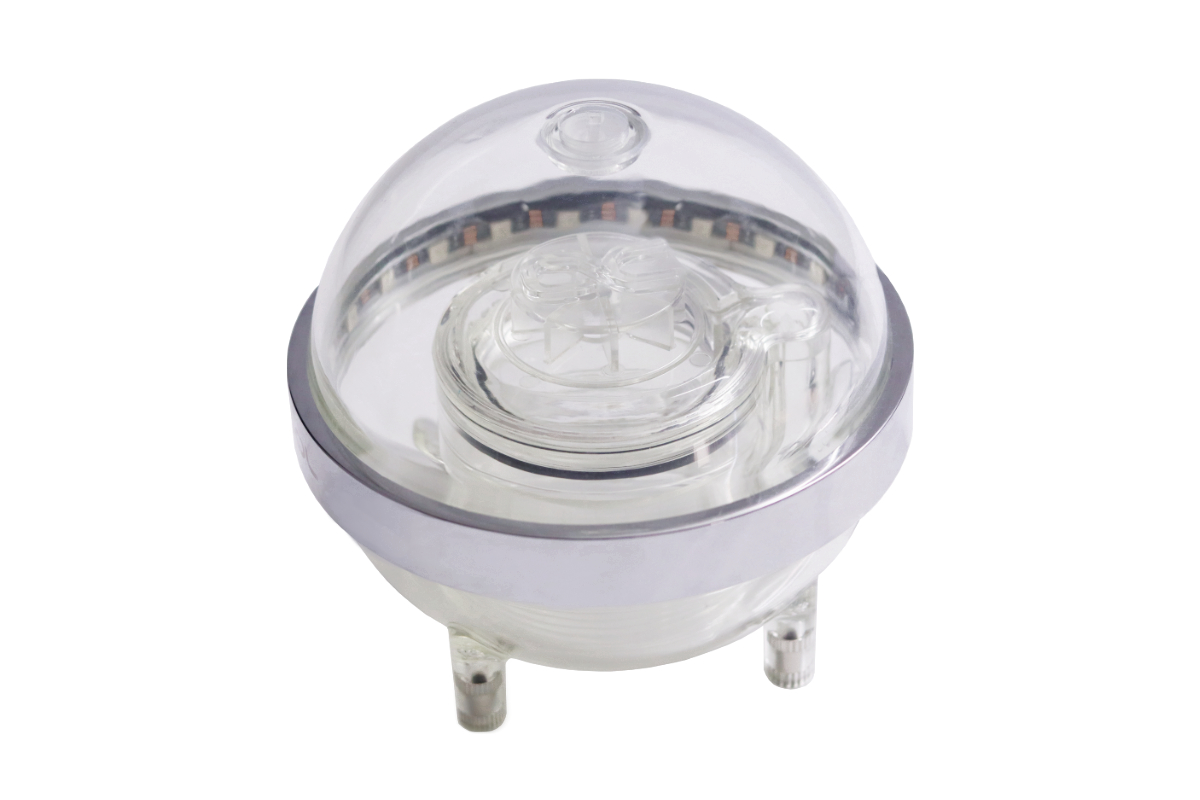

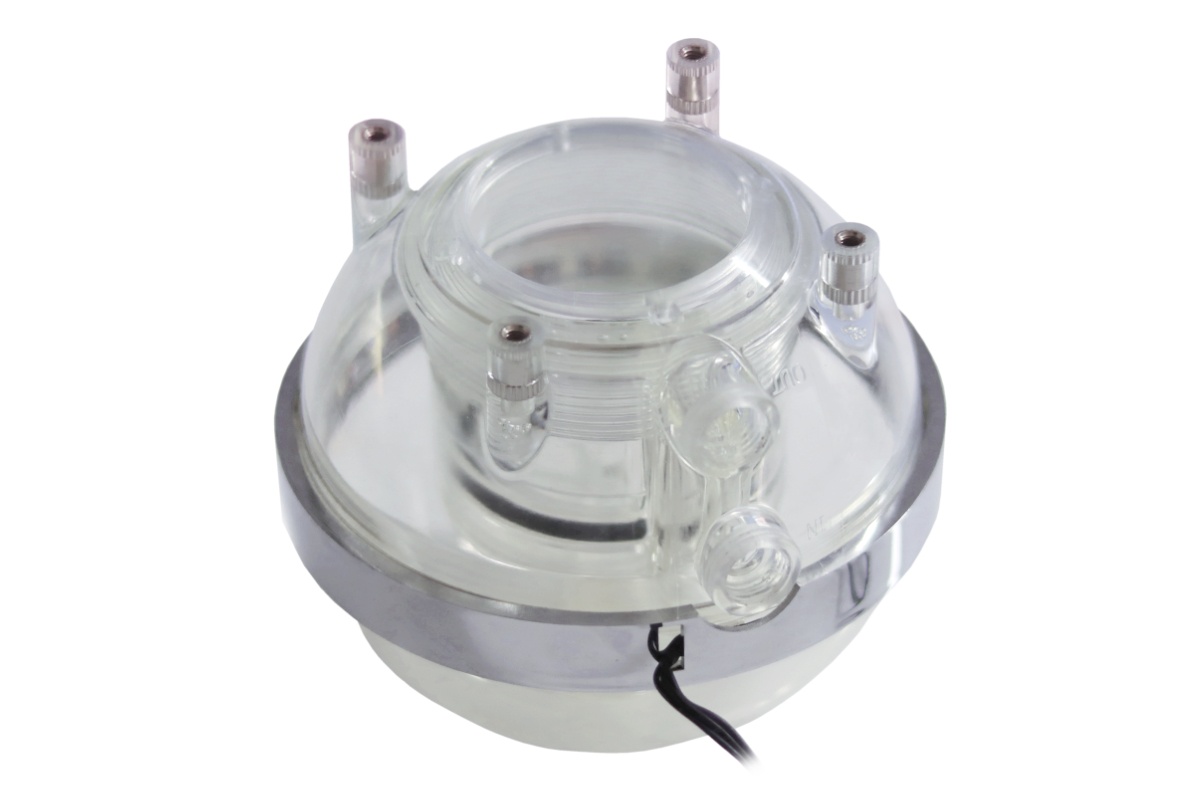

The pump almost completely disappears inside the Eisball. It is inserted into the Eisball from below and fastened with a special pump bracket. All Alphacool's own D5 style pumps such as the VPP655 and VPP755 as well as all original Laing D5 pumps are suitable for installation.

Is the Eisball Quiet?

Since the pump is mounted inside the Eisball, it is almost completely enclosed by the reservoir and thus by the water which acts as an insulation. This means that the vibrations are not transmitted to the case of the Eisball, decouplers are also included with the Eisball, which can be used to mount the Eisball, further reducing vibrations. Both factors together make the Eisball a real Silent product.

Filling and connections?

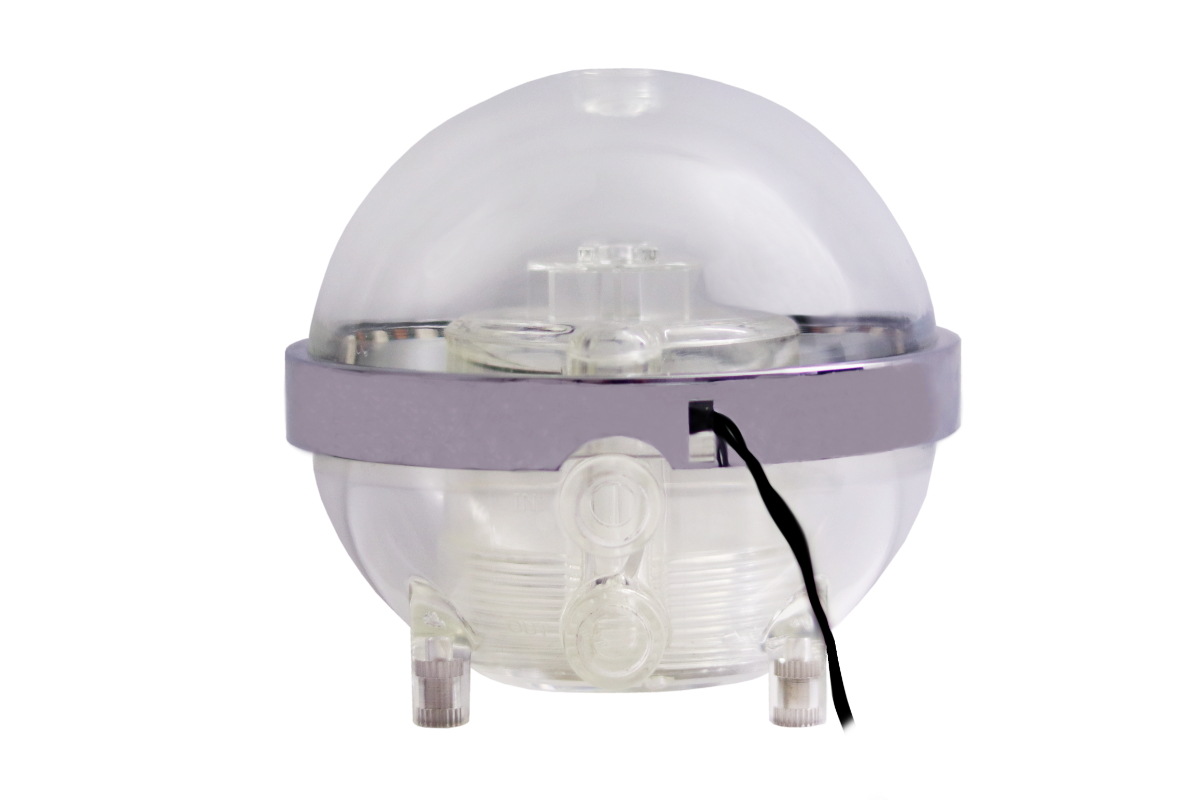

The Eisball has a fill port on the upper side, which can be used to quickly and easily fill the Eisball with a fill bottle. The maximum capacity of the Eisball is 700 ml. The IN and Out ports are located on the back of the Eisball, each with a "G ¼" thread. Alphacool fittings for 16 mm hoses or 13 mm HardTube connections can be screwed in directly. For 16 mm HardTube connections an extension or an elbow is required.

The Eisball not only a visual delight but is also unique in its functionality and technical implementation.

Technical Details:

LxWxH: 117,51 x 128 x 128 mm
BxTxH with mounting material and decoupler: 130,01 x 128 x 128 mm
Net weight: 243
max. operating temperature: 60 °C
material Eisball: transparent nylon
material screw plug: Brass
material pump holder: Acetal
material Digital RGB ring: Acetal
color Eisball: transparent
color Digital RGB Ring: Chrome
Threads: IN 1x G1/4“ / OUT 1 x G1/4“Fillport1 x G1/4“

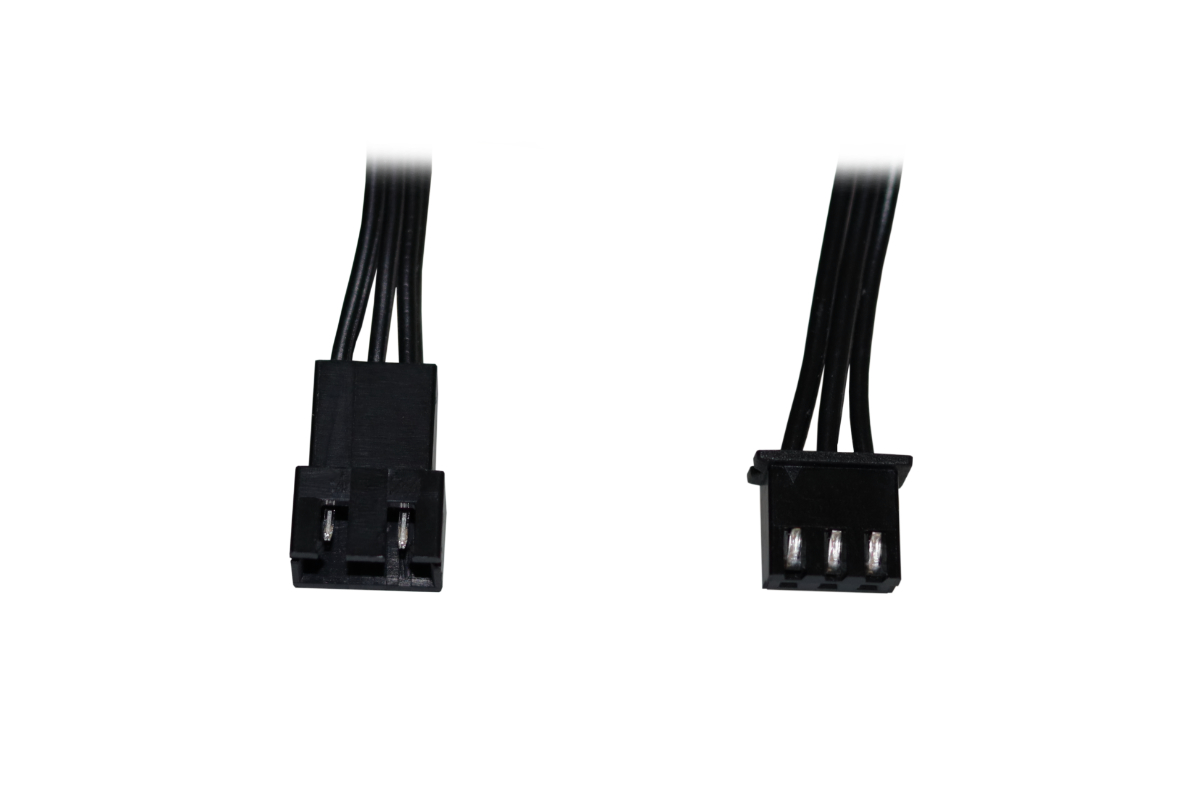

Digital RGB connector: 4-Pin
voltage Digital RGB: 5VDC
capacity: 700 ml

Download manual PDF: Alphacool Eisball Digital RGB - Plexi (D5/VPP Ready)

Download data sheet PDF: Alphacool Eisball Digital RGB - Plexi (D5/VPP Ready)
