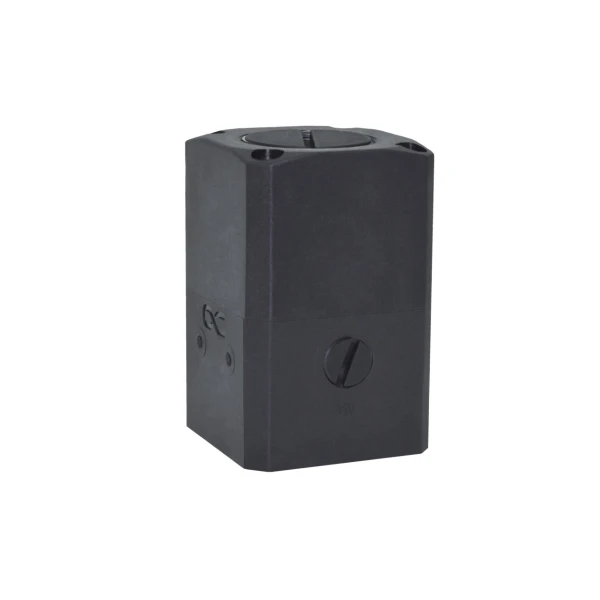

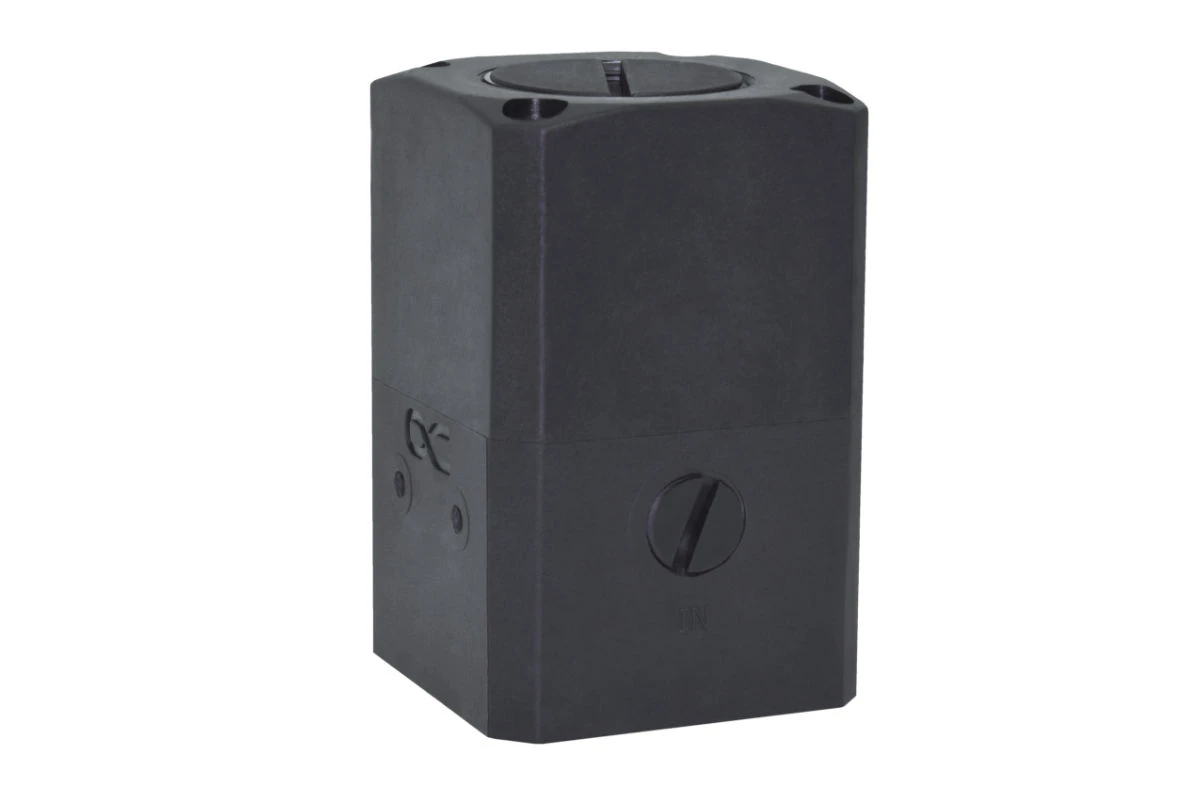

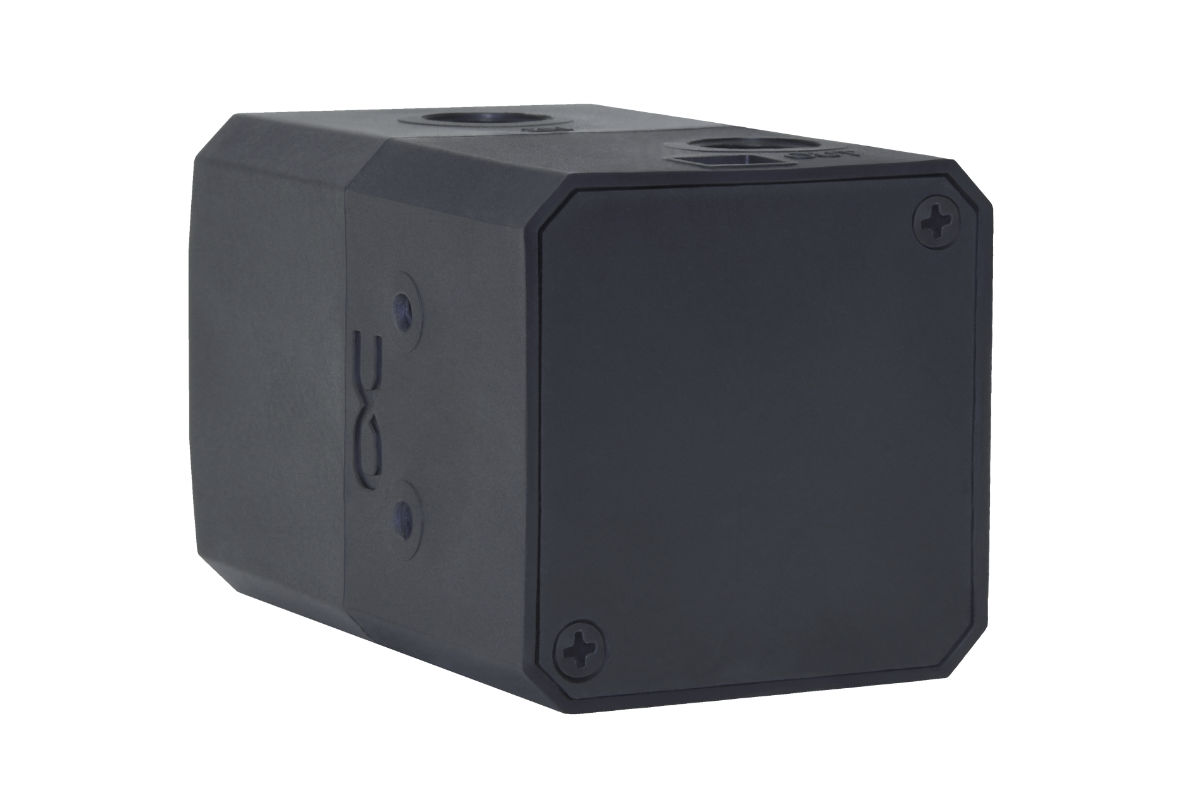

Alphacool Eisstation 80 DC-LT - reservoir

Alphacool Eisstation 80 DC-LT - reservoir

Brak ocen

Producent: Alphacool
Kod producenta: 15371
Kod EAN: 4250197153713
Gwarancja: 24 miesiące

Dostępność:

Oczekujemy na dostawę

Koszt wysyłki: od 6,90 zł
Darmowa dostawa od 800,00 zł

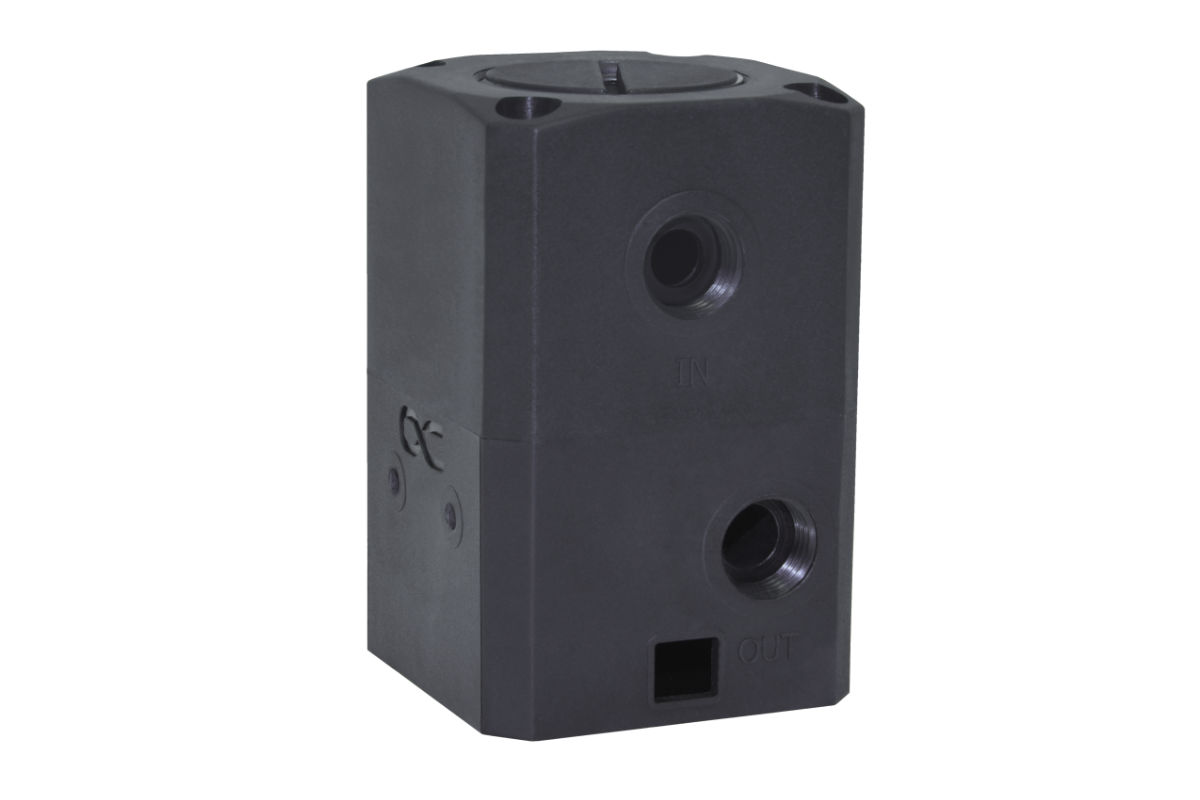

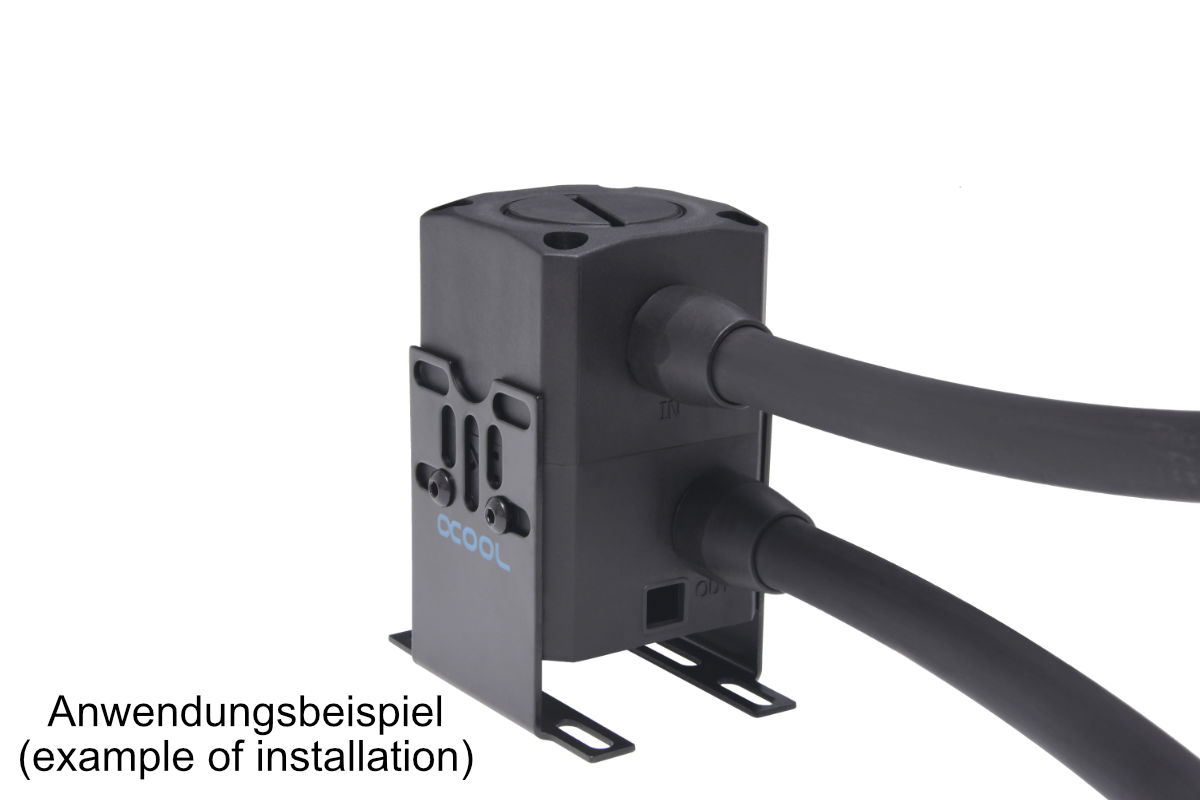

The Eisstation 80 DC-LT of the Enterprise Solutions series, on the other hand, still fits into 2U server racks, depending on the installation method. The entire Eisstation is made of acetal and is therefore extremely resistant and durable. As with the Solo Top, a Velcro mat is included with which the Eisstation can be mounted without losing its compact design. In contrast to the other Eisstation, mounting feet are included to adjust the height. Mounting at an angle of 30 degrees or 90 degrees is also possible. The volume can be reduced by using the enclosed decoupling feet. The installation of the pump is the same as with the other two items. Only the filling is easier, because through the 25mm large filling opening, spray bottles or funnels can be used easily. When the pump top is used together with the reservoir, the inlet is on the side of the reservoir and the outlet on the side of the pump top. If IN and OUT are to run in a certain direction, the reservoir can also be dismantled and turned into any position. If the reservoir is not used, there is an additional input on the opposite side of the OUT.

Eisstation 80 DC-LT

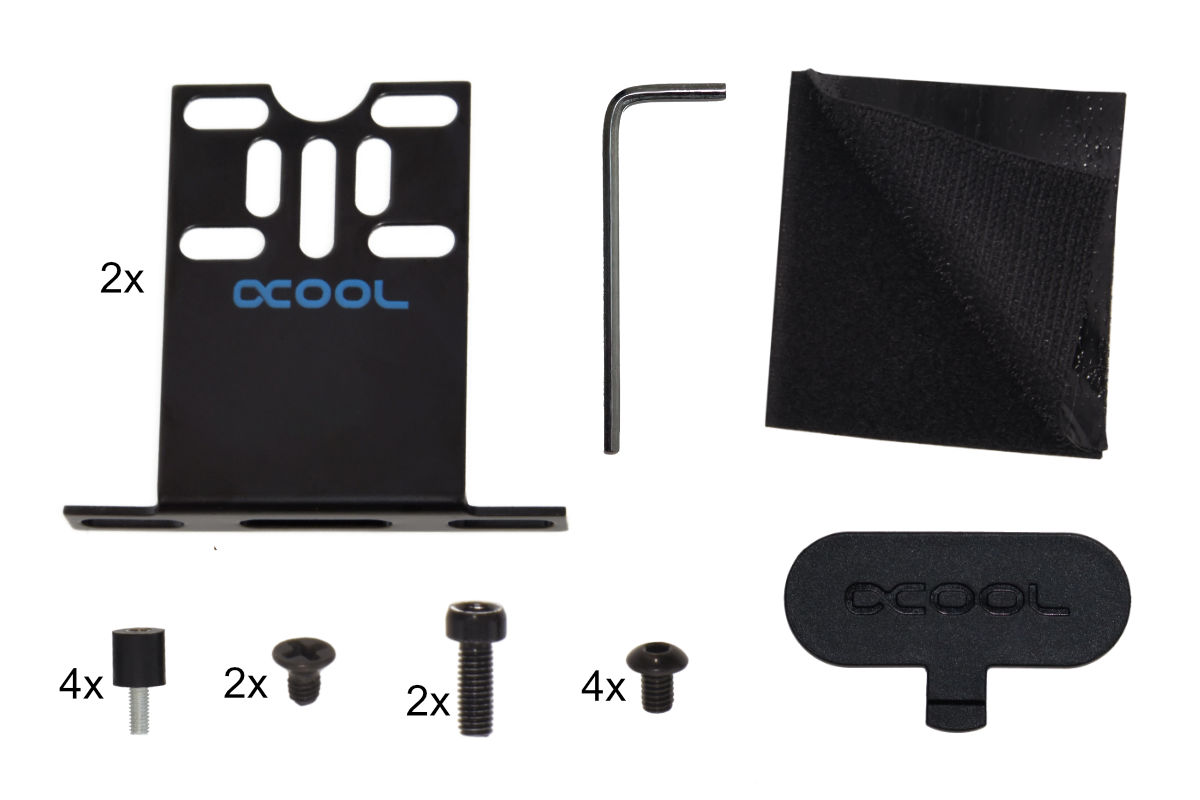

Scope of delivery:

1x Reservoir
1x Screw plug G1/4"
1x Screw plug G1"
2x M3x8 screws
8x M4x6 screws
2x M3x5 screws
1x Screw plugs - Tool
1x Hexagon key
1x Velcro mat
2x Feet
4x M4 nuts
4x vibration damper

Technical Data:

Dimensions: 50.62 x 50.62 x 77 mm (W x D x H)
Net weight: 144 g
Maximum working temperature: 60 °C
Connections: 3x G1/4"
Pressure tested: 1,5 Bar
Certificates: CE, FC, ROHS

Information & Assembly instructions EN (See page 3 for manual.)
