Alphacool Eisbecher Aurora D5 Acetal/Glas - 250mm incl. Alphacool VPP Apex D5

Brak ocen

  • Producent: Alphacool
  • Alphacool
  • Kod producenta: 13326
  • Kod EAN: 4250197133265
  • Gwarancja: 24 miesiące

Dostępność:

Dostępny

Dostępna ilość:

2

    Cena:

    639,90 zł

    przechowalnia

    • Koszt wysyłki: od 0 zł
    • Darmowa dostawa od 800,00 zł
    639.9 In stock Alphacool Eisbecher Aurora D5 Acetal/Glas - 250mm incl. Alphacool VPP Apex D5

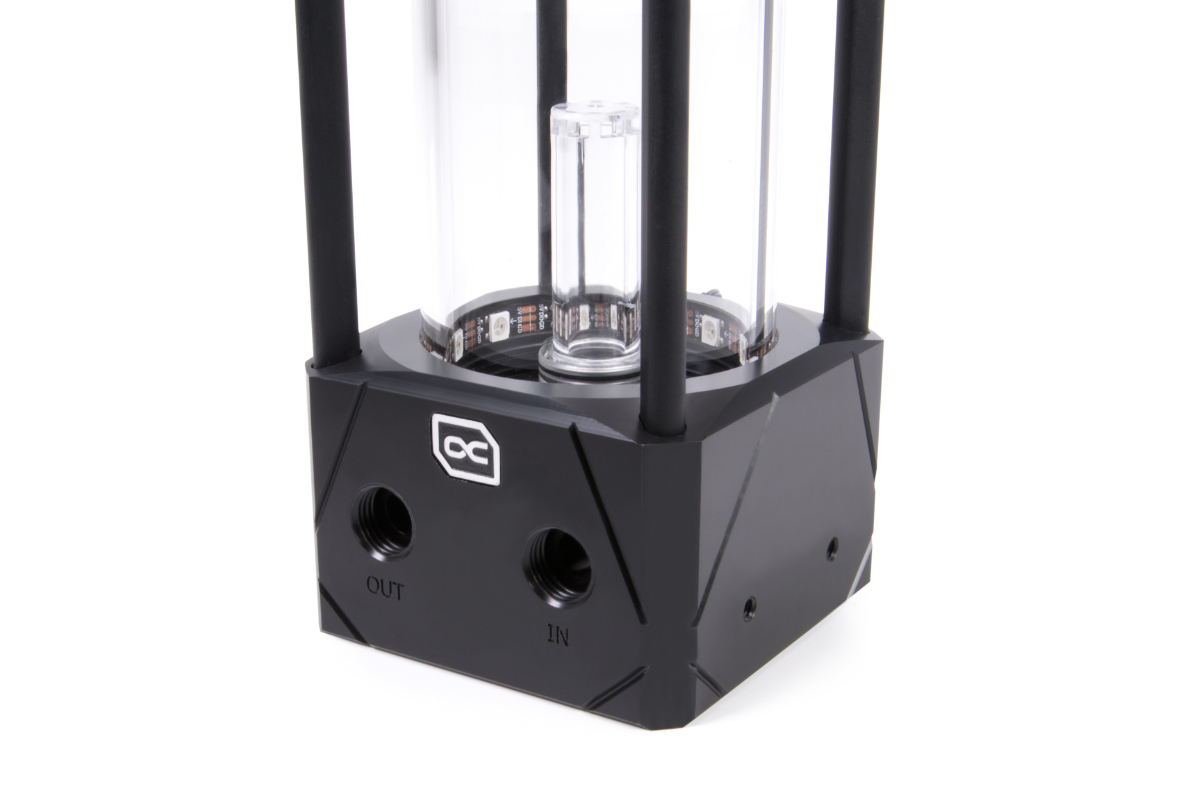

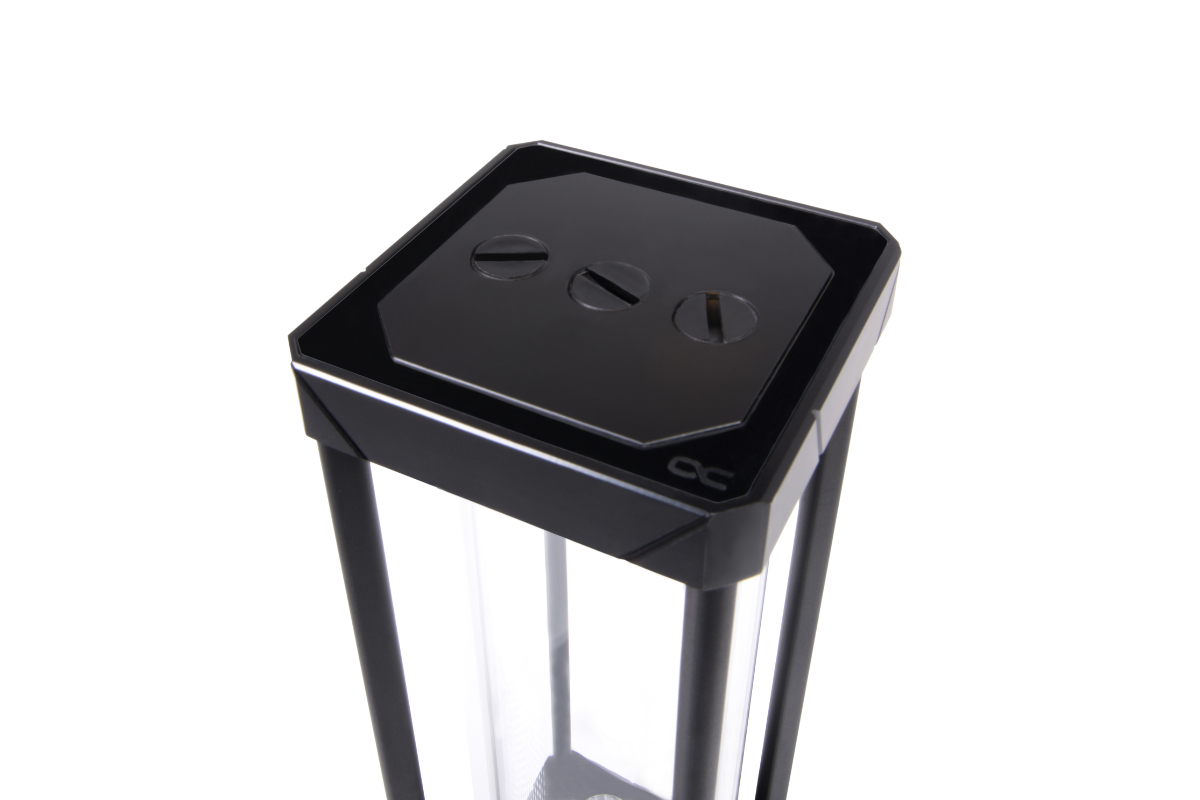

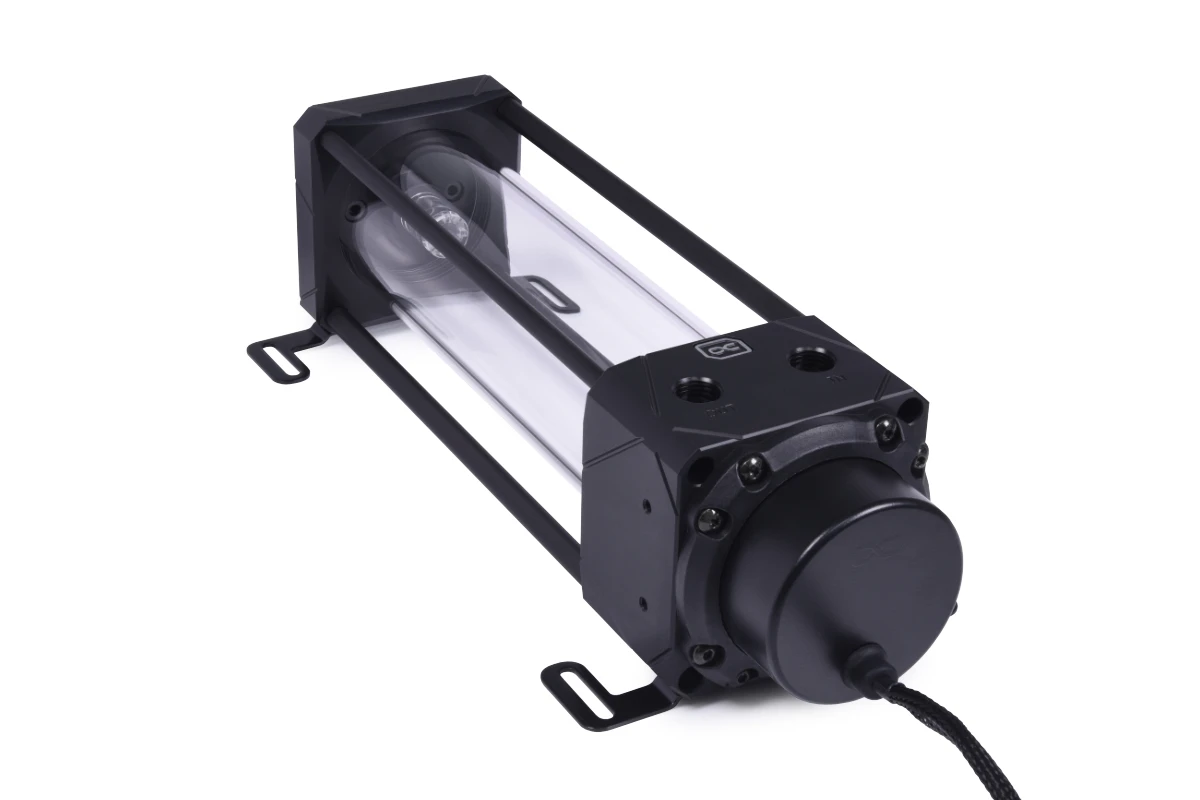

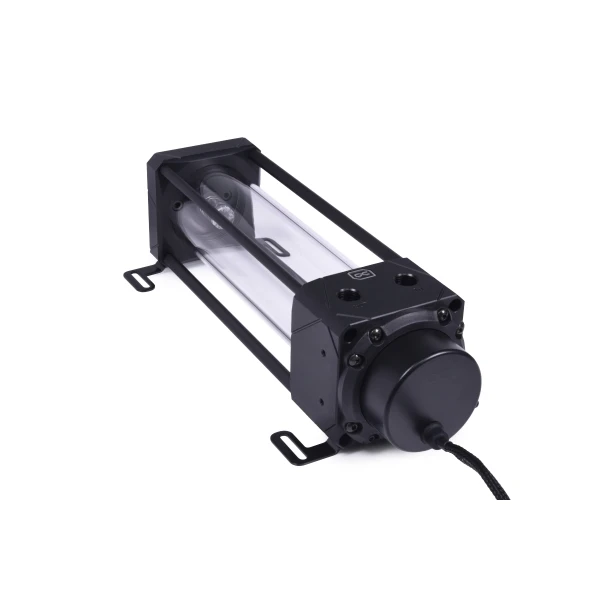

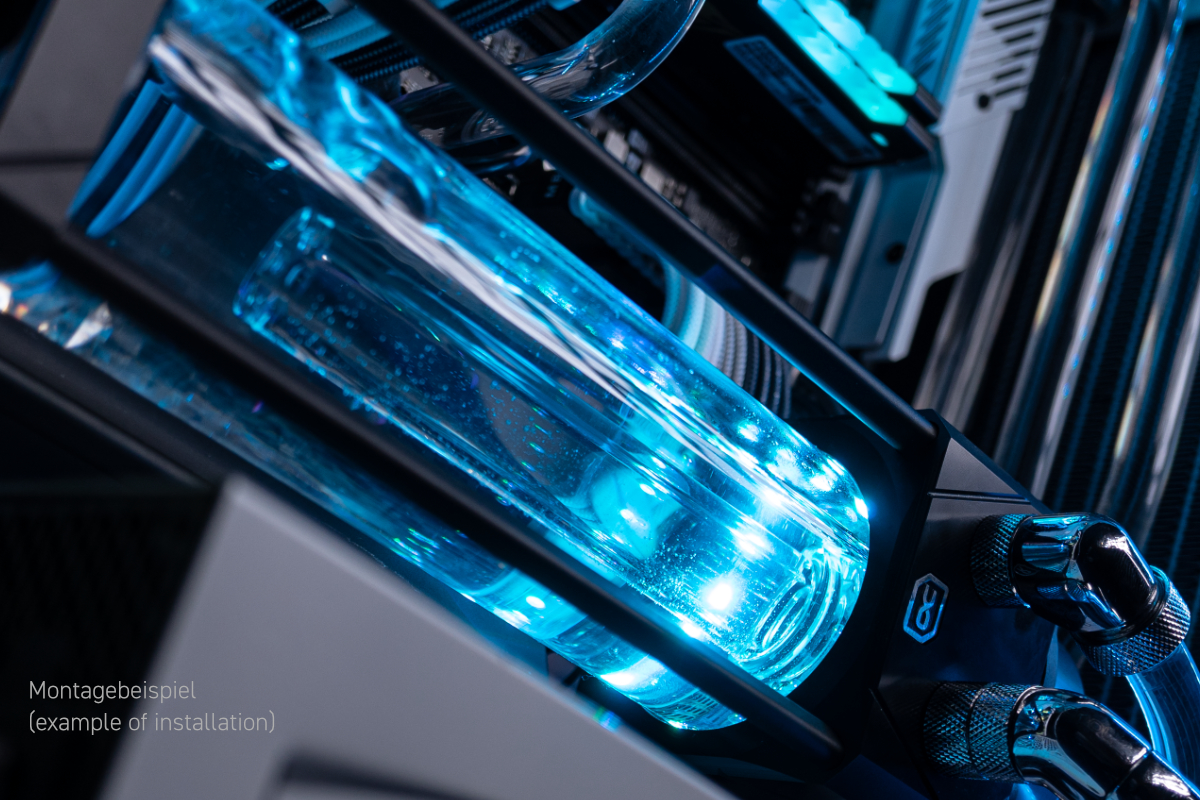

    The Alphacool Eisbecher Aurora reservoir has an integrated pump top for powerful D5 pumps and comes with a VPP Apex pump. The tube of the reservoir is made of glass, the D5/VPP pump top and the lid of acetal. The combination of these two materials gives the expansion tank a magnificent appearance. The wow effect is provided by 12 digitally addressable RGB LEDs in the pump top and the Lighttower water effect inside the glass tube.

    Extensive mounting options
    Mounting option 1:

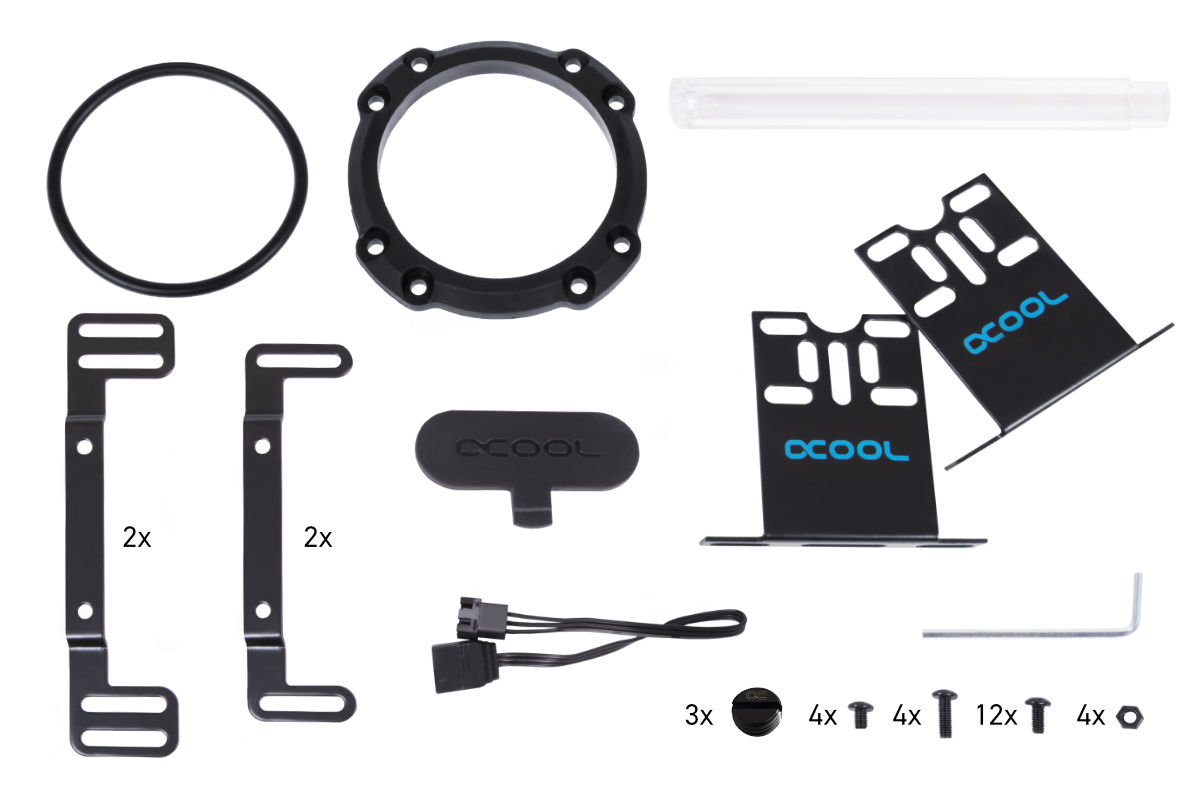

    Stands are included in the scope of delivery, which, among other things, allow the expansion tank to be mounted on the bottom of the enclosure.

    Mounting option 2:
    Included in the scope of delivery are 120mm/140mm mounting frames, which can be used to mount the Eisbecher Aurora expansion tank as desired on free fan spaces, radiators or on the fans on radiators.

    Digitally addressable RGB lighting

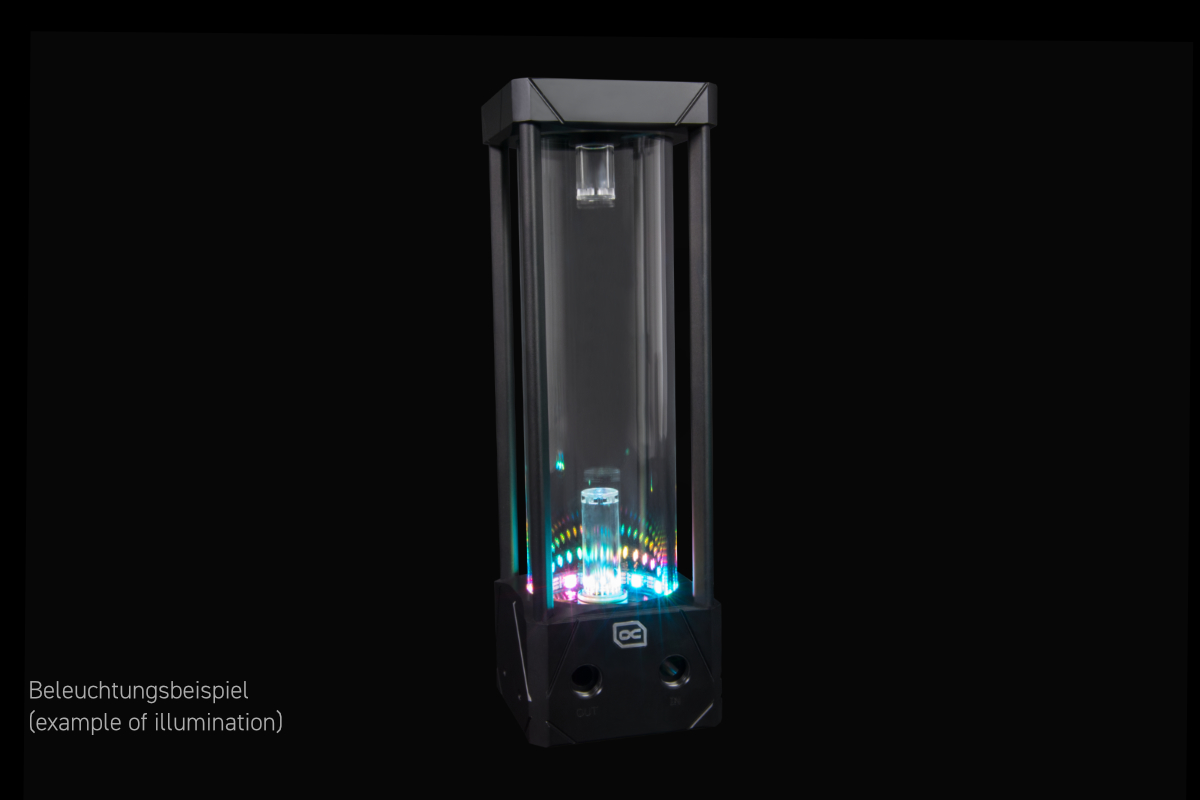

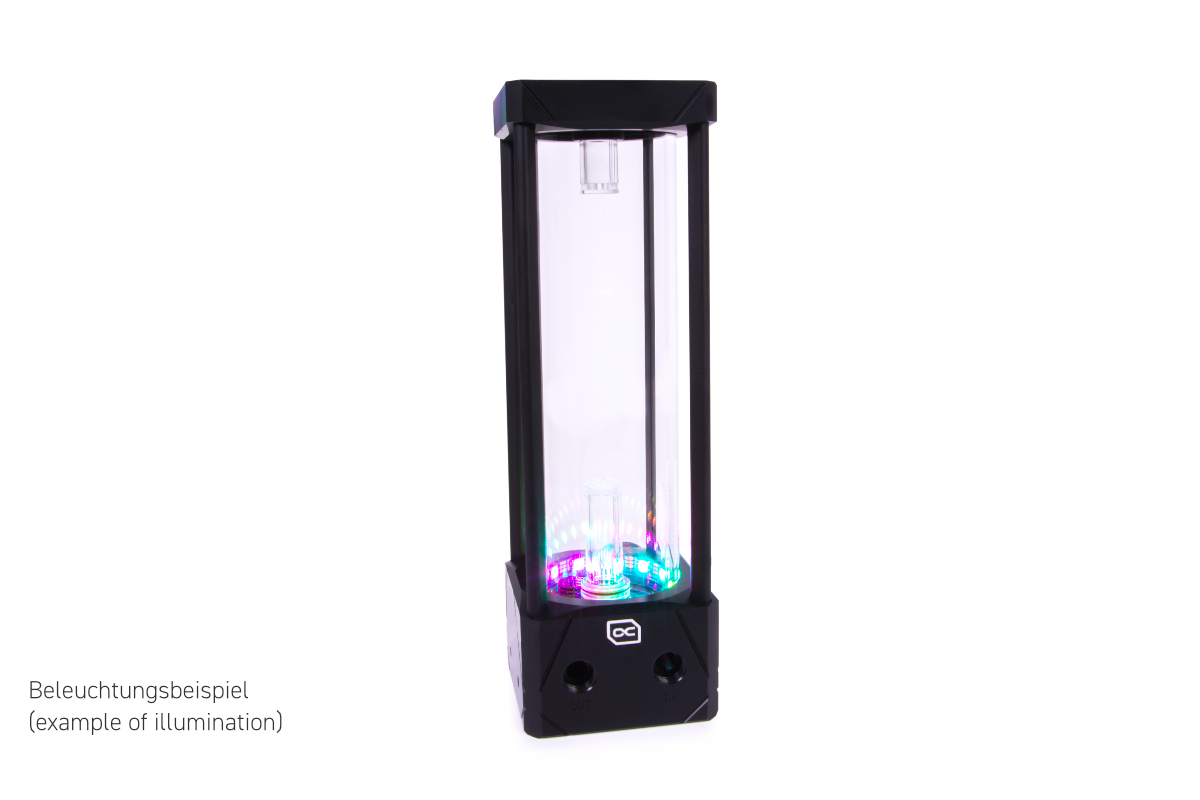

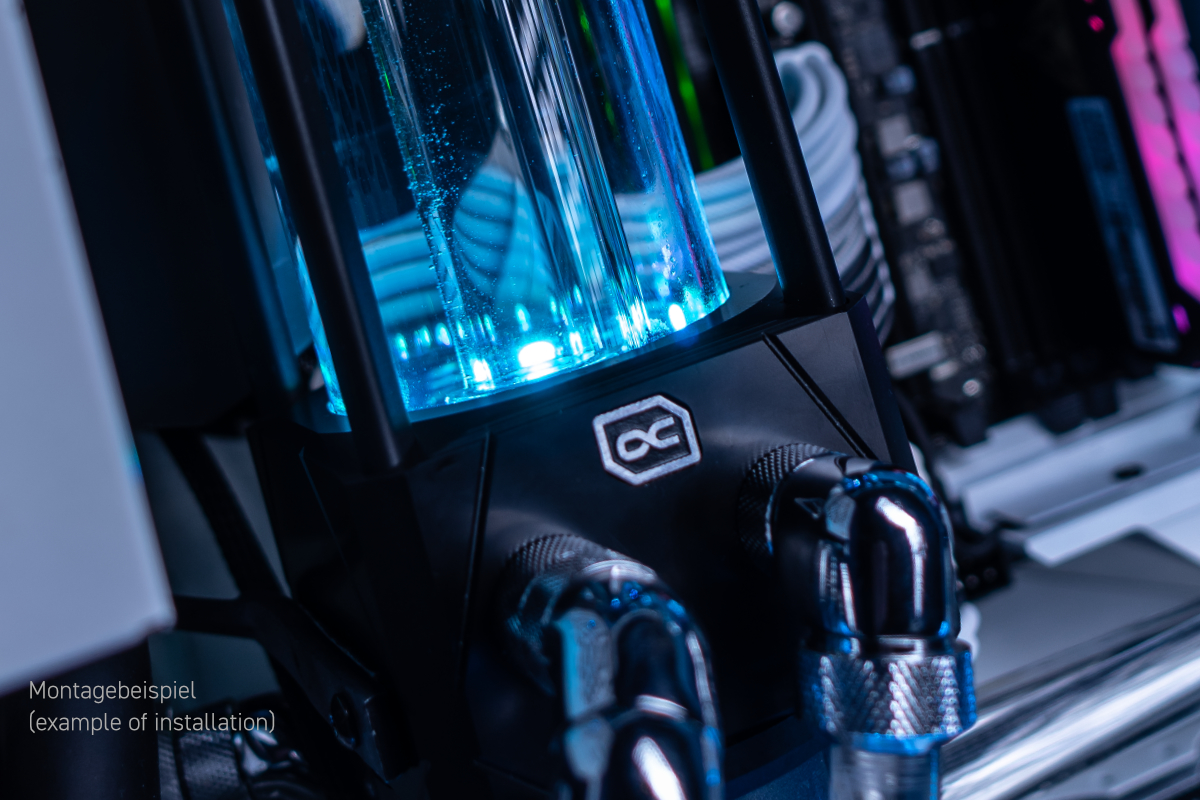

    12 digitally addressable RGB LEDs illuminate the glass tube of the reservoir. They are mounted in a ring at the lower end of the tube in the transition to the pump top and provide brilliant illumination of the entire expansion tank. In combination with the Lighttower water effect, a very special ambience is achieved. The digital aRGB LED lighting is connected via a JST 3-pin connector and can be controlled with a digital RGB controller (e.g. Alphacool Aurora Eiscontrol, Art.15360) or a digital RGB capable mainboard.

    Lighttower water effect
    A special water effect is created in the Eisbecher reservoir via the riser tubes. If you do not fill the reservoir beyond the top edge of the riser tube, you get a kind of fountain effect. In this case, the water is pushed out the sides of the riser tube and splashed against the glass tube. Depending on the flow of the circuit, the effect is stronger or weaker. The effect can be placed at the lower or upper inlet using the riser tubes included in the delivery.

    Pump

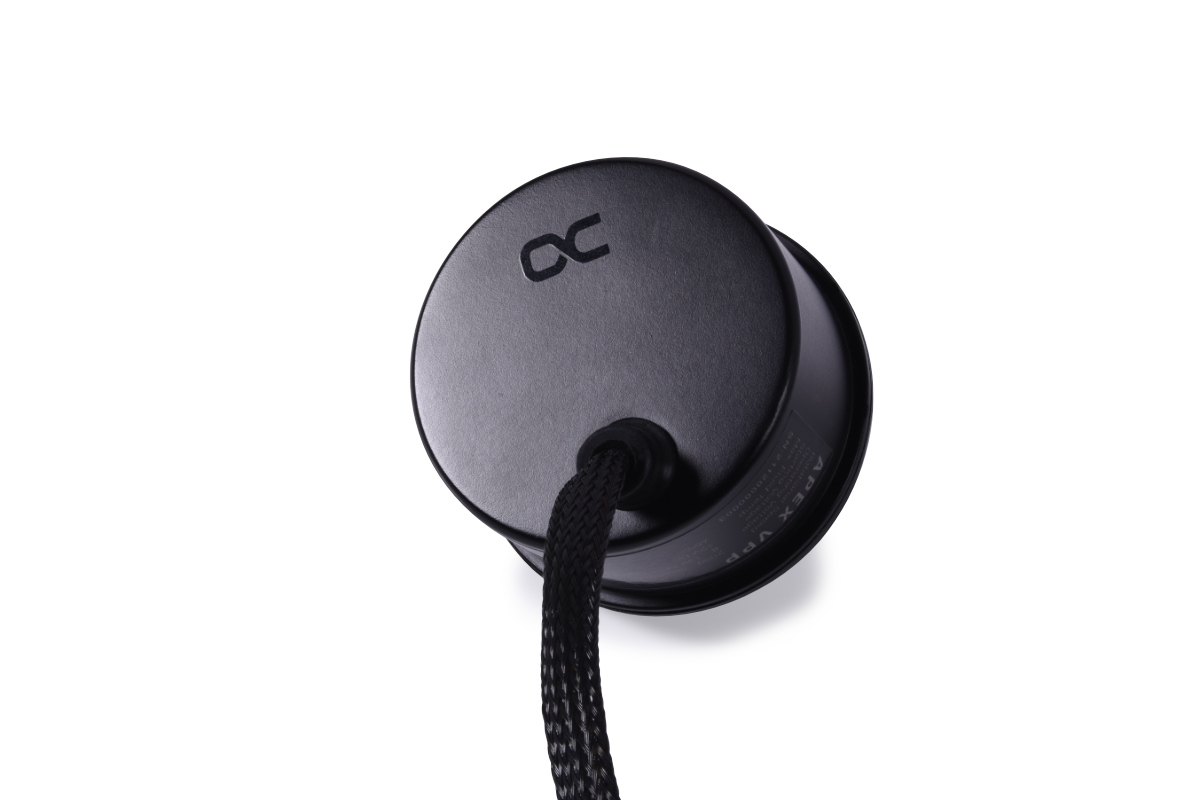

    The VPP Apex pump does without a spherical bearing and uses a ceramic shaft. The motor's coils have been moved from the inside to the outside. These changes have the effect that the pump is fundamentally more stable and smoother running, and any vibrations that arise have been significantly
    reduced. Another positive side effect is that power consumption has been almost halved as a result. Compared to Alphacool's Eispumpe, the power is not supplied via a 4-pin Molex connector. Instead, the Apex VPP pump is connected to the power supply using a SATA connector. The Apex VPP pump has a 4-pin fan connector that connects to the motherboard or to an external controller. This allows you to control the speed range of the pump via PWM and read out the RPM signal.



    Technical data
    L x W x H 242 x 77 x 77mm
    Pump compatibility D5
    Capacity 360 ml
    Material Pump top & cover acetal
    Material tube glass
    Material framing bar aluminium
    Connection 1x G1/4“ inner thread IN / 4x G1/4“ inner thread OUT
    Maximum working temperature 60 °C
    Pressure tested 0,8 Bar
    Quantity of digital aRGB LEDs 12
    Power digital aRGB LEDs 5V
    Power connector digital aRGB LEDs 3-Pin JST + 3-Pin 5V
    Weight 765 g
    Color black

    Technical data VPP Apex
    Dimensions (L x W x H) 65 x 65 x 41mm
    Material pump synthetic material
    Material pump cover aluminium
    Material axle ceramics
    Connections 4-Pin PWM | SATA
    Rotational speed 2500 - 4500 RPM
    Cable lenghts 4-Pin PWM - 48cm | SATA - 48cm
    Operating voltage 8-13V DC / 14W IP32
    Starting voltage 12V DC
    Maximum pumping head 4,25 m
    Max flow 340 l/h
    Max working temperature 60 °C
    Net weight 276 g
    color black
