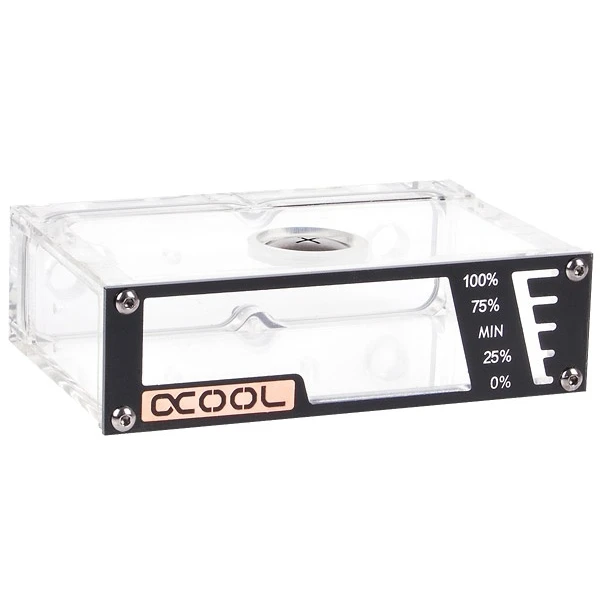

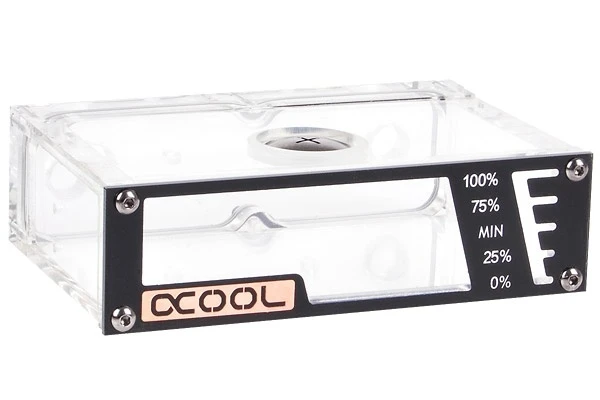

Alphacool Repack Single Bayres 5,25" - Rev. 2

The second version of the Alphacool Repack Single Bayres 5,25" is now available!



Based on the development of the Alphacool Repack Dual 5.25 Bay Station, this Bay reservoir also brings its advantages to the table: Easy mounting, compact dimensions and appealing design! All of these features and many more are implemented in the Alphacool Repack Single Bayres.



Designed for installation in a vacant 5.25” drive bay, this reservoir allows compact installation and is a great addition to the front of your enclosure. Connection to the reservoir can be achieved via the implemented ¼” threads for maximum compatibility and flexibility.



Construction-wise, this reservoir is also a great piece of hardware: Extra-strong Plexi increases stability of the reservoir and ensures extra rigidity. Filling can be done via the 3/8” thread in the front third of the reservoir, which is sealed with a black nickel plated screw plug during operation. By simply pulling the reservoir forward from the drive bay, it can be filled easily. Make it even easier for yourself by connecting a Fillport!

Installation of the reservoir is done just like mounting on an optical drive, making it quick and easy for any user!



The front of the reservoir, the component which mainly remains visible after installation, is just beautiful to look at: Plexi, Acetal and a fill level indicator in combination with the typical Alphacool copper create a truly elegant design. Lighting is the next step towards a perfect system: At the rear of the reservoir, two 5mm LEDs can be inserted.



• Material: Plexiglas/Acetal, brass
• Colour: transparent/black/copper
• Connection threads: 2x ¼“
• Dimensions (L x W x H): 99 x 148 x 43mm
• Pre-drilled holes for 2x 5mm LEDs



• 1x Alphacool Repack Single Bayres 5,25" - Rev. 2
• 2x Mounting screws
• Allen key

Due to the large number of different enclosures, complications may arise when inserting the Dual reservoir. The dimensions of the reservoir were made to fit flush in the front of the enclosure, meaning that internal modifications to the enclosure may be needed for installation.



Note: The copper-colored logo is covered by a protective foil. To have the logo shining and clean, simply remove this foil.



Important Note: Please note that the firm Alphacool International GmbH accepts no liability for damages of this product by using other coolants. We would like to point out that other coolants as inhibitors often contain or other corrosive substances attack the acteal, plase only usw our Cape Kelvin Catcher.
