der8auer RYZEN 3000 OC Bracket AIO Mount

Brak ocen

  • Producent: der8auer
  • Kod producenta: FSD8-033
  • Kod EAN: 4250144804040
  • Gwarancja: 24 miesiące

Dostępność:

Czas realizacji orientacyjnie 8-14 dni roboczych

  • WYPRZEDAŻ

Cena:

143 zł

przechowalnia

  • Koszt wysyłki: od 0 zł
  • Darmowa dostawa od 800,00 zł
143 In stock der8auer RYZEN 3000 OC Bracket AIO Mount
AMD's Zen architecture was a milestone in the history of CPU architecture and a stroke of genius by the Texas based chipmaker. Instead of resting on its laurels, AMD has been busy improving the "Zen" processors. The result is the new "Ryzen 3000" processor family based on the "Zen2" architecture with its chiplet design. The Ryzen 9 3900X for example consists of a 12-nm I/O die and two CPU dies manufactured in a 7-nm process.

This chip design however has also changed the layout of the CPU dies on the package, which has also shifted the thermal center point. On a processor with only one CPU die under the heatspreader, the "hot spot" is in the middle of the CPU. Due to the new chip design, the "hot spot" has moved to the edge of the heatspreader.

This has an influence on the cooling behavior of CPU coolers. Especially AiOs (All in One watercoolers) - or CLCs (Closed Liquid Coolers) - with a round cooling block often do not completely cover the corners of the heatspreader. For an optimal cooling performance, the base plate of the AiO would have to be shifted around.

This is where professional overclocker Roman Hartung comes into play. Using his der8auer RYZEN 3000 OC Bracket AIO Mount the base plate of an AIO can be flexibly positioned on the heatspreader.

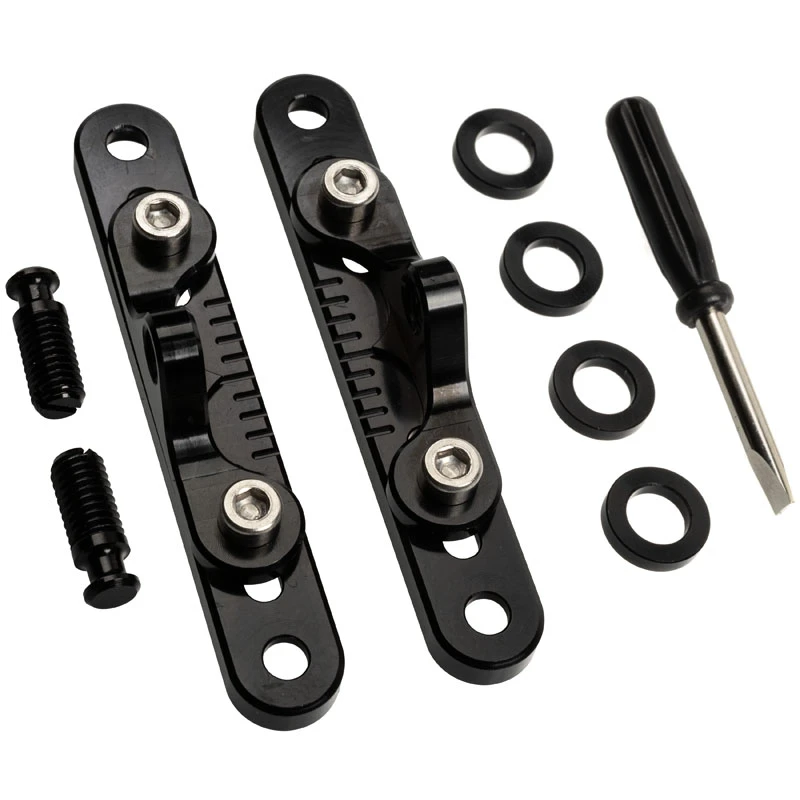

The Features of the der8auer RYZEN 3000 OC Bracket AIO Mount at a glance:

  • Overclocking tool by Roman "der8auer" Hartung
  • Lowers temperatures by up to 7° C!
  • For AMD's Ryzen 3000 CPUs
  • Makes flexible positioning of the CPU cooler possible
  • Replaces the AM4 bracket on the motherboard
  • Please read the notes carefully!

der8auer RYZEN 3000 OC Bracket AIO Mount: Important notes and compatibility

AM4 Retention Mounting Bracket

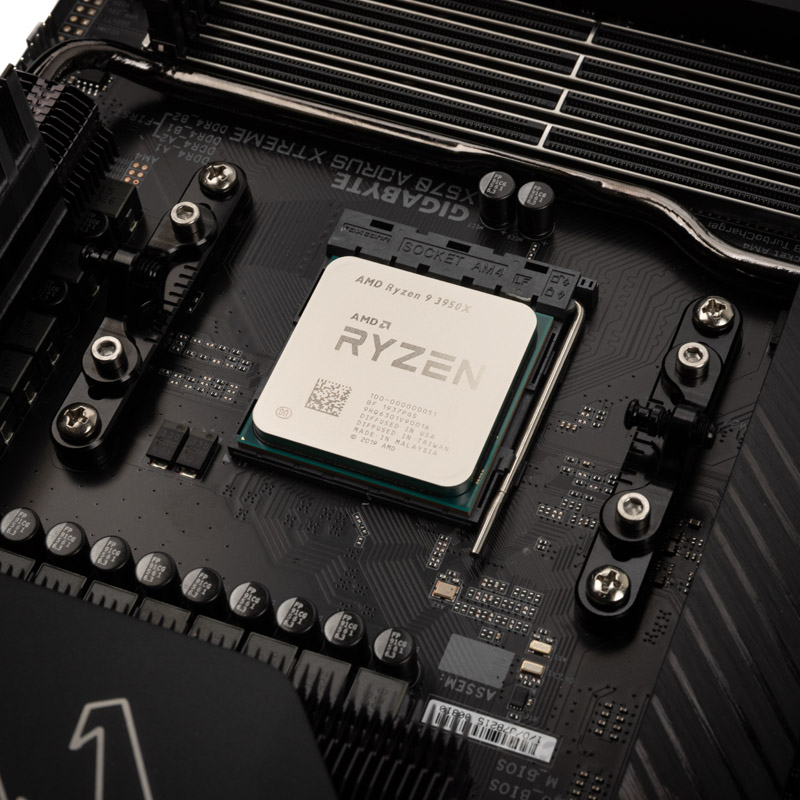

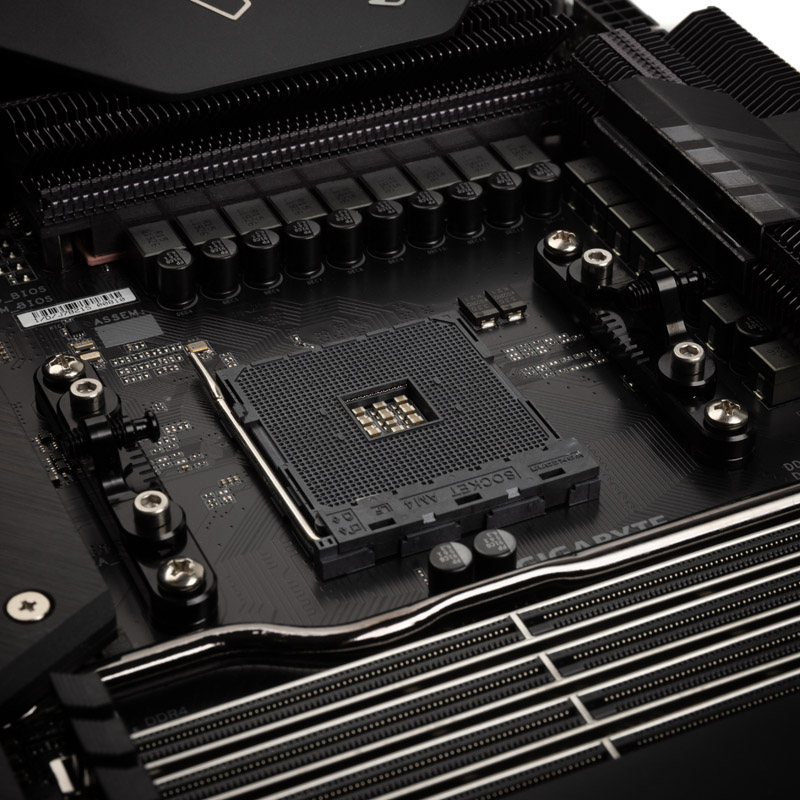

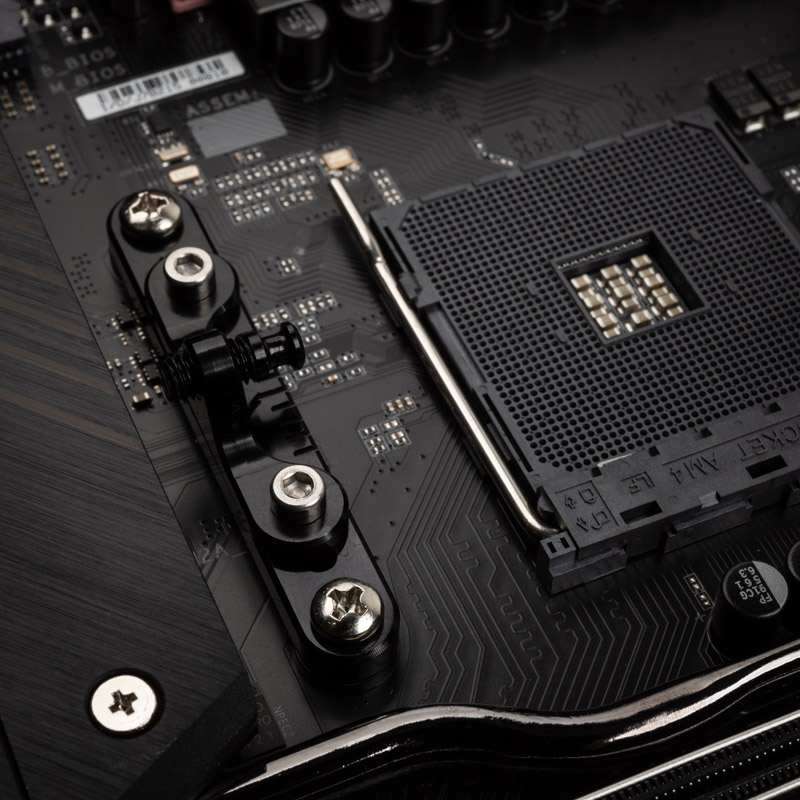

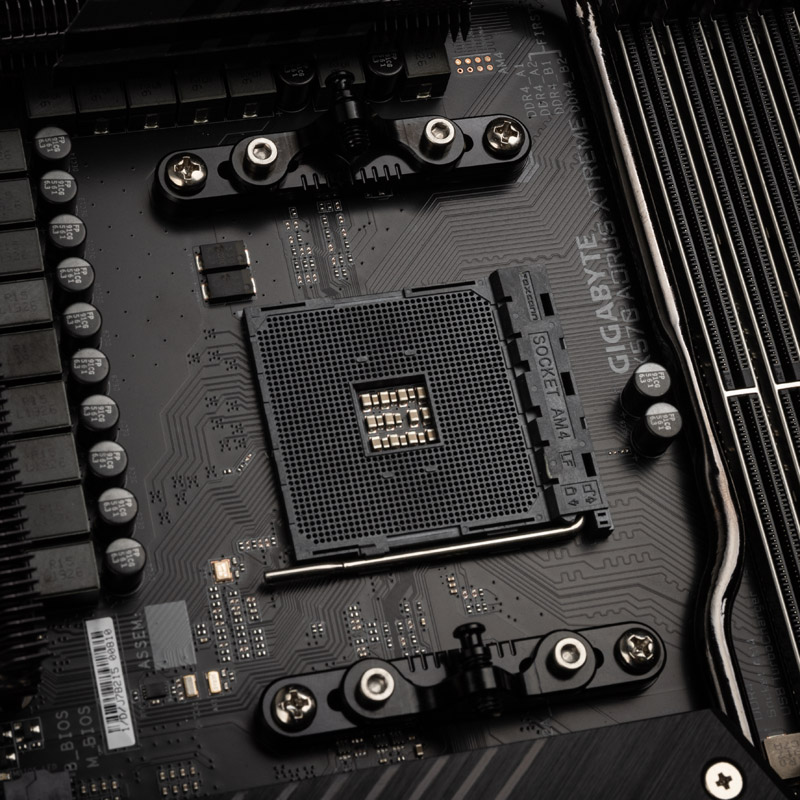

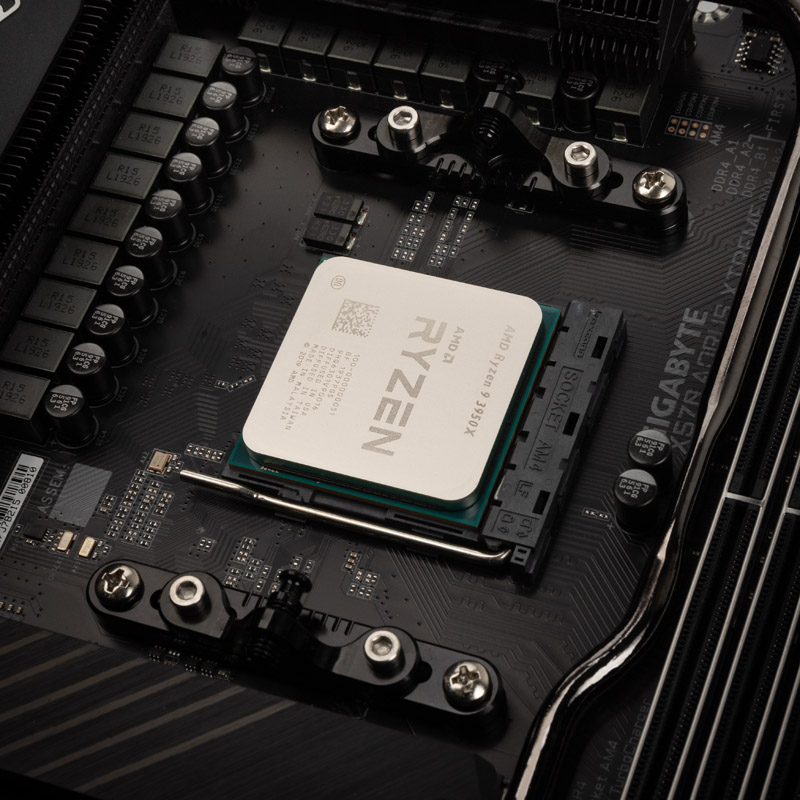

The RYZEN 3000 OC Bracket AIO Mount replaces the AM4 mounting bracket on the motherboard. Accordingly, the RYZEN 3000 OC Bracket AIO Mount is only compatible with AiOs using the "AMD Socket AM4 Retention Mounting Bracket"! In addition, the compatibility of the AM4 motherboard must be taken into account, as some mainboards components such as transistors may prevent installation.

The following motherboards were tested by Roman:
Name Manufacturers ID CK part number
ASRock X570 Creator 90-MXBAW0-A0UAYZ MBAR-308
ASRock X570 Phantom Gaming X 90-MXBAN0-A0UAYZ MBAR-309
ASRock X570 Steel Legend 90-MXBAR0-A0UAYZ MBAR-311
ASRock X570 Extreme4 90-MXBAP0-A0UAYZ MBAR-312
ASRock X570 Phantom Gaming 4 90-MXBAU0-A0UAYZ MBAR-312
ASRock X570 Pro4 90-MXBAT0-A0UAYZ MBAR-314
ASUS ROG Crosshair VIII Formula 90MB10Z0-M0EAY0 MBAS-449
ASUS ROG Crosshair VIII Hero 90MB1100-M0EAY0 MBAS-450
ASUS ROG Strix X570-E Gaming 90MB1150-M0EAY0 MBAS-451
ASUS ROG Strix X570-F Gaming 90MB1160-M0EAY0 MBAS-452
ASUS TUF Gaming X570-Plus 90MB1180-M0EAY0 MBAS-454
ASUS Prime X570-P 90MB11N0-M0EAY0 MBAS-457
Gigabyte X570 Aorus Xtreme X570 AORUS XTREME MBGB-335
Gigabyte X570 Aorus Master X570 Aorus Master MBGB-336
Gigabyte X570 Aorus Ultra X570 Aorus Ultra MBGB-337
Gigabyte X570 Aorus Pro X570 Aorus Pro MBGB-338
Gigabyte X570 Aorus Elite X570 Aorus Elite MBGB-339
Gigabyte X570 Gaming X X570 Gaming X MBGB-340
Gigabyte X570 UD X570 UD MBGB-342
MSI MEG X570 Godlike 7C34-002R MBMC-347
MSI Prestige X570 Creation 7C36-002R MBMC-348
MSI MPG X570 Gaming Pro Carbon WiFi 7B93-001R MBMC-350
MSI MPG X570 Gaming Edge WiFi 7C37-001R MBMC-351
MSI MPG X570 Gaming Plus 7C37-004R MBMC-352
MSI X570-A Pro 7C37-003R MBMC-353
In addition, other motherboards are compatible with the RYZEN 3000 OC Bracket AIO Mount, which needs to be modified by the user himself. These modifications are only recommended for users with the appropriate know how and experience. More information about the necessary steps can be found in the video linked below.

Name Manufacturers ID CK part number
ASUS ROG Crosshair VIII Hero (WI-FI) 90MB10T0-M0EAY0 MBAS-448
ASUS Pro WS X570-ACE 90MB11M0-M0EAY0 MBAS-456
Gigabyte X570 I Aorus Pro WiFi X570 I Aorus Pro WiFi MBGB-341
MSI MEG X570 ACE 7C35-002R MBMC-349
So far only X570 motherboards have been tested for compatibility. However, the der8auer RYZEN 3000 OC Bracket AIO Mount will also be compatible with a variety of older AM4 motherboards in the ATX and E-ATX form factor. Mini-ITX motherboards often have components in the way, which prevent attaching the kit.
Notes:

Only use AiOs which have a Socket AM4 Retention Mounting Bracket!

Please refer to the list with compatible motherboards and the corresponding notes! It may be necessary to adapt the Bracket AIO Mount (see compatibility lists!).

Detailed and highly recommended assembly instructions are provided in the linked Video (external Link).

The actual temperature reduction that can be achieved by using the Ryzen 3000 OC Mounting Frame depends on the CPU and CPU cooler used.

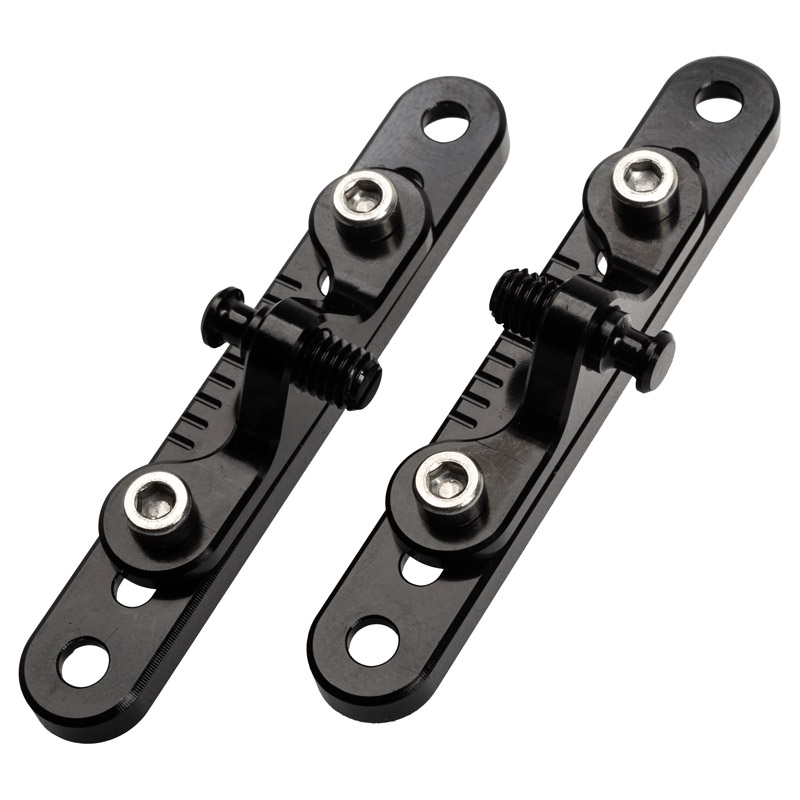

Technical Details:

  • Material: Aluminium, milled and anodised
  • Compatibility:
    CPUs: Ryzen 3000
    Motherboards: AM4 socket, see the compatibility lists above
