der8auer Delid-Die-Mate WS 3647

Brak ocen

Producent: der8auer
Kod producenta: FSD8-028
Kod EAN: 4250144803906
Gwarancja: 24 miesiące

Dostępność:

Czas realizacji orientacyjnie 8-14 dni roboczych

Koszt wysyłki: od 0 zł
Darmowa dostawa od 800,00 zł

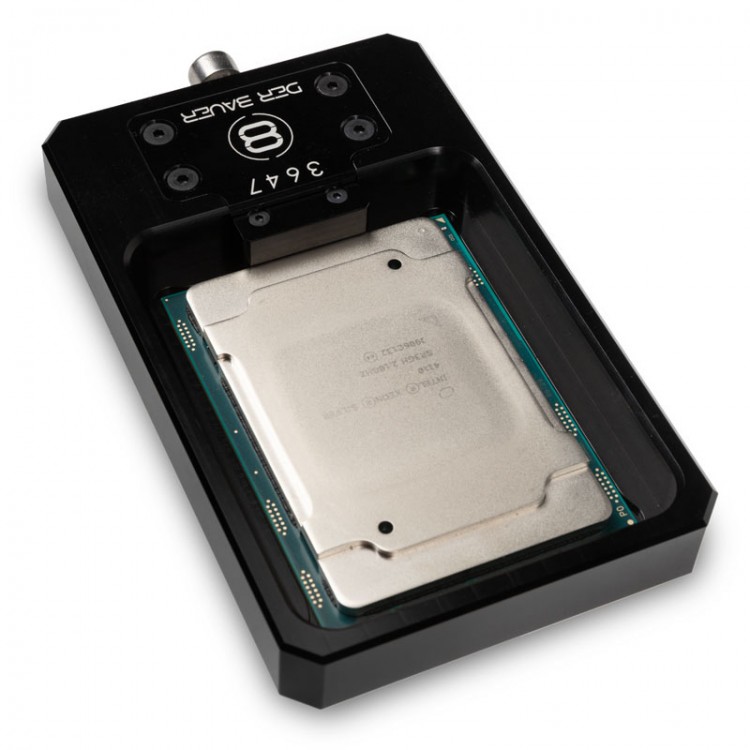

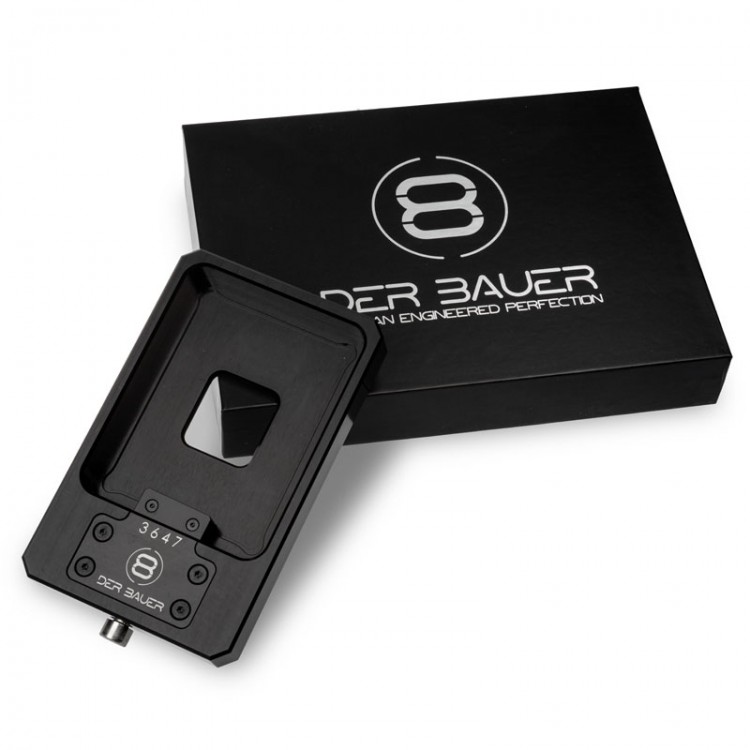

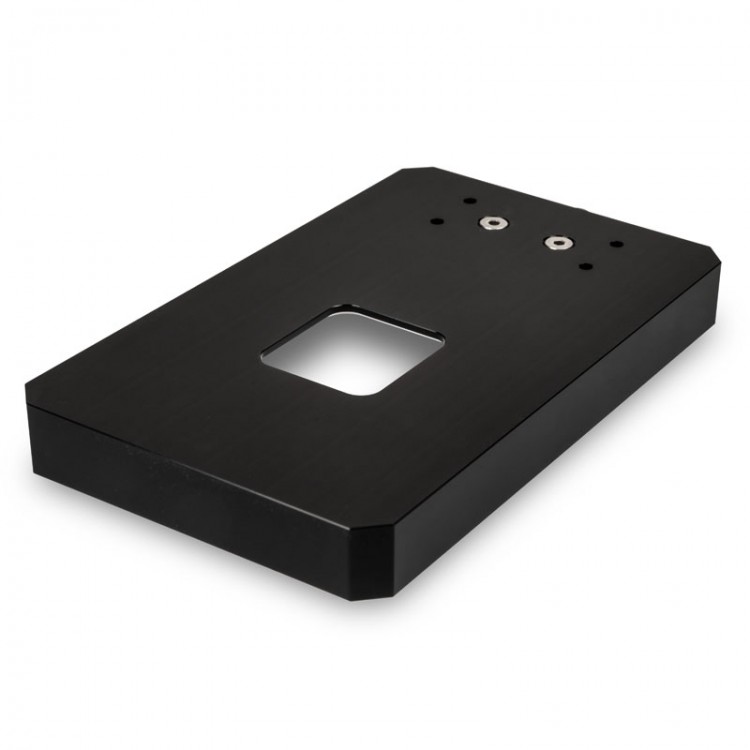

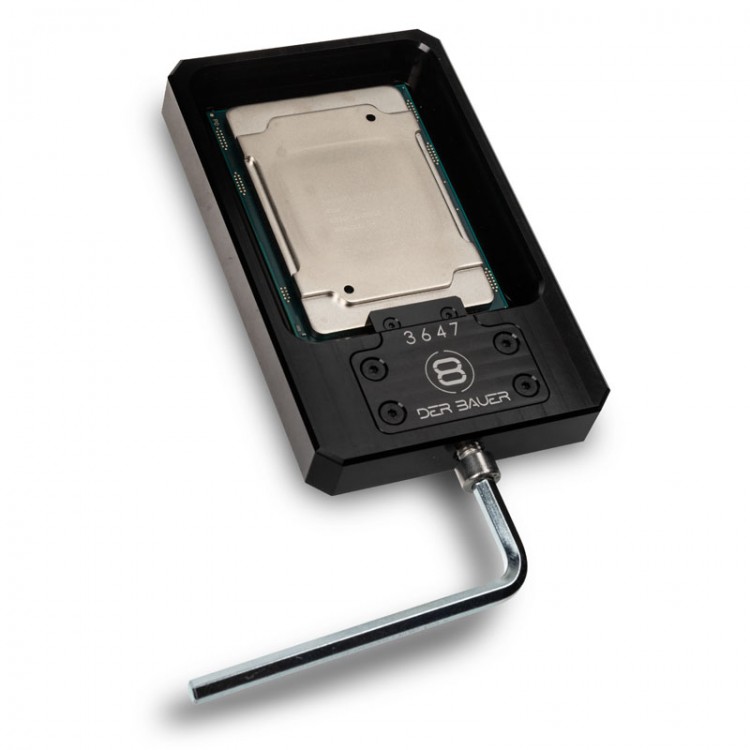

Practical tool from "der8auer" for the easy removal ("delidding") of the Integrated Heat Spreader (IHS), compatible Intel Xeon Phi and Xeon Skylake SP processors for 3647 socket, made from anodised black aluminium, overclock comfortably and safely like a professional!

Anyone who was building their gaming PC in the early 2000s can probably still recall the numerous instances of broken CPUs, as occurred with the AMD Athlon XP whose silicon core broke at the corners when mounting a CPU cooler. In order to avoid the high RMA rate of otherwise perfectly functioning processors, especially when placed in the hands of less experienced users, proceeding generations of processors - beginning with the AMD Athlon 64 and Intel Pentium III - simplified the process of mounting the CPU cooler by installing a metal heat spreader on the CPU package, thereby successfully protecting the CPU die from damage. This mostly nickel-plated copper Integrated Heat Spreader (IHS) guides the heat produced by the chip into the CPU cooler and distributes the thermal energy over a larger surface area more effectively than raw silicon alone. In order to effectively integrate both components a Thermal Interface Material (TIM) is located between the heat spreader and the silicon chip, which itself has not consisted of solder since 2012. Instead of solder a standard thermal paste is used, and this has also gone on to take the place of solder in all proceeding series of CPU. However due to its relatively low thermal conductivity it has drastically reduced the potential for extreme overclocking.

Der8auer Delid The Mate WS 3647 at a Glance:

- Handy tool for removing (heaving) the heatspreader of a CPU

- Fast, light and above all without damage

- Made of high quality aluminum in anodized black

- Compatible with current Intel Xeon Phi and Xeon Skylake SP processors

- Convenient and secure overclocking like a pro!

This previously dangerous act of DIY is turned into something routine and harmless, thereby guaranteeing that the CPU and the now accessible CPU components survive unscathed. This opens up completely new possibilities in the realm of CPU modding to extreme overclockers and their aspirational counterparts everywhere. The issue of additional heat transfer between heat spreader and silicon has now disappeared and the CPU's temperature falls precipitously as a consequence - even without any overclocking. An additional advantage is that a more premium thermal paste with improved conductivity can and should be chosen, for example the offering from Thermal Grizzly . The results speak for themselves: Temperature reductions of 10 °C to 20 °C are achievable.

*** Important Warning! ***

The removal of the CPU heat spreader is performed at your own risk and always results in the complete invalidation of the manufacturer's guarantee and warranty

Compatibility Information: Without the integrated heat spreader the mounting height of the CPU cooler decreases slightly and, because of this, coolers with fixed mounting heights can no longer be mounted. For this reason please be sure to check prior to installation whether the selected cooler can also be set to a lower mounting height.

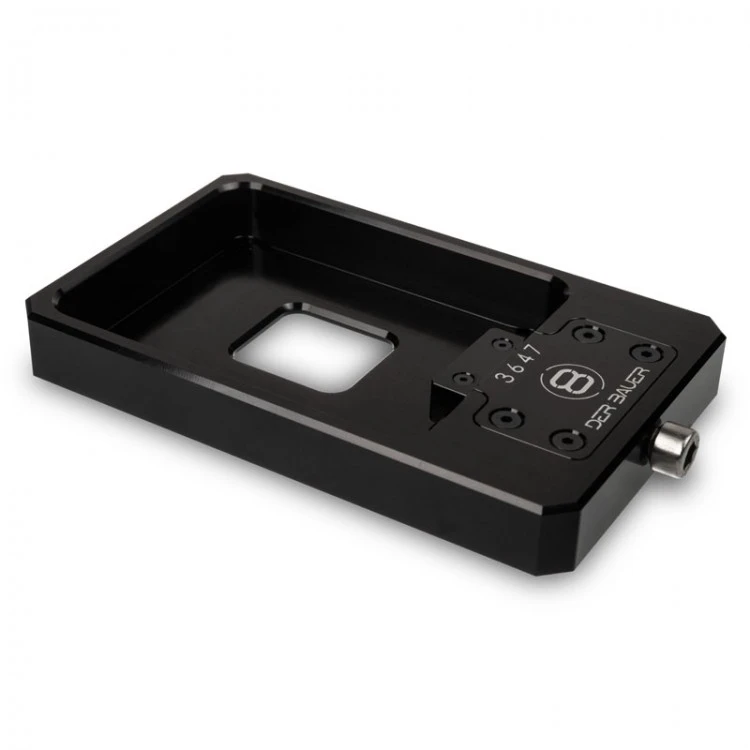

Technical details:

- Dimensions: 140 x 77 x 15 mm

- Type: CPU heatspreader remover

- Material: aluminum / stainless steel

- Colour: black anodized

- Compatible with all Intel Xeon Phi and Xeon Skylake SP processors for 3647 socket

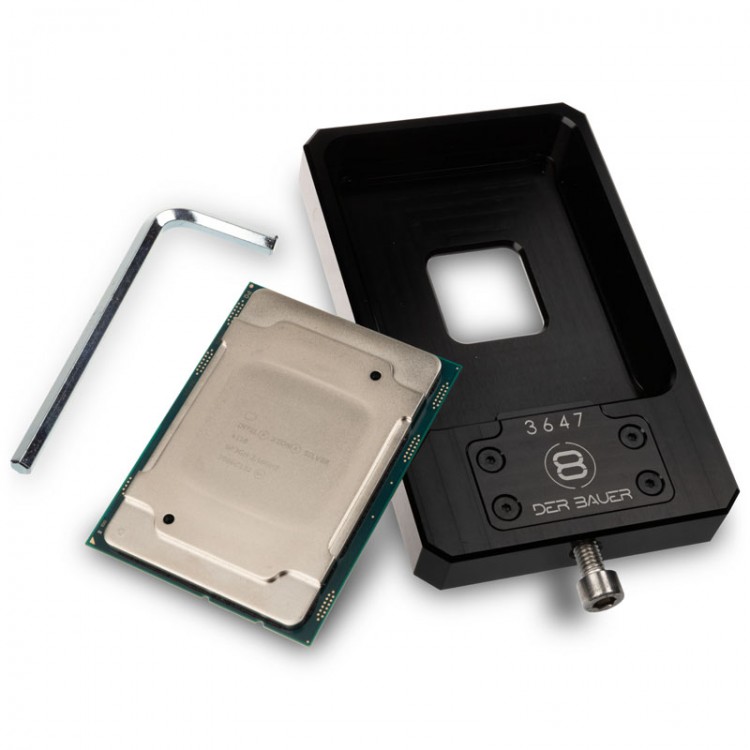

Delivery :

- 1x Delid The Mate WS 3647

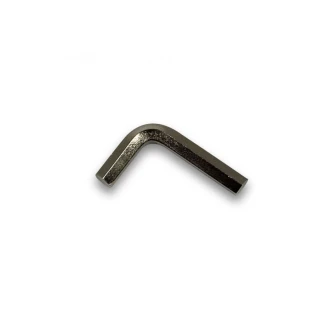

- 1x Allen key
