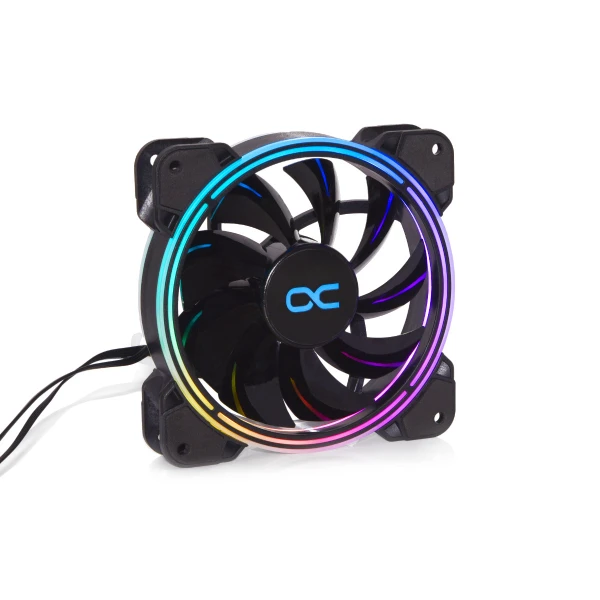

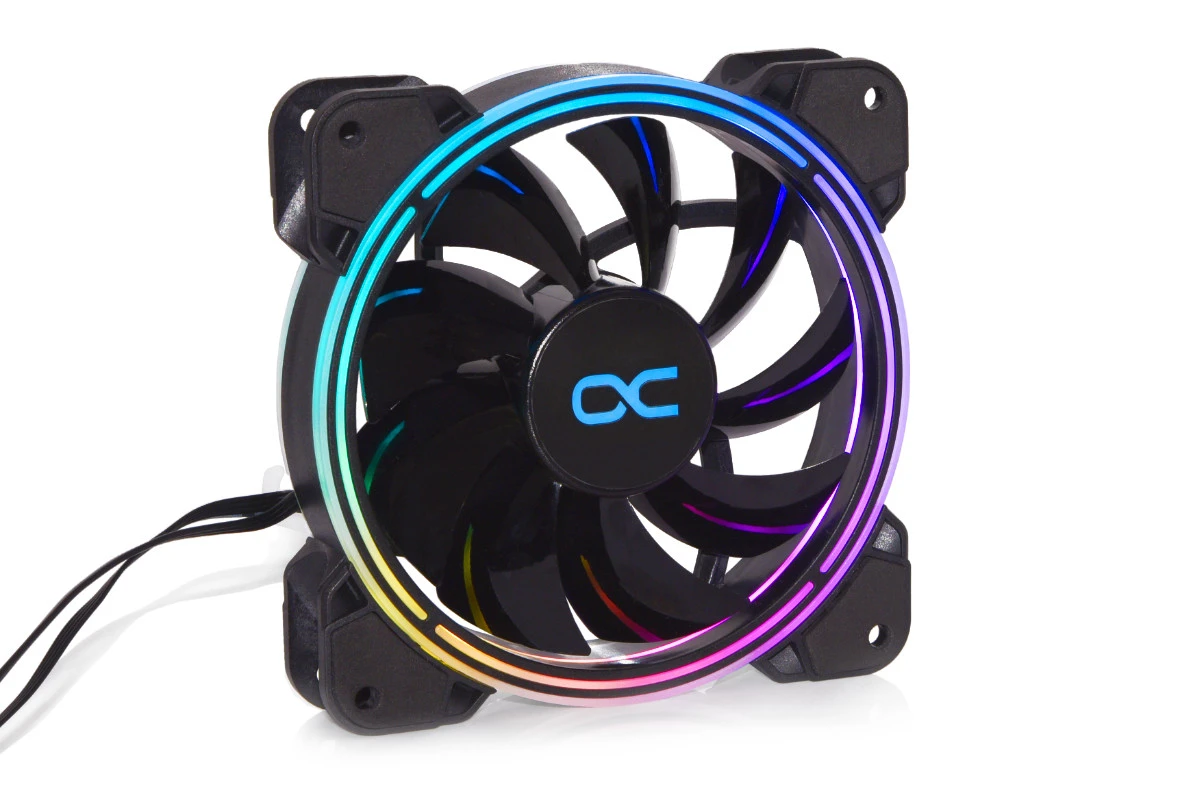

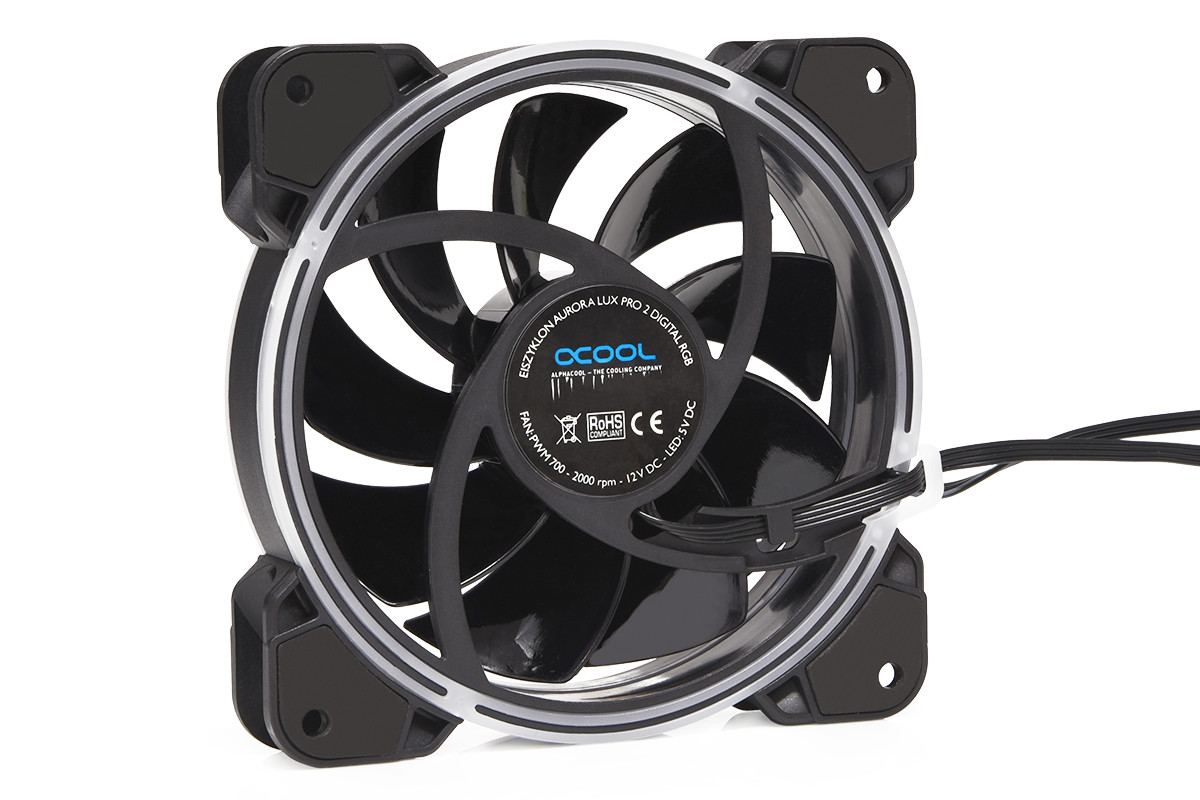

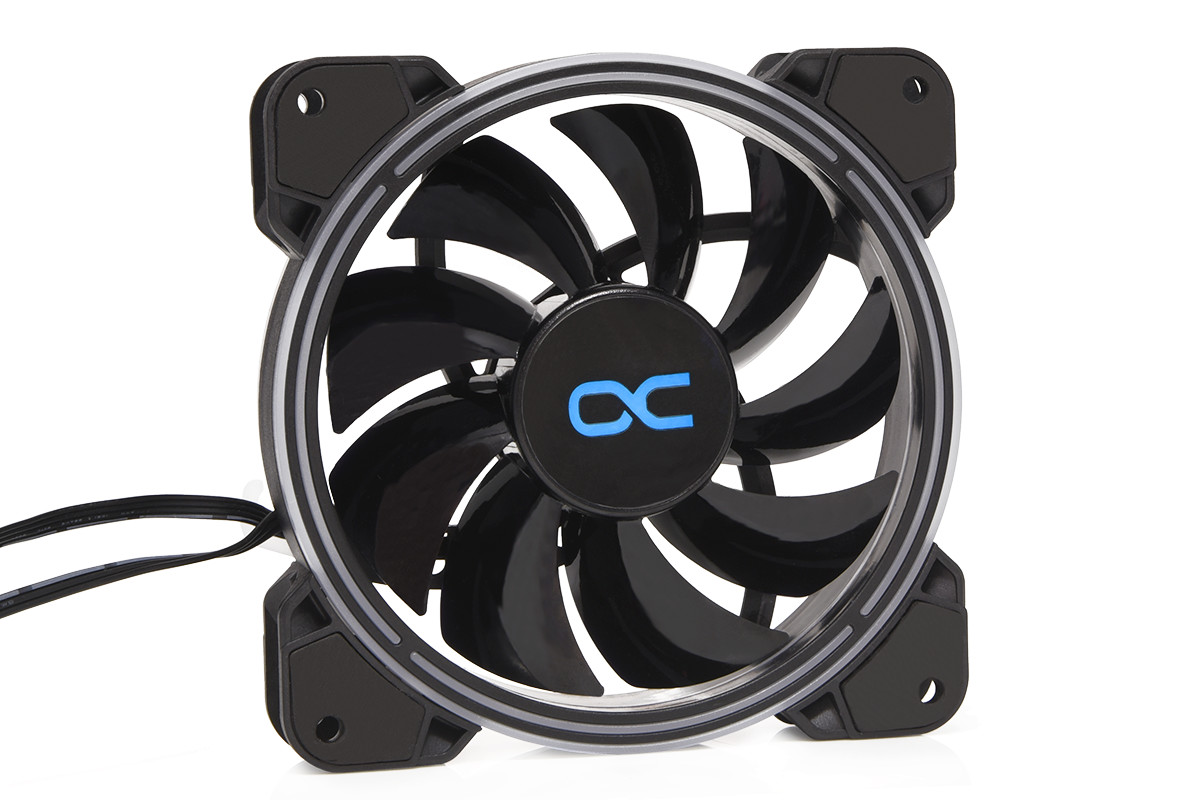

Alphacool 120mm Eiszyklon Aurora LUX PRO 2 Digital RGB

You may have already seen the Alphacool Eiszyklon Aurora LUX Pro fan on the Alphacool Eisbaer Aurora series. It offers a wide control range as well as outstanding digital RGB LED lighting. The individually controllable 5V aRGB LEDs paired with the special design of the fan frame create unique effects.

Ingenious Lighting

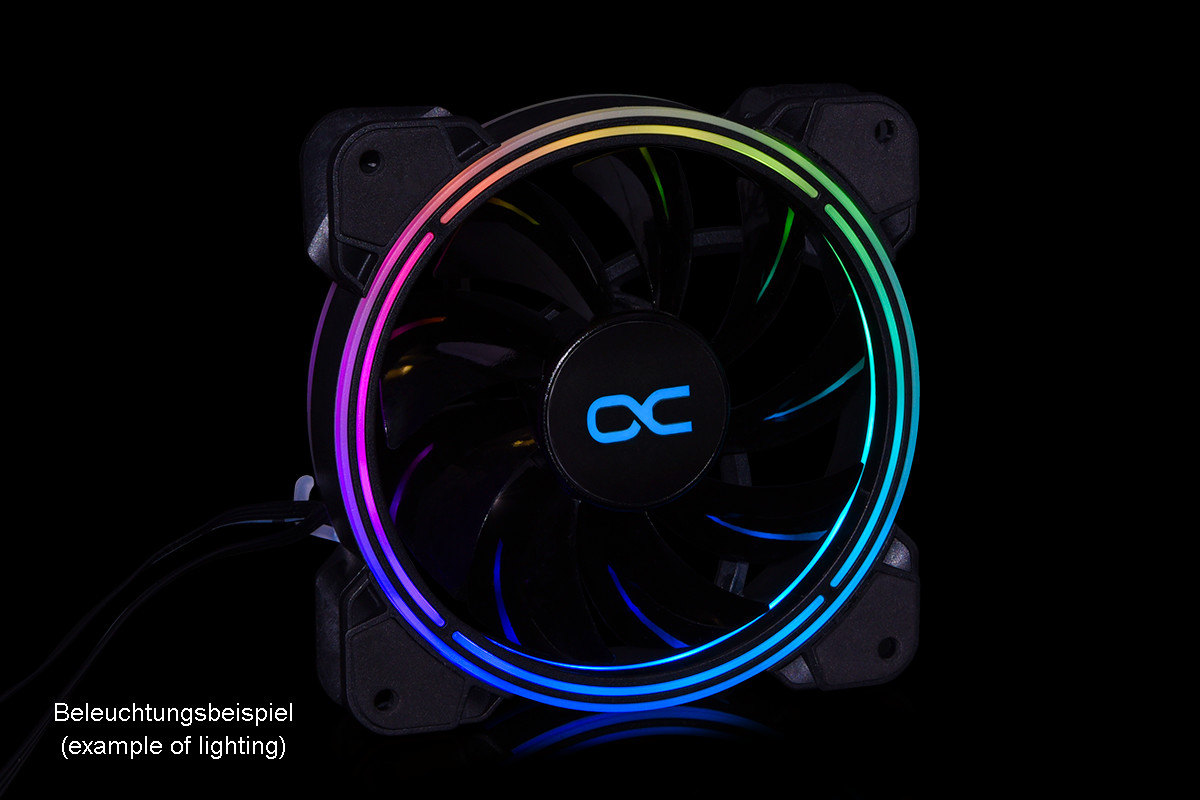

The frame is equipped with digital addressable 5V RGB LEDs which illuminate both sides of the whole frame. The frame is not completely transparent, but the illumination is done through narrow slits in four places. On the upper side there are two rows of these slits. Each narrow frame runs along the inside and outside of the frame. This creates a unique illumination which looks very noble. Thanks to the recessed light diffusers the light is distributed evenly. This means that Individual LEDs are no longer visible.

Wide Control Range and Silent

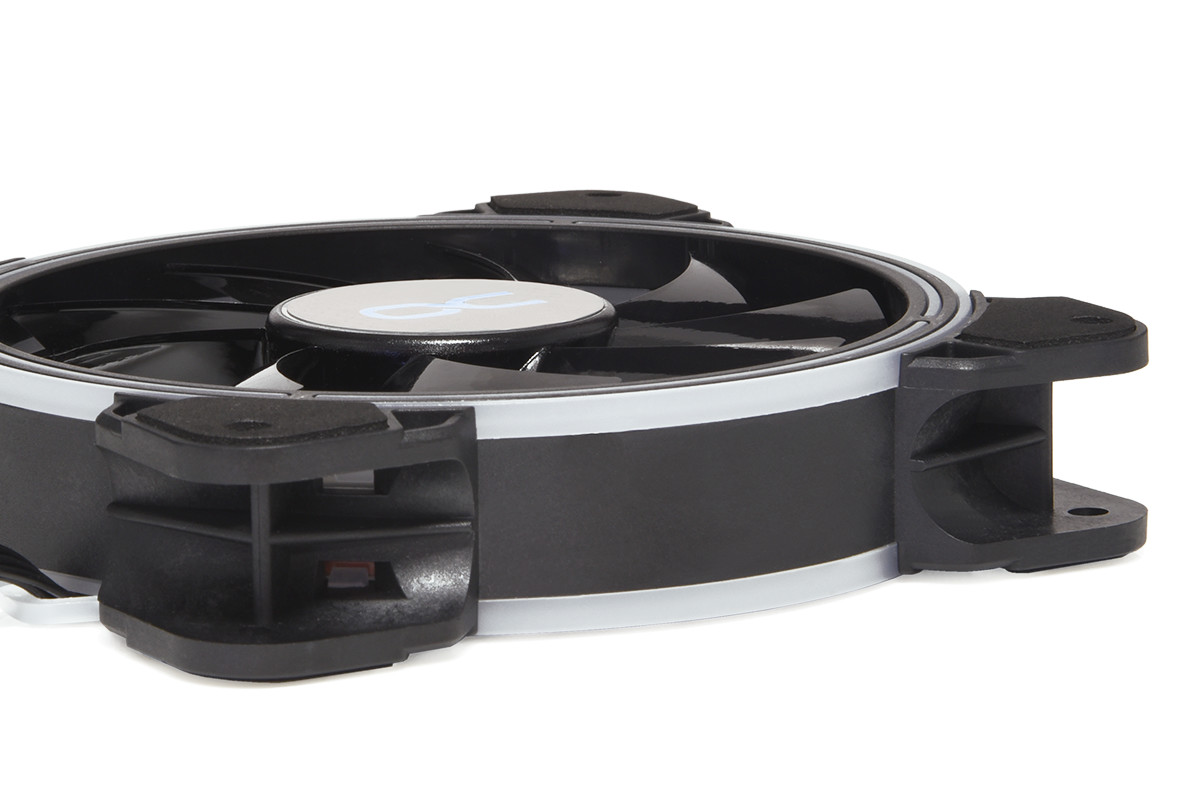

The fan can be controlled from 700 to 2000 rpm via the 4-pin PWM connector. At 700 rpm the fan is almost silent, but still offers a good airflow rate as well as a high static pressure. Therefore, the fan can also be used very well on radiators for a wa-ter cooling system. Thanks to the high airflow, the fan is also ideal for ventilating a case. Decouplers are also found directly on the frame. The soft foam padding reduces the transmission of vibrations to the case. A further plus point for the silent capabili-ty of the fan.

Connections?

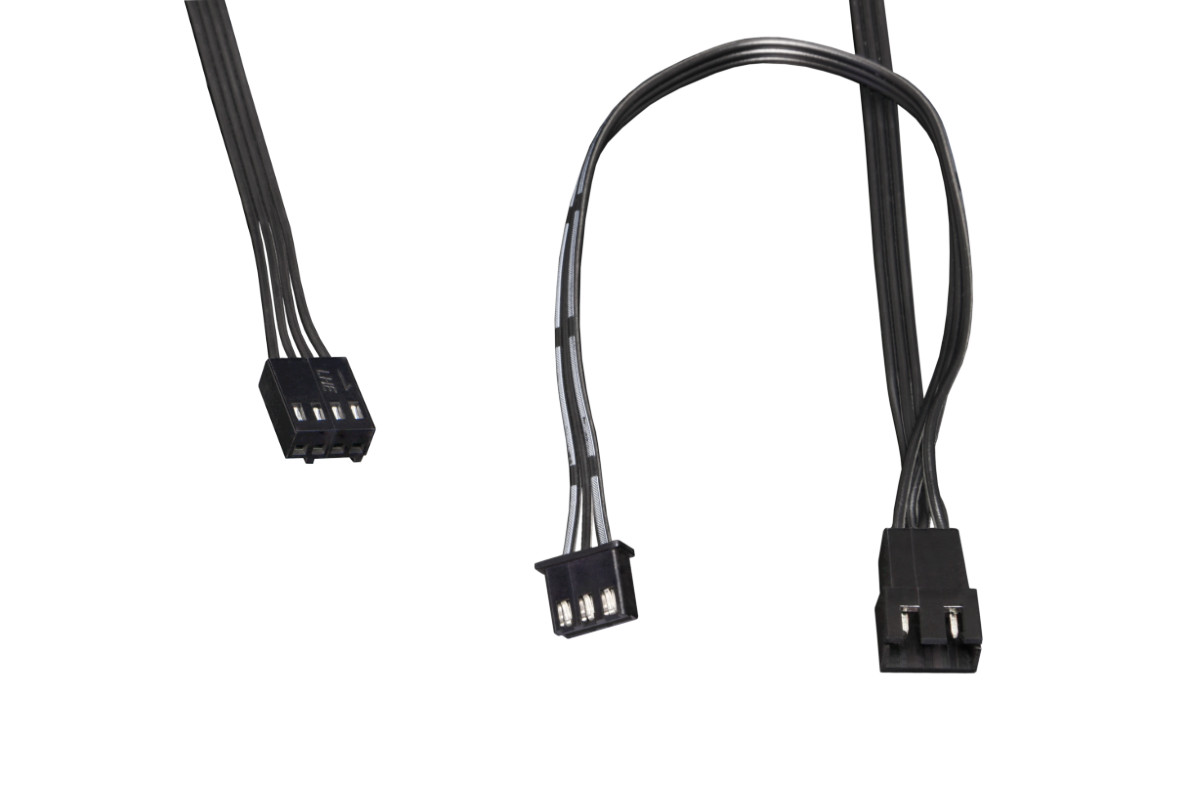

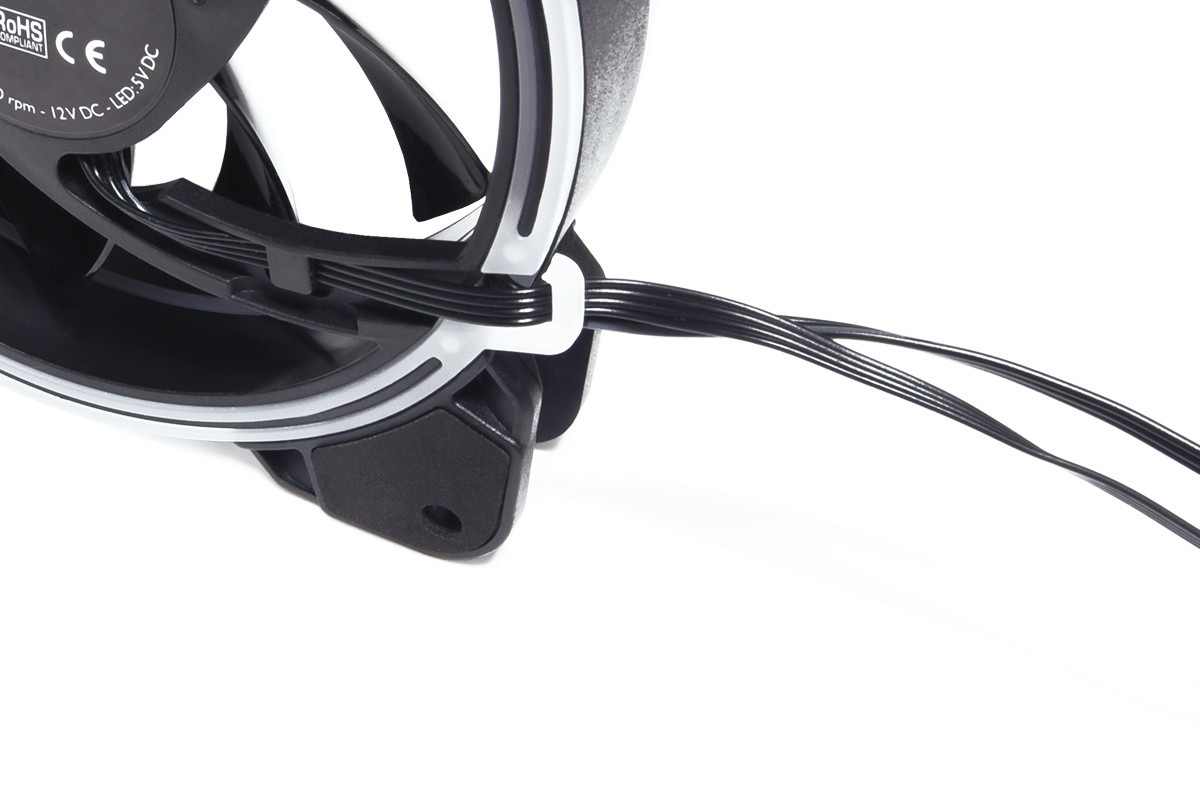

The fan is controlled via a 4-pin PWM connector. The cable is 50 cm long. This allows the fan to be connected to the mainboard or a special controller without any additional adapter cables or extensions. The digital aRGB LED lighting is controlled via a JST 3-pin connector.

Tecnical data

• L x W x H: 120 x 120 x 25mm
• Speed: 700 - 2000 rpm
• Static pressure: 2,0 mm H2O
• Air flow rate: 104,49 m³/h
• Bearing: Hydraulic
• Fan connector: 4-Pin PWM
• aRGB connector: 3-Pin JST + 3-Pin 5V
• LEDs: Adressable Digital RGB LEDs
• Noise: 21,5 - 33,8 dB(A)
• MTBF: 40.000h

Download Data sheet PDF: Alphacool Eiszyklon Aurora LUX PRO 2 Digital RGB fan
