Alphacool Eiswolf 2 AIO - 360mm RTX 3090/3080 with Backplate (Reference)
- Producent: Alphacool
- Kod producenta: 11931
- Kod EAN: 4250197119313
- Gwarancja: 24 miesiące
Dostępność:
Czas realizacji orientacyjnie 5-10 dni roboczych
- Koszt wysyłki: od 0 zł
- Darmowa dostawa od 800,00 zł

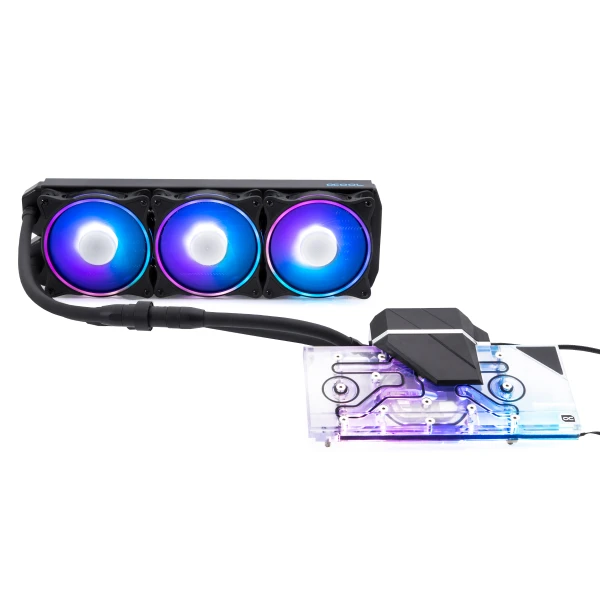

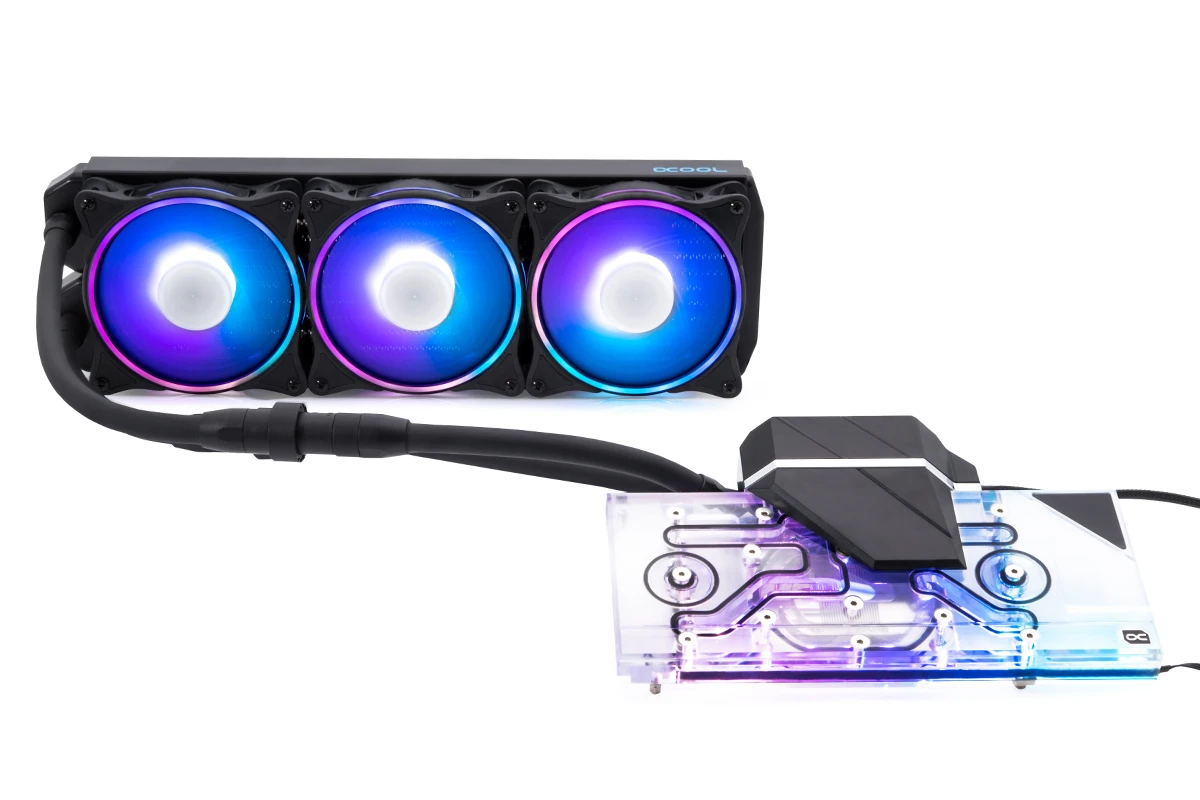

The Alphacool Eiswolf 2 is the first full cover GPU AIO waterblock from Alphacool. It is based on the Alphacool GPX Eisblock Aurora GPX water block, a pump unit and a 360mm NexXxoS ST30 full copper radiator. The latter is equipped with the Alphacool Aurora Rise Digital RGB fans.
Fullcover Waterblock?

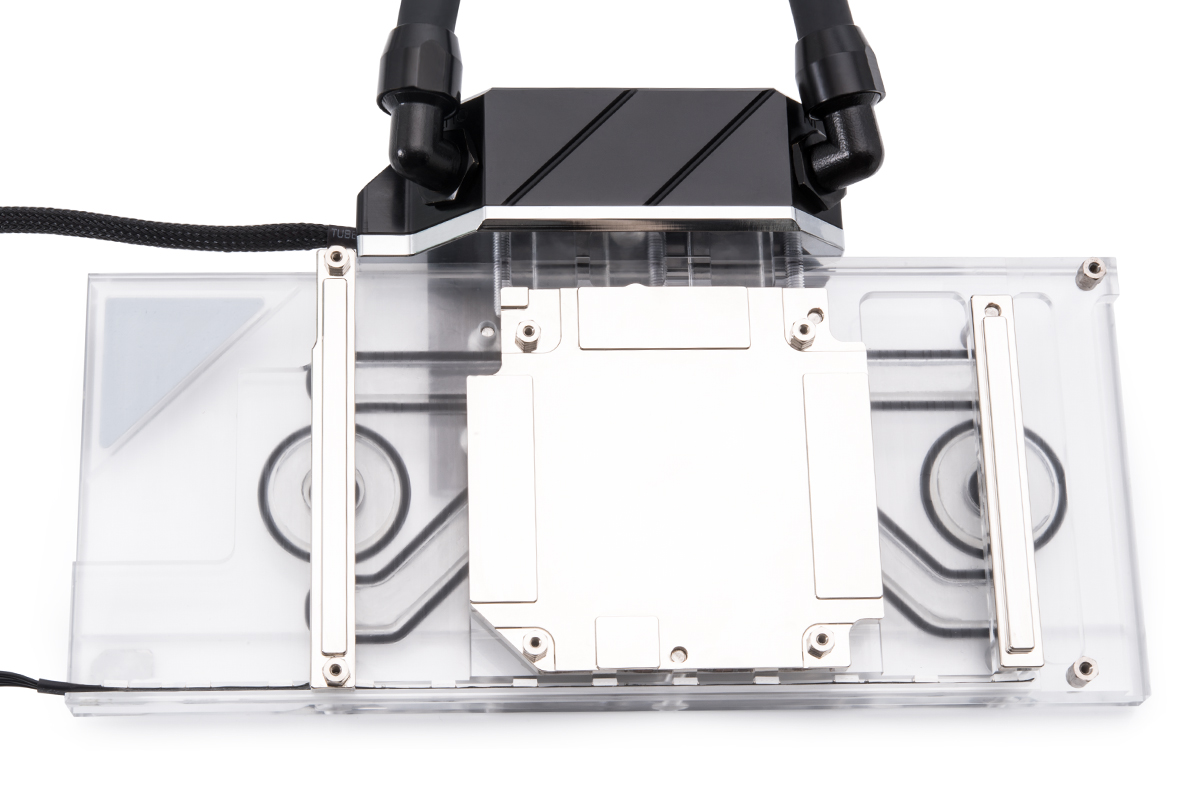

The Eiswolf 2 graphics card AIO water block not only cools the GPU with liquid but also all relevant components that require active cooling. This includes the graphics memory, the VRM and, if necessary, other components that require direct cooling. By using the Eisblock GPX Aurora water cooler, the cooling capacity is identical to that of a DIY graphics card water cooler.
Pump

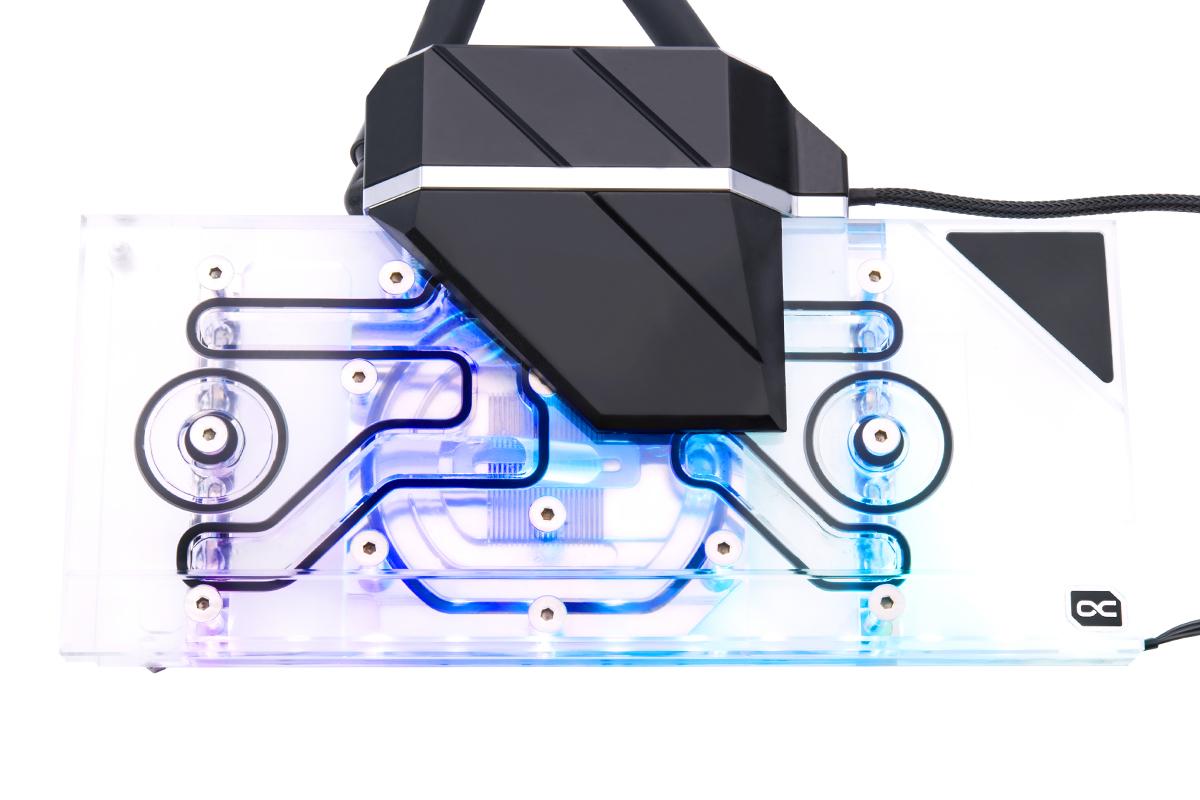

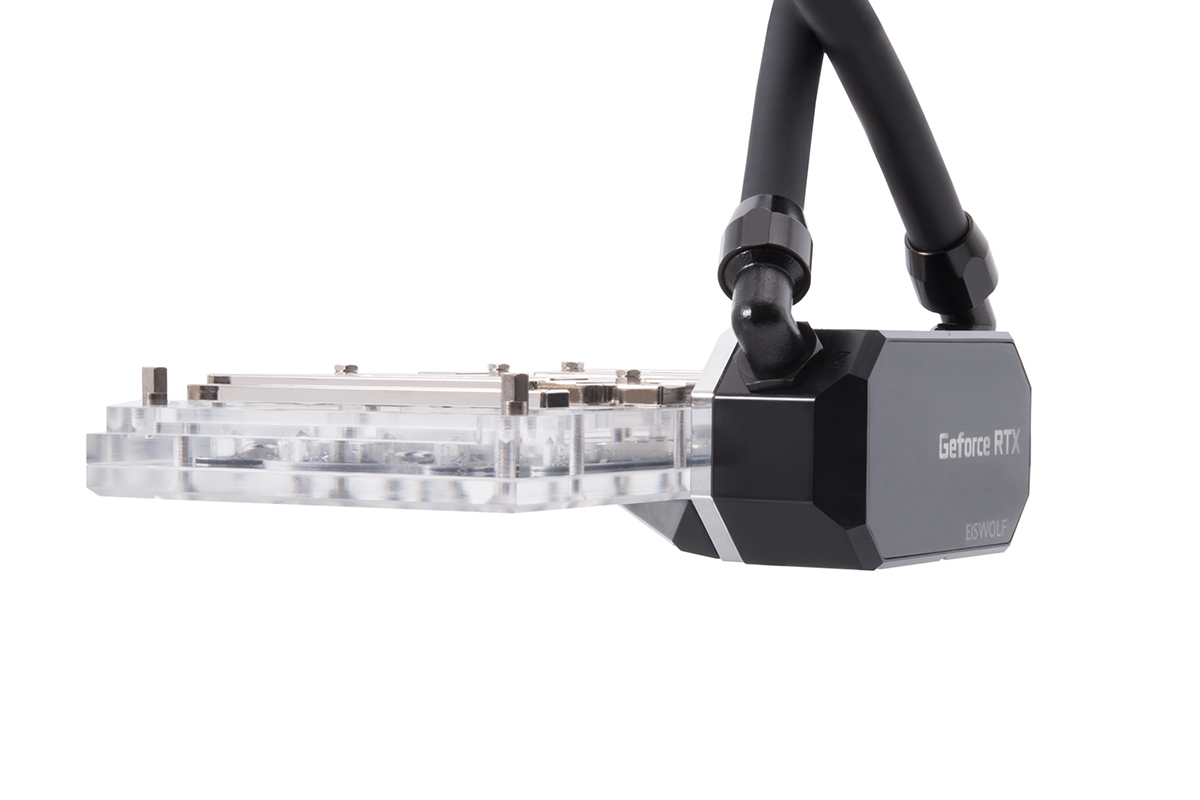

The Eiswolf 2 has a pump unit in place of the normal connection terminal. This pump unit houses the DC-LT 2 pump. An improved and quieter version of the well-known DC-LT Low Noise Ceramic Pump. Despite looking rather large, the pump unit is only 5 mm wider than a normal connection terminal.
Fittings and Tubing
As with all new AIO units, Alphacool uses only TPV hoses from the Enterprise Solution range for (usually reserved for servers and workstations) in the Eiswolf 2. The tubing is made of EPDM/PP and are extremely heat-resistant, durable, and free of plasticizers. All fittings are also based on the Enterprise Solution range and match the TPV hoses perfectly.
Expandability
By using the quick-release fastener, the Eiswolf 2 can be connected to another Alphacool AIO unit to achieve a larger loop in seconds. Alphacool offers various prefilled components with which the loop can be easily extended. For safety reasons, the quick-release fasteners are firmly screwed together and not just plugged together.
Lighting and fans

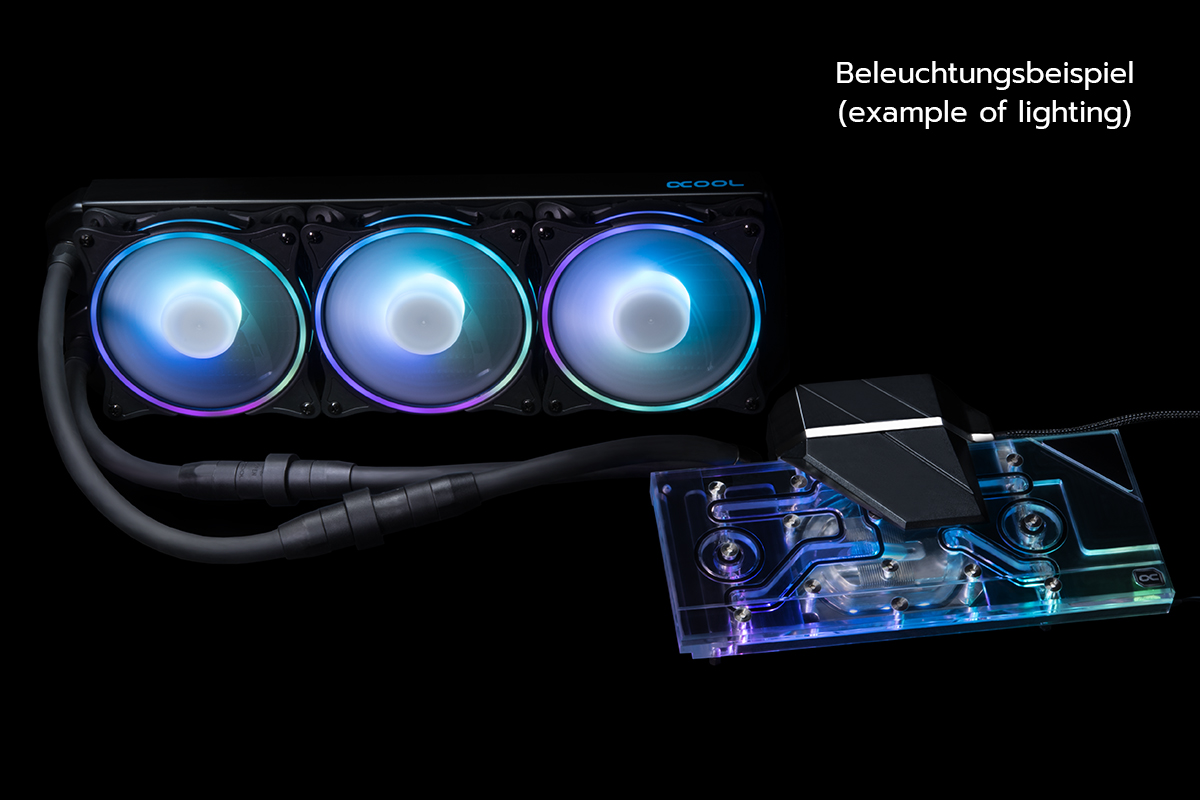

The Eiswolf 2 cooler has a digital RGB LED lighting, also called addressable RGB LEDs. They run along the entire back of the graphics card cooler and provide complete illumination of the water cooler. The pump unit is more discreet and offers a green glowing logo for Nvidia and a red glowing logo for AMD cards. The name "Eiswolf" on the pump unit remains unlit, discreetly in the background. The fan used is the Aurora Rise with 120mm. Due to the special blade design, the fan is extremely quiet and the addressable RGB LEDs provide brilliant illumination. The Alphacool Aurora Rise fan convinces with a max. statistical pressure of 3.17mm/H2O and offers a max. air flow of 119.8m3/h. The PWM control allows the fan to be controlled over a wide speed range. In addition, it offers a zero control. It can therefore be regulated down to 0 rpm and then starts with approx. 350 rpm.

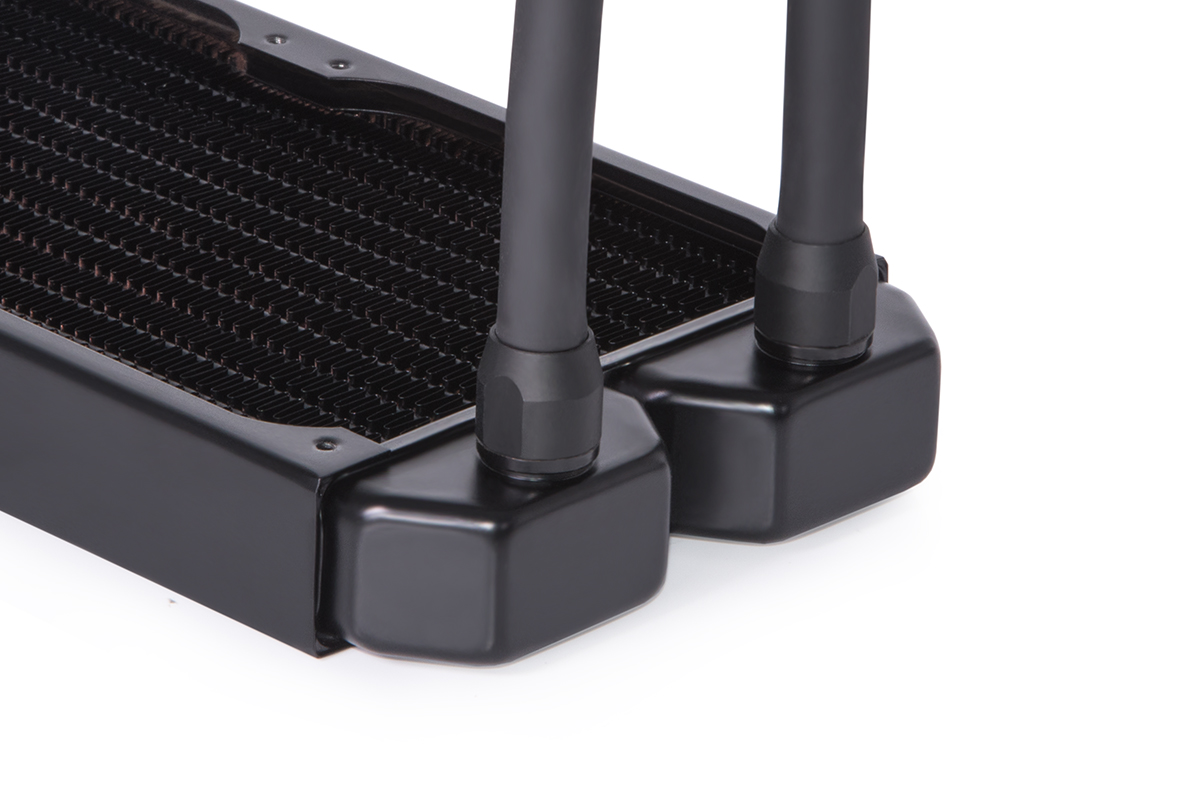

NexXxoS Radiator
As with all AIO units, Alphacool uses radiators from the world renowned NexXxoS series. The full copper radiators offer a much higher cooling capacity than aluminium radiators and have contributed significantly to Alphacool's worldwide success.
The combination of all of the components results in a solution that is as simple as an AIO solution to install, but with the performance of a pre-assembled and prefilled custom loop.
Technical note!
Due to long storage times and various transport routes, the liquid in the Eiswolf 2 AIO remains still for a long time. The ingredients of the liquid can therefore deposit and lead to a brownish discoloration. As soon as the pump starts operating, the ingredients mix again and the liquid should regain an approximately clear color. This is not a reason for complaint as neither the performance nor the function of the AIO are restricted by this. If the discolouration of the cooling liquid does not disappear after the AIO has been put into operation, please contact our support team via E-Mail (info@alphacool.com). You will receive quick and uncomplicated help there.
Fullcover Waterblock?
The Eiswolf 2 graphics card AIO water block not only cools the GPU with liquid but also all relevant components that require active cooling. This includes the graphics memory, the VRM and, if necessary, other components that require direct cooling. By using the Eisblock GPX Aurora water cooler, the cooling capacity is identical to that of a DIY graphics card water cooler.
Pump
The Eiswolf 2 has a pump unit in place of the normal connection terminal. This pump unit houses the DC-LT 2 pump. An improved and quieter version of the well-known DC-LT Low Noise Ceramic Pump. Despite looking rather large, the pump unit is only 5 mm wider than a normal connection terminal.
Fittings and Tubing
As with all new AIO units, Alphacool uses only TPV hoses from the Enterprise Solution range for (usually reserved for servers and workstations) in the Eiswolf 2. The tubing is made of EPDM/PP and are extremely heat-resistant, durable, and free of plasticizers. All fittings are also based on the Enterprise Solution range and match the TPV hoses perfectly.
Expandability
By using the quick-release fastener, the Eiswolf 2 can be connected to another Alphacool AIO unit to achieve a larger loop in seconds. Alphacool offers various prefilled components with which the loop can be easily extended. For safety reasons, the quick-release fasteners are firmly screwed together and not just plugged together.
Lighting and fans
The Eiswolf 2 cooler has a digital RGB LED lighting, also called addressable RGB LEDs. They run along the entire back of the graphics card cooler and provide complete illumination of the water cooler. The pump unit is more discreet and offers a green glowing logo for Nvidia and a red glowing logo for AMD cards. The name "Eiswolf" on the pump unit remains unlit, discreetly in the background. The fan used is the Aurora Rise with 120mm. Due to the special blade design, the fan is extremely quiet and the addressable RGB LEDs provide brilliant illumination. The Alphacool Aurora Rise fan convinces with a max. statistical pressure of 3.17mm/H2O and offers a max. air flow of 119.8m3/h. The PWM control allows the fan to be controlled over a wide speed range. In addition, it offers a zero control. It can therefore be regulated down to 0 rpm and then starts with approx. 350 rpm.
NexXxoS Radiator
As with all AIO units, Alphacool uses radiators from the world renowned NexXxoS series. The full copper radiators offer a much higher cooling capacity than aluminium radiators and have contributed significantly to Alphacool's worldwide success.
The combination of all of the components results in a solution that is as simple as an AIO solution to install, but with the performance of a pre-assembled and prefilled custom loop.
Technical note!
Due to long storage times and various transport routes, the liquid in the Eiswolf 2 AIO remains still for a long time. The ingredients of the liquid can therefore deposit and lead to a brownish discoloration. As soon as the pump starts operating, the ingredients mix again and the liquid should regain an approximately clear color. This is not a reason for complaint as neither the performance nor the function of the AIO are restricted by this. If the discolouration of the cooling liquid does not disappear after the AIO has been put into operation, please contact our support team via E-Mail (info@alphacool.com). You will receive quick and uncomplicated help there.
| Data radiator | |
| L x W x H | 395 x 124 x 30mm (+/- 3%) |
| Material cooling fins | Copper |
| Material chambers | Copper |
| Material cooling channels | Copper |
| Material threads | Brass |
| Material outer housing | stainless steel |
| G 1/4“ threads | 2 x for tubes (+ 1x Fillport G1/4“) |
| For fan size | 120 mm |
| Possible fan assembly | 3 x one-sided / 6 x both-sided |
| Data cooler and pump | |
| L x W x H | 130 x 225 x 46 mm |
| Material cooler bottom | Nickel plated copper |
| Material cooler top | PMMA |
| Threads | 2 x G1/4“ |
| Pump type | DC-LT 2 |
| Pump speed | 2600 rpm (+/- 10%) |
| Head of delivery | 0,95 m |
| Maximum flow rate | 75 L/h |
| Voltage | 12V DC |
| Power consumption | 4W |
| MTBF | 50.000 h |
| Data fan | |
| Speed | 0 - 2500 RPM |
| Static pressure | 3,17 mm H2O |
| Air flow rate | 119,8 m³/h |
| Bearings | Sleeve bearing |
| Fan connector | 4-Pin PWM |
| Connection Digital aRGB | 3-Pin JST + 3-Pin 5V |
| Dimensions | 120 x 120 x 25 mm |
| Net weight | 187 g |
| Max working temperature | 60 °C |
Compatibility:
RTX 3080 TI
- Gainward GeForce RTX 3080 Ti 12GB Phoenix
- INNO3D GEFORCE RTX 3080 TI ICHILL X4
- INNO3D GEFORCE RTX 3080 TI ICHILL FROSTBITE
- INNO3D GEFORCE RTX 3080 TI ICHILL X3
- INNO3D GEFORCE RTX 3080 TI X3
- INNO3D GEFORCE RTX 3080 TI X3 OC
- Palit GeForce RTX 3080 Ti GamingPro
- Zotac Gaming GeForce RTX 3080 Ti AMP Holo
- Zotac GeForce RTX 3080 Ti AMP HoloBlack
- Zotac Gaming GeForce RTX 3080 Ti Trinity
- Zotac Gaming GeForce RTX 3080 Ti Trinity OC
RTX 3080 TI
- Gainward GeForce RTX 3080 Ti 12GB Phoenix
- INNO3D GEFORCE RTX 3080 TI ICHILL X4
- INNO3D GEFORCE RTX 3080 TI ICHILL FROSTBITE
- INNO3D GEFORCE RTX 3080 TI ICHILL X3
- INNO3D GEFORCE RTX 3080 TI X3
- INNO3D GEFORCE RTX 3080 TI X3 OC
- Palit GeForce RTX 3080 Ti GamingPro
- Zotac Gaming GeForce RTX 3080 Ti AMP Holo
- Zotac GeForce RTX 3080 Ti AMP HoloBlack
- Zotac Gaming GeForce RTX 3080 Ti Trinity
- Zotac Gaming GeForce RTX 3080 Ti Trinity OC
RTX 3080
- Galakuro NVIDIA GEFORCE RTX 3080 GG-RTX3080-E10GB/TP
- Galax GeForce RTX 3080 SG 10GB GDDR6X 320-bit DP*3/HDMI
- Gainward RTX 3080 Phoenix
- Gainward RTX 3080 Phoenix GS
- Inno3D GeForce RTX 3080 iChill X3/X4 10240 MB GDDR6X
- Inno3D GeForce RTX 3080 Twin X2 OC 10240 MB GDDR6X
- INNO3D GEFORCE RTX 3080 12GB ICHILL FROSTBITE LHR
- INNO3D GEFORCE RTX 3080 12GB X3 OC LHR
- INNO3D GEFORCE RTX 3080 12GB ICHILL X3/X4 LHR
- INNO3D GEFORCE RTX 3080 12GB ICHILL BLACK LHR
- KFA2 GeForce RTX 3080 SG 10GB GDDR6X 320-bit DP*3/HDMI
- Palit GeForce RTX™ 3080 GamingPro
- Palit GeForce RTX™ 3080 GamingPro OC
- PNY GeForce RTX 3080 XLR8 Gaming EPIC-X RGB 10240 MB GDDR6X (VCG308010TFXMPB)
- PNY GeForce RTX 3080 XLR8 Gaming EPIC-X RGB 10240 MB GDDR6X (VCG308010TFXPPB)
- Zotac GAMING GeForce RTX 3080 Trinity
- Zotac Gaming GeForce RTX 3080 Trinity OC
RTX 3090
- Galakuro NVIDIA GEFORCE RTX 3090 GG-RTX3090-E24GB/TP
- Galax GeForce RTX 3090 SG 24GB GDDR6X 320-bit DP*3/HDMI
- Gainward RTX 3090 Phoenix
- Gainward RTX 3090 Phoenix GS
- Inno3D GeForce RTX 3090 iChill X3/X4, 24576 MB GDDR6X
- Inno3D GeForce RTX 3090 Gaming X3, 24576 MB GDDR6X
- KFA2 GeForce RTX 3090 SG 24GB GDDR6X 320-bit DP*3/HDMI
- Palit GeForce RTX™ 3090 GamingPro
- Palit GeForce RTX™ 3090 GamingPro OC
- PNY GeForce RTX 3090 XLR8 Gaming EPIC-X RGB, 24576 MB GDDR6X
- Zotac GeForce RTX 3090 Trinity, 24576 MB GDDR6X
