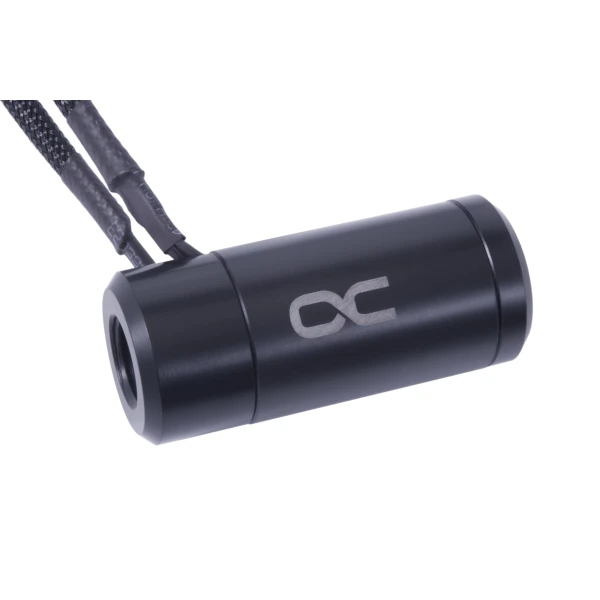

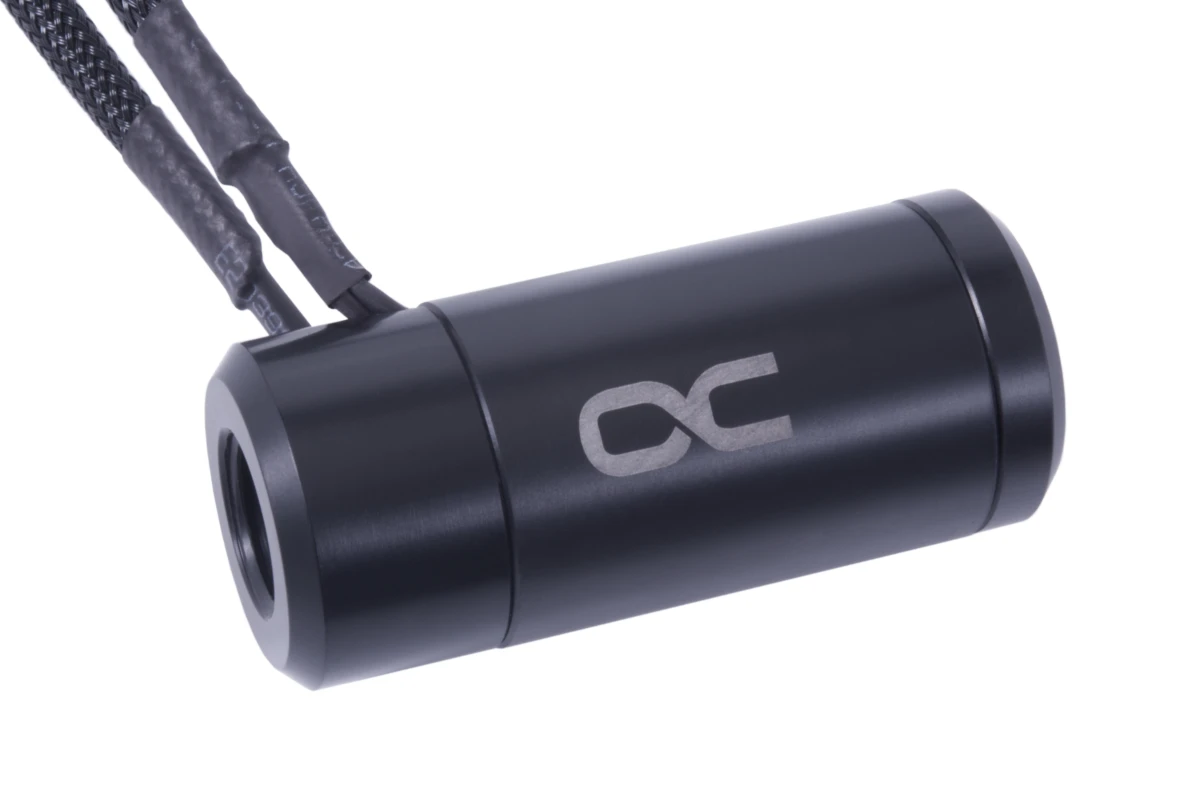

The Alphacool ES "HighFlow" with tacho signal is a sensor for water temperature and water flow that can be easily integrated into any water circuit.
Integration made easy

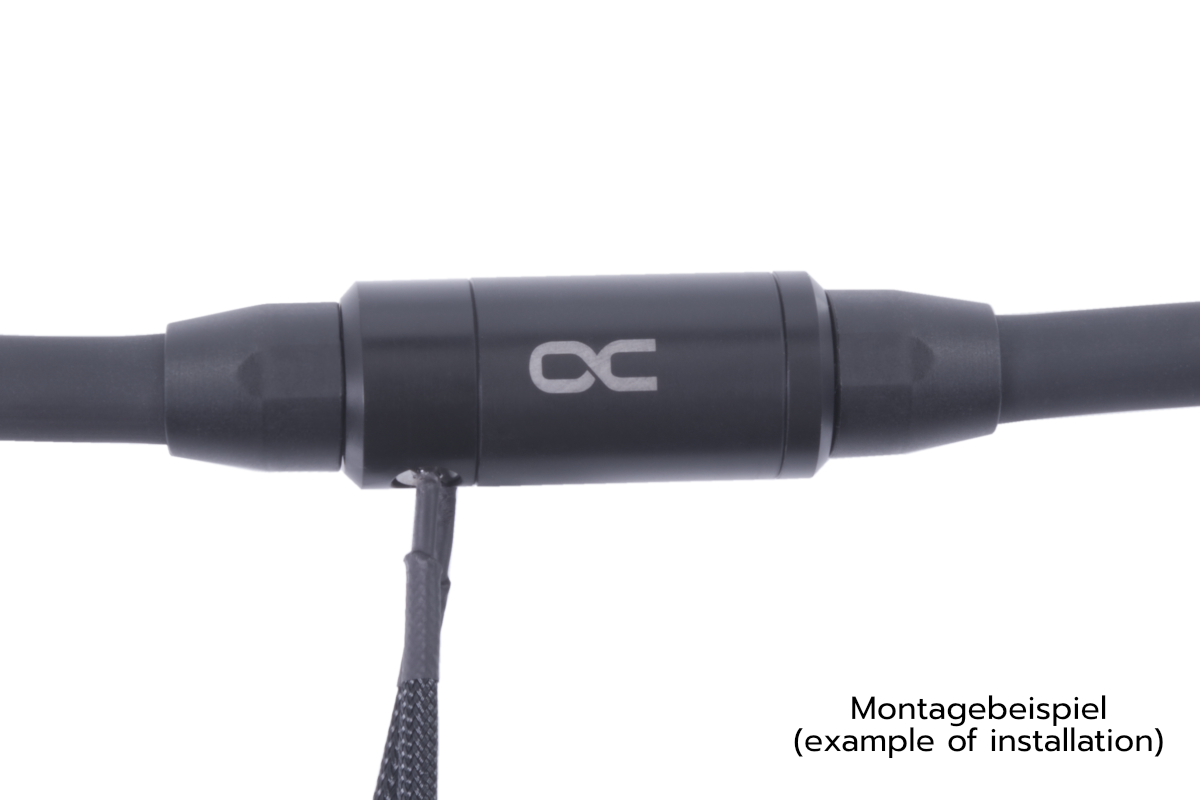

The Alphacool ES "HighFlow" flow and temperature sensor is very compact and can be integrated into any water circuit thanks to its two G1/4" internal threads. It does not matter whether the system is equipped with soft tube or HardTubes. Simply screw the appropriate connections to the sensor and then mount it at any position in the loop.

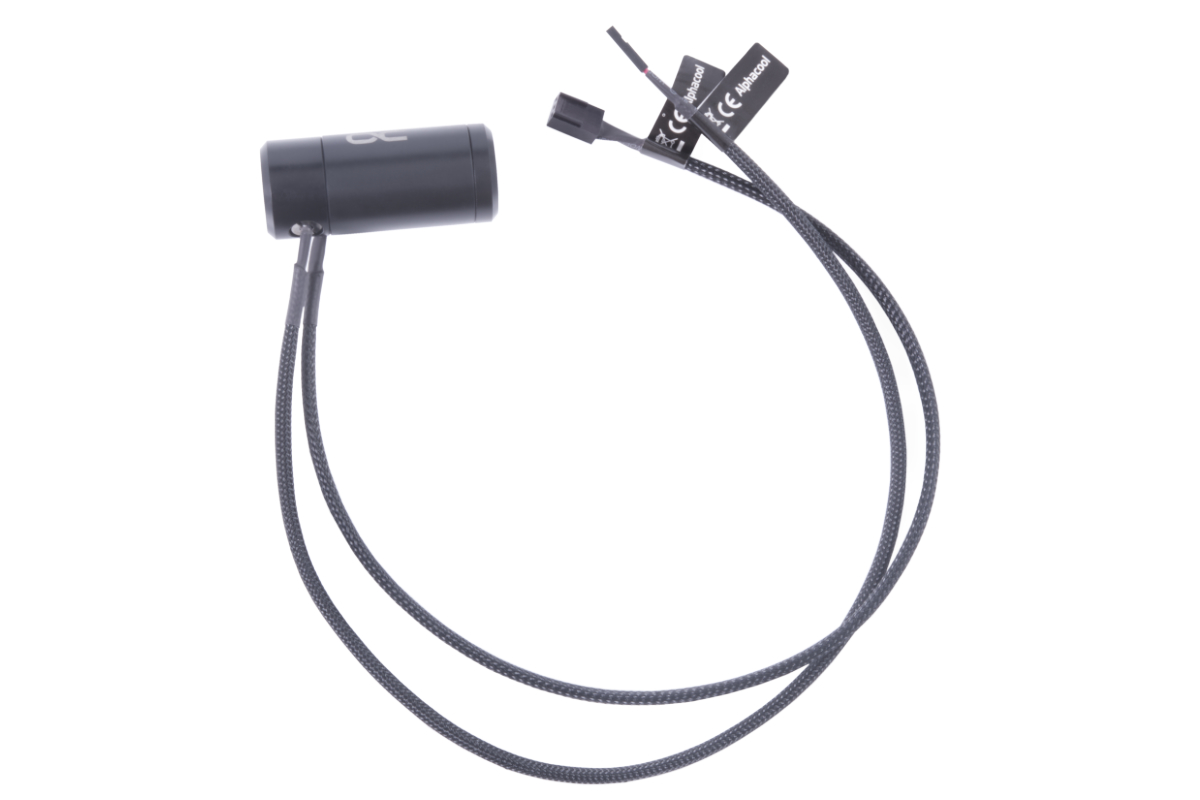

A classic NTC 10 kOhm thermistor is used as the sensor. The readable temperature range is between -40 and 125°C. The cable is 43.5 cm long and terminates in a typical 2-pin connector. Many mainboards now offer direct connection options for such sensors. Please check the manual of your mainboard. Of course, there are also various external controllers that offer a connection for the sensor (controller with NTC connection). A corresponding readout device is not included in the scope of delivery.
The flow sensor enables continuous measurement of the water flow within. The sensor has a 42cm sensor cable included in the scope of delivery and corresponding connectors.
Note: The data sheet with the measurement values for the water flow (L/h per RPM) is available for download as a PDF file under the following link. (Alphacool ES flow and temperature indicator HighFlow - flow-measurement)
|L x W x H
||58 x 25 x 25 mm

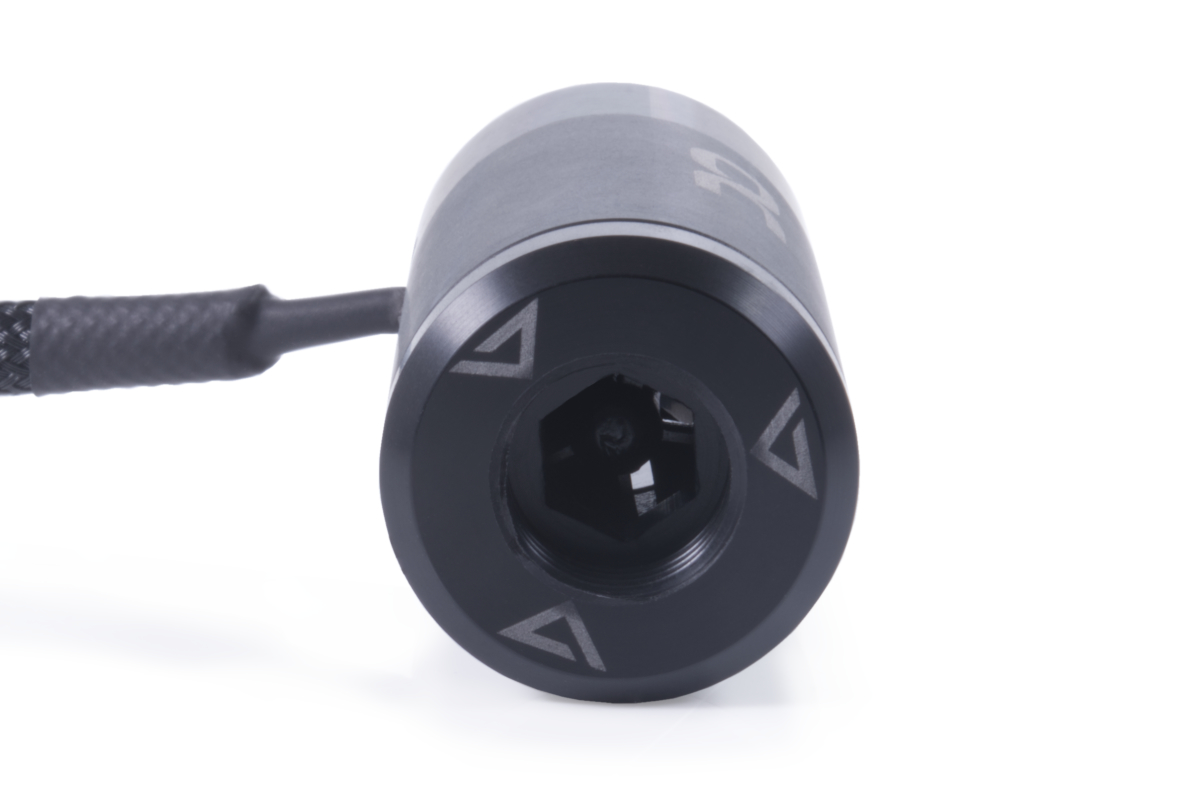

||2x G1/4" internal thread (for max. 5mm thread length)
|Cable length hall sensor
|Cable length temperature sensor
