Alphacool Eiswolf 2 AIO - 360mm Radeon RX 6800XT/6900XT Nitro+ with Backplate

Brak ocen

  • Producent: Alphacool
  • Alphacool
  • Kod producenta: 14424
  • Kod EAN: 4250197144247
  • Gwarancja: 24 miesiące

Dostępność:

Czas realizacji orientacyjnie 5 dni roboczych

    Cena:

    999,90 zł

    przechowalnia

    • Koszt wysyłki: od 0 zł
    • Darmowa dostawa od 800,00 zł
    999.9 In stock Alphacool Eiswolf 2 AIO - 360mm Radeon RX 6800XT/6900XT Nitro+ with Backplate

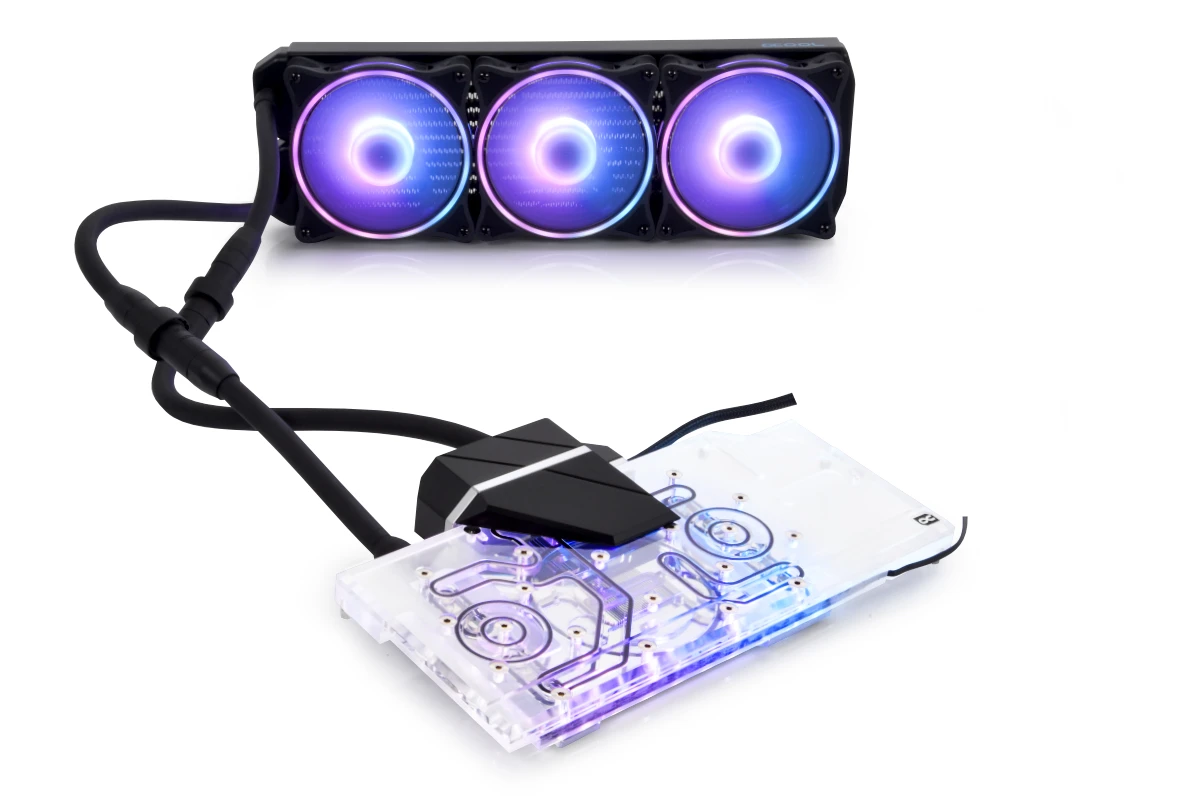

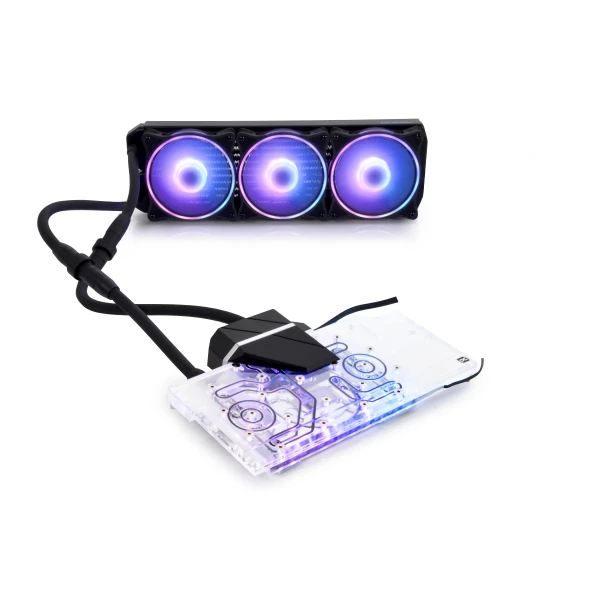

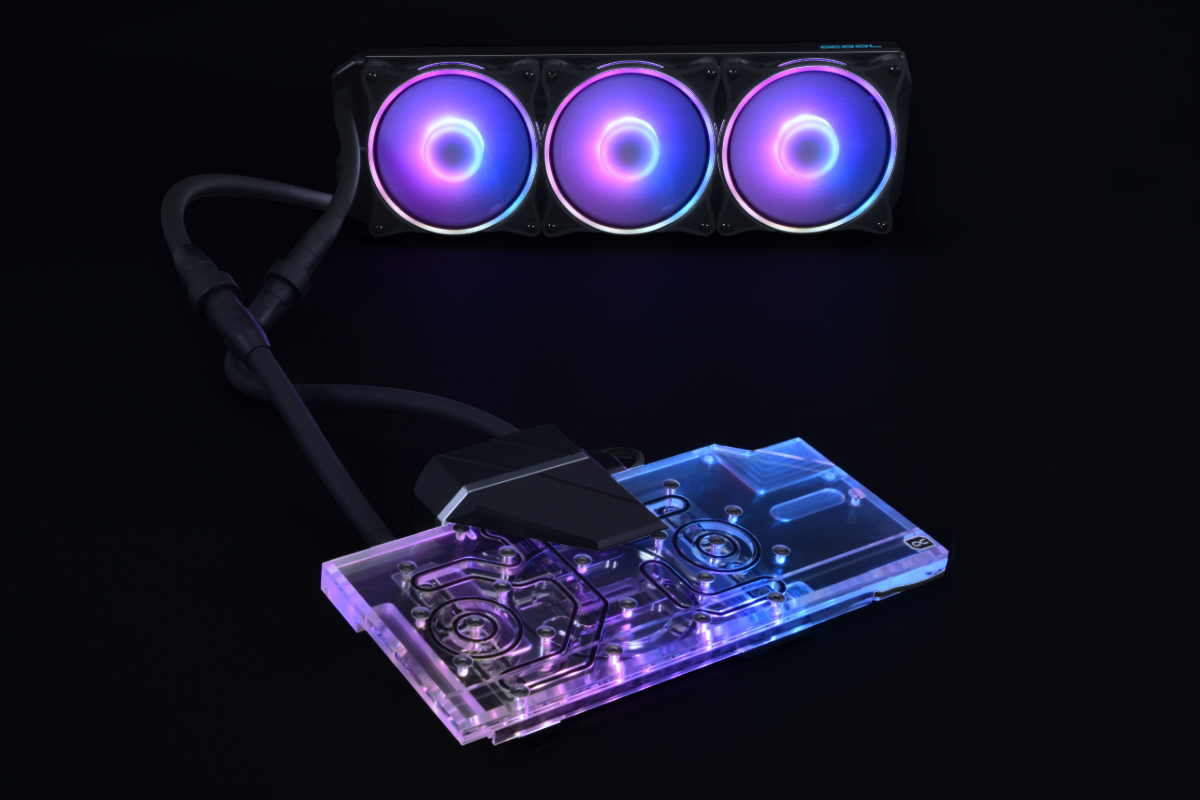

    The Alphacool Eiswolf 2 is the first full cover GPU AIO waterblock from Alphacool. It is based on the Alphacool GPX Eisblock Aurora GPX water block, a pump unit and a 360mm NexXxoS ST30 full copper radiator. The latter is equipped with the Alphacool Aurora Rise Digital RGB fans.

    Fullcover Waterblock?

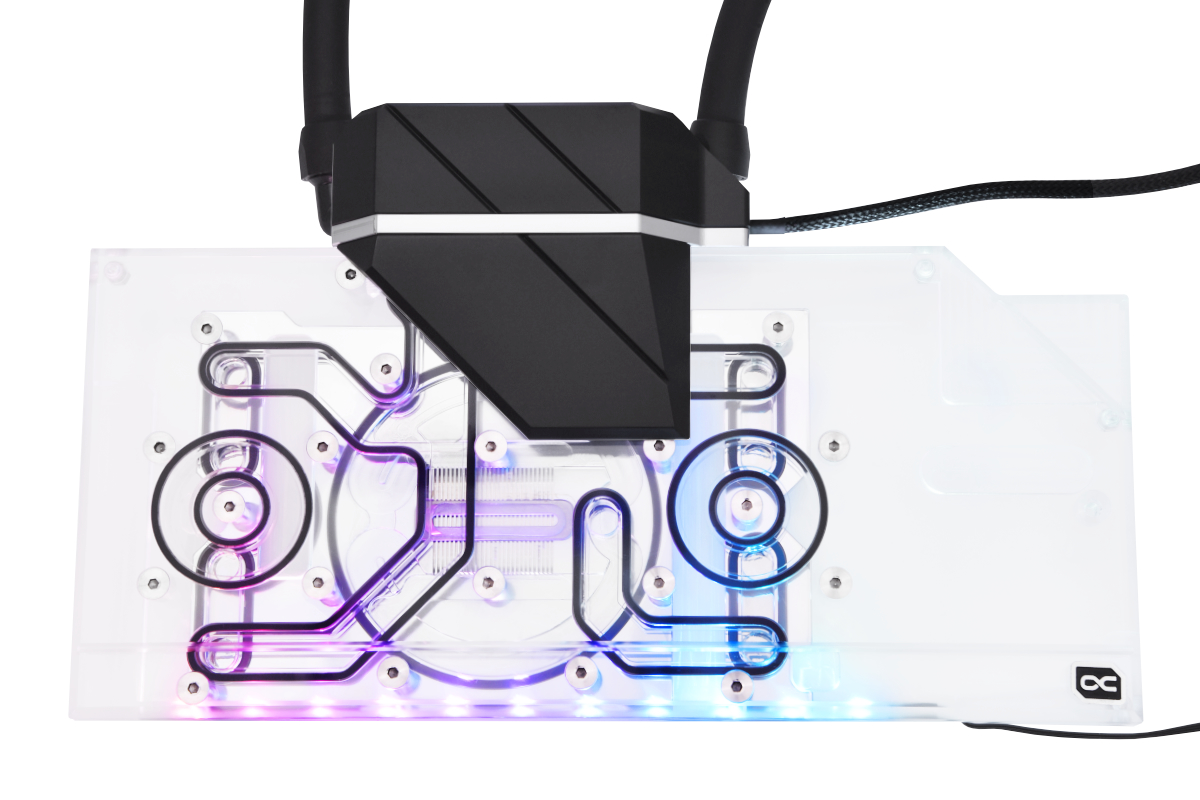

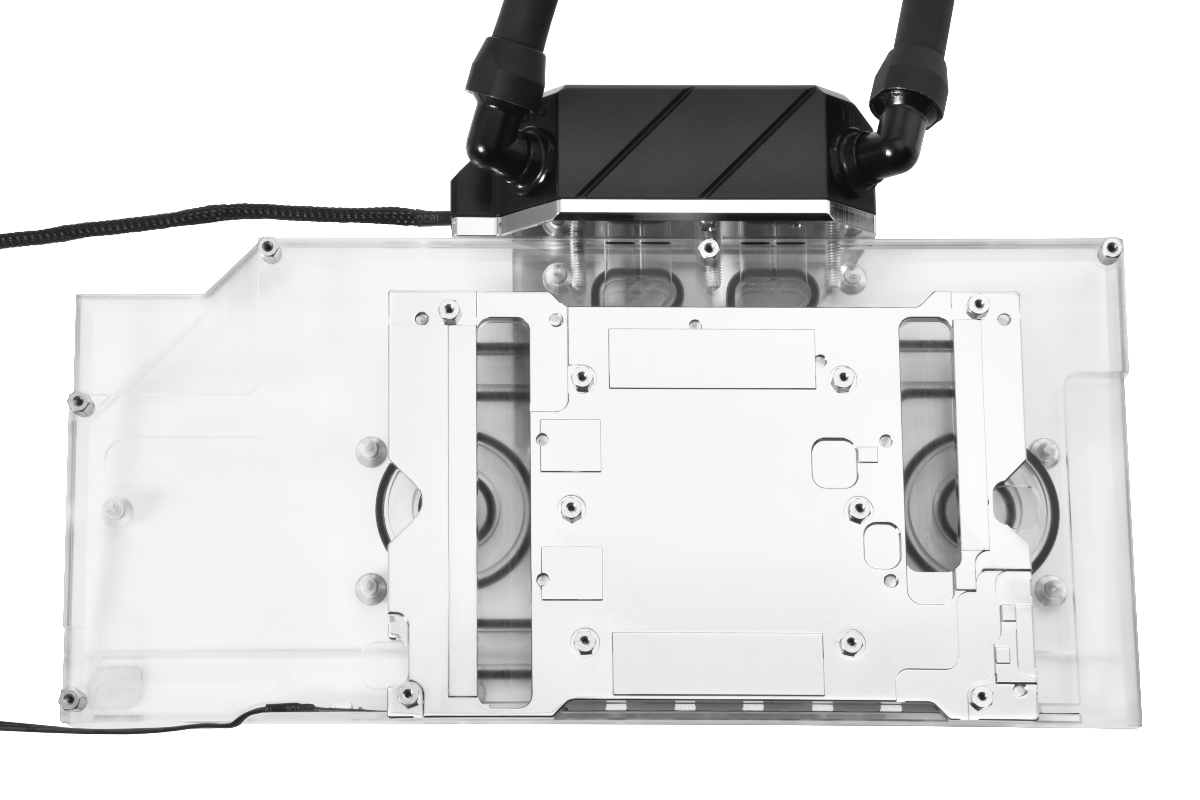

    The Eiswolf 2 graphics card AIO water block not only cools the GPU with liquid but also all relevant components that require active cooling. This includes the graphics memory, the VRM and, if necessary, other components that require direct cooling. By using the Eisblock GPX Aurora water cooler, the cooling capacity is identical to that of a DIY graphics card water cooler.


    Pump

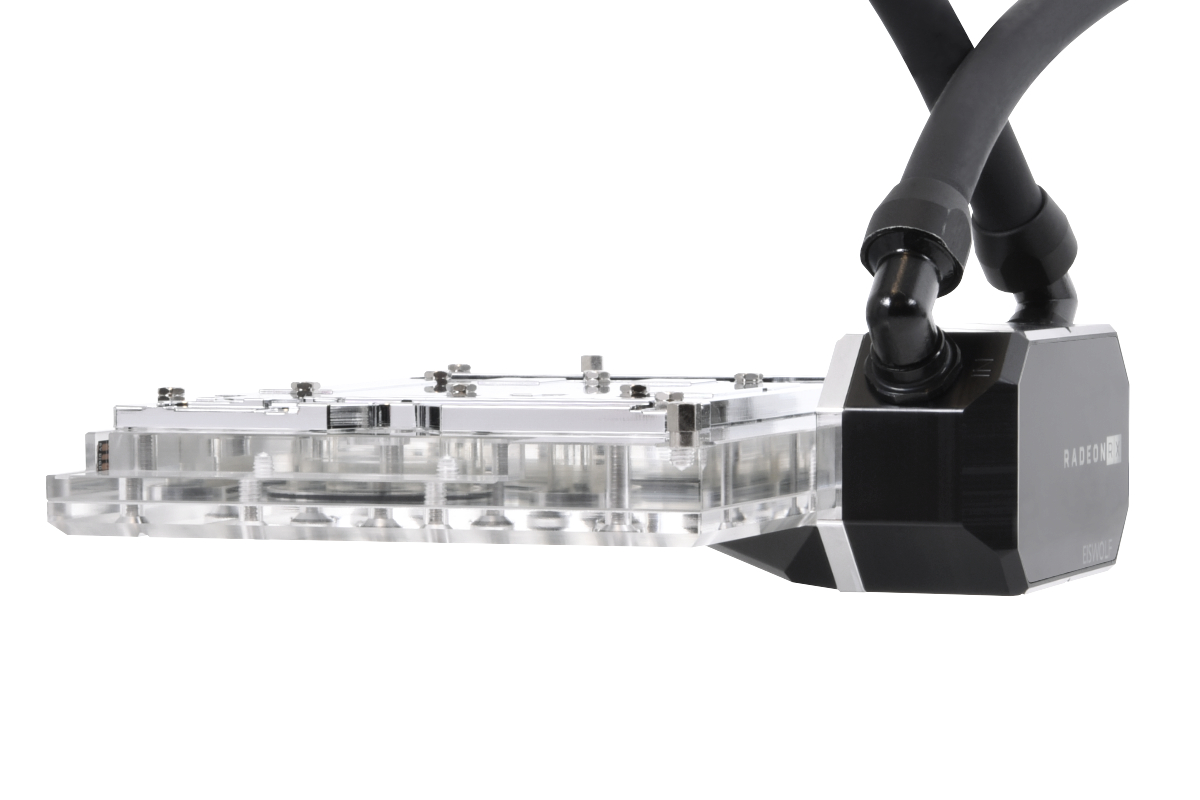

    The Eiswolf 2 has a pump unit in place of the normal connection terminal. This pump unit houses the DC-LT 2 pump. An improved and quieter version of the well-known DC-LT Low Noise Ceramic Pump. Despite looking rather large, the pump unit is only 5 mm wider than a normal connection terminal.

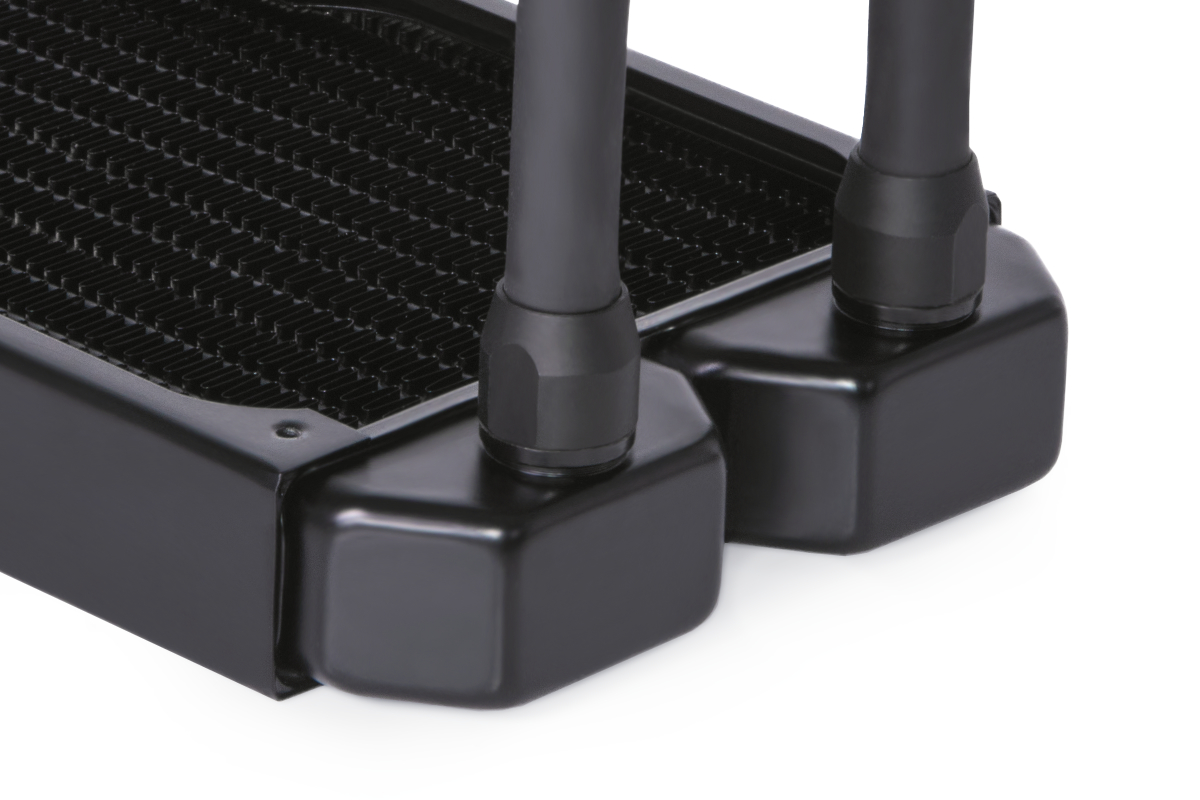

    Fittings and Tubing
    As with all new AIO units, Alphacool uses only TPV hoses from the Enterprise Solution range for (usually reserved for servers and workstations) in the Eiswolf 2. The tubing is made of EPDM/PP and are extremely heat-resistant, durable, and free of plasticizers. All fittings are also based on the Enterprise Solution range and match the TPV hoses perfectly.


    Expandability
    By using the quick-release fastener, the Eiswolf 2 can be connected to another Alphacool AIO unit to achieve a larger loop in seconds. Alphacool offers various prefilled components with which the loop can be easily extended. For safety reasons, the quick-release fasteners are firmly screwed together and not just plugged together.


    Lighting and fans

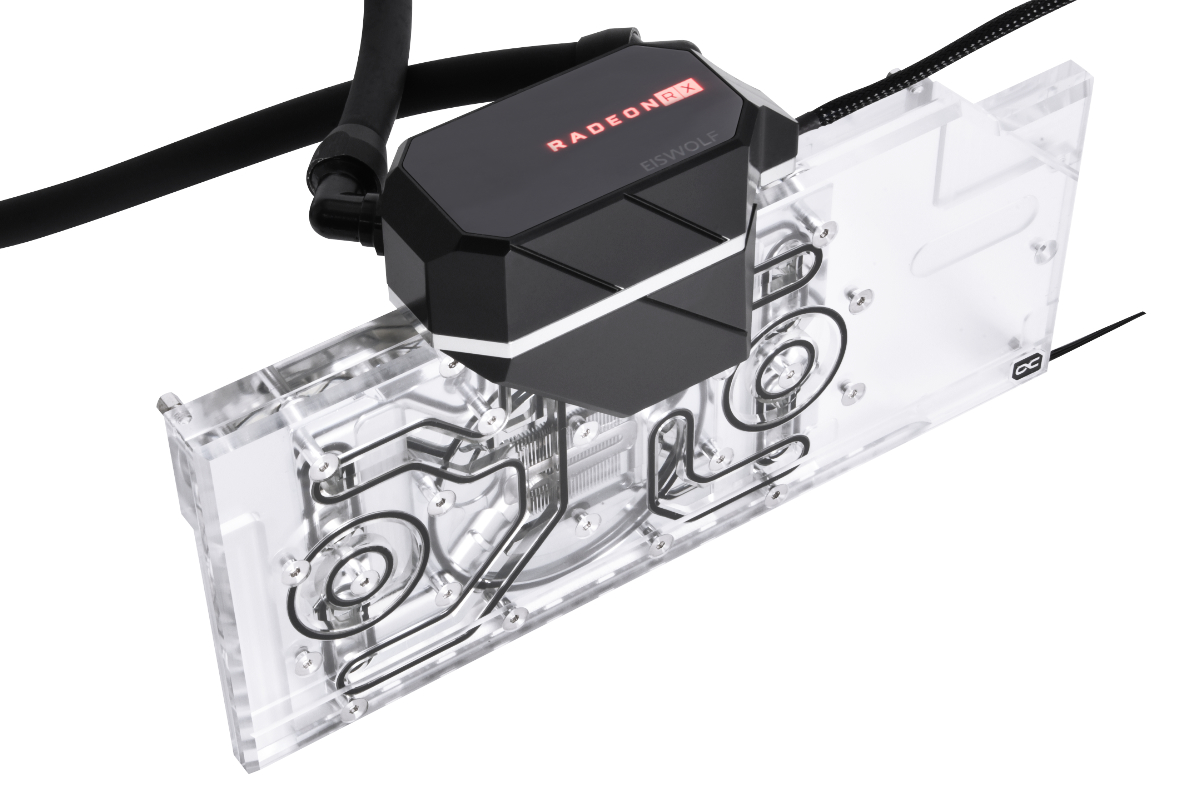

    The Eiswolf 2 cooler has a digital RGB LED lighting, also called addressable RGB LEDs. They run along the entire back of the graphics card cooler and provide complete illumination of the water cooler. The pump unit is more discreet and offers a green glowing logo for Nvidia and a red glowing logo for AMD cards. The name "Eiswolf" on the pump unit remains unlit, discreetly in the background. The fan used is the Aurora Rise with 120mm. Due to the special blade design, the fan is extremely quiet and the addressable RGB LEDs provide brilliant illumination. The Alphacool Aurora Rise fan convinces with a max. statistical pressure of 3.17mm/H2O and offers a max. air flow of 119.8m3/h. The PWM control allows the fan to be controlled over a wide speed range. In addition, it offers a zero control. It can therefore be regulated down to 0 rpm and then starts with approx. 350 rpm.


    NexXxoS Radiator
    As with all AIO units, Alphacool uses radiators from the world renowned NexXxoS series. The full copper radiators offer a much higher cooling capacity than aluminium radiators and have contributed significantly to Alphacool's worldwide success.


    The combination of all of the components results in a solution that is as simple as an AIO solution to install, but with the performance of a pre-assembled and prefilled custom loop.



    Technical data cooler and pump
    L x W x H 260 x 142,5 x 46 mm
    Material cooler bottom Nickel plated copper
    Material cooler top PMMA
    Threads 2 x G1/4“
    Pump type DC-LT 2
    Pump speed 2600 rpm (+/- 10%)
    Head of delivery 0,95 m



    Technical radiator
    L x W x H 395 x 124 x 30mm (+/- 3%)
    Material fins, chambers & channels copper
    Material threads brass
    Material outer housing stainless steel
    G 1/4“ threads 2 x for tubes (+ 1x Fillport G1/4“)
    For fan size 120 mm
    Possible fan assembly 3 x one-sided / 6 x both-sided



    Technical data fans
    Speed 0 - 2500 RPM
    Static pressure 3,17 mm H2O
    Air flow rate 119,8 m³/h
    Fan connector 4-Pin PWM
    Connection Digital aRGB 3-Pin JST + 3-Pin 5V
    Dimensions 120 x 120 x 25 mm
    Max working temperature 60 °C



    Note:
    - Attention: The use of the NVLink is not possible with this AIO!

    Compatibility list:
    - Sapphire Nitro+ Radeon RX 6800 XT SE, 16GB GDDR6, HDMI, 2x DP, USB-C (11304-01-20G)
    - Sapphire Nitro+ Radeon RX 6800 XT, 16GB GDDR6, HDMI, 3x DP (11304-02-20G)
    - Sapphire Nitro+ Radeon RX 6900 XT, 16GB GDDR6, HDMI, 3x DP (11308-01-20G)
