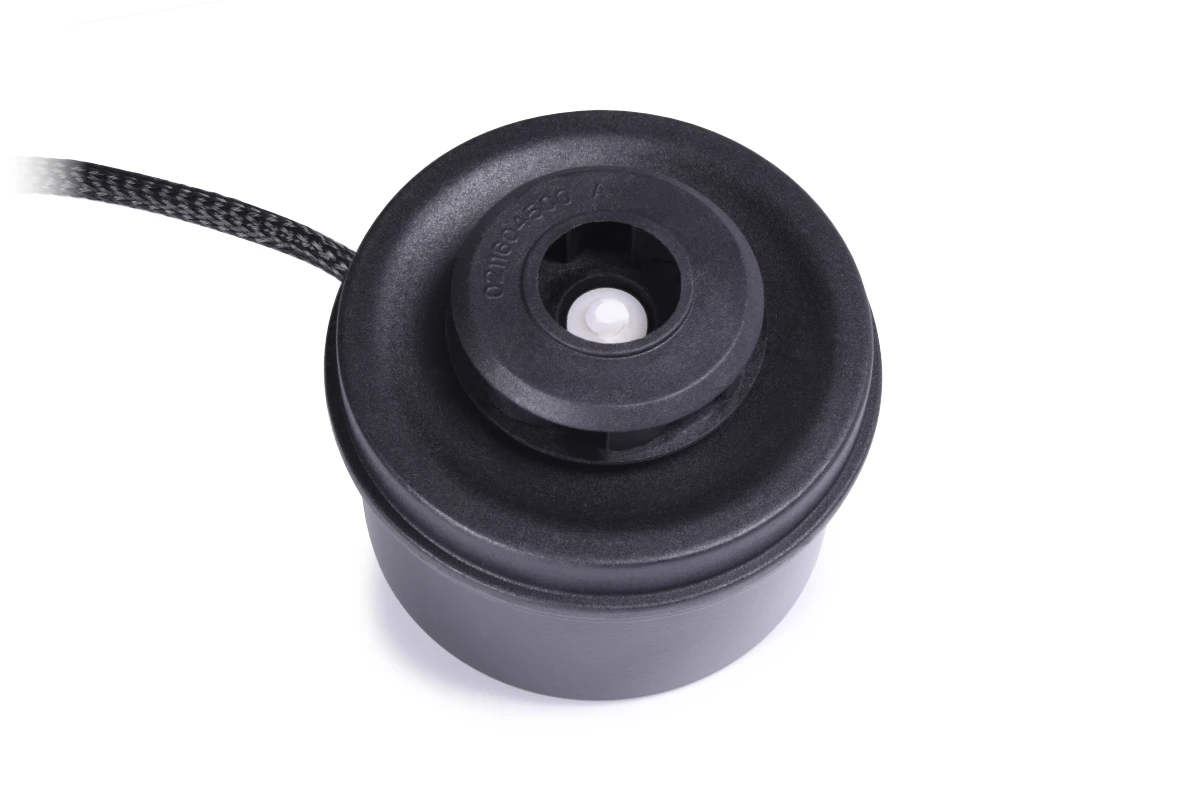

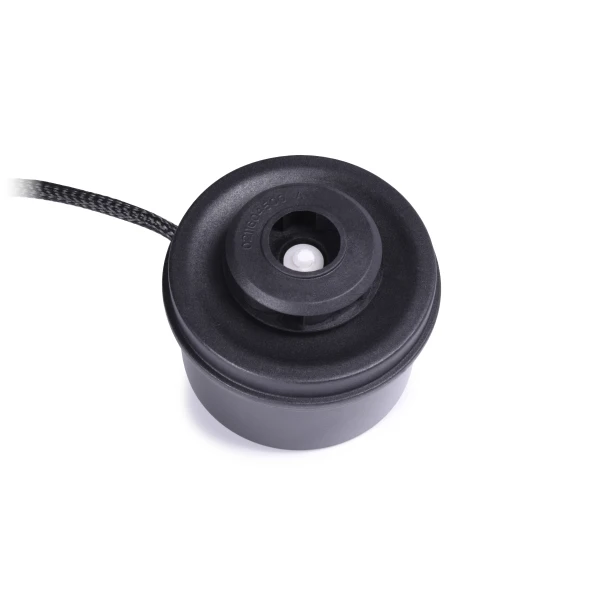

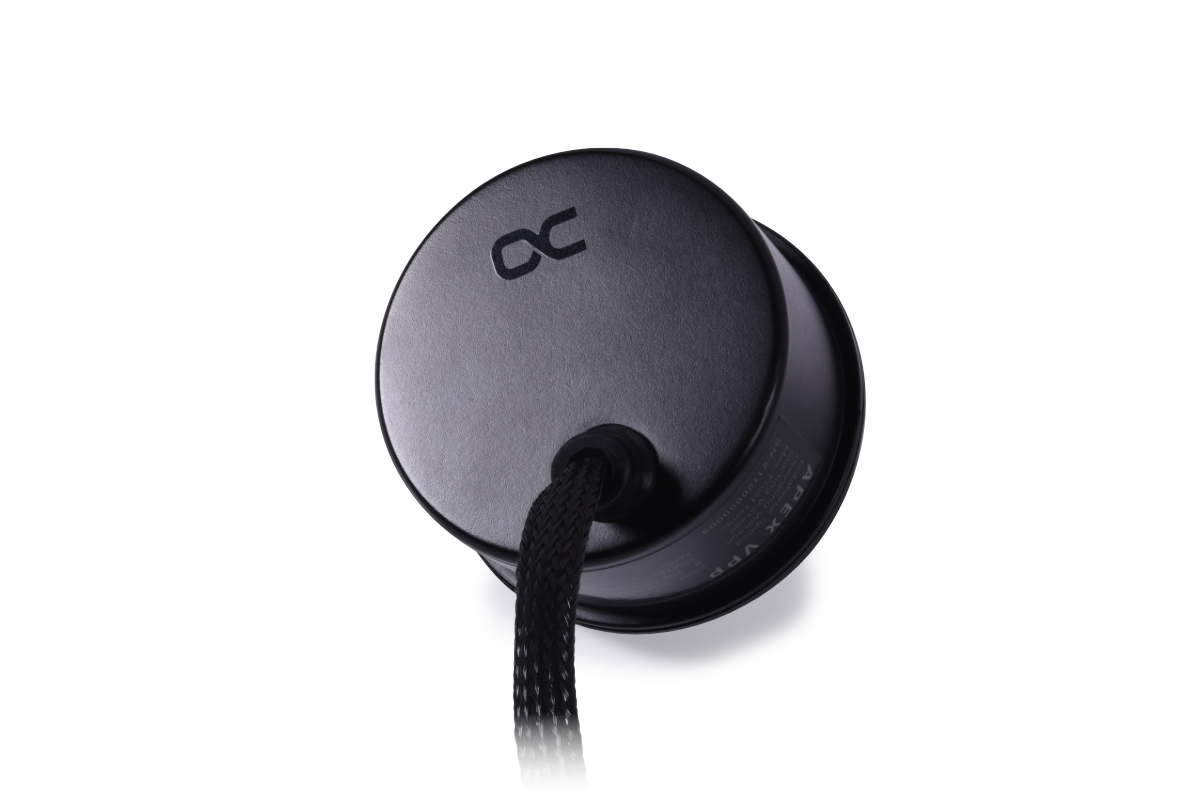

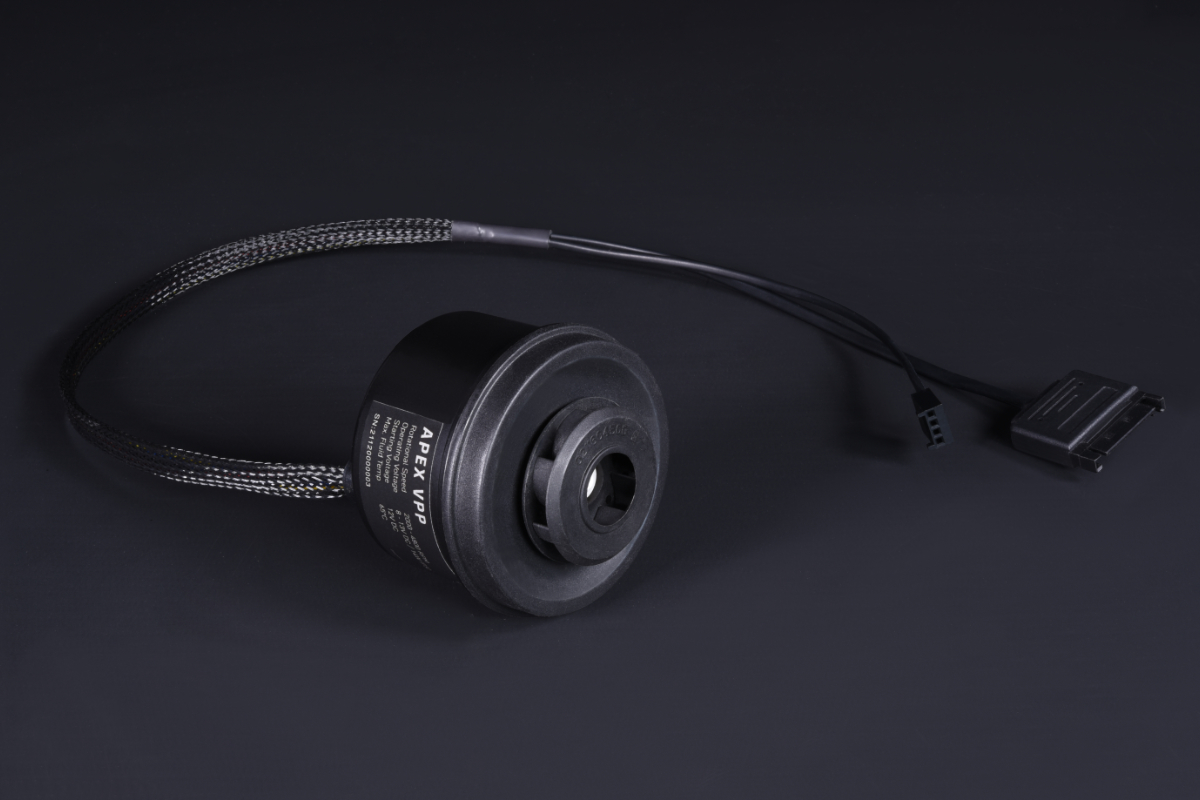

The Alphacool Apex VPP is a powerful pump that is compatible with the most popular D5/VPP tops and reservoirs. Via the 4-pin fan connector, the speed of the pump can be read and controlled via PWM signal. The Apex VPP is supplied with power via the SATA connector.
Alphacool's Apex VPP doesn't use a spherical bearing and relies on a ceramic axle. The motor's coils have been moved from the inside to the outside. These changes have the effect that the pump is fundamentally more stable and smoother running, and any vibrations that arise have been significantly reduced. Another positive side effect is that power consumption has been almost halved as a result.

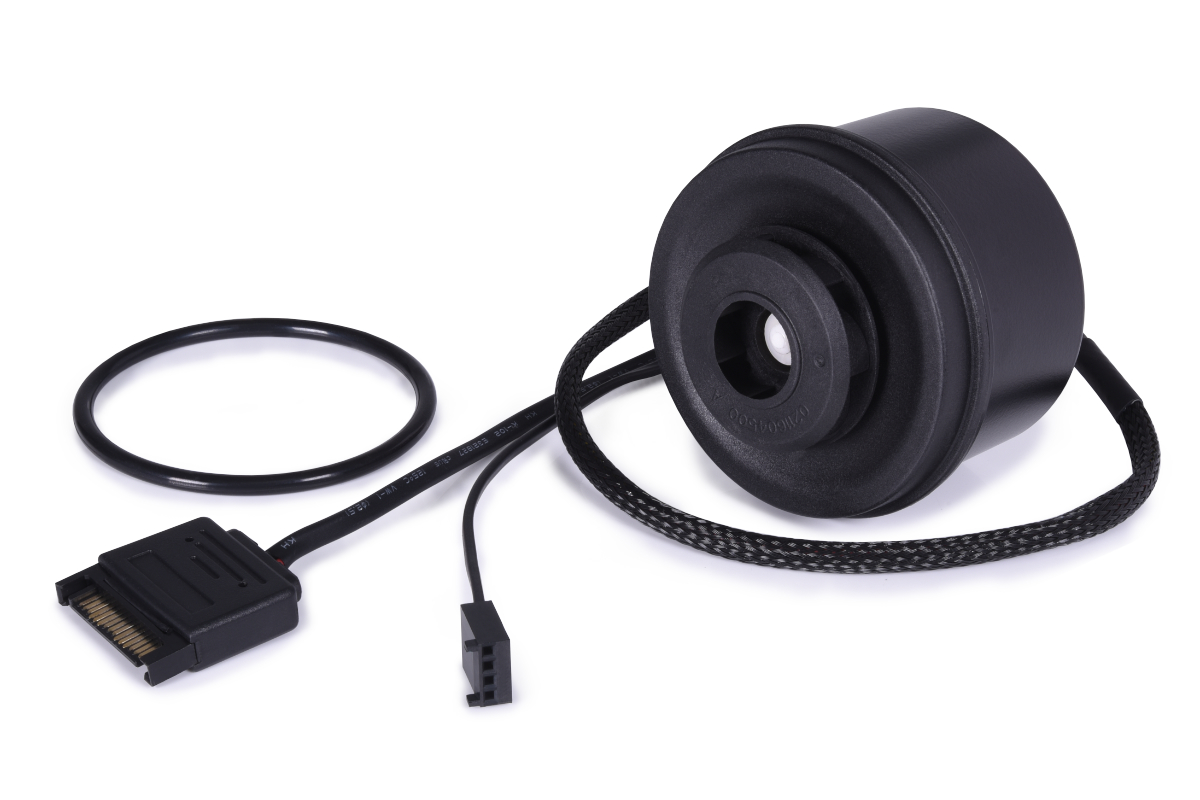

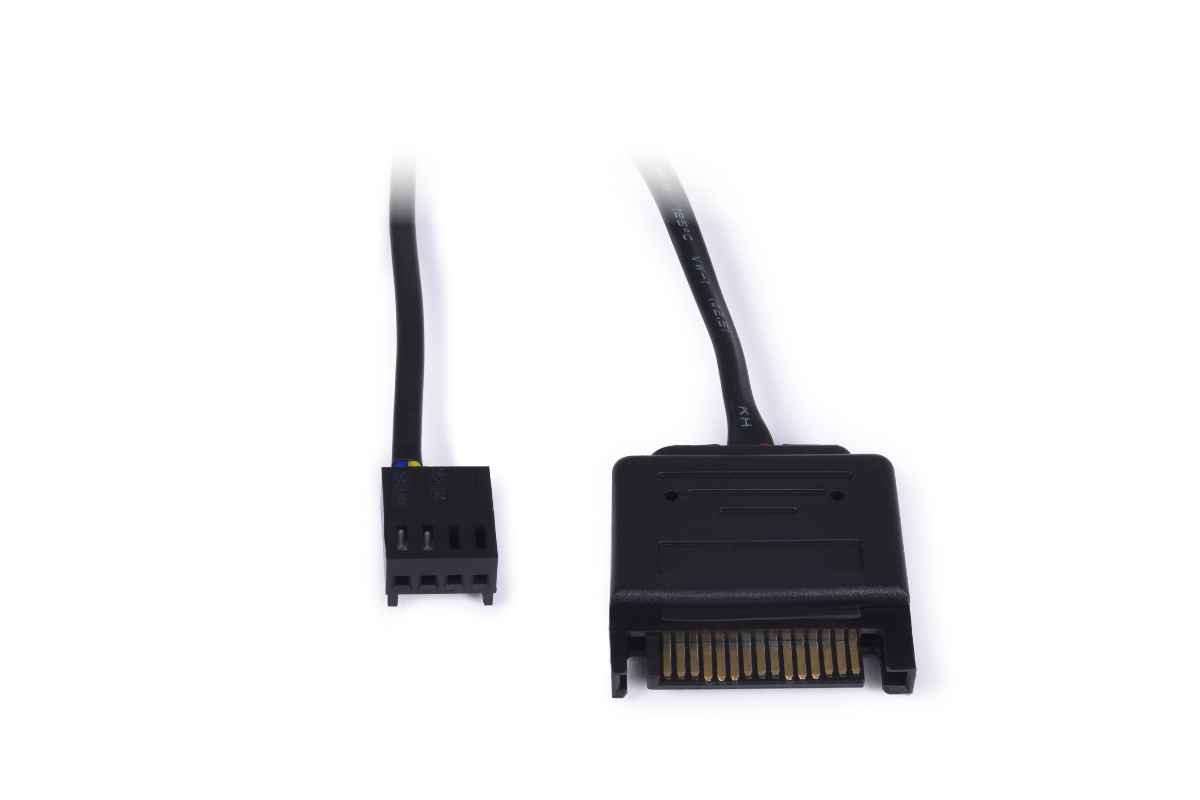

Compared to Alphacool's Eispumpe, the power is not supplied via a 4-pin Molex connector. Instead, the Apex VPP pump is connected to the power supply using a SATA connector.
The Apex VPP pump has a 4-pin fan connector that connects to the motherboard or to an external controller. This allows you to control the speed range of the pump via PWM and read out the RPM signal.

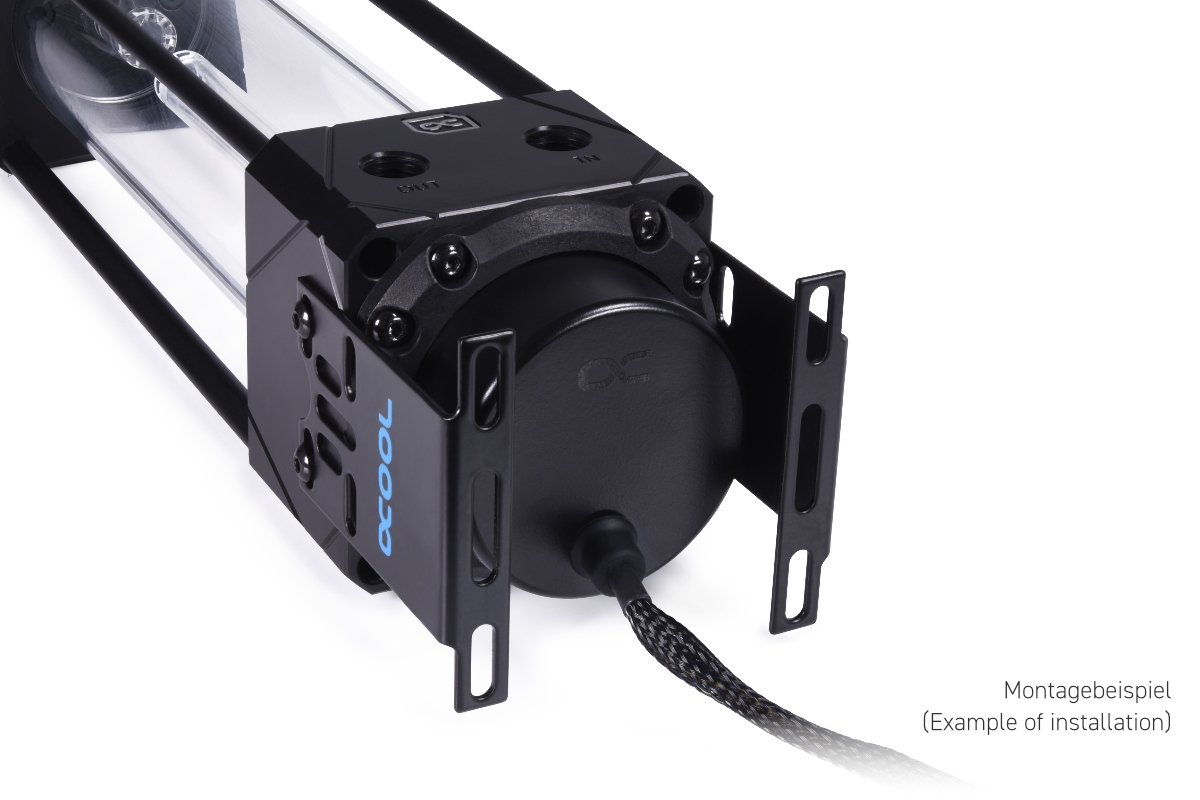

The Apex VPP pump is compatible with the most popular D5/VPP pump tops and reservoirs.
|Dimensions (L x W x H)
||65 x 65 x 41mm
|Material pump cover
||4-Pin PWM | SATA
||2500 - 4500 RPM
||4-Pin PWM - 48cm | SATA - 48cm
||8-13V DC / 14W IP32
|Maximum pumping head
|Maximum flow rate
|Maximum working temperature
