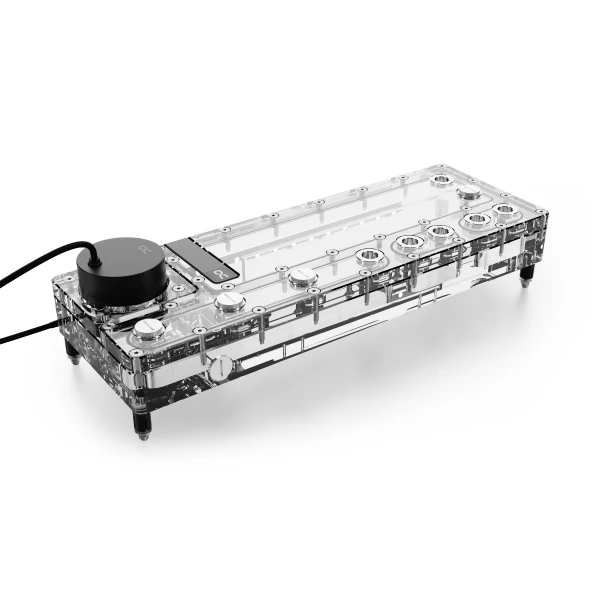

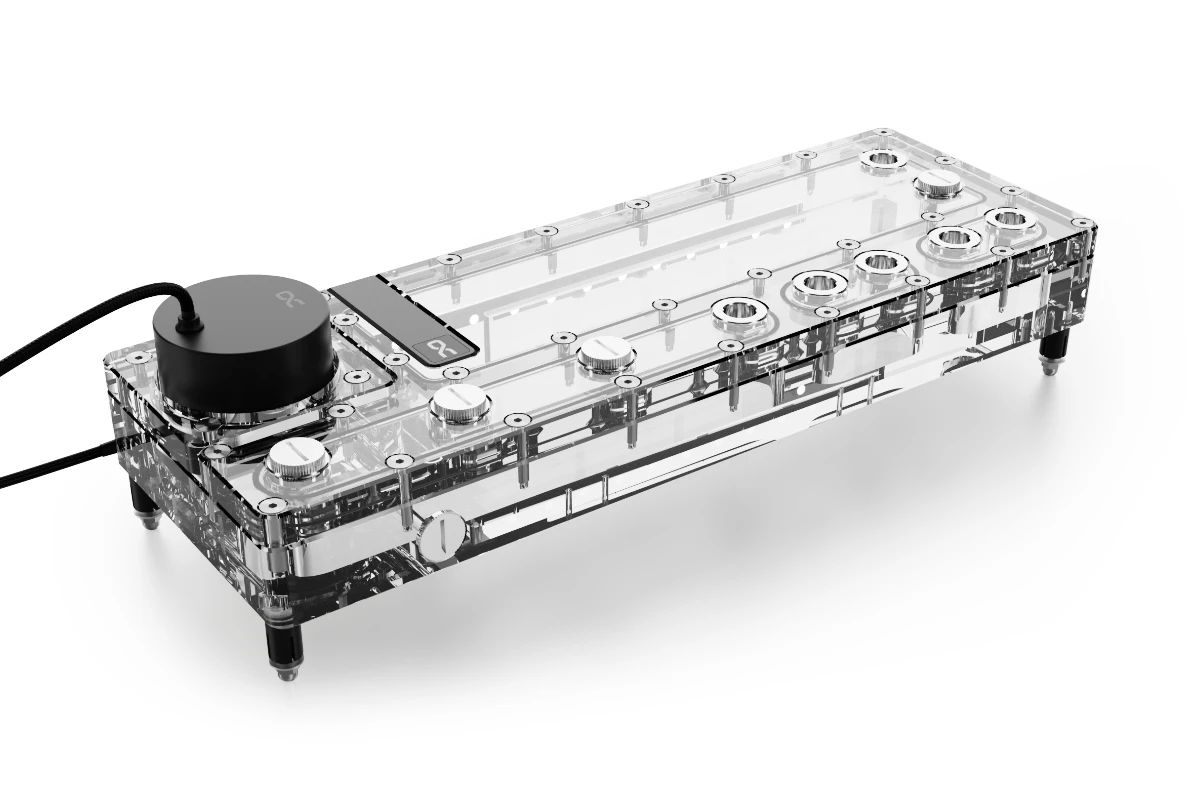

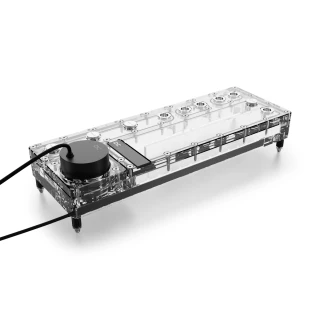

Alphacool Core Distro Plate 360 Right with VPP Pump

Brak ocen

  • Producent: Alphacool
  • Alphacool
  • Kod producenta: 15479
  • Kod EAN: 4250197154796
  • Gwarancja: 24 miesiące

Dostępność:

Czas realizacji orientacyjnie 5 dni roboczych

    Cena:

    1 189,90 zł

    przechowalnia

    • Koszt wysyłki: od 0 zł
    • Darmowa dostawa od 800,00 zł
    1189.9 In stock Alphacool Core Distro Plate 360 Right with VPP Pump

    The Alphacool Core Distro Plate with VPP Apex pump is a must-have in any custom water cooling setup, as it greatly simplifies the construction, planning, and maintenance of complex water loops. Additionally, the VPP Apex ensures stable and quiet flow.

    Core Design
    A key element of the Alphacool Core Design series are the chrome-plated G1/4" brass fittings. With the Core Distro Plate, the fittings are simply embedded and not screwed into a thread as usual, in order to avoid possible leaks due to cracking from direct threading into the acrylic. The two-piece fittings are equipped with an O-ring and counter each other during assembly in the acrylic, allowing for not only absolute tightness, but also a clear and functional look for the Alphacool Core Design series.

    Easy installation

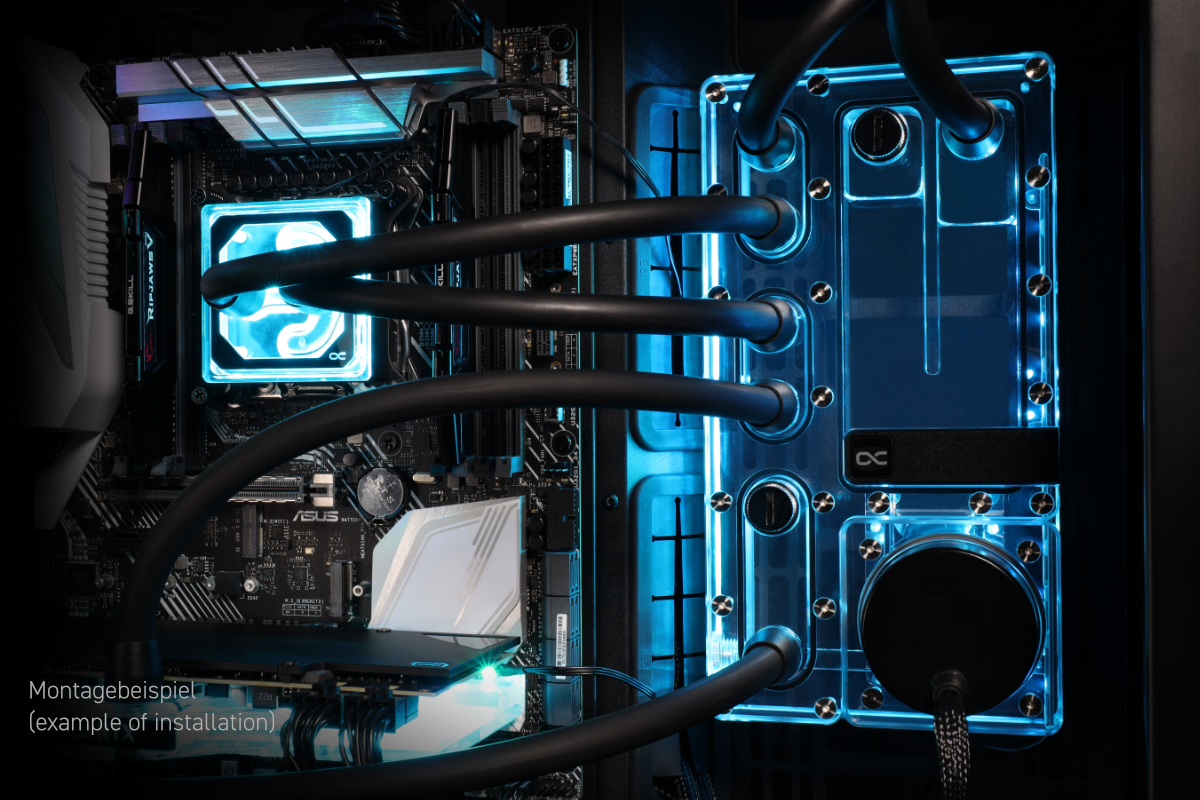

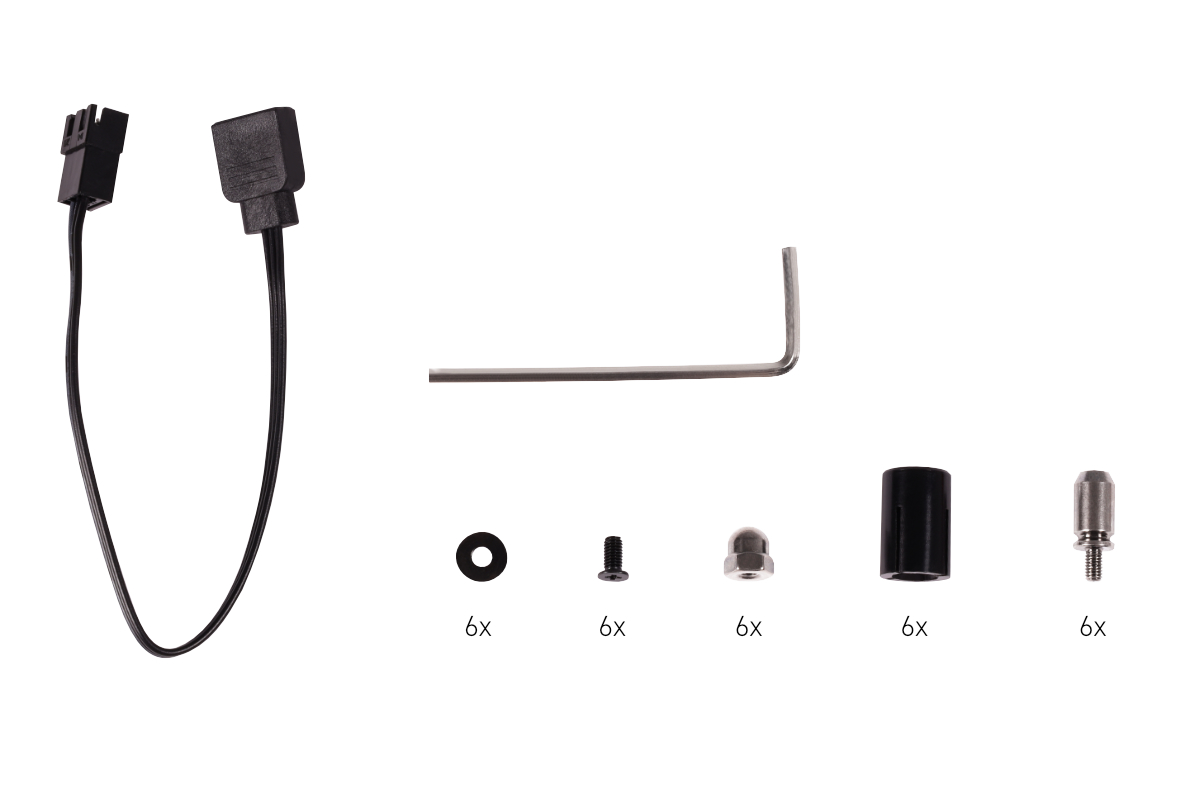

    The Distro Plate can be easily and tool-free mounted to the case panel or radiator with the included Core Push Mounting kits. Alphacool's Push Mounting allows for a secure fit of the Distro Plate on the case panel or radiator, and allows for easy removal for maintenance or expansion.

    Gamechanger

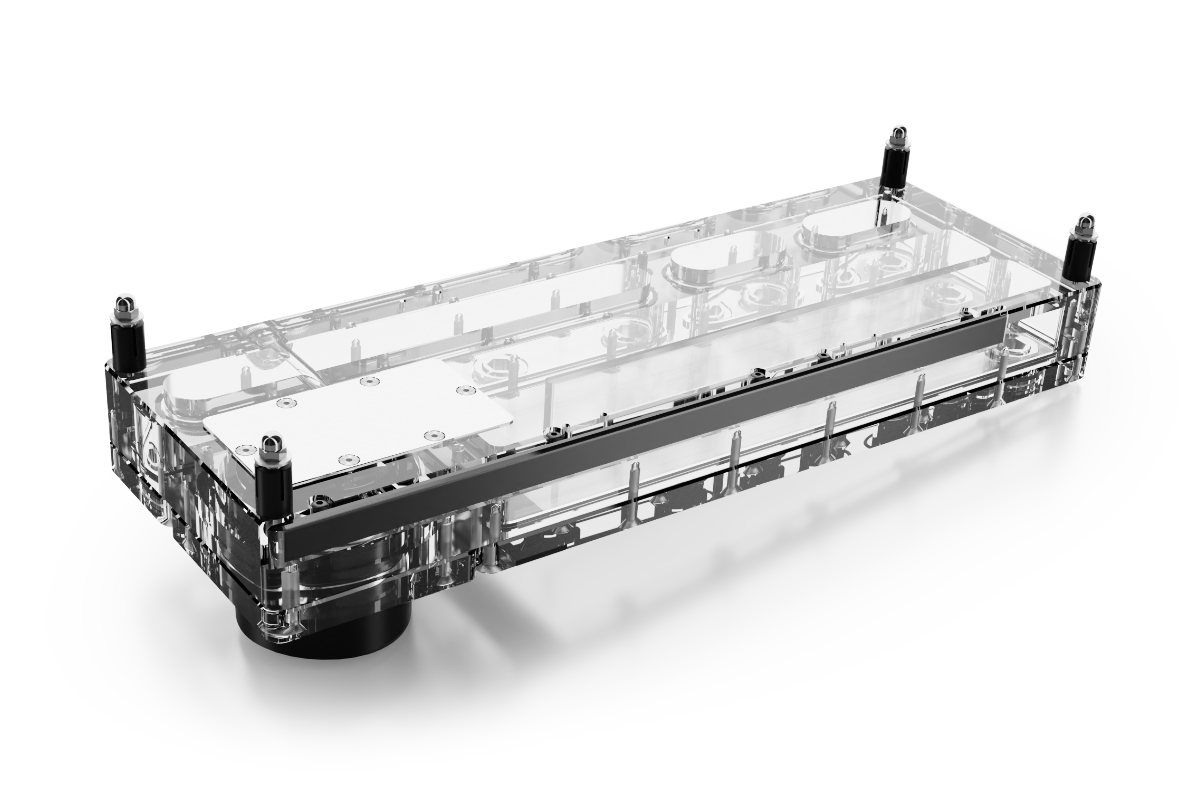

    The Core Distro Plate features an integrated reservoir and integrated VPP Apex pump, and is offered in 240mm or 360mm versions with left or right positioning of the pump top. This makes the Distro Plate ideal for custom water loops where the CPU and graphics card(s) should be cooled simultaneously. Thanks to the arrangement of the G1/4" fittings, complicated hose paths are a thing of the past. In addition, there is an additional drain port on the side, which allows for easy and uncomplicated emptying of the Distro Plate.

    High-quality material selection & brilliant illumination

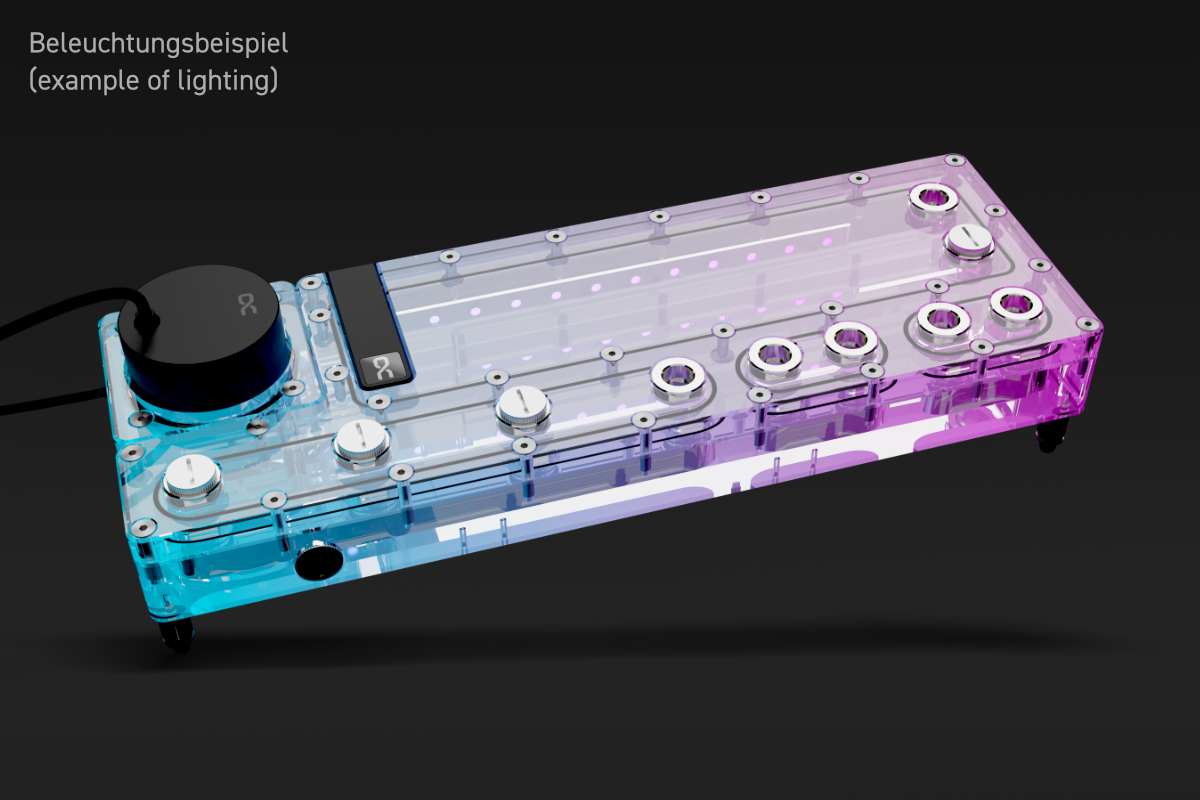

    The Alphacool Core Distro Plate is made of high-quality acrylic glass, which allows for an unobstructed view of the coolant and creates a brilliant color display through the built-in digital addressable aRGB lighting. The lighting can be controlled via a digital aRGB header on the motherboard or optionally through Alphacool's Aurora Eiscontrol aRGB controller (part number: 15360).

    The pump
    The Alphacool Apex VPP pump eschews a spherical bearing and instead uses a ceramic shaft. The motor coils were laid from the inside out to make the pump more stable and quiet, and to significantly reduce vibrations. Another positive side effect is that power consumption was nearly halved.

    Control
    The Apex VPP pump features a 4-pin fan connector that is connected to the motherboard or an external controller. This allows for PWM control and reading of the pump's speed range. The pump is powered by a SATA connector on the power supply.

    Compatibility:
    - Can be mounted on the radiator or panel



    Technical data Distro Plate
    Dimensions (L x W x H) 360 x 125 x 68,80mm
    Material Acrylic
    Volume 309ml
    Pump compatibility VPP/D5
    Threads 10x G1/4" inner thread / 1x drain port
    Maximum working temperature 60 °C
    Pressure tested 0,8 Bar
    Quantity digital aRGB LEDs 18
    Power digital aRGB LEDs 5V
    Power connection digital aRGB LEDs 3-Pin JST + 3-Pin 5V
    Weight 1840g
    Weight with pump 2116g
    Color transparent



    Technical data pump
    Dimensions (Distro Plate with pump) (L x W x H) 360 x 125 x 93,31mm
    Material pump synthetic material
    Material pump cover aluminium
    Material axle ceramics
    Connections 4-Pin PWM | SATA
    Rotational speed 2500 - 4500 RPM
    Cable lengths 4-Pin PWM - 48cm | SATA - 48cm
    Operating voltage 8-13V DC / 14W IP32
    Starting voltage 12V DC
    Maximum pumping head 4,25m
    Maximum flow rate 340L/h
    Maximum working temperature 60°C
    Weight 276g
    Color black
