Alphacool Core Storm 360mm ST30 water cooling Set

Brak ocen

  • Producent: Alphacool
  • Alphacool
  • Kod producenta: 11986
  • Kod EAN: 4250197119863
  • Gwarancja: 24 miesiące

Dostępność:

Oczekujemy na dostawę

    Cena:

    1 975,10 zł

    przechowalnia

    • Koszt wysyłki: od 0 zł
    • Darmowa dostawa od 800,00 zł
    1975.1 In stock Alphacool Core Storm 360mm ST30 water cooling Set

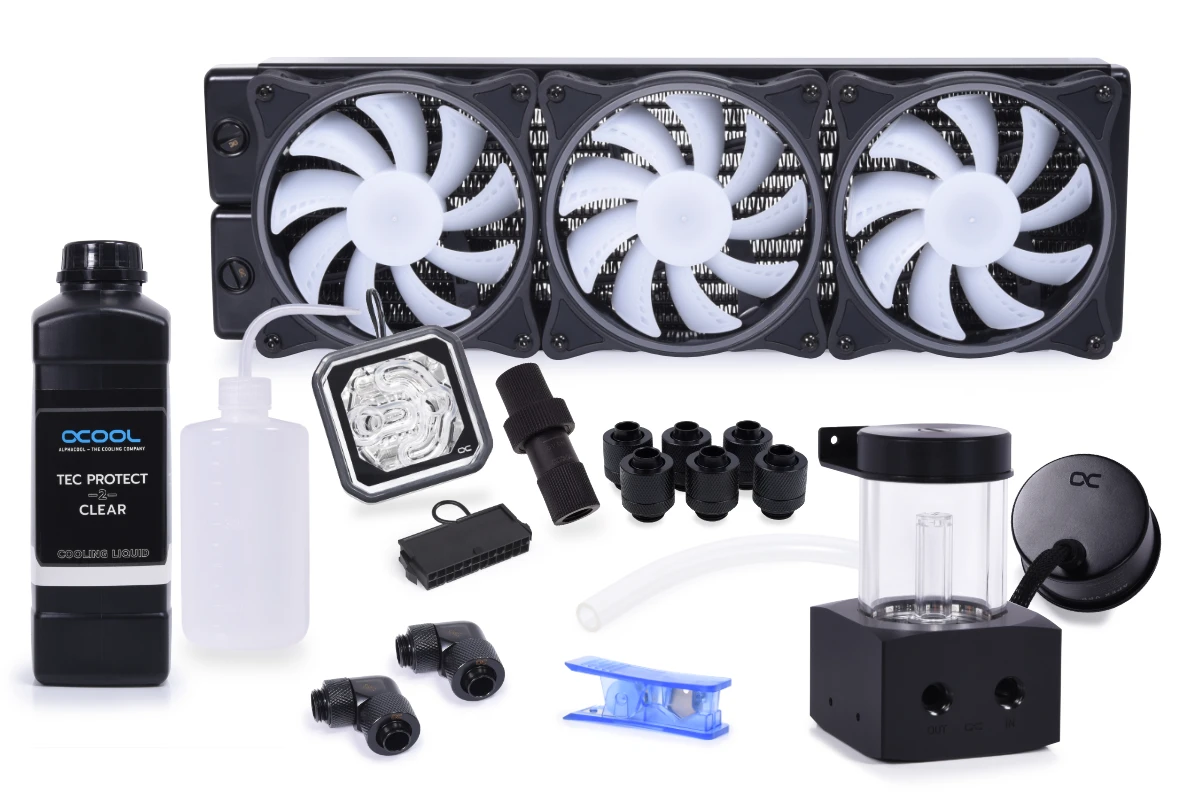

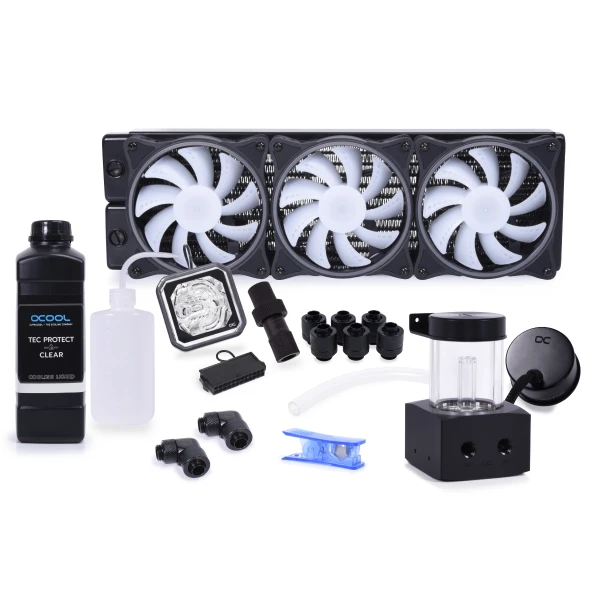

    With the Core Storm water cooling kit, Alphacool provides all the components needed to get started in the world of water cooling. The set is aimed not only at beginners, but also at enthusiasts. The selected components are optimally matched and come from Alphacool's DIY program. The choice of materials is still uncompromisingly based on copper or brass for all metals in order to guarantee performance-oriented CPU cooling. Due to the included quick-release fastener, additional components like radiators or GPU coolers can be integrated afterwards without having to drain or rebuild the water loop.

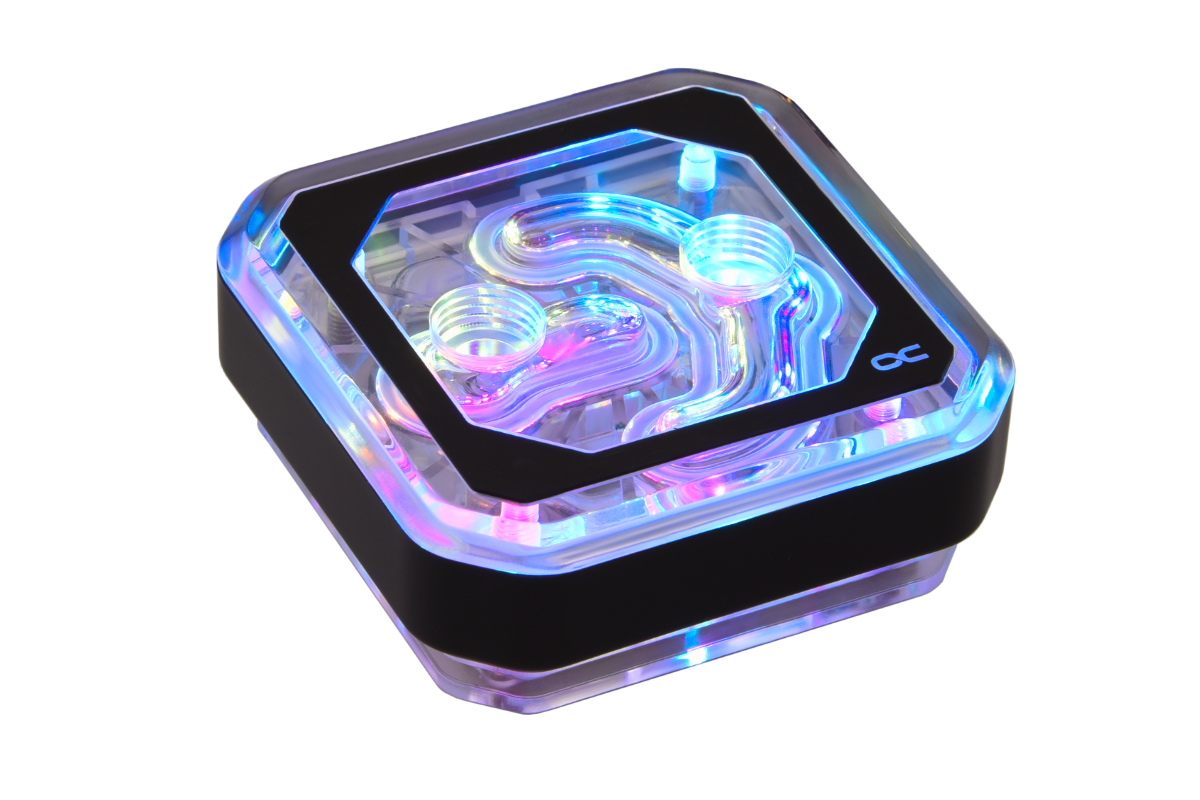

    Eisblock XPX Aurora CPU Cooler
    Alphacool's Eisblock XPX Aurora CPU water cooler offers the highest performance and impresses with its outstanding quality. The patented ramp system ensures optimal water flow within the cooler as water is forced evenly through the jet plate. 81 cooling fins are distributed on the CPU cooler base, occupying an area of 34 x 32mm and thus accommodating the ever-growing CPU DIEs. The Aurora design in combination with the 15 addressable digital aRGB LEDs provides many options for outstanding CPU water cooler illumination. The included mounting hardware makes the CPU cooler compatible with popular mainstream sockets from AMD and Intel.

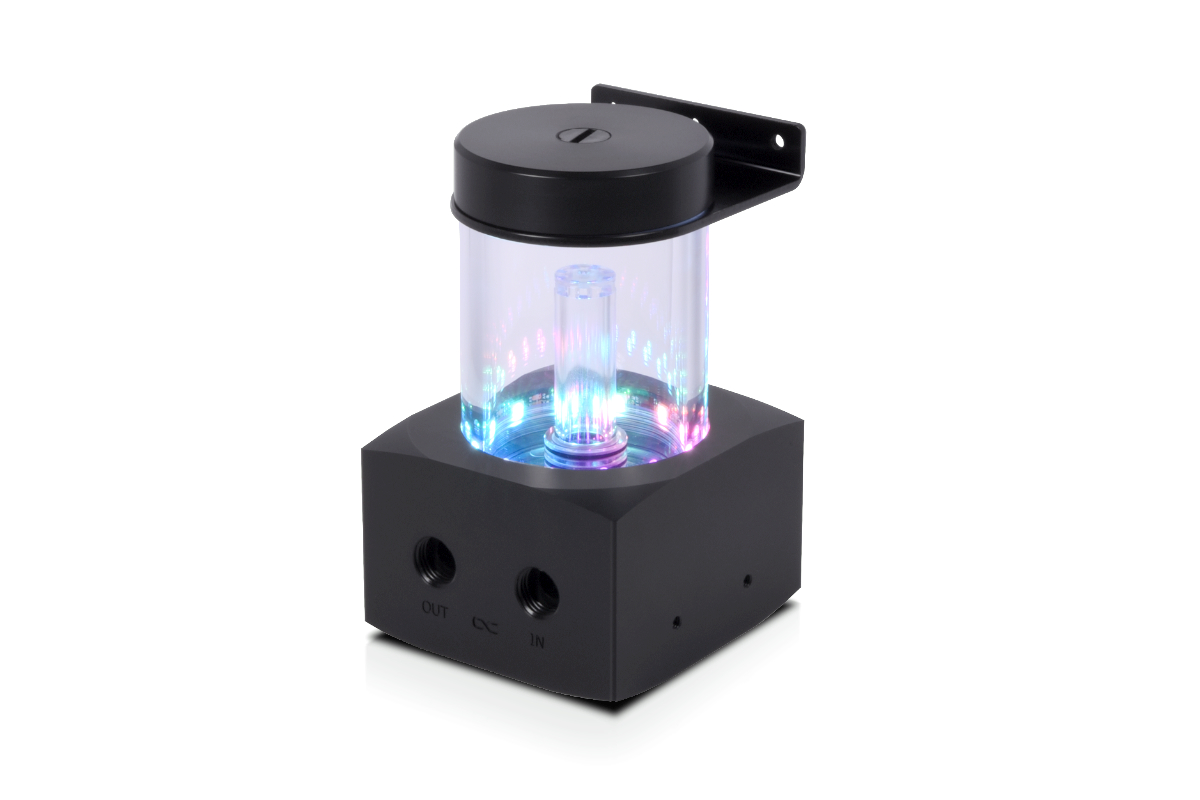

    Core 100 Aurora Reservoir & VPP Apex Pump

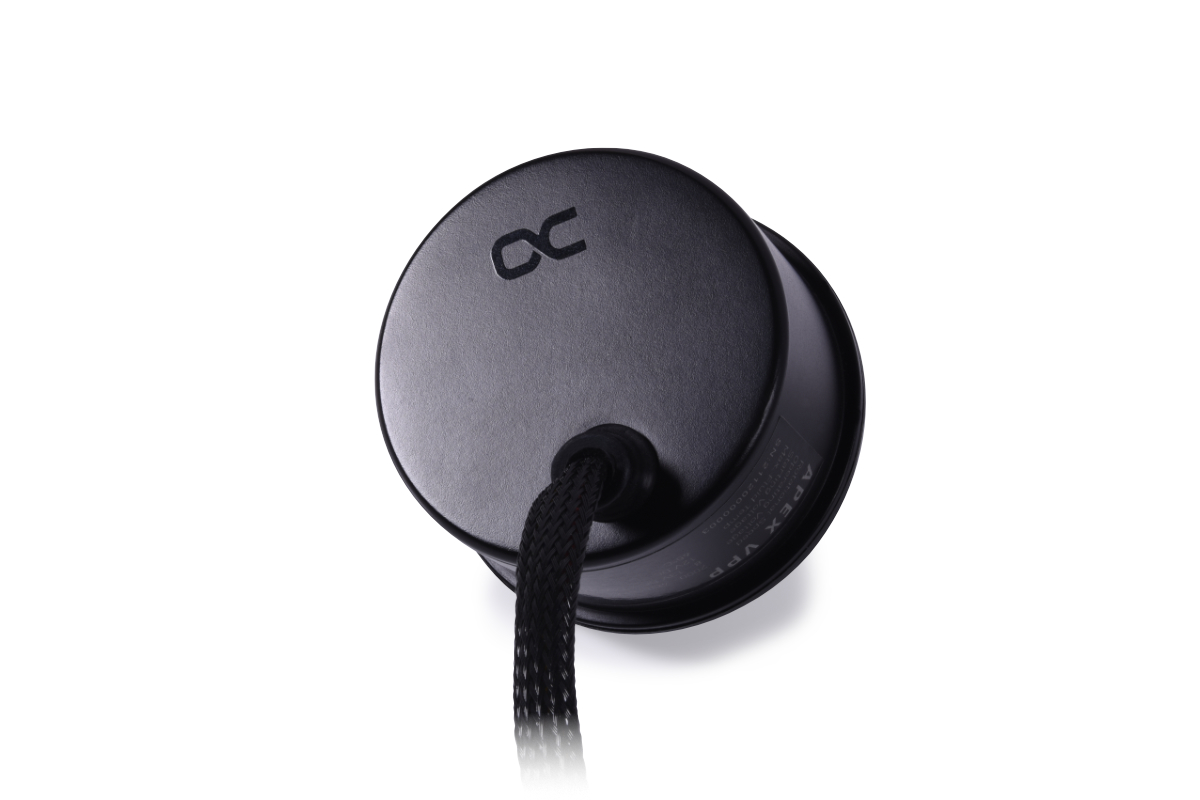

    The Core reservoir combines performance with design. The reservoir tube is made of acrylic, while the D5/VPP pump top and lid are made of acetal. The combination of these two materials gives the expansion tank a subtle appearance. The wow effect is provided by 12 digitally addressable RGB LEDs in the pump top and the Lighttower water effect inside the acrylic tube. The Apex VPP is a powerful pump that is compatible with the most popular D5/VPP tops and reservoirs. The pump's speed can be read out via the 4-pin fan connector and controlled via PWM signal. The Apex VPP is supplied with power via a SATA connector.

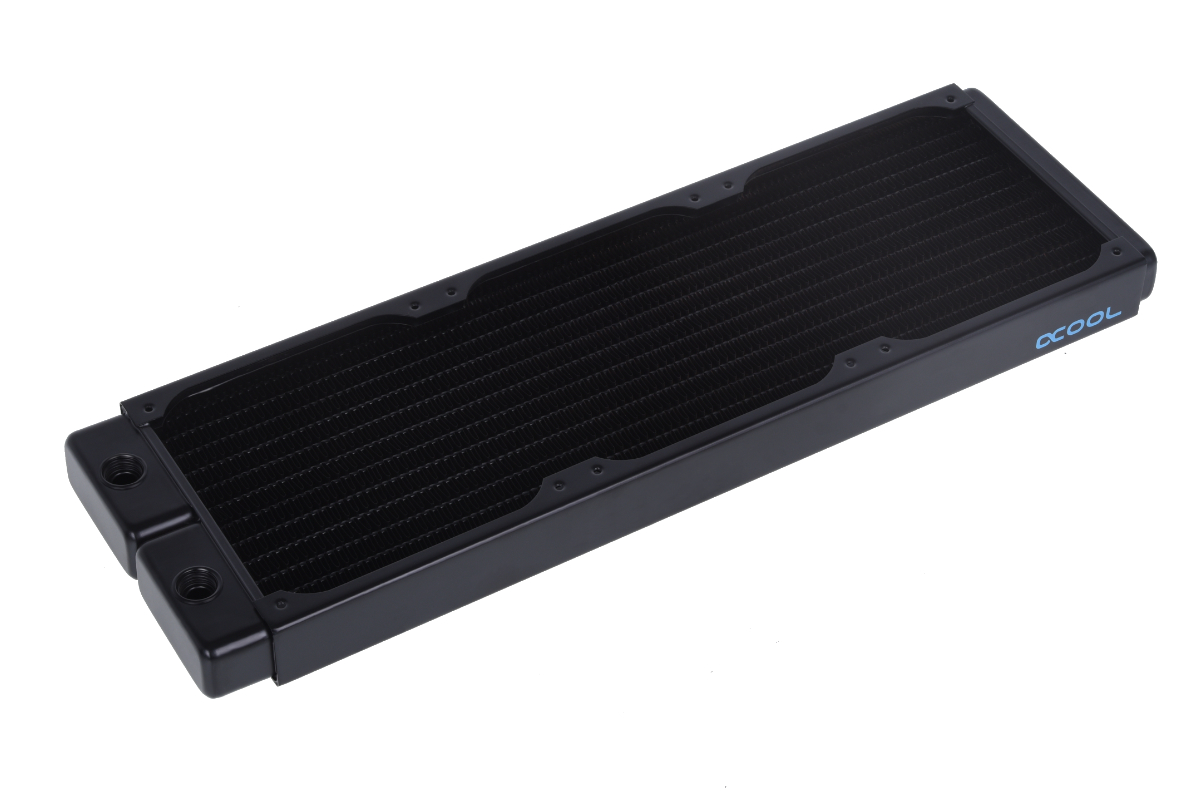

    NexXxoS ST30 Full Copper 360mm Radiator V.2
    All water-bearing parts and the cooling fins are made of pure copper. Thus, the NexXxoS ST30 achieves the highest thermal conductivity value of all radiators on the market and can easily dissipate extremely high waste heat. The radiator has two IN or OUT connections with G1/4" threads in the pre-chamber area. On the opposite side is a fill or vent port, which can be used to fill and drain the water loop.

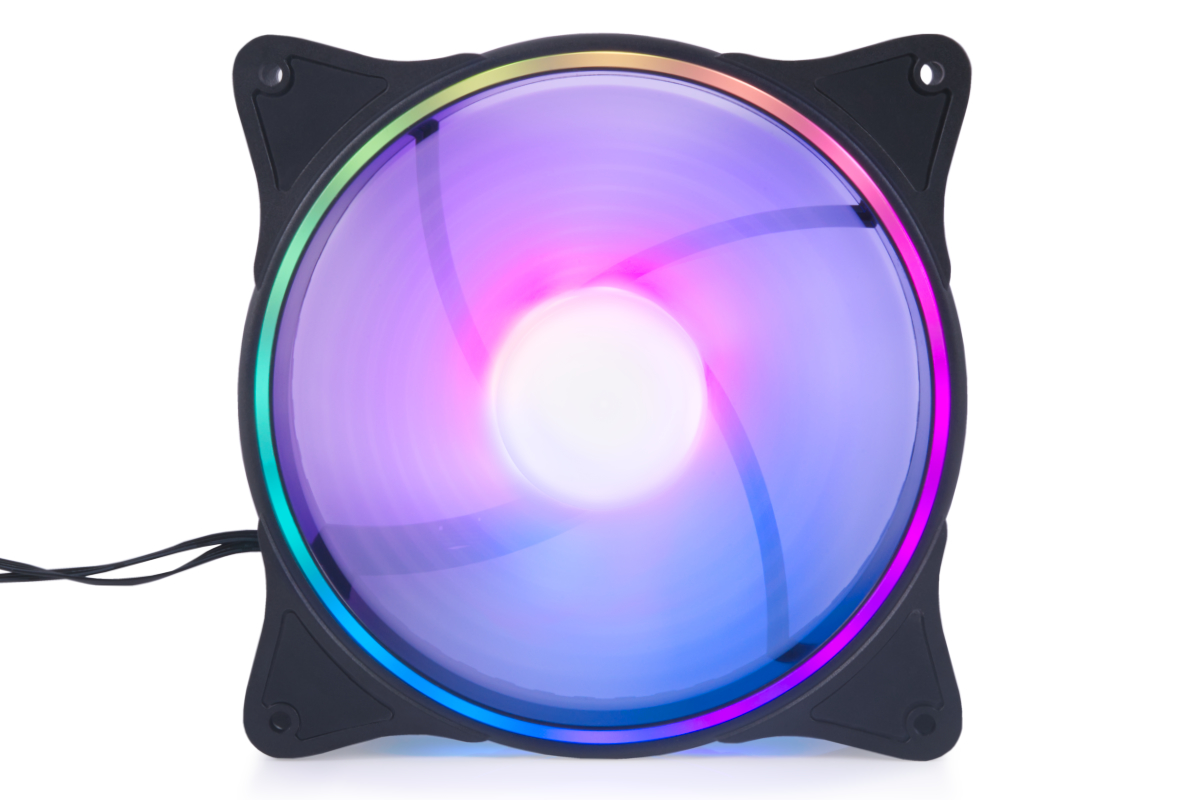

    Rise Aurora 120mm fans
    The fans can be controlled from 0 to 2500 rpm via the 4-pin PWM connector. At 800 rpm, the fan is nearly silent, but still offers good airflow (118.9 m3/h) coupled with high static pressure (3.17mm/H2O). In addition to a wide control range, the Rise fan also offers superior digital aRGB lighting. The frame and hub feature 20 digitally addressable 5V RGB LEDs that illuminate the entire fan.

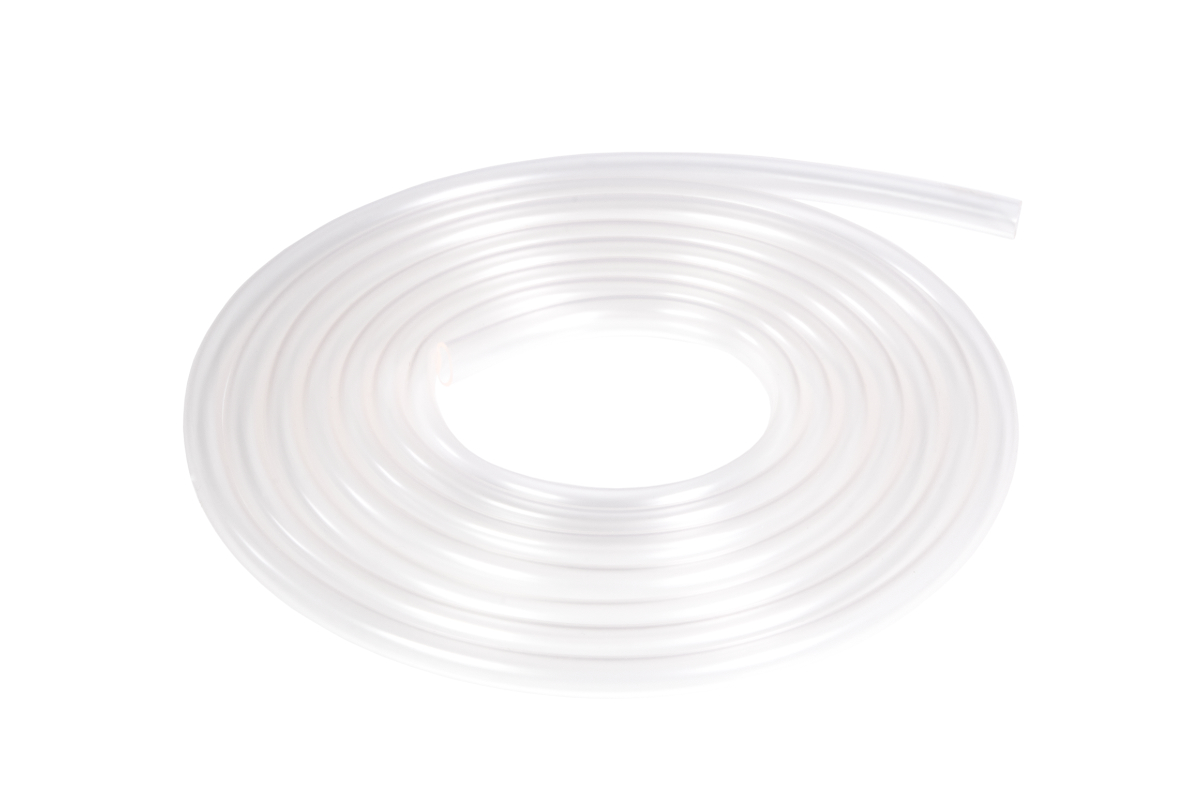

    AlphaTube HF 13/10mm tubing & HF G1/4" quick connect coupling
    The clear 13/10mm hose made of PVC offers comfortable handling when routing and connecting water cooling components. It has good routing and kinking characteristics and allows uncomplicated bridging of tight bend radii. The HF quick-connect coupling included in the scope of delivery allows easy integration of further components at a later date without having to drain or rebuild the water loop.

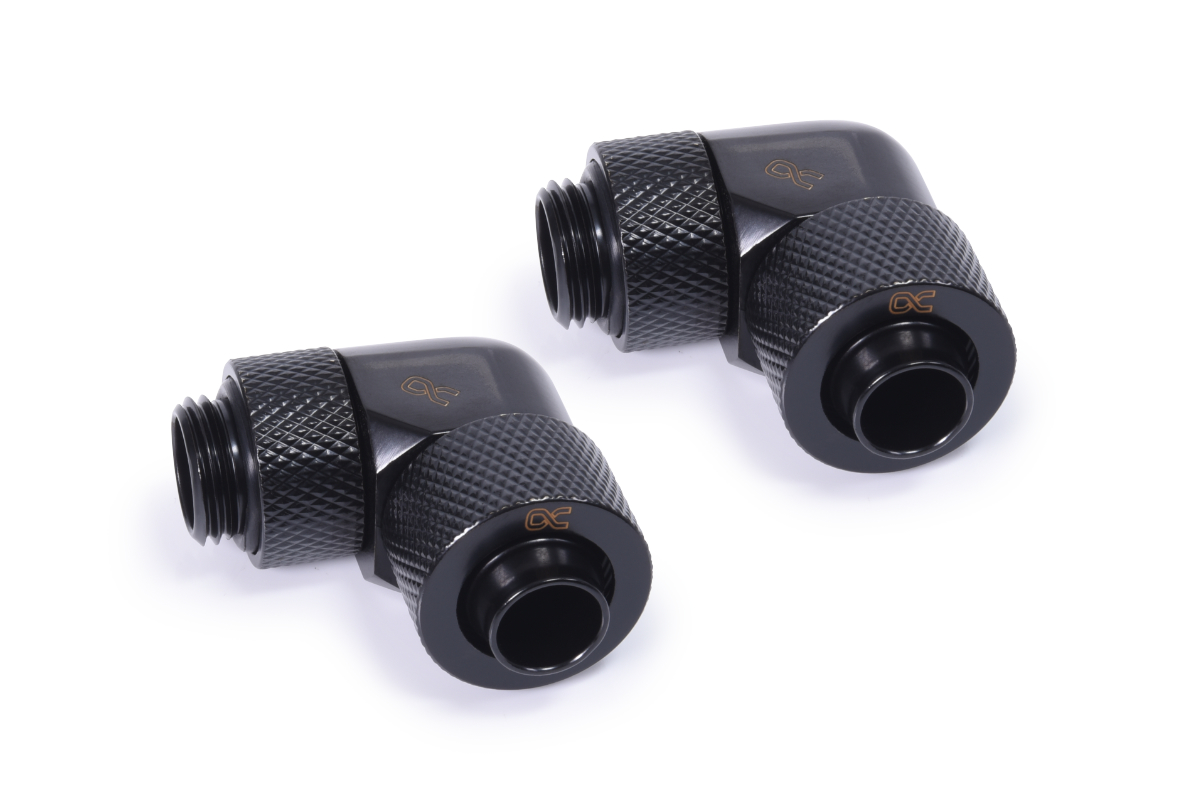

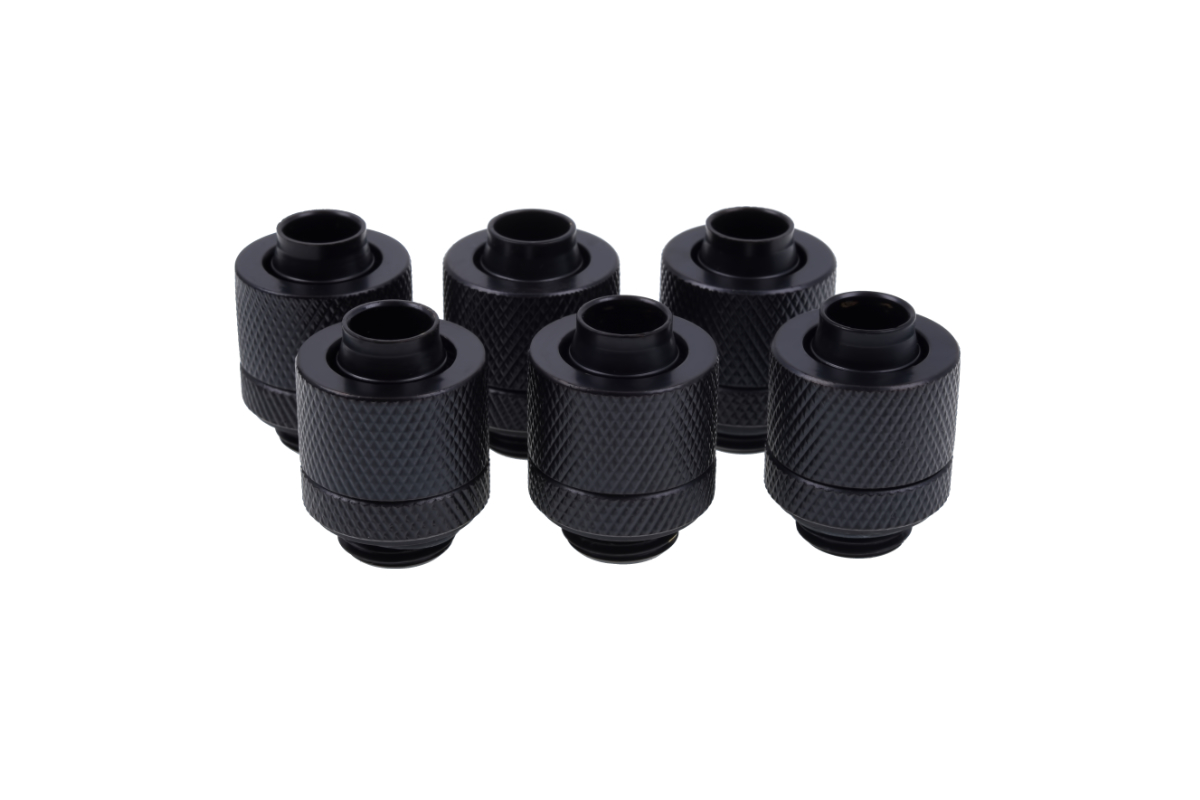

    Eiszapfen 13/10mm G1/4" Connections
    All the requirements for a connection are met here: Highflow, shape, machining and coloring. Special manufacturing processes firmly bond the coating to the substrate. This increases the longevity of the color and prevents the coating from flaking off.

    Thermal Paste & Coolant

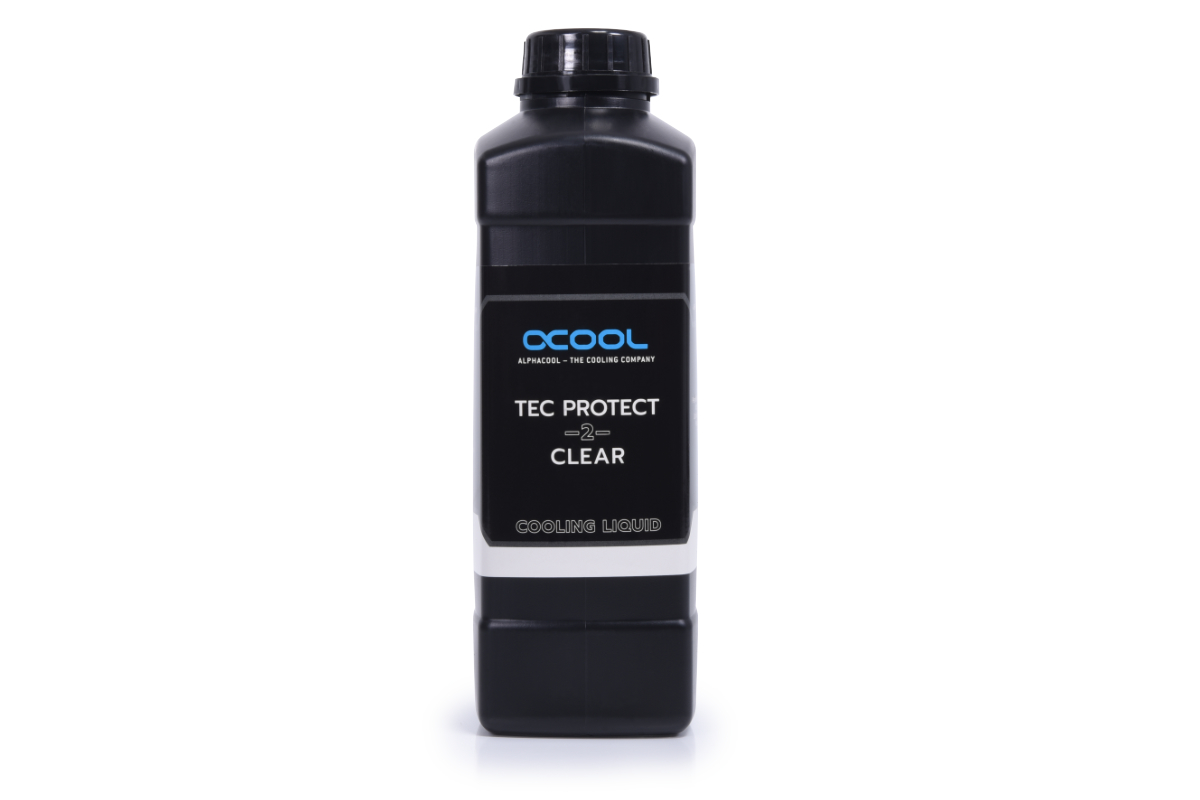

    The included thermal paste is Alphacool's Subzero with a thermal conductivity of 16 W/mk. The electrically non-conductive Thermal Grease is particularly well suited for high contact pressures, but can still be processed perfectly due to its viscosity of 850,000 TF. Tec Protect 2 Clear in the 1 liter bottle is used as the coolant. Tec Protect 2 Clear is a ready-to-use mixture that already contains all the necessary additives and can be used straight from the bottle.

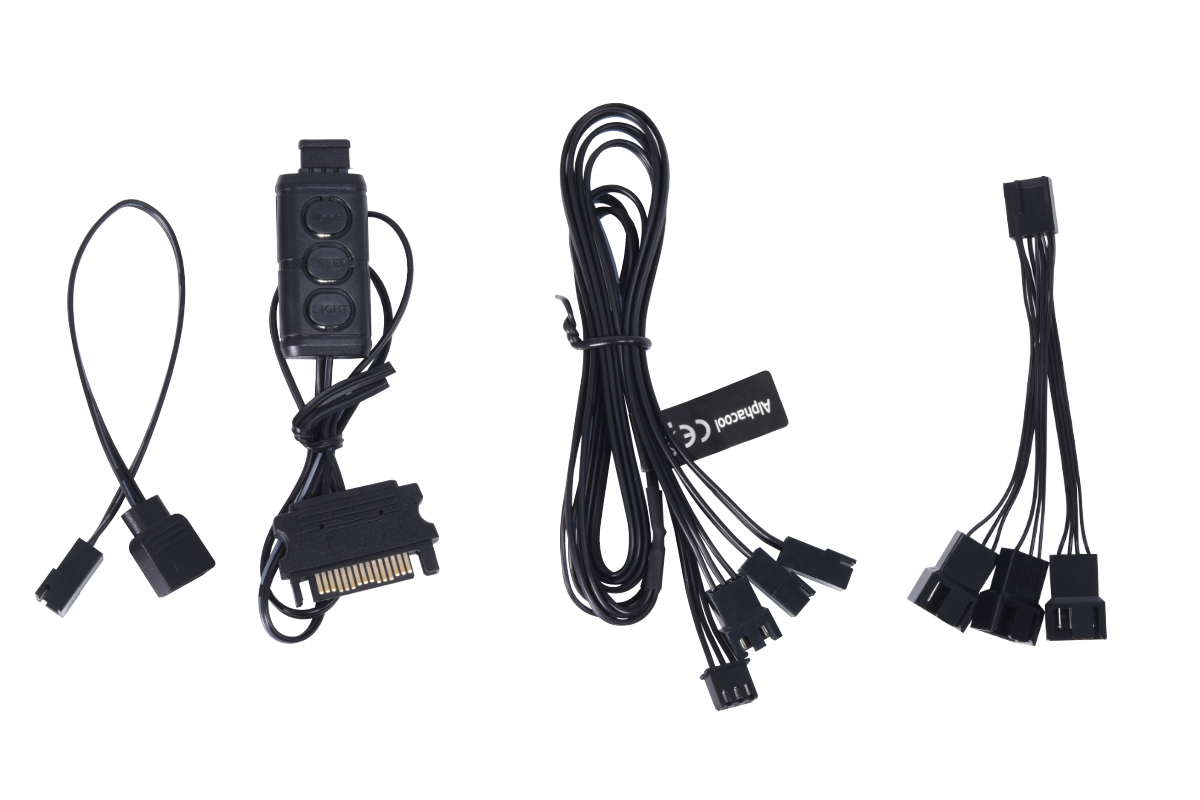

    aRGB Controller, Cables, Tools & Accessories

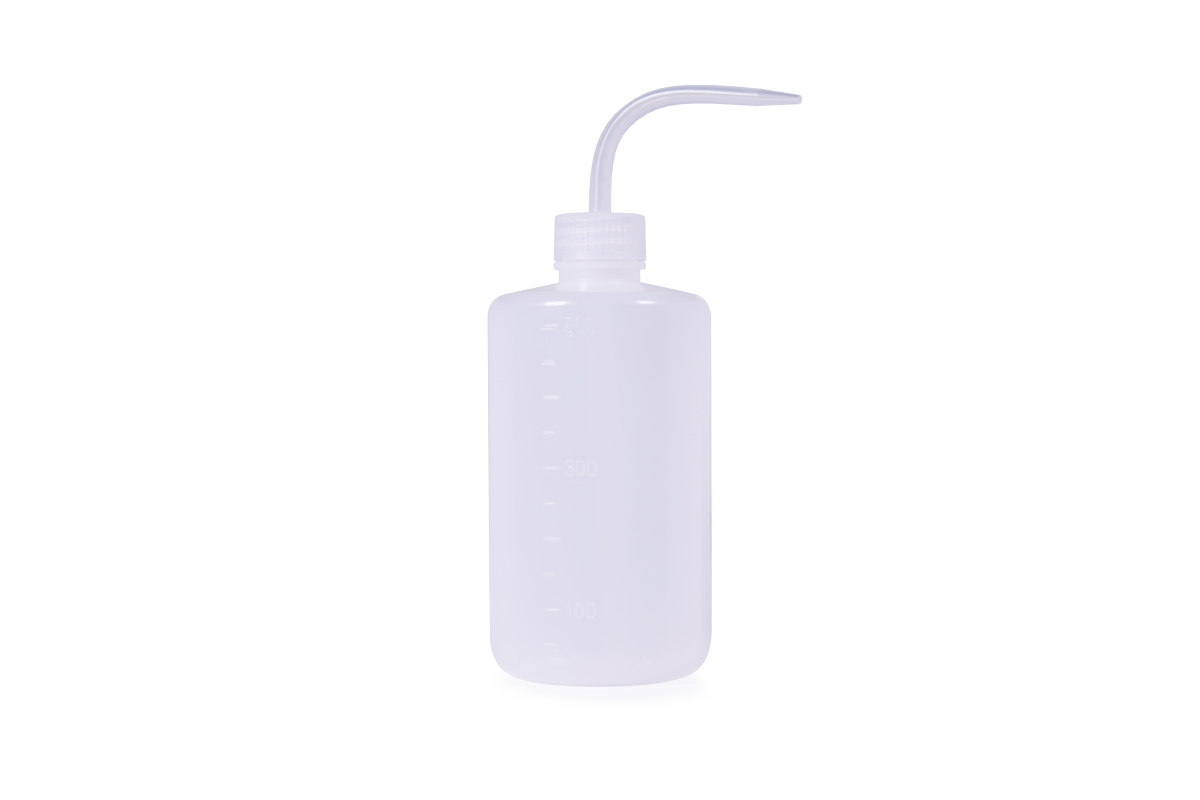

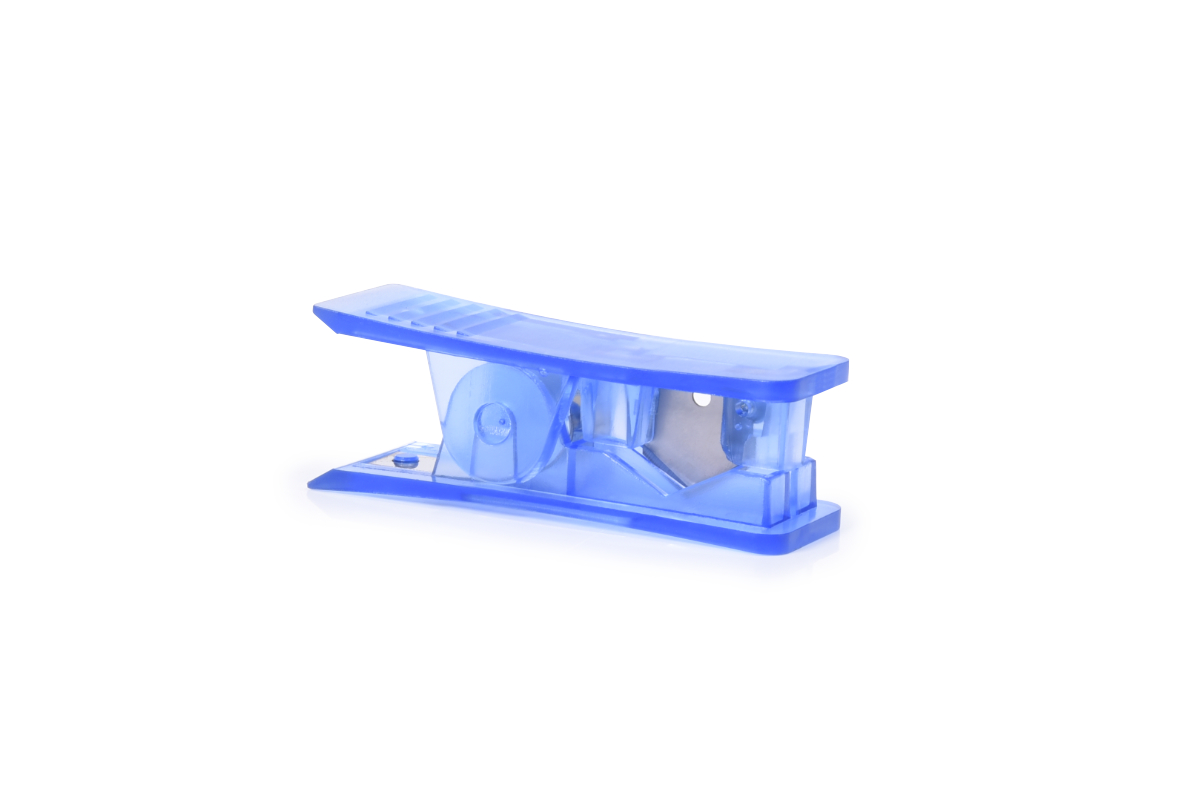

    All cables (aRGB, PWM) and controllers needed to use & control the pump, fan and aRGB lighting are included. The accessory package also includes important tools like hose cutter, filling bottle and an ATX 24-pin jumper. Thus, the construction of the custom loop can be started "out-of-the-box" immediately.



    Compatibility:
    Intel: 775 / 1056 / 1155 / 1150 / 1151 / 1200 / 2011 / 2011-3 / 2066 / 1700
    AMD: AM2 / AM2+ / AM3 / AM3+ / FM1 / FM2 / FM2+ / AM4 / AM5



    Technical data CPU cooler
    Dimensions (L x W x H) 75,8 x 75,8 x 33mm
    Material cooler nickel-plated copper
    Material housing nylon, acrylic
    Threads 2 x G1/4“
    Illumination 3-Pin 5V, 15 digital aRGB LEDs
    Max working temperature 60°C
    Pressure tested 0,8 Bar

    Technical data reservoir
    Dimensions (L x W x H) 131 x 76,5 x 76,5mm
    Capacity 200 ml
    Material Pump top & cover acetal
    Material tube acrylic
    Threads 3x G1/4“ IT
    Illumination 3-Pin 5V, 12 digital aRGB LEDs
    Max working temperature 60°C
    Pressure tested 0,8 Bar

    Technical data pump
    Dimensions (L x W x H) 65 x 65 x 41mm
    Material synthetic material, aluminium, ceramics
    Threads 4-Pin PWM | SATA
    Rotational speed 2500 - 4500 RPM
    Operating voltage 8-13V DC / 14W IP32
    Starting voltage 12V DC
    Maximum pumping head 4,25m
    Maximum flow rate 340L/h
    Max working temperature 60°C
    Pressure tested 0,8 Bar

    Technical data radiator
    Dimensions (L x W x H) 391,5 x 124 x 30mm (+/- 3%)
    Material cooling fins, pre-chambers & channels copper
    Material threads brass
    Material outer housing stainless steel
    Threads 4x G1/4" IN/OUT & 1x Fill-/Drainport G1/4"
    Possible fan size 120mm
    Possible fan assembly 3x one-sided / 6x both-sided
    Fin density 15
    Max working temperature 60°C
    Pressure tested 0,8 Bar

    Technical data fan
    Dimensions (L x W x H) 120 x 120 x 25mm
    Speed 0 - 2500 RPM (+/- 10%)
    Threads 4-Pin PWM
    Voltage 12V DC
    Current consumption 0,65A (0,72 max)
    Static pressure 3,17 mm H2O
    Max. air flow 118,9 m³/h
    Noise max. 31,5 dB(A)
    Speedometer signal yes
    Auto-Restart yes
    Illumination 3-Pin 5V, 20 digital aRGB LEDs, 3.5W

    Technical data tube
    Dimensions (outer/inner) 13/10mm
    Material PVC
    Length 3m
    Color clear

    Technical data 13/10mm G1/4" fittings
    Material brass
    Threads 1x G1/4" OT | 1x tube connection 13/10mm
    Color black

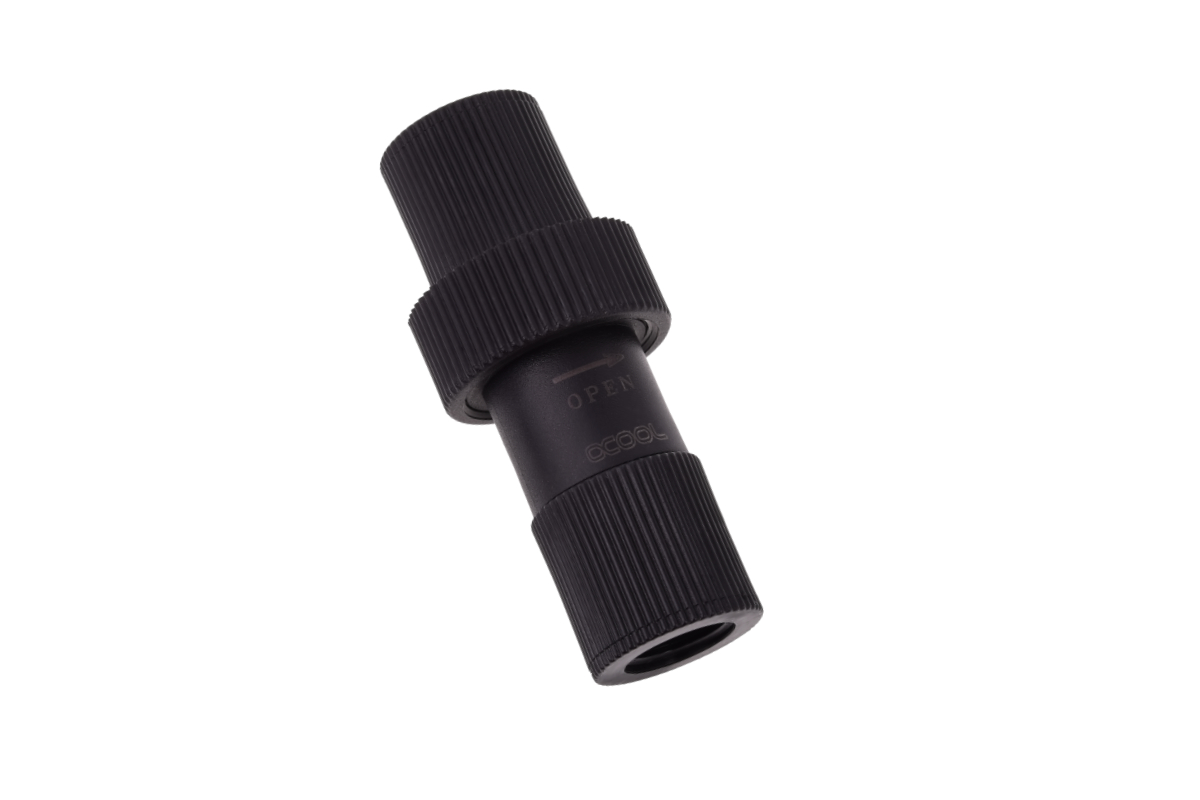

    Technical data quick release coupling
    Dimensions (L x D) 60,3 x 26,1mm
    Material synthetic material
    Threads 2x G1/4“ IT
    Color black

    Technical data coolant
    Ingredients osmose water(93,8%), glysofor L (4,2%), RHOBA KLA (2%)
    Boiling point 105°C
    Freezing point -10°C
    Packaging unit 1L bottle
    Color clear (not UV-active)

    Technical thermal grease
    Viscosity (mPa. s) 3.000.000
    Specific Gravity (g/cm³) 2,7
    Thermal Conductivity (w/m-K) 16
    Temperature Stability (Degree Celcius) -50 ~ 200
    Color gray
