Alphacool Eiswolf 2 AIO - 360mm RTX 4080 Suprim with Backplate

Brak ocen

  • Producent: Alphacool
  • Alphacool
  • Kod producenta: 14488
  • Kod EAN: 4250197144889
  • Gwarancja: 24 miesiące

Dostępność:

Oczekujemy na dostawę

    Cena:

    969,90 zł

    przechowalnia

    • Koszt wysyłki: od 0 zł
    • Darmowa dostawa od 800,00 zł
    969.9 In stock Alphacool Eiswolf 2 AIO - 360mm RTX 4080 Suprim with Backplate

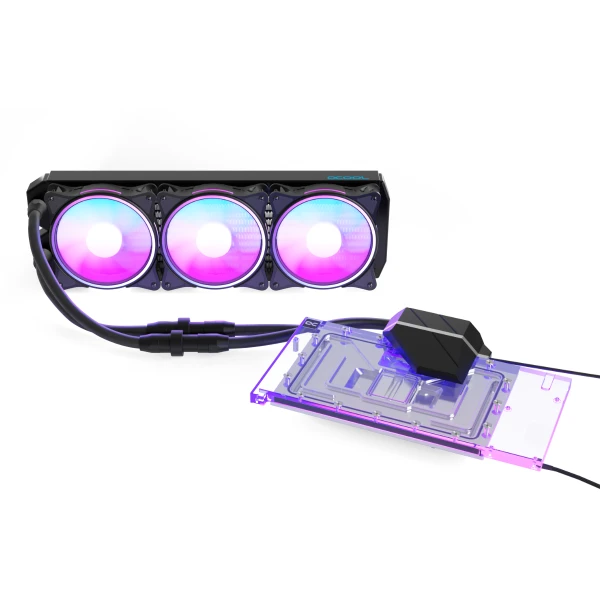

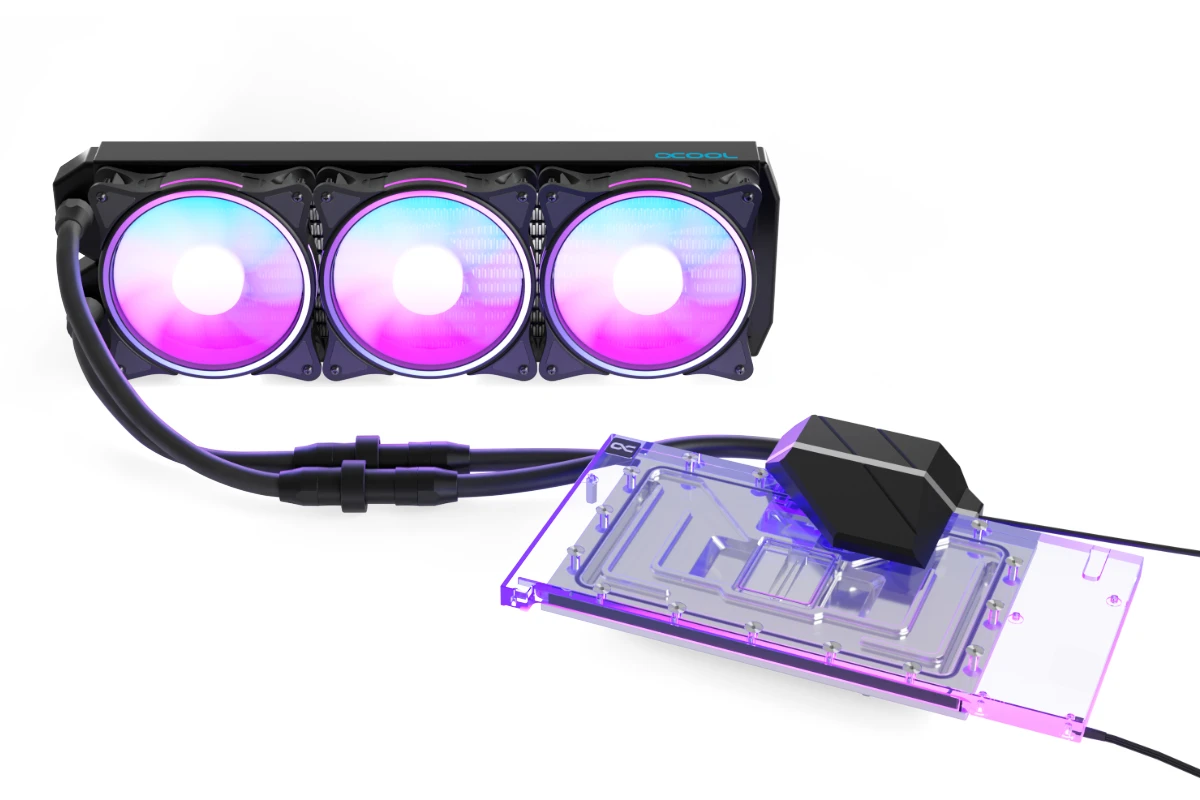

    The Alphacool Eiswolf 2 is the first full cover GPU AIO waterblock from Alphacool. It is based on the Alphacool GPX Eisblock Aurora GPX water block, a pump unit and a 360mm NexXxoS ST30 full copper radiator. The latter is equipped with the Alphacool Aurora Rise Digital RGB fans.

    Fullcover Waterblock?

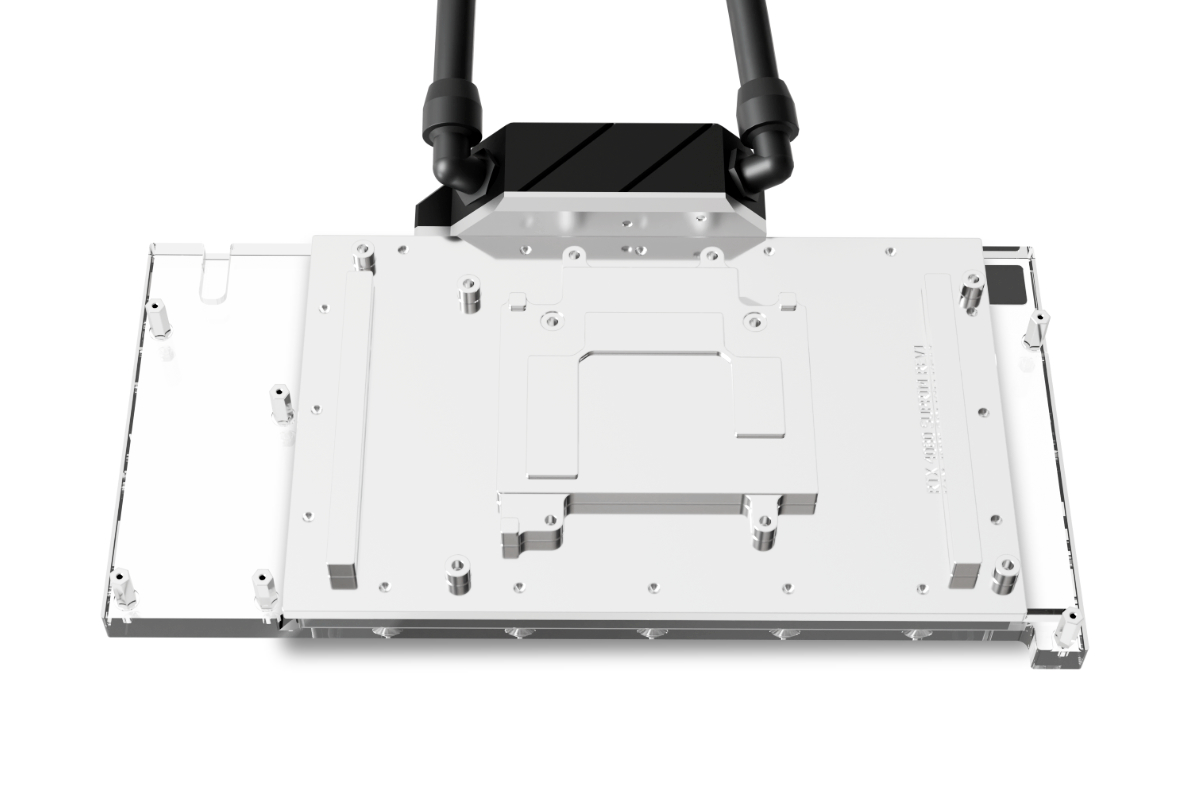

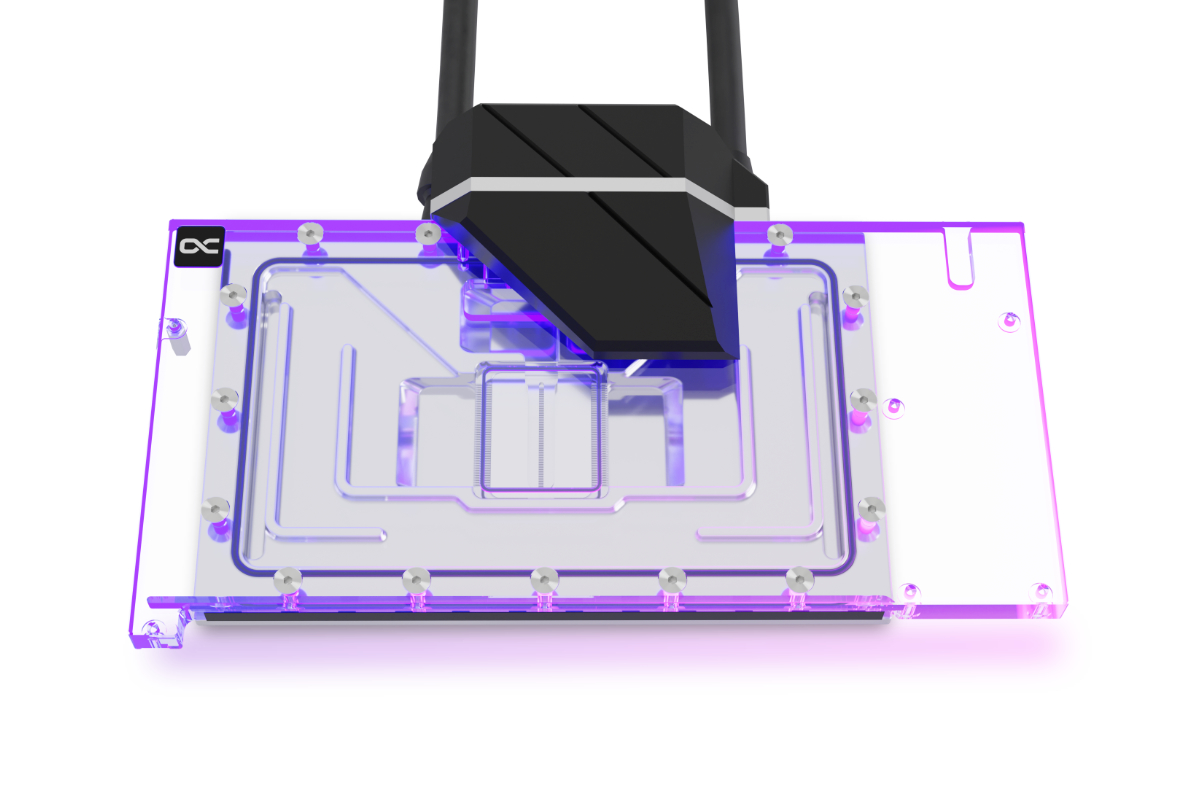

    The Eiswolf 2 graphics card AIO water block not only cools the GPU with liquid but also all relevant components that require active cooling. This includes the graphics memory, the VRM and, if necessary, other components that require direct cooling. By using the Eisblock GPX Aurora water cooler, the cooling capacity is identical to that of a DIY graphics card water cooler.

    Chrome-plated copper
    The cooler is made entirely of chrome-plated copper. A chrome plating is much harder than a nickel plating and therefore less sensitive to acids, scratches and damage. It completely eliminates the risk of chipping nickel plating. Additionally, chrome plating looks much more homogeneous and provides a shine that cannot be achieved by nickel plating. Chrome-plated coolers have previously only been used in the industrial sector in areas where extreme influences act on the coolers.

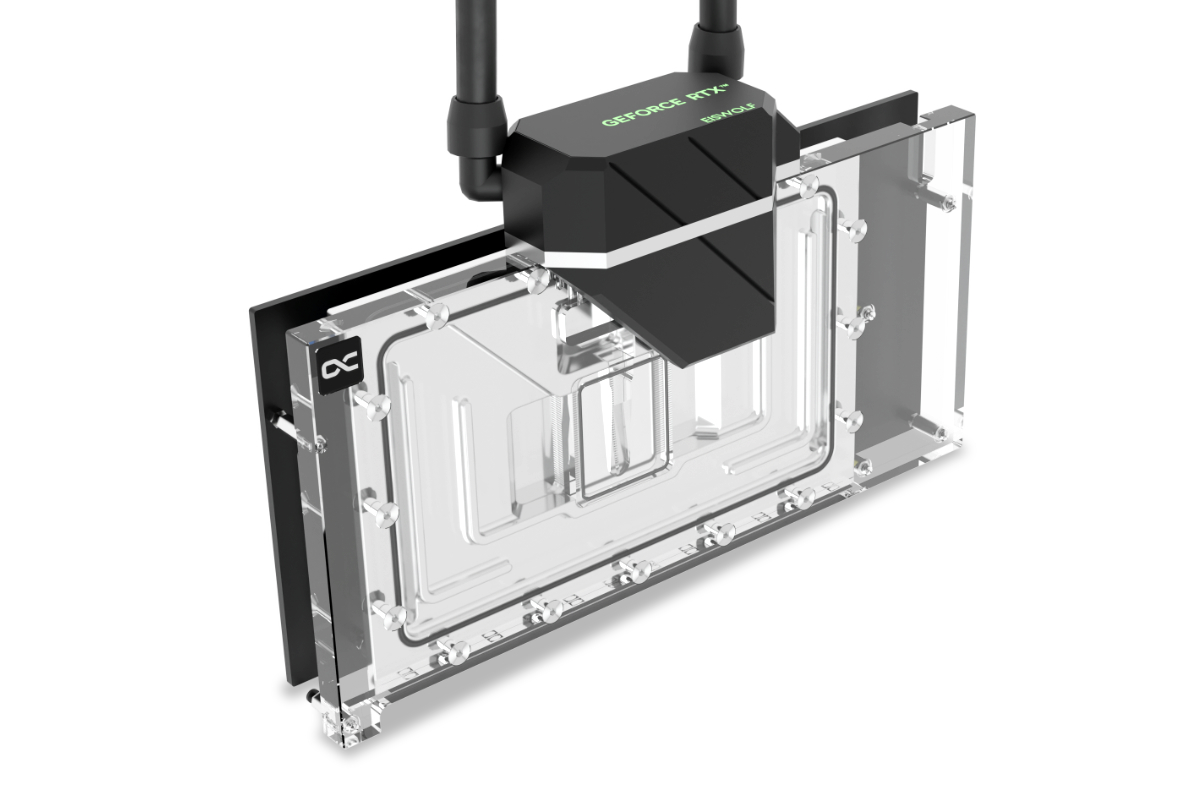

    Pump
    The Eiswolf 2 has a pump unit in place of the normal connection terminal. This pump unit houses the DC-LT 2 pump. An improved and quieter version of the well-known DC-LT Low Noise Ceramic Pump. Despite looking rather large, the pump unit is only 5 mm wider than a normal connection terminal.

    Fittings and Tubing
    As with all new AIO units, Alphacool uses only TPV hoses from the Enterprise Solution range for (usually reserved for servers and workstations) in the Eiswolf 2. The tubing is made of EPDM/PP and are extremely heat-resistant, durable, and free of plasticizers. All fittings are also based on the Enterprise Solution range and match the TPV hoses perfectly.

    Expandability
    By using the quick-release fastener, the Eiswolf 2 can be connected to another Alphacool AIO unit to achieve a larger loop in seconds. Alphacool offers various prefilled components with which the loop can be easily extended. For safety reasons, the quick-release fasteners are firmly screwed together and not just plugged together.

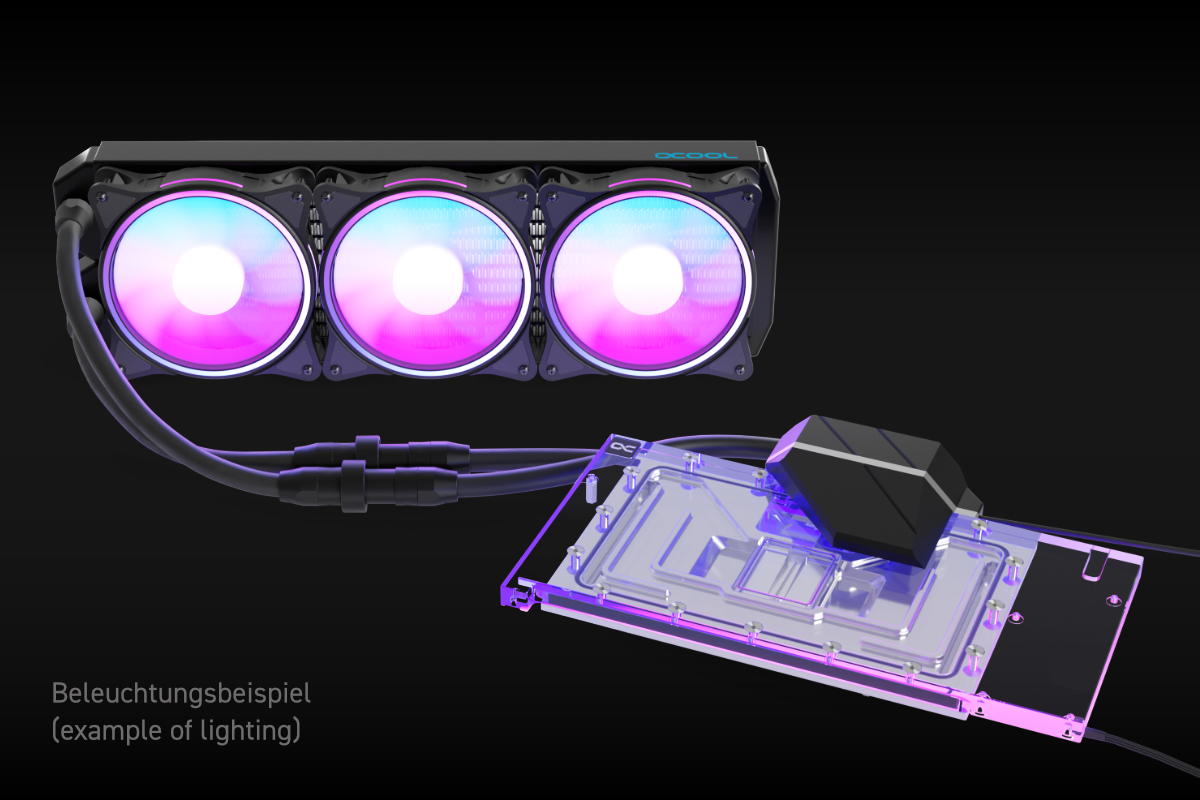

    Lighting and fans
    The Eiswolf 2 cooler has a digital RGB LED lighting, also called addressable RGB LEDs. They run along the entire back of the graphics card cooler and provide complete illumination of the water cooler. The pump unit is more discreet and offers a green glowing logo for Nvidia and a red glowing logo for AMD cards. The name "Eiswolf" on the pump unit remains unlit, discreetly in the background. The fan used is the Aurora Rise with 120mm. Due to the special blade design, the fan is extremely quiet and the addressable RGB LEDs provide brilliant illumination. The Alphacool Aurora Rise fan convinces with a max. static pressure of 3.17mm/H2O and offers a max. air flow of 119.8m3/h. The PWM control allows the fan to be controlled over a wide speed range. In addition, it offers a zero control. It can therefore be regulated down to 0 rpm and then starts with approx. 350 rpm.

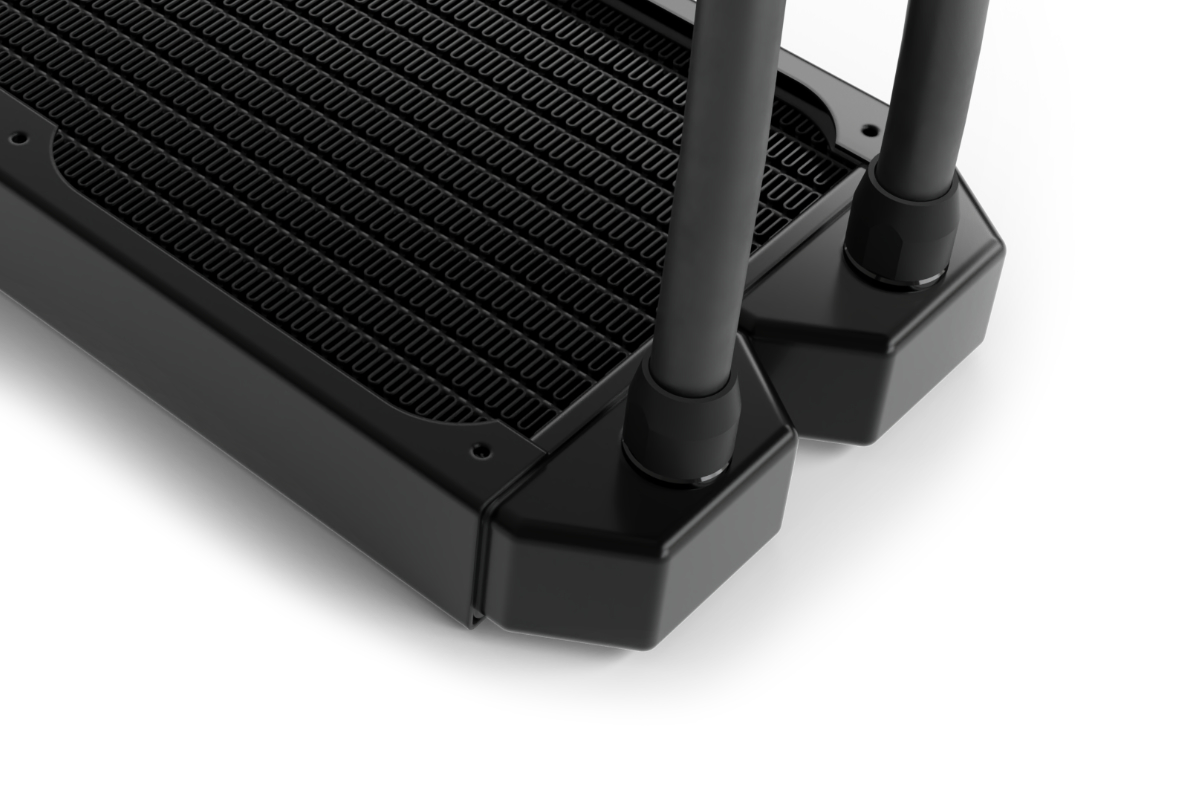

    NexXxoS Radiator
    As with all AIO units, Alphacool uses radiators from the world renowned NexXxoS series. The full copper radiators offer a much higher cooling capacity than aluminium radiators and have contributed significantly to Alphacool's worldwide success.

    The combination of all of the components results in a solution that is as simple as an AIO solution to install, but with the performance of a pre-assembled and prefilled custom loop.

    Technical note!
    Due to long storage times and various transport routes, the liquid in the Eiswolf 2 AIO remains still for a long time. The ingredients of the liquid can therefore deposit and lead to a brownish discoloration. As soon as the pump starts operating, the ingredients mix again and the liquid should regain an approximately clear color. This is not a reason for complaint as neither the performance nor the function of the AIO are restricted by this. If the discolouration of the cooling liquid does not disappear after the AIO has been put into operation, please contact our support team via E-Mail (info@alphacool.com). You will receive quick and uncomplicated help there.



    Compatibility:
    - MSI GeForce RTX 4080 Gaming X Trio 16GB, 16GB GDDR6X, HDMI, 3x DP (V511-005R)
    - MSI GeForce RTX 4080 16GB Suprim X, 16GB GDDR6X, HDMI, 3x DP (V511-004R)



    Technical data radiator
    Dimensions (L x W x H) 395 x 124 x 30mm (+/- 3%)
    Material cooling fins, chambers & channels Copper
    Material threads Brass
    Material outer housing stainless steel
    G 1/4“ threads 2 x for tubes (+ 1x Fillport G1/4“)
    For fan size 120 mm
    Options for fan assembly 3 x one-sided / 6 x both-sided

    Technical data cooler and pump
    Dimensions (L x W x H) 266,66 x 172,03 x 47,13 mm
    Material cooler bottom Chrome plated copper
    Material cooler top acrylic
    Threads 2 x G1/4“
    Pump type DC-LT 2
    Pump speed 2600 rpm (+/- 10%)
    Head of delivery 1 m
    Maximum flow rate 72 L/h
    Voltage 6-13.5V DC
    Power consumption 3.2W
    MTBF 50.000 h

    Technical data liquid
    Color clear
    Ingredient 1 Destilled water (CAS-number 7732-18-5)
    Ingredient 2 Glysantin (CAS-number 1017-21-1)
    Working temperatures -15 C° / +90 °C

    Technical data quick fasteners
    Dimensions (L x D) 95 x 27mm
    Material Nylon
    For tube size 12,7 / 7,6mm
    Color Black

    Technical data fittings
    L x D straight fitting 24 x 18mm
    Quantity straight fittings 2x
    L x B x H 90° fitting 35 x 27 x 17mm
    Quantity 90° fittings 2x
    For tube size 12,7 / 7,6mm
    Material fittings Brass

    Technical data tube
    Length 50cm
    Material tube TPV (EPDM/PP)
    Color Matt black
    Tube size 12,7 / 7,6mm
    Hardness grade 35 Shore-A to 50 Shore-D
    Working temperature -50 to +155 °C

    Technical data fan
    Speed 0 - 2500 RPM
    Static pressure 3,17 mm H2O
    Air flow rate 119,8 m³/h
    Bearings Sleeve bearing
    Fan connector 4-Pin PWM
    Connection Digital aRGB 3-Pin JST + 3-Pin 5V
    Dimensions (L x W x H) 120 x 120 x 25mm
    Net weight 187g
    Max working temperature 60°C
