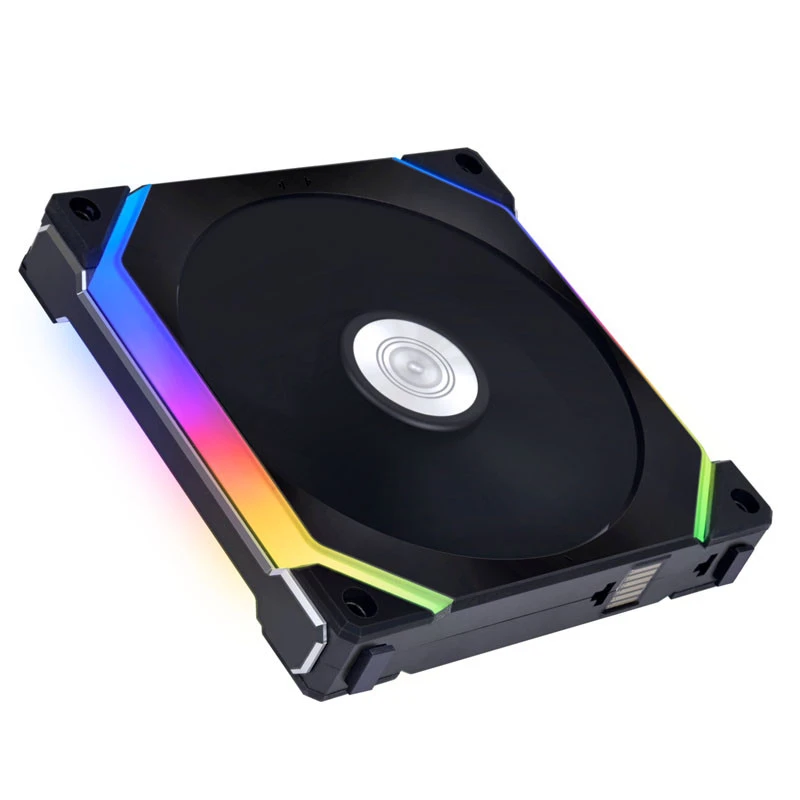

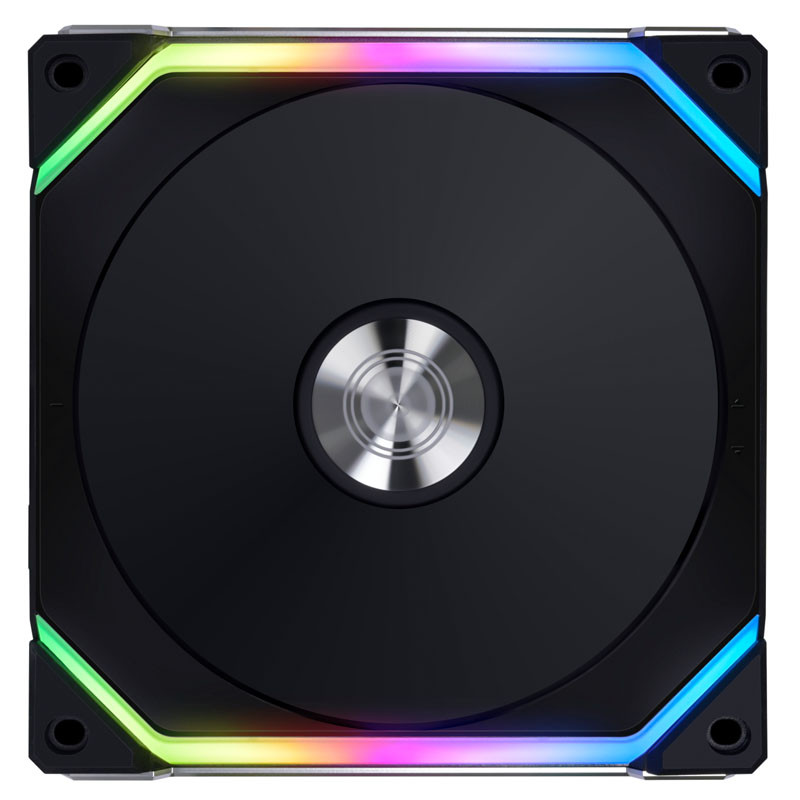

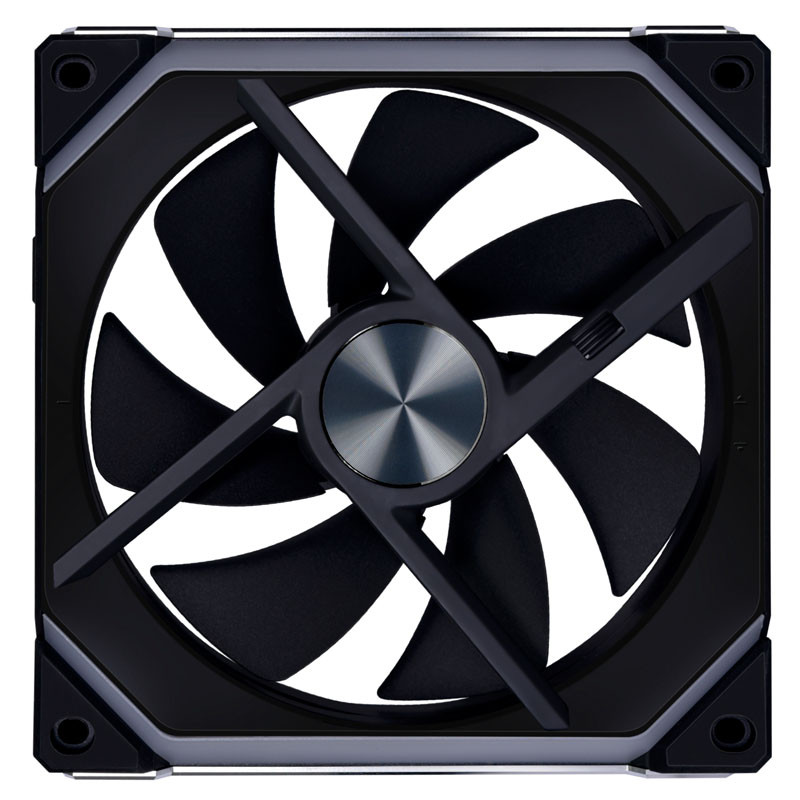

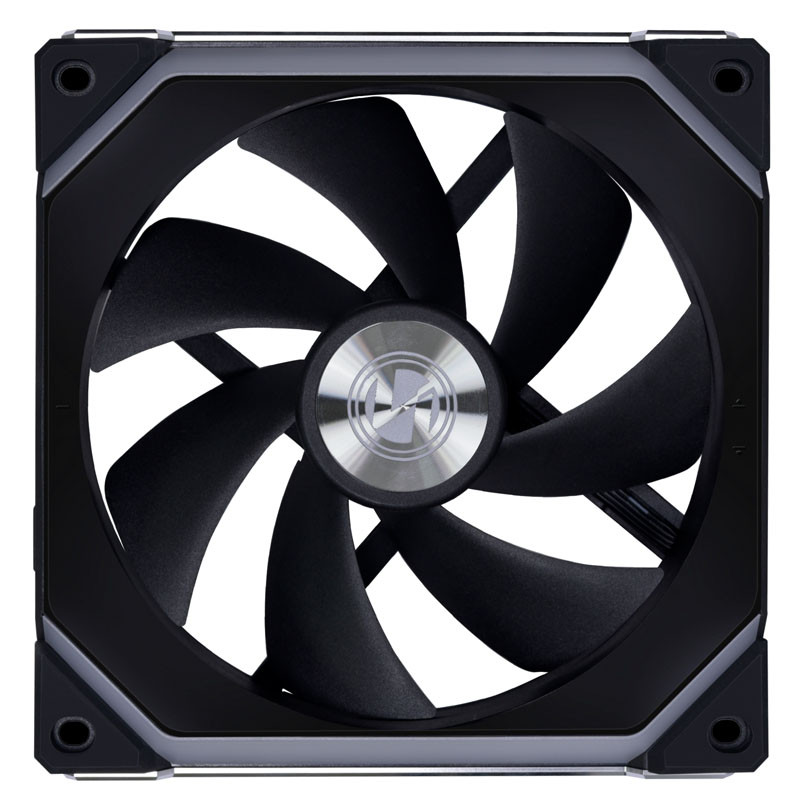

Lian-Li UNI FAN SL140 V2 RGB PWM Fan - 140mm, black

Lian Li has refined their remarkable fans with the UNI fan SL140 V2. Utilising the clever interlocking capabilities of these fans you’ll be able to connect up to four fans together. Up to four of these fan clusters can be controlled simultaneously through a Lian Li fan controller. Additionally, two clusters of three fans can be daisy chained together for an improved cable management option. These fans offer astounding performance, while also remaining whisper quiet. Furthermore, with Lian Li’s L-Connect 3 software, you can take control of all aspects of your fan's functions including their amazing RGB capabilities.

Lian Li redefined how to connect and control multiple fans with their first generation of UNI Fans. With the UNI Fan SL140 V2 Lian Li has refined this innovative system. These 140mm PWM fans are capable of delivering an astounding airflow of 77.6CFM with a static pressure of 2.09mmH20 while not producing more than 29dB(A) of noise.



Lian Li has also added the ability for the UNI Fan SL V2 is to daisy chain. With the first generation of fans, you’d have to connect each cluster to the controller separately, which could lead to some unsightly cable runs. The V2 however is able to daisy chain two sets of three fans together enabling much cleaner cable management.

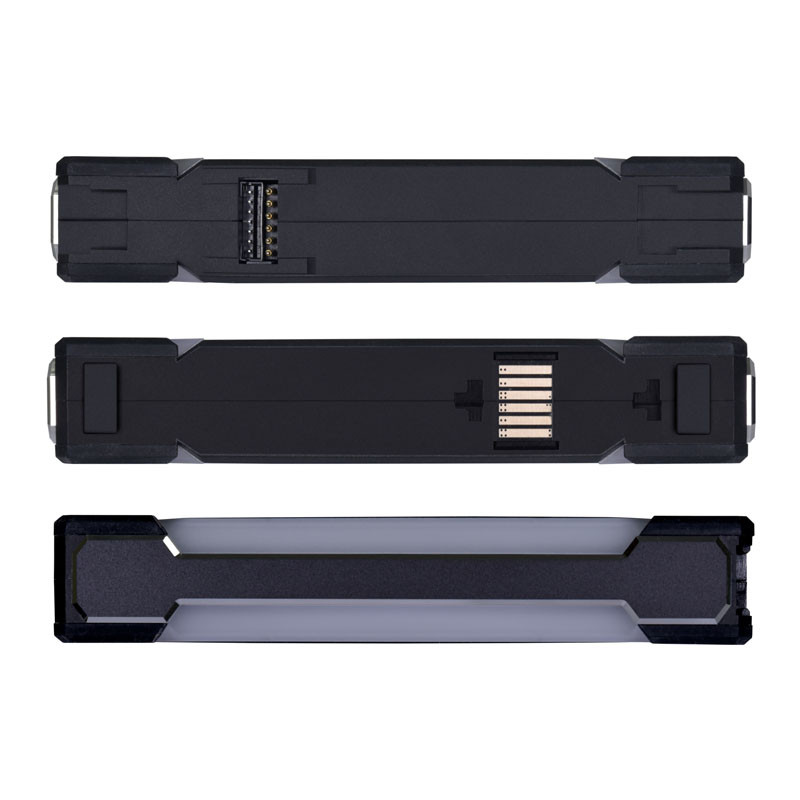

Alongside these refinements the UNI Fan SL140 V2 continues to utilise the clever interlocking capabilities of the UNI Fan design. This design allows you to connect up to four fans together in a cluster without the need of any cables. Four of these clusters can then be controlled via Lian Li’s L-Connect Controller for a total of 16 fans!

Lian Li puts you in control of every aspect of your fan with their L-Connect 3 software. This dedicated software is capable of displaying key performance data including CPU temperatures, memory utilisation, even the capacity left on your storage drives. Alongside this, this software can identify the clusters of fans you have installed in your gaming PC, and how many fans are in each cluster. From it’s easy to use interface you can control the speed of the fans, and how they react to temperature fluctuations. The software includes the standard options for quiet, balanced and high-speed operation and even a zero RPM mode if your computer is idle.



Alongside controlling fan speeds, L-Connect 3 is also capable of managing your fans RGB lighting. You can even assign different colours or effects to individual fans or a fan cluster. Furthermore, you can synchronise the lighting effects to happen over multiple fan clusters for a unique aesthetic.

Technical details:

Dimensions: 140 x 140 x 25 mm (W x H x D)

Material: plastic, aluminium

Colour: Black

Bearing: Hydrodynamic plain bearing

Speed: 250 - 1,600 rpm

Noise level: max. 29.2 dB(A)

Flow rate: max.77.6 CFM

Static pressure: max. 2.09 mmH2O

Voltage: 12 V

Start-up voltage: 5 V

Current: 0.11 A

Power consumption: 1.32 W

Lighting:

Type: digitally addressable RGB

Quantity: 32 LEDs

Current; 0.6 A

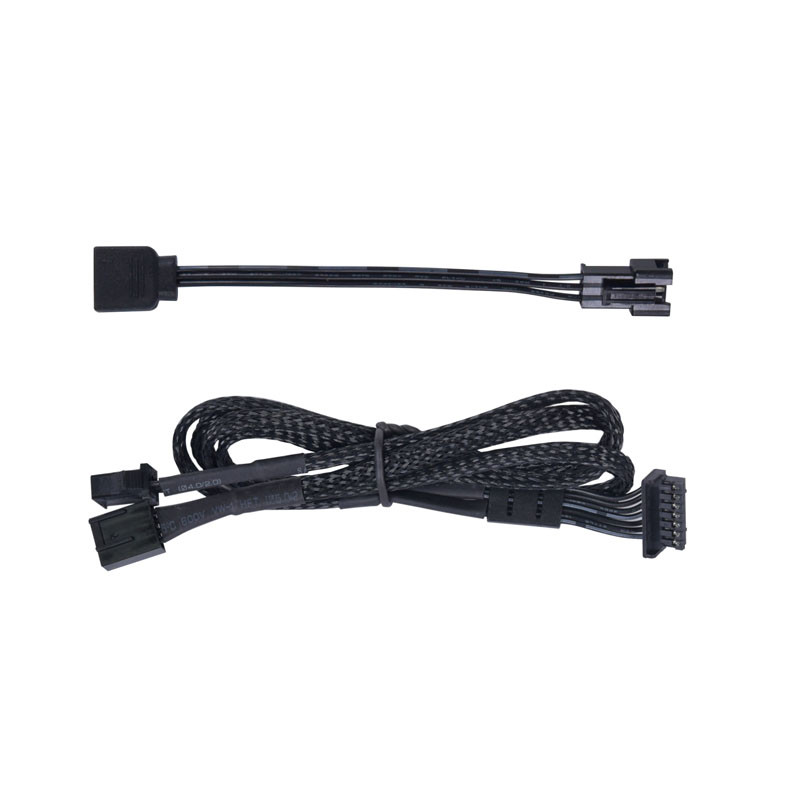

Connection: 7-pin combined PWM and ARGB

Warranty: 2 years
