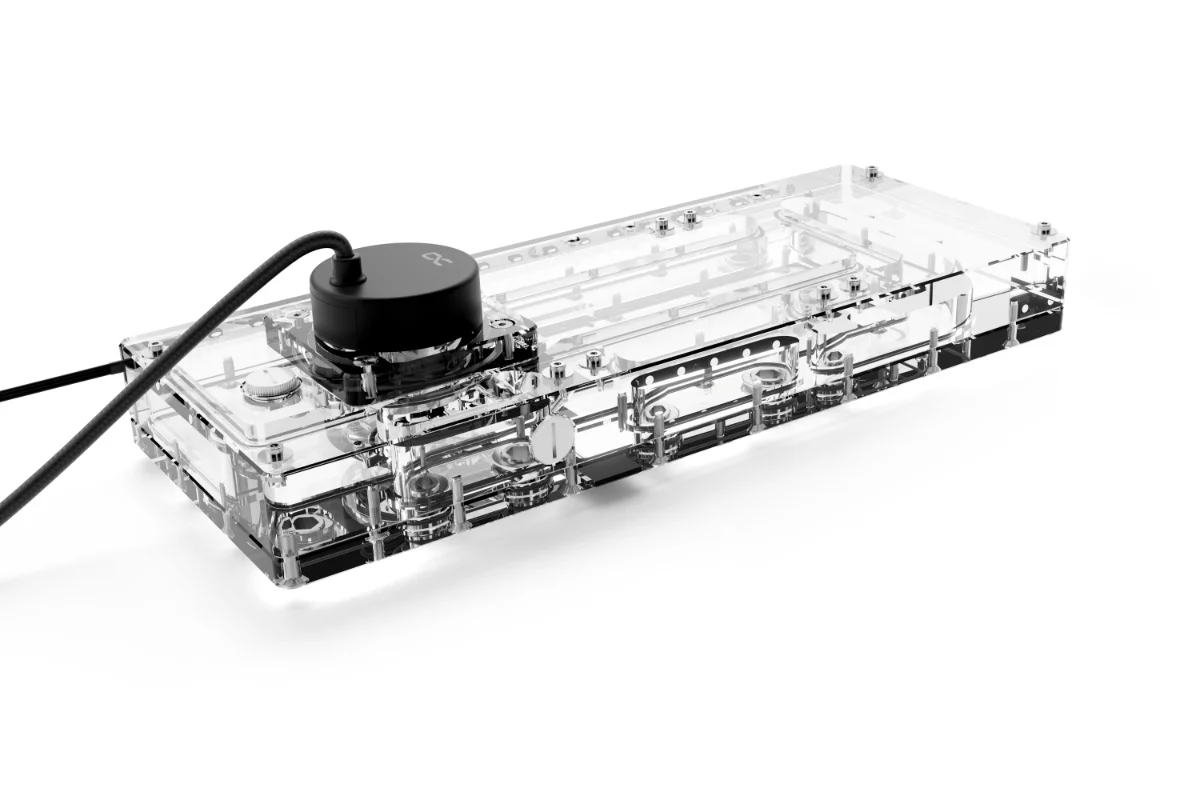

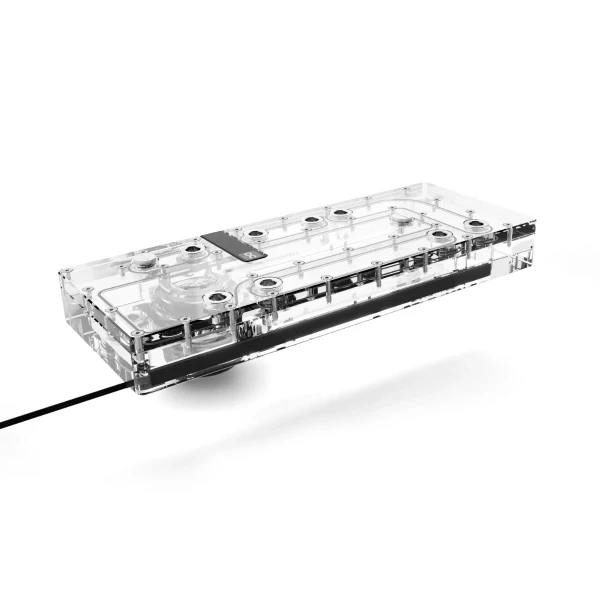

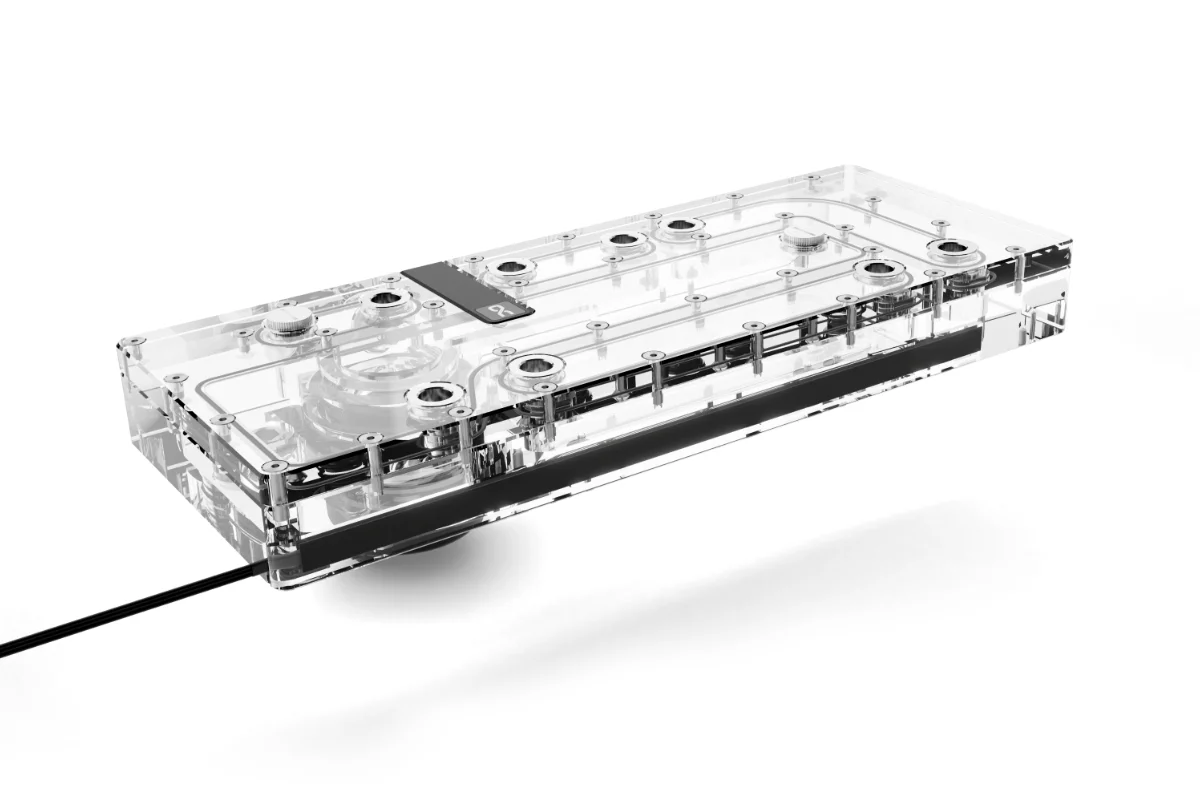

Alphacool Core Distro Plate O11 Dynamic Evo/XL with Apex VPP pump
- Producent: Alphacool
- Kod producenta: 13743
- Kod EAN: 4250197137430
- Gwarancja: 24 miesiące
Dostępność:
Oczekujemy na dostawę
- Koszt wysyłki: od 0 zł
- Darmowa dostawa od 800,00 zł
The Alphacool Core Distro Plate is the visual upgrade for the O11 Dynamic Evo/XL. It is designed for this case and can be mounted on the inner side panel.
Core Design
A core element of Alphacool's Core Design series are the chrome-plated, brass G1/4" connectors. With the Core Distro Plate, the ports are recessed instead of screwed into a thread as is usually the case. This allows Alphacool to overcome the problem of potential leakage due to cracking by screwing the connectors directly into the acrylic. The connectors are made of two parts, have an O-ring and counter each other when mounted in the acrylic. This not only ensures absolute leak proofing of each connector, but also allows for the clean and functional look of Alphacool's Core Design series.

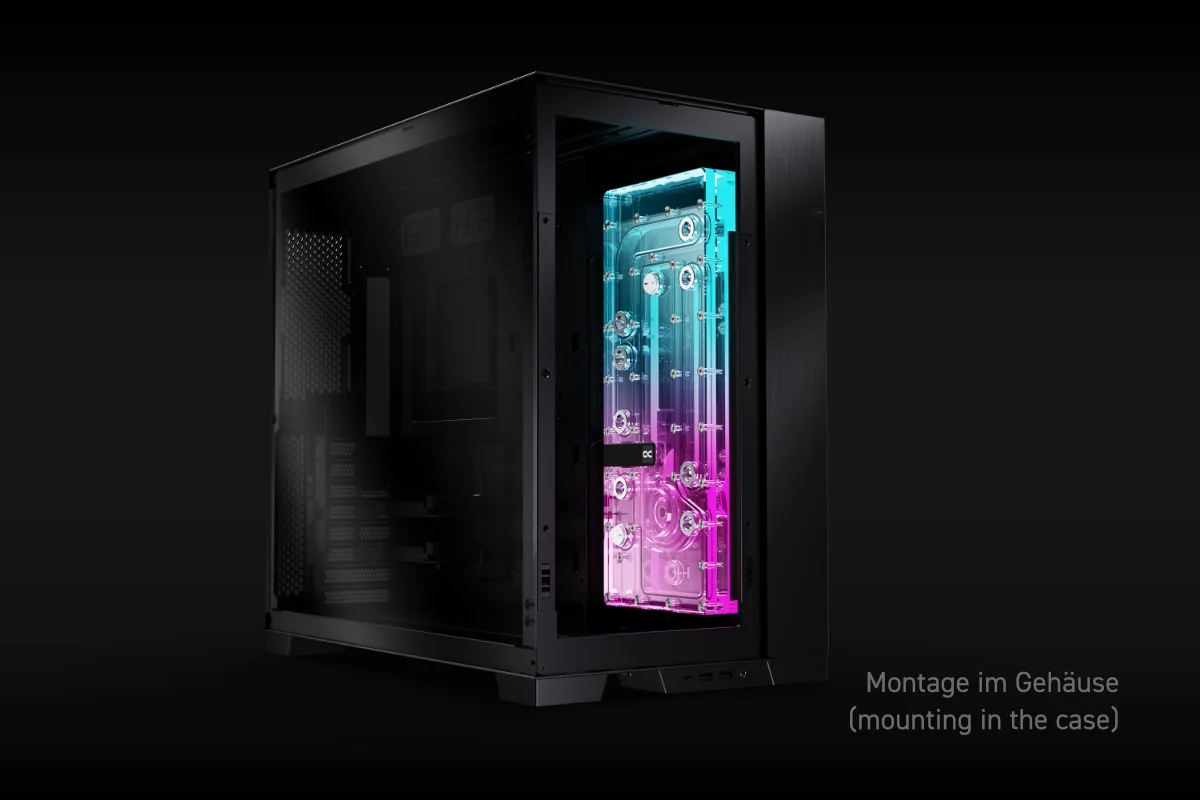

Easy installation
This distro plate can be easily attached to an O11 Dynamic Evo/XL case's side panel. Installation in other cases is also an option, provided the dimensions are compatible. For details, please refer to the measurement specifications. Please note that the pump protrudes from the back of the Distro Plate.

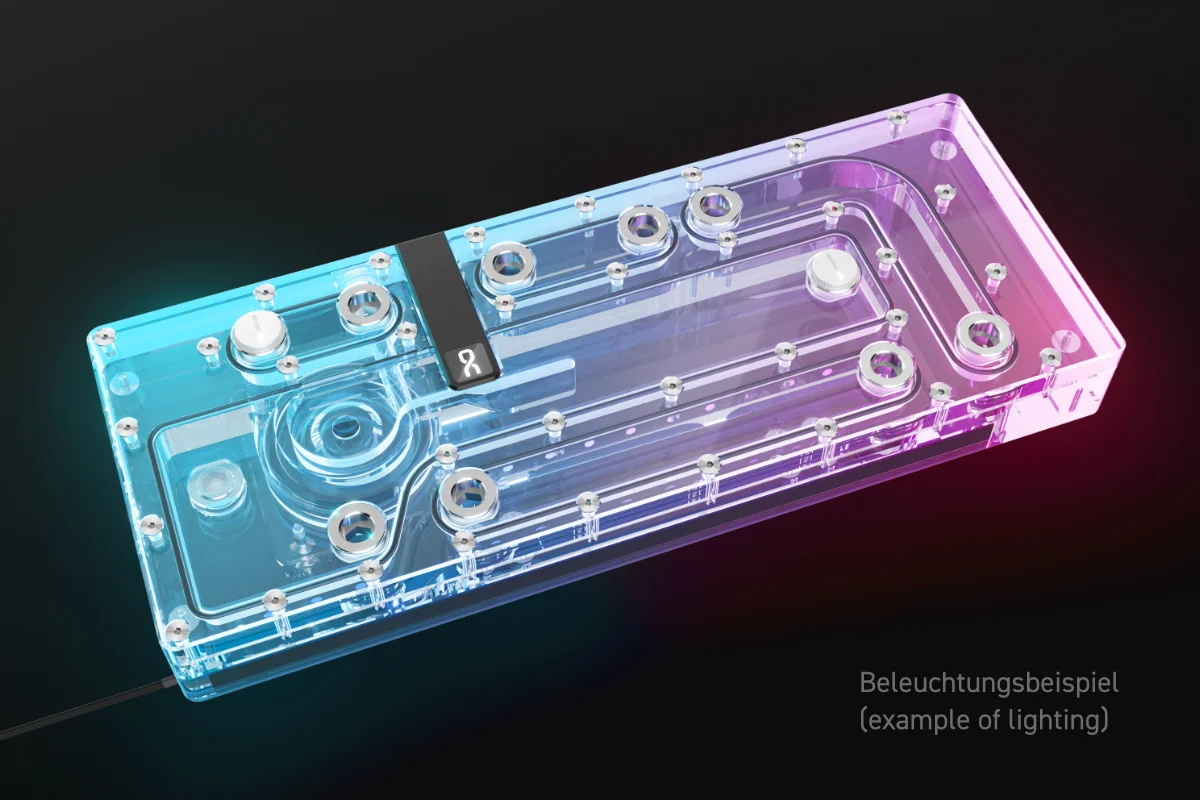

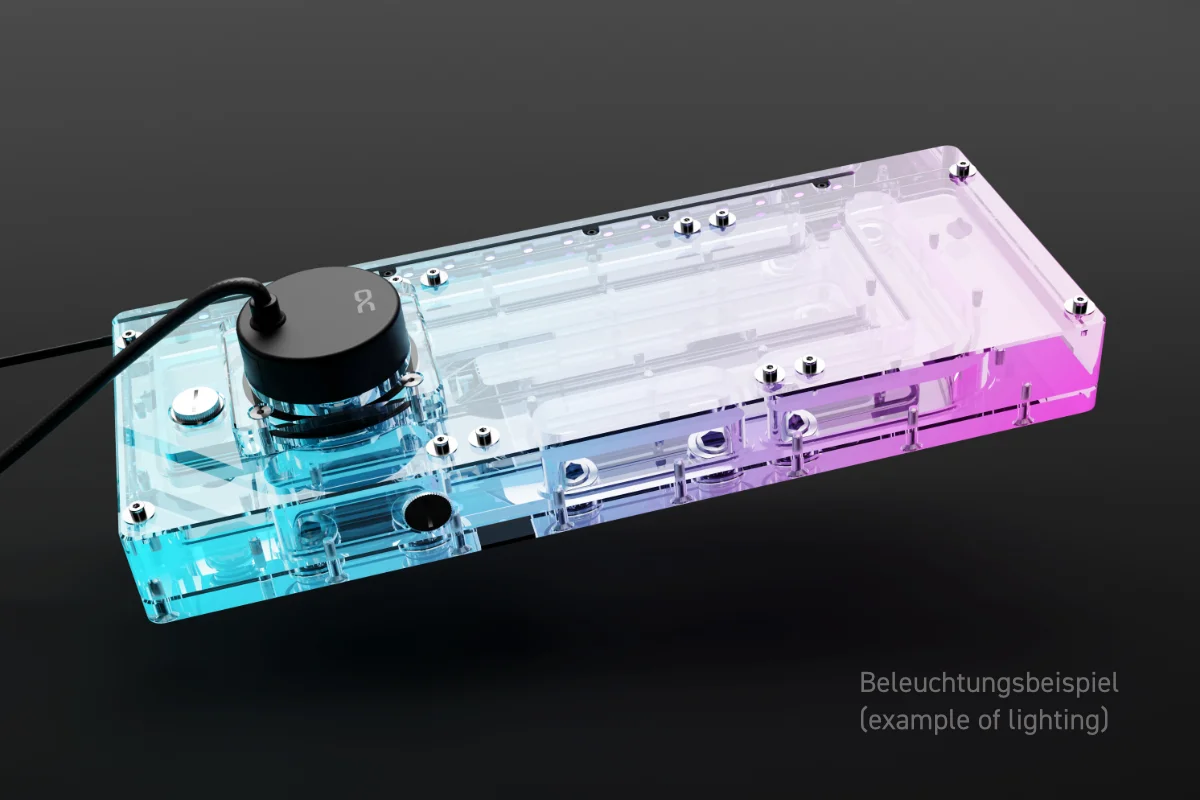

High-quality material selection & brilliant illumination
Alphacool's Core Distro Plate is made of high-quality acrylic. This allows an unobstructed view of the coolant and enables brilliant illumination from the built-in digitally addressable aRGB LEDs. The lighting can be controlled via a digital aRGB header on the mainboard or optionally by Alphacool's Aurora Eiscontrol aRGB controller (item no.: 15360).
The pump
Alphacool's Apex VPP doesn't use a spherical bearing and relies on a ceramic axle. The motor's coils have been moved from the inside to the outside. These changes have the effect that the pump is fundamentally more stable and smoother running, and any vibrations that arise have been significantly reduced. Another positive side effect is that power consumption has been almost halved as a result.
Control
The Apex VPP pump has a 4-pin fan connector that connects to the motherboard or to an external controller. This allows you to control the speed range of the pump via PWM and read out the RPM signal. The pump is connected to the power supply using a SATA connector.
Compatibility:
- O11 Dynamic Evo/XL Case
Core Design
A core element of Alphacool's Core Design series are the chrome-plated, brass G1/4" connectors. With the Core Distro Plate, the ports are recessed instead of screwed into a thread as is usually the case. This allows Alphacool to overcome the problem of potential leakage due to cracking by screwing the connectors directly into the acrylic. The connectors are made of two parts, have an O-ring and counter each other when mounted in the acrylic. This not only ensures absolute leak proofing of each connector, but also allows for the clean and functional look of Alphacool's Core Design series.
Easy installation
This distro plate can be easily attached to an O11 Dynamic Evo/XL case's side panel. Installation in other cases is also an option, provided the dimensions are compatible. For details, please refer to the measurement specifications. Please note that the pump protrudes from the back of the Distro Plate.
High-quality material selection & brilliant illumination
Alphacool's Core Distro Plate is made of high-quality acrylic. This allows an unobstructed view of the coolant and enables brilliant illumination from the built-in digitally addressable aRGB LEDs. The lighting can be controlled via a digital aRGB header on the mainboard or optionally by Alphacool's Aurora Eiscontrol aRGB controller (item no.: 15360).
The pump
Alphacool's Apex VPP doesn't use a spherical bearing and relies on a ceramic axle. The motor's coils have been moved from the inside to the outside. These changes have the effect that the pump is fundamentally more stable and smoother running, and any vibrations that arise have been significantly reduced. Another positive side effect is that power consumption has been almost halved as a result.
Control
The Apex VPP pump has a 4-pin fan connector that connects to the motherboard or to an external controller. This allows you to control the speed range of the pump via PWM and read out the RPM signal. The pump is connected to the power supply using a SATA connector.
Compatibility:
- O11 Dynamic Evo/XL Case
| Technical data | |
| Dimensions (L x W x H) | 360,00 x 141,00 x 77,80mm |
| Material | Acrylic |
| Volume | approx. 200ml |
| Pump compatibility | VPP/D5 |
| Threads | 9 + 1x Fillport and 1x Drainport |
| Maximum working temperature | 60 °C |
| Pressure tested | 0,8 Bar |
| Quantity digital aRGB LEDs | 18 |
| Power digital aRGB LEDs | 5V |
| Power connection digital aRGB LEDs | 3-Pin JST + 3-Pin 5V |
| Weight | 2500g |
| Color | transparent |
| Technical data pump | |
| Material pump | synthetic material |
| Material pump cover | aluminium |
| Material axle | ceramics |
| Connections | 4-Pin PWM | SATA |
| Rotational speed | 2500 - 4500 RPM |
| Cable lengths | 4-Pin PWM - 48cm | SATA - 48cm |
| Operating voltage | 8-13V DC / 14W IP32 |
| Starting voltage | 12V DC |
| Maximum pumping head | 4,25m |
| Maximum flow rate | 340L/h |
| Maximum working temperature | 60°C |
| Color | black |
