Alphacool Apex Distro Plate North XL D5/DDC White

Alphacool Apex Distro Plate North XL D5/DDC White

Brak ocen

Producent: Alphacool
Kod producenta: 14671
Kod EAN: 4250197146715
Gwarancja: 36 miesięcy

Dostępność:

Czas realizacji orientacyjnie 5 dni roboczych

NOWOŚĆ

Koszt wysyłki: od 0 zł
Darmowa dostawa od 800,00 zł

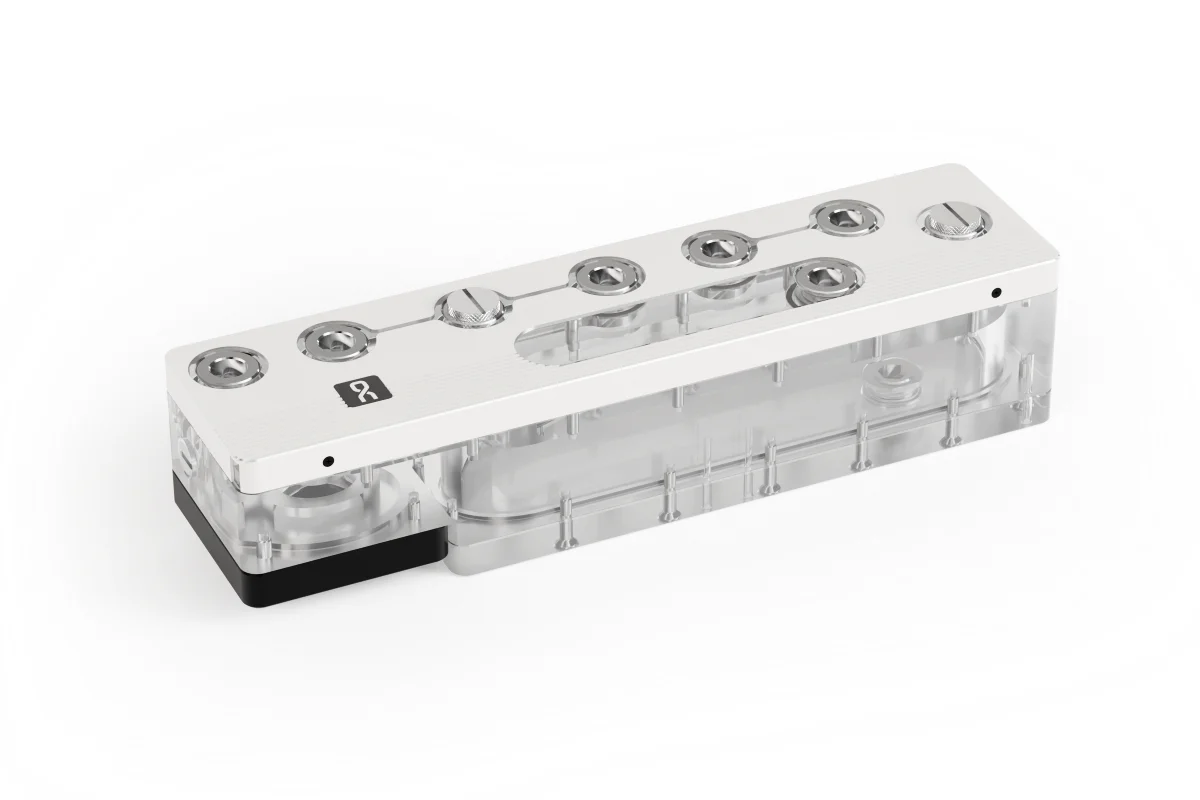

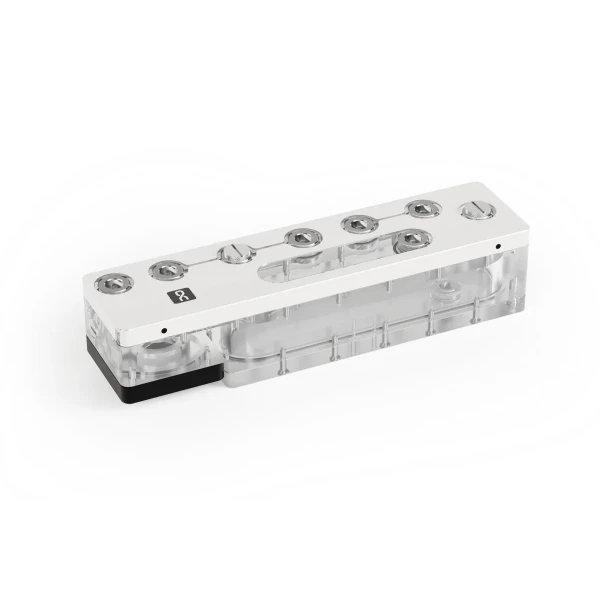

The Alphacool Apex Distro Plate is the ultimate upgrade for integrating your components into a custom water cooling loop within the North XL case. Specifically designed for the North XL, this distro plate blends seamlessly into the case both functionally and aesthetically.

Part of Alphacool's Apex product line, it represents top-tier engineering, combining premium materials with cutting-edge technology. The G1/4" fittings are made from chrome-plated brass and are not screwed directly into the acrylic, which significantly reduces the risk of cracking and leakage. The fittings consist of two parts and are secured with O-rings, ensuring a tight and durable seal within the acrylic structure.

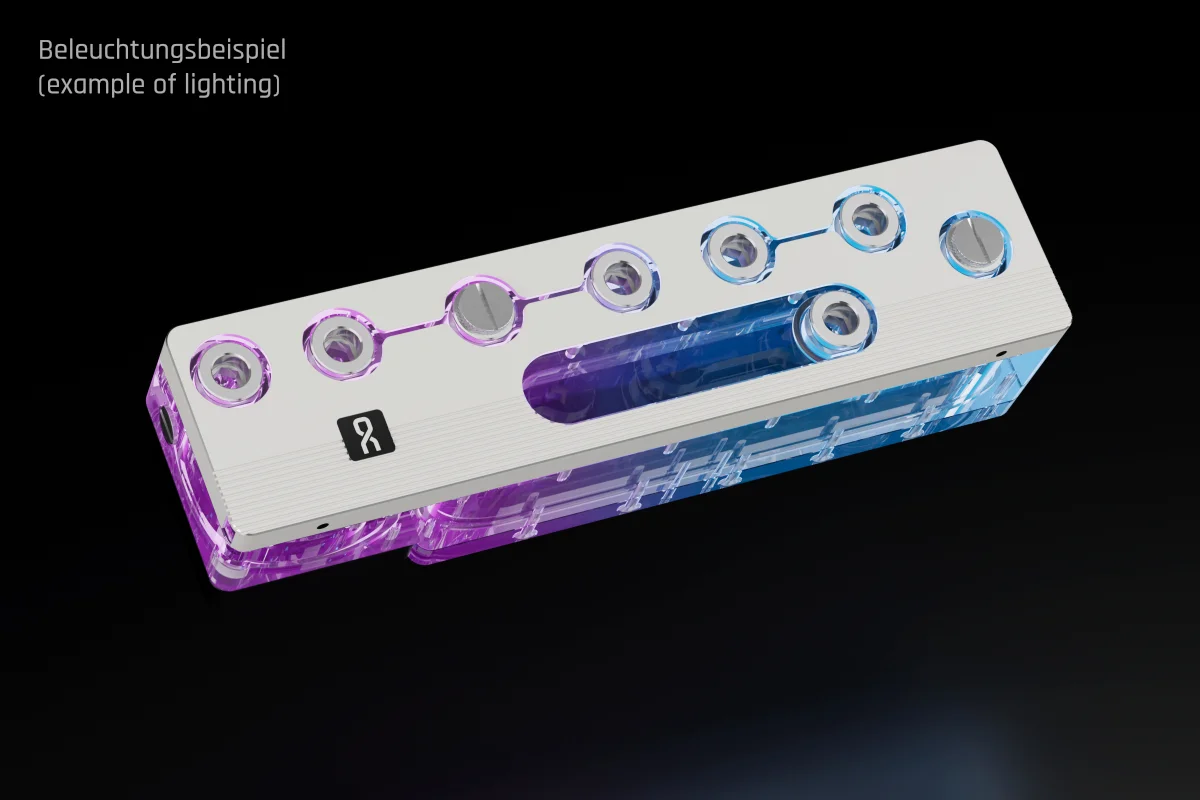

The integrated reservoir is crafted from high-quality acrylic glass. The front cover, color-matched to the case, features cutouts that provide a clear view of the coolant flow. aRGB lighting adds a vibrant touch, illuminating the distro plate and enhancing the overall look of the system. Available in black and white, the Apex Distro Plate complements both color variants of the North XL chassis.

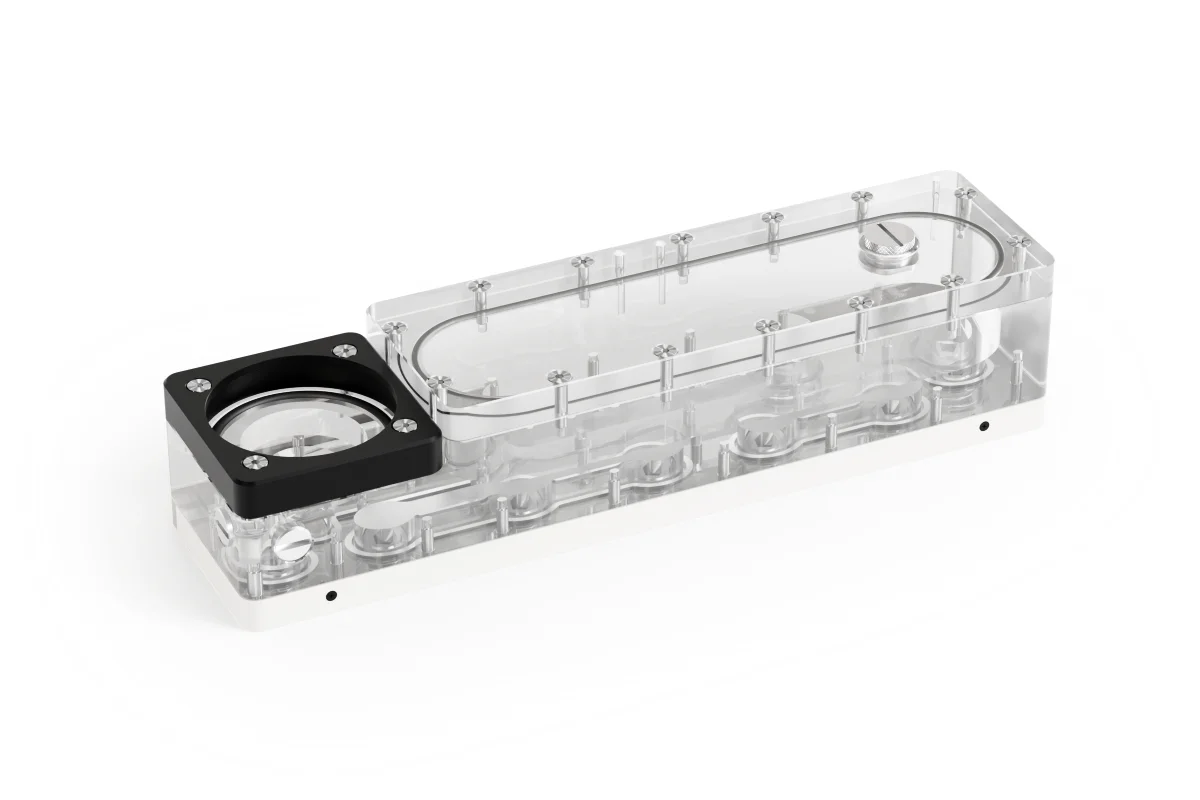

A newly developed pump mount sets new standards: the Apex Distro Plate supports both D5/VPP and DDC pump formats, with the pump mounted discreetly on the back of the plate.

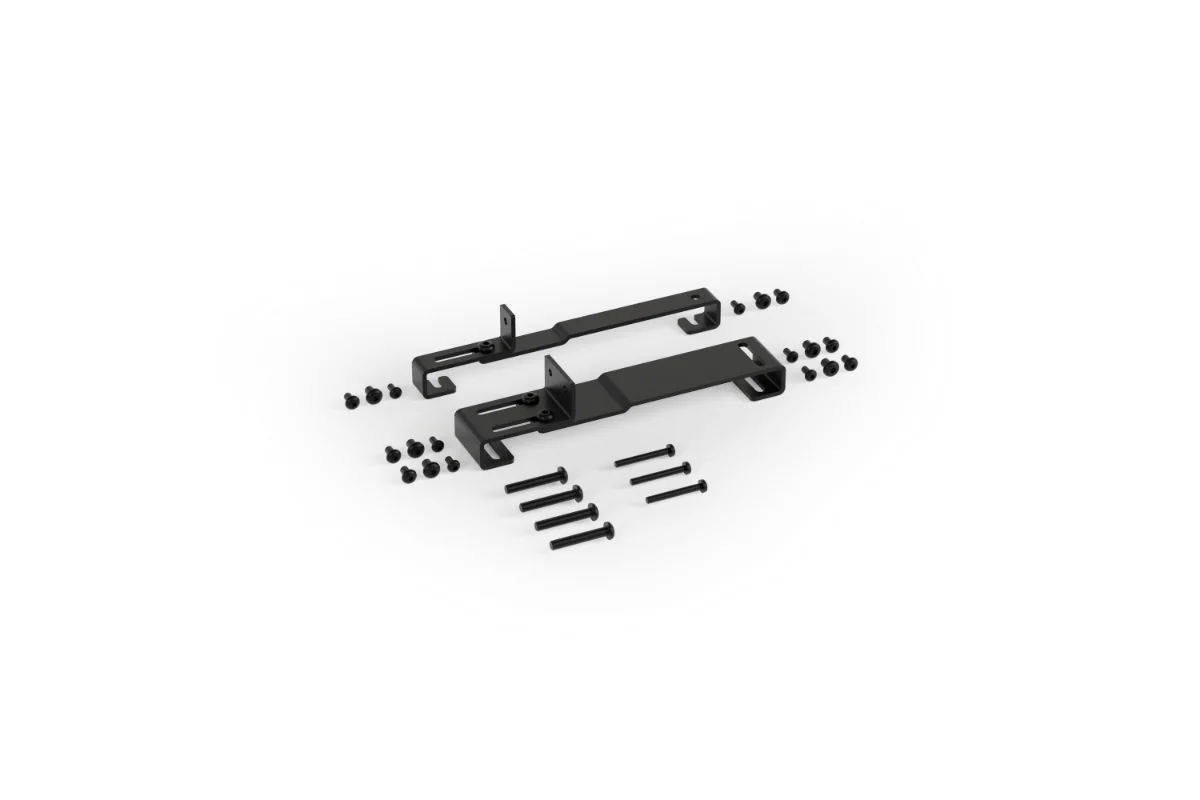

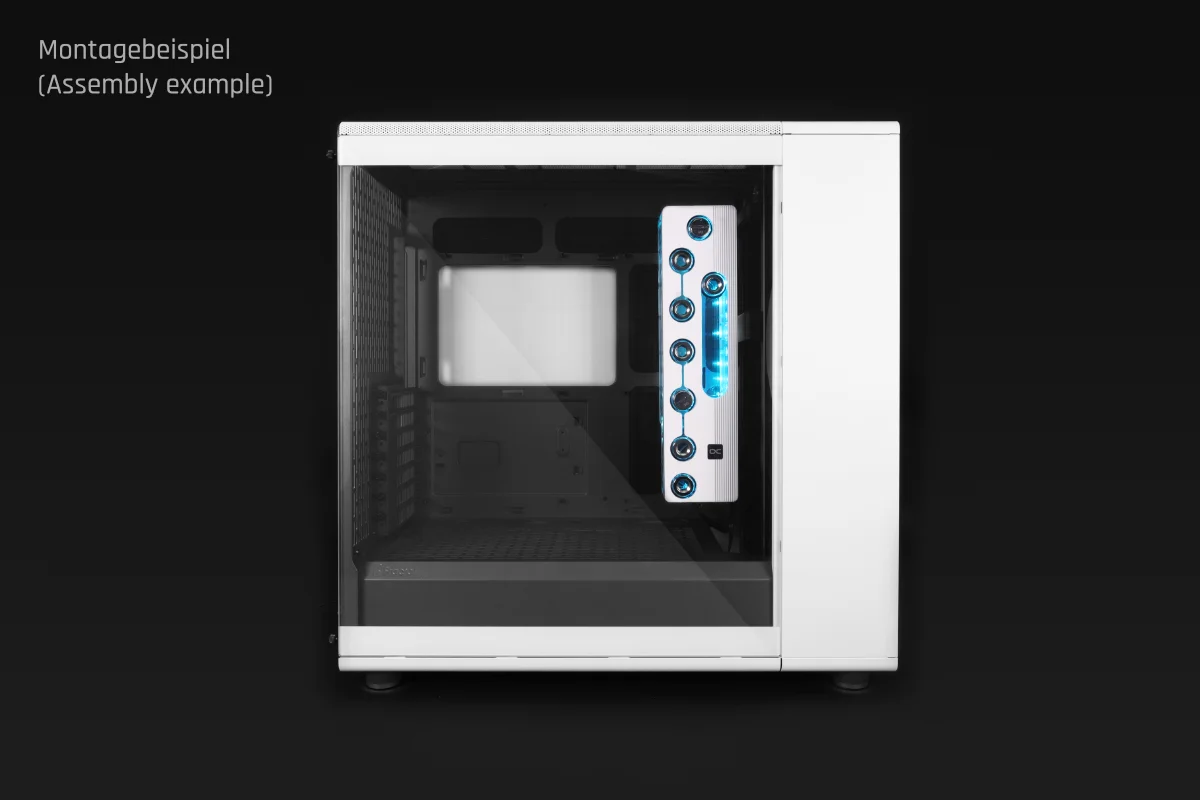

Installation is straightforward using the included Core Distroplate 90° Universal Bracket, allowing the distro plate to be mounted behind the front radiator. This setup not only optimizes the loop layout but also creates a striking visual centerpiece.

Note: The Apex Distro Plate for the North XL can also be installed in other cases compatible with the Core Distroplate 90° Universal Bracket. Dimensions and compatibility details are available in the technical specifications. Pump not included.

Technical Data
Dimensions (L x W x H)	290 x 73 x 69mm
Material	Acryl (Aluminum cover and brass thread)
Pump compatibility	D5/VPP \| DDC
Threads	9x G1/4" (1x fill port and 1x drain port)
Volume	261ml
Maximum working temperature	60°C
Pressure tested	0,8 Bar
Quantity digital aRGB LEDs	17
Power digital aRGB LEDs	5V
Power connection digital aRGB LEDs	3-pin JST + 3-pin 5V
Weight	1312g
Color	white
