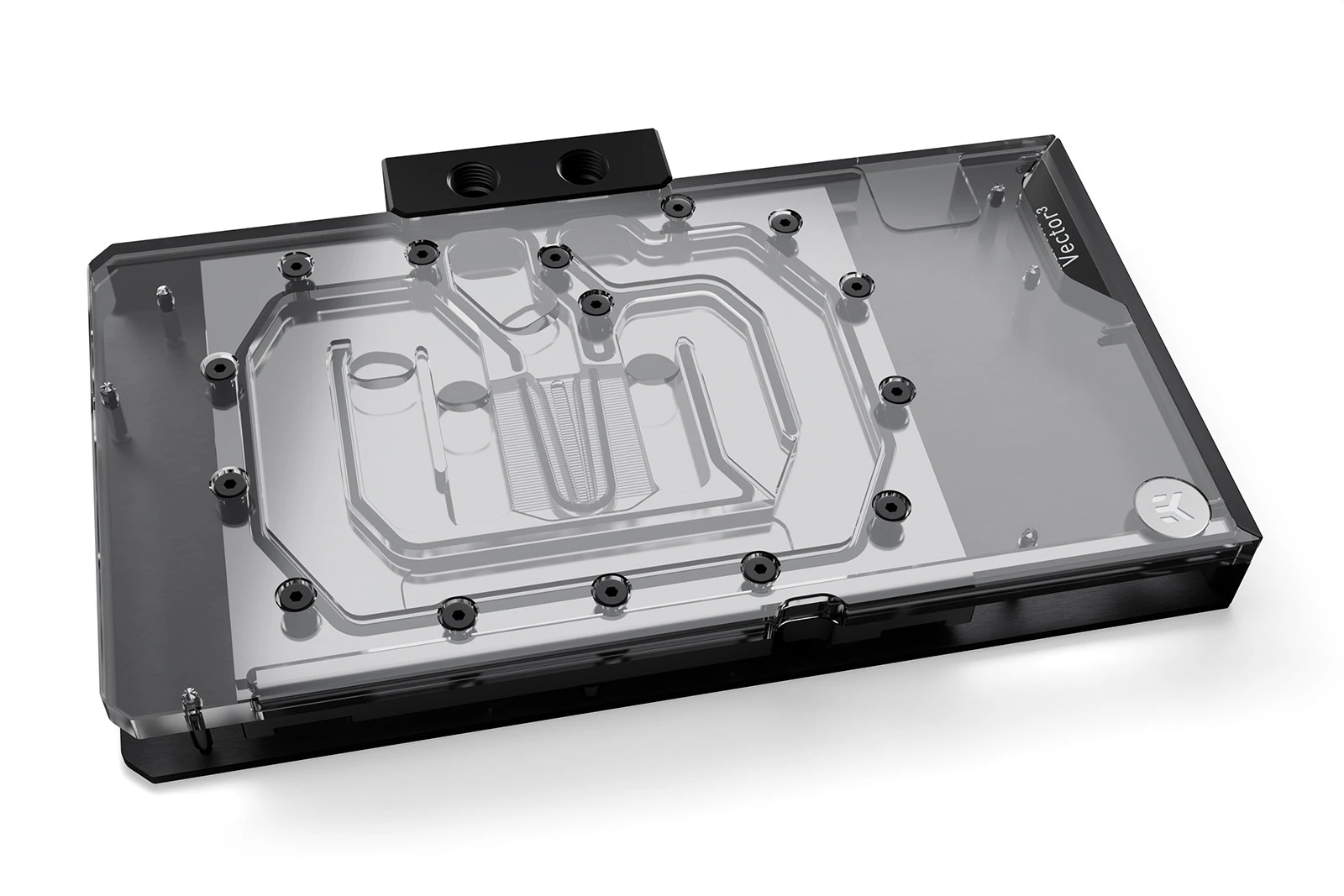

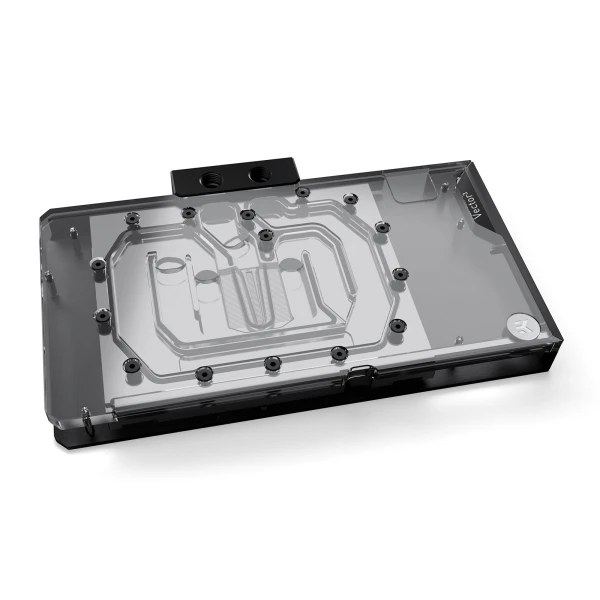

EK Water Blocks EK-Quantum Vector³ Master RTX 5090 - Plexi

Engineered for the Gigabyte AORUS GeForce RTX™ 5090 MASTER and Gigabyte GeForce RTX™ 5090 GAMING OC 32G models, the EK-Quantum Vector³ Master RTX 5090 - Plexi delivers elite thermal performance for enthusiasts who demand more. Featuring EK’s expanded next-gen cooling engine, pre-cut high-performance thermal pads, and an advanced gasket design, this block ensures your GPU stays cool and efficient - even under the heaviest gaming, rendering, or overclocking loads.

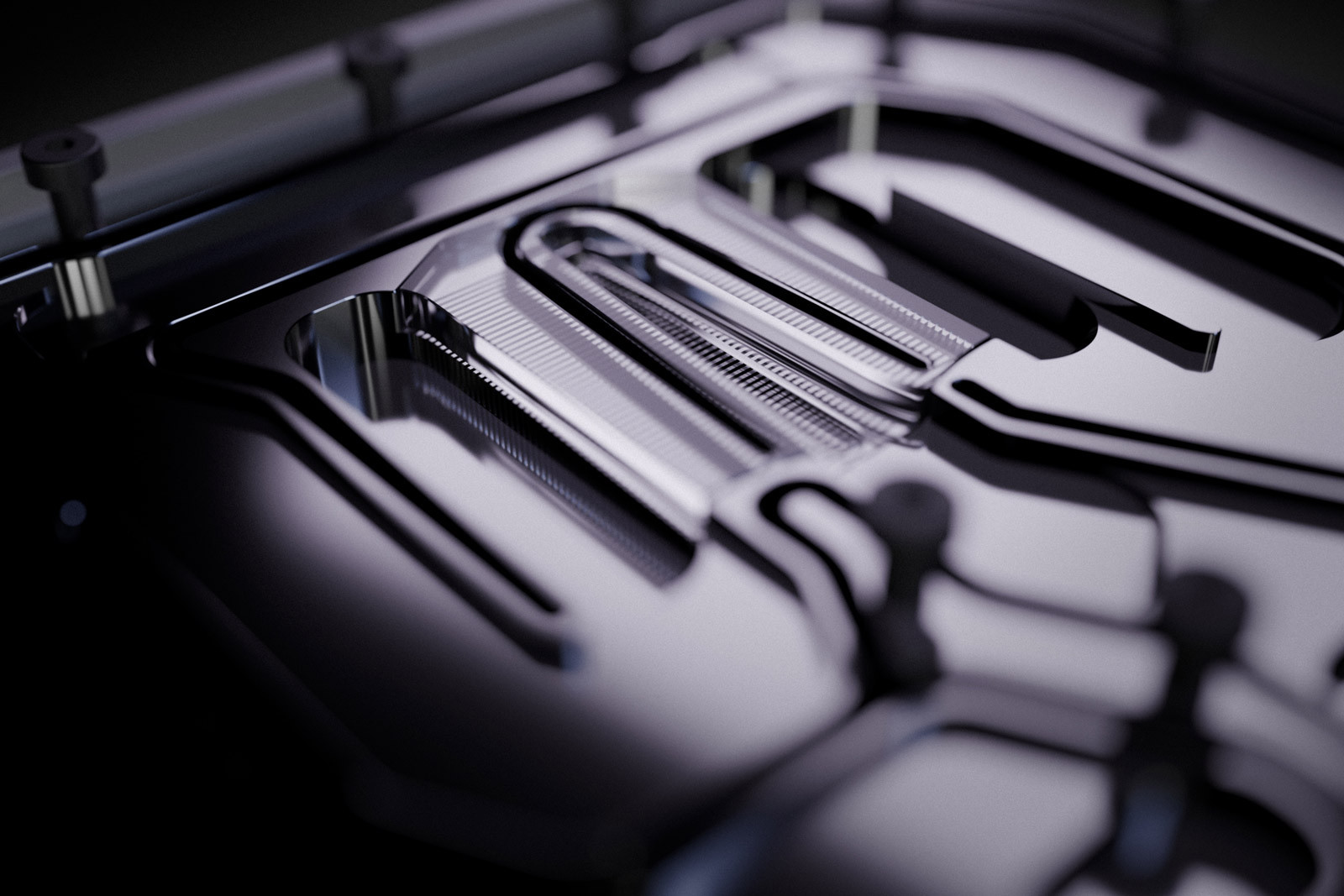

Next-Gen Cooling Engine – Bigger, Faster, Cooler

With an enhanced fin array and precision-optimized coolant flow paths, the Vector³ Master RTX 5090 raises the bar in thermal performance:

• Optimized Open Split-Flow Design: Uniform coolant distribution and minimal flow restriction ensure top performance in both standard and reverse flow setups.
• Low Hydraulic Restriction: Compatible with high-performance and low-speed pump systems alike—perfect for silent or maximum throughput builds.
• Full Component Cooling: Actively cools the GPU core, GDDR7 VRAM, and power stages while passively lowering temperatures on critical PCB hotspots via the included backplate.

Ideal for overclockers and creators pushing the RTX 5090 to its limits, this block keeps thermals in check, so your GPU can maintain peak performance longer.

Precision Materials. Premium Build

Every Vector³ block is crafted from industry-leading materials for both performance and longevity:

• Nickel-Plated Electrolytic Copper Coldplate: Maximizes heat transfer with supreme durability.

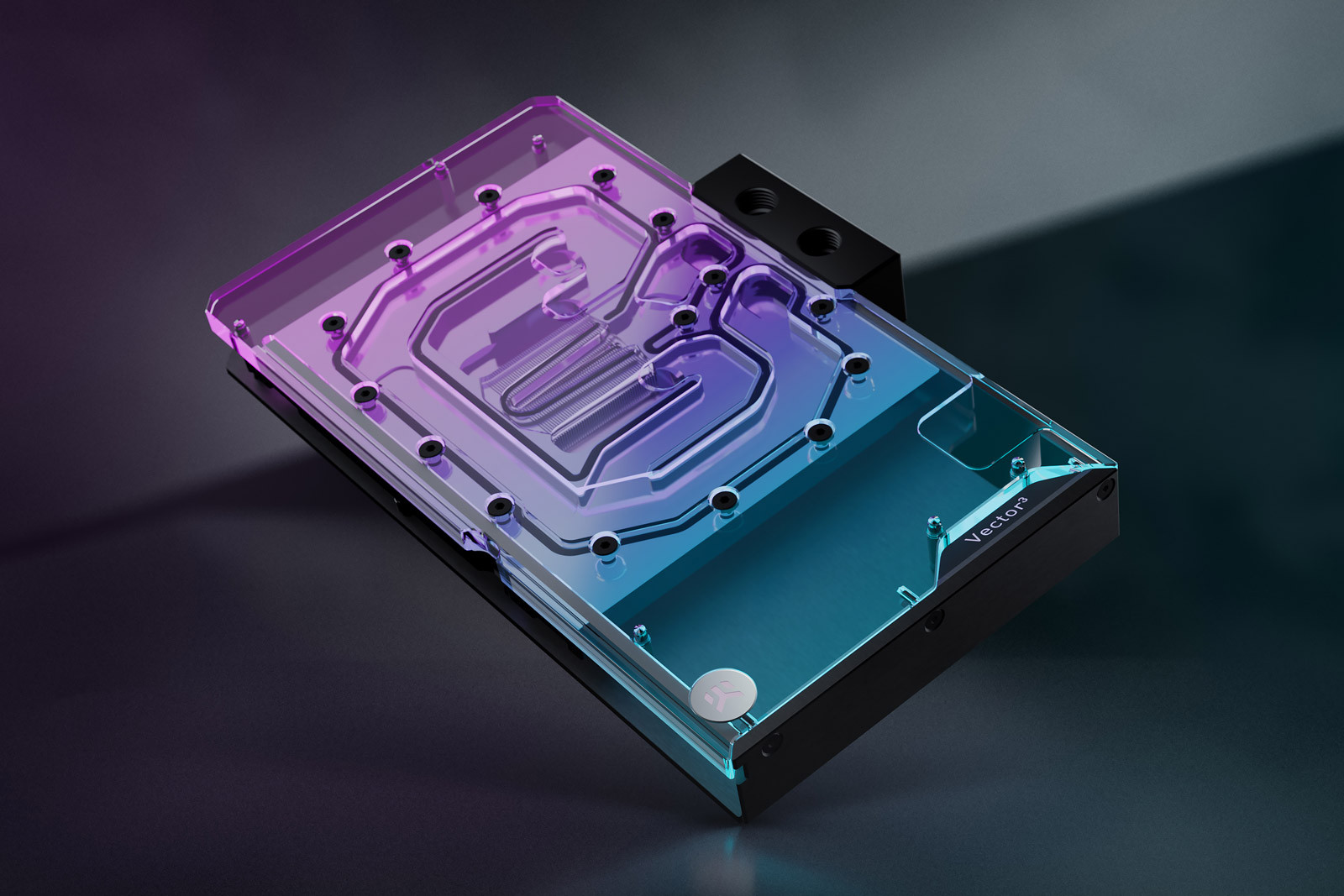

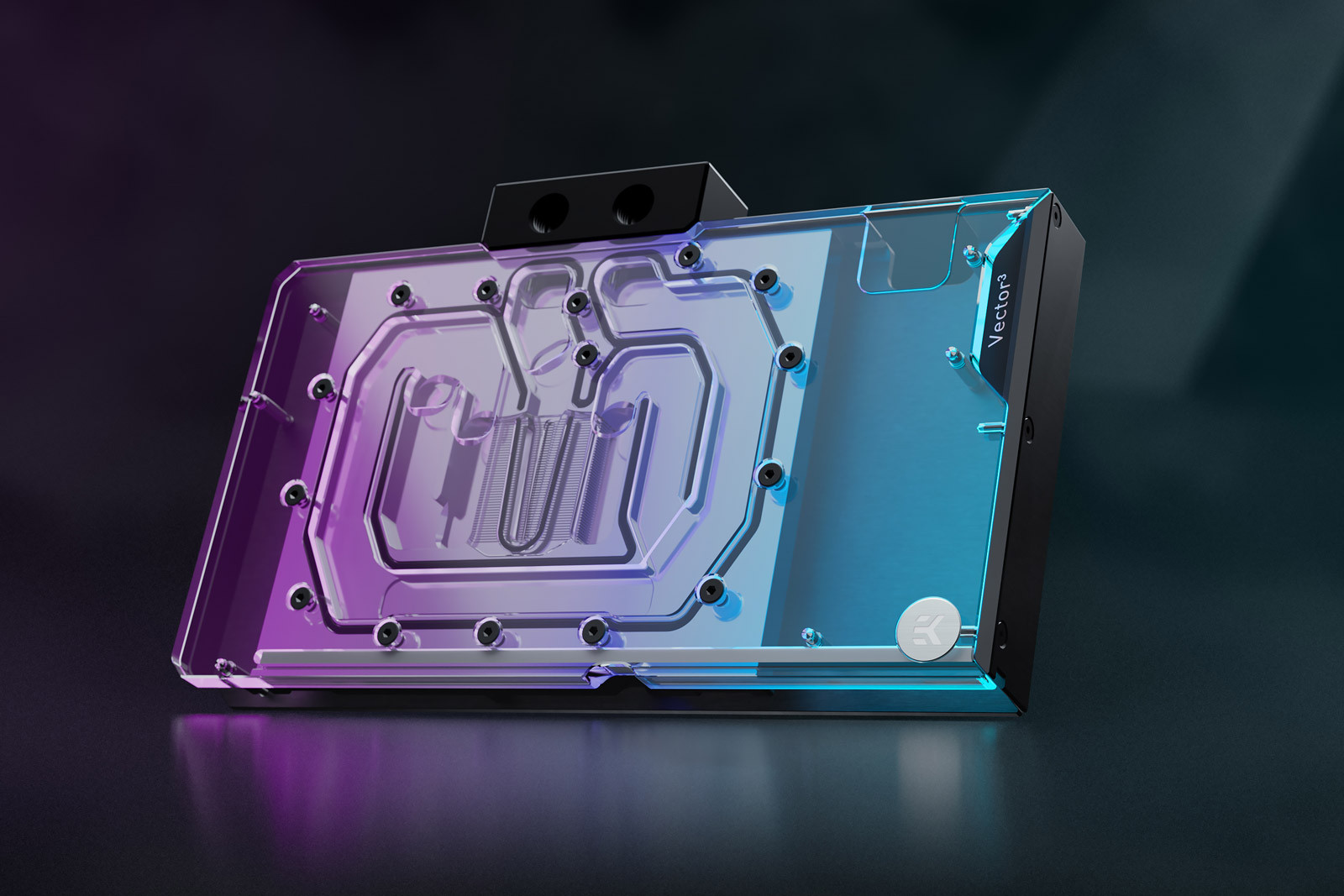

• CNC-Machined Cast Acrylic Top: Crystal-clear view of your coolant with impeccable polish and shine.
• Black Anodized Aluminum Backplate: Increases cooling surface area while structurally reinforcing the GPU.
• Single O-Ring Seal: Simplifies maintenance and reduces potential failure points.
• New Anti-Debris Gasket System: Prevents solid particles from collecting inside the cooling engine for consistent, long-term performance.

Pre-Cut Thermal Pads for Effortless Installation

Comes with EK’s new-generation thermal pads that are partially pre-cut for a clean, precise fit, maximizing heat transfer from VRAM and VRM components with minimal setup effort.

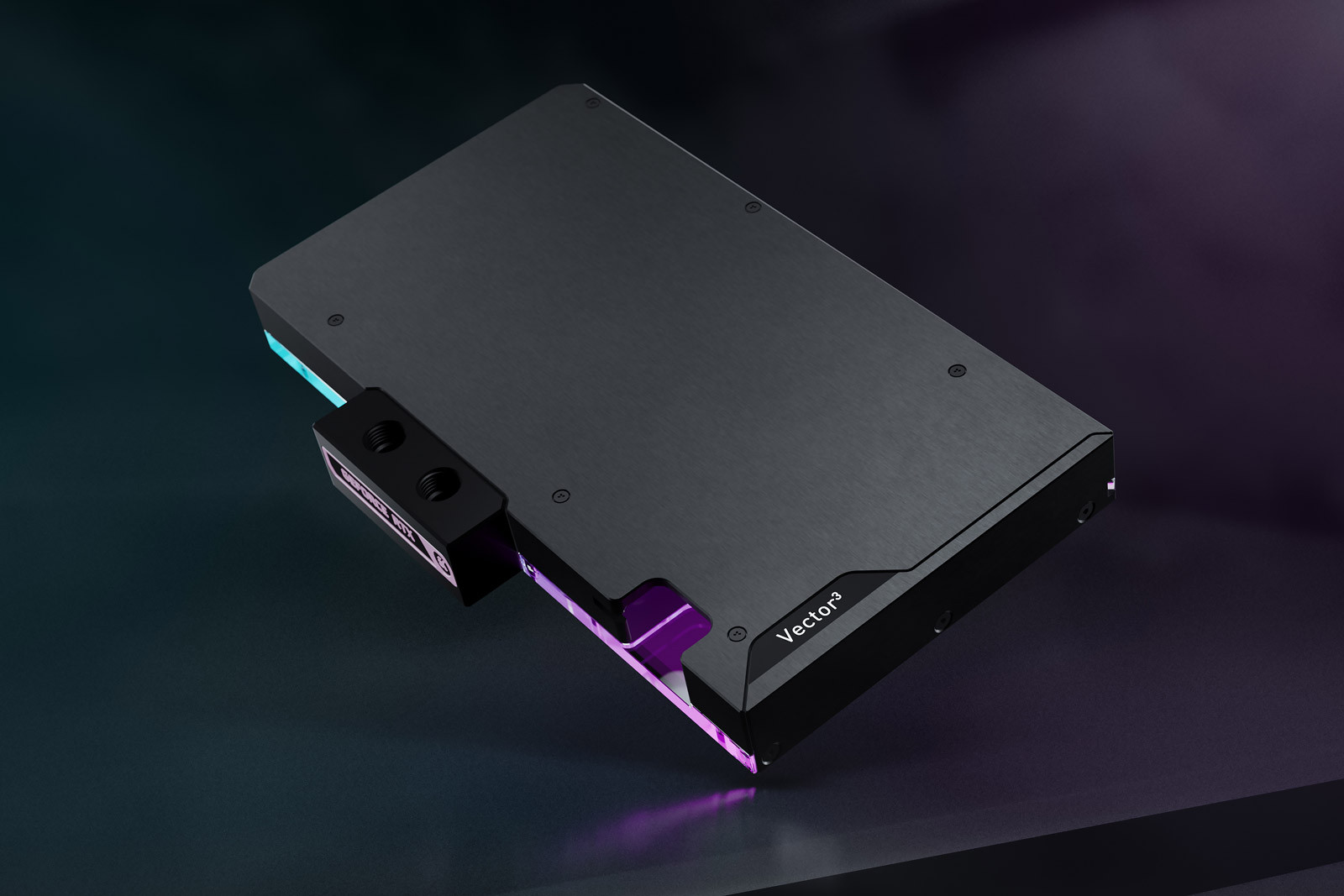

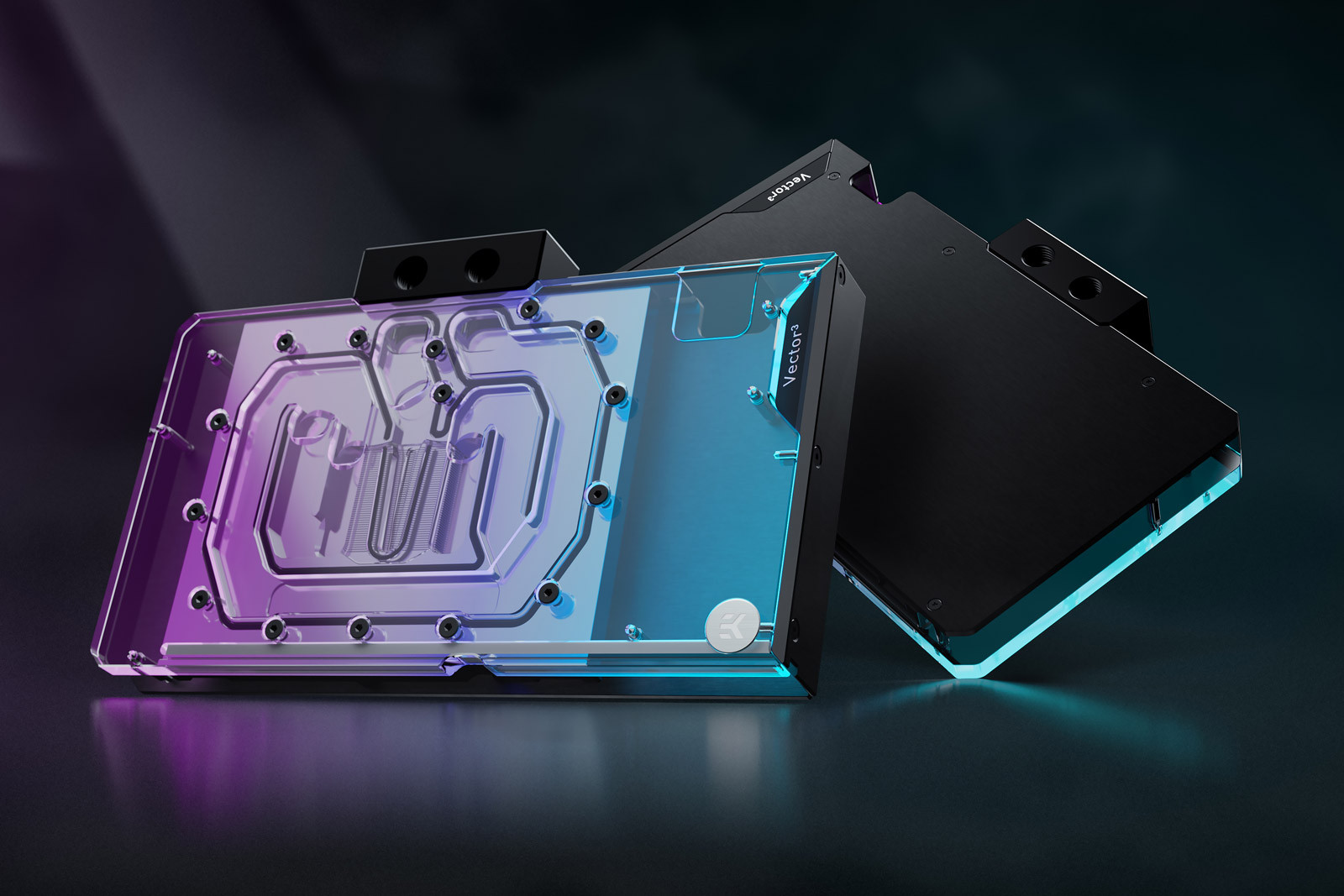

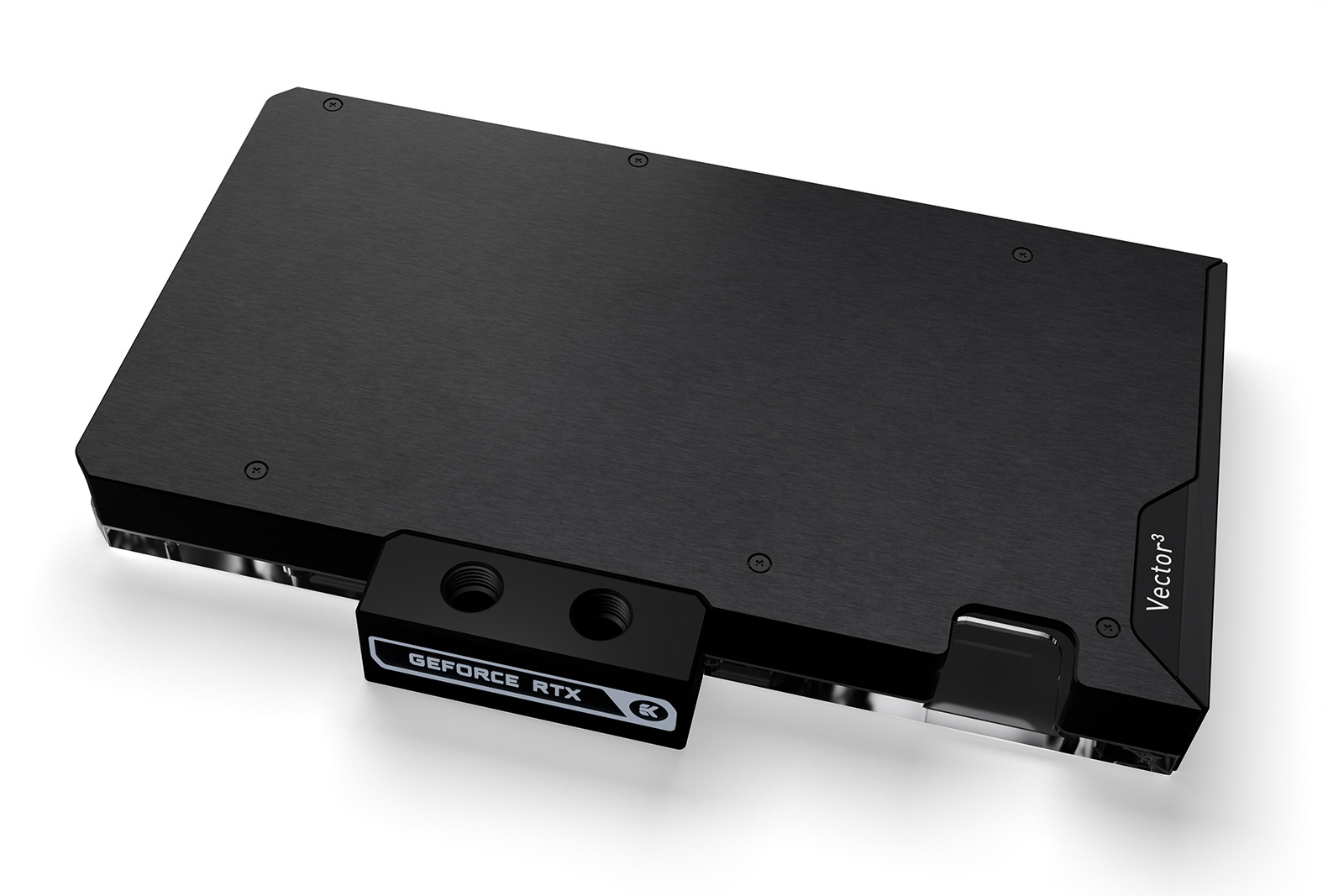

Included Full-Coverage Backplate

A sleek, black, full-coverage backplate comes included, enhancing both the look and cooling efficiency of your GPU. Its distinctive L-shaped profile fully encloses the card for a seamless appearance while increasing passive heat dissipation. Pre-installed captive screws make installation simple and ensure perfect alignment every time.

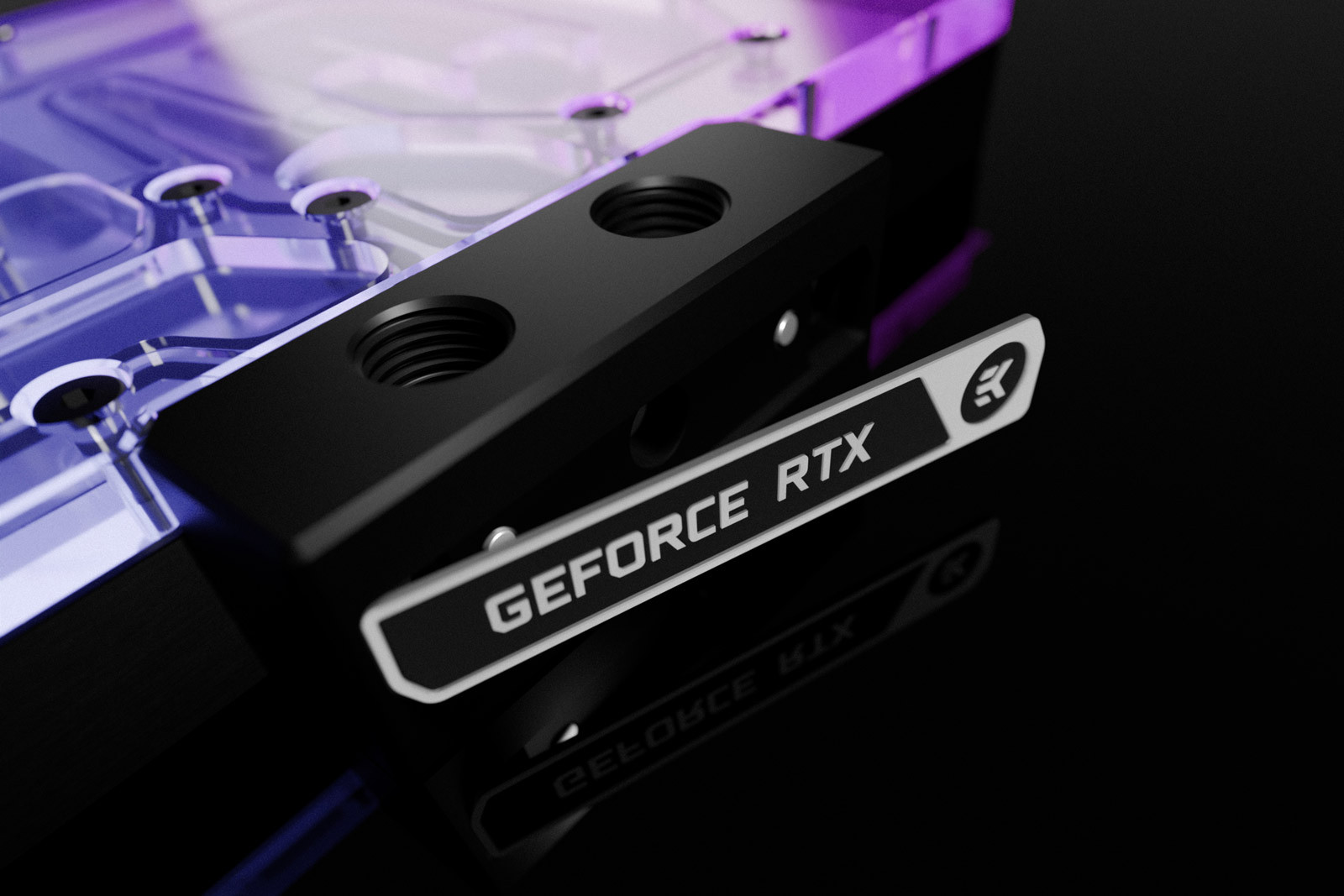

EK-Matrix7 Support - For the Cleanest, Easiest Loop Building

Designed to align with the EK-Matrix7 standard, this block makes planning and building your liquid cooling loop faster and easier:

• Seamless integration with EK-Quantum Reflection² distro plates.
• Effortless tube routing and bending with precisely aligned ports.
• Perfect fit whether your GPU is mounted vertically or horizontally - clean lines, pro finish.

Addressable D-RGB Compatibility

Addressable D-RGB LED lighting is deployed on the longest edge of both top and backside water blocks for improved uniformity and brightness. The PCB and diodes are concealed inside a clean aluminum extrusion. The individually addressable RGB LED is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header (Pinout: +5V | Data | Blocked | Ground).

Technical Specifications:

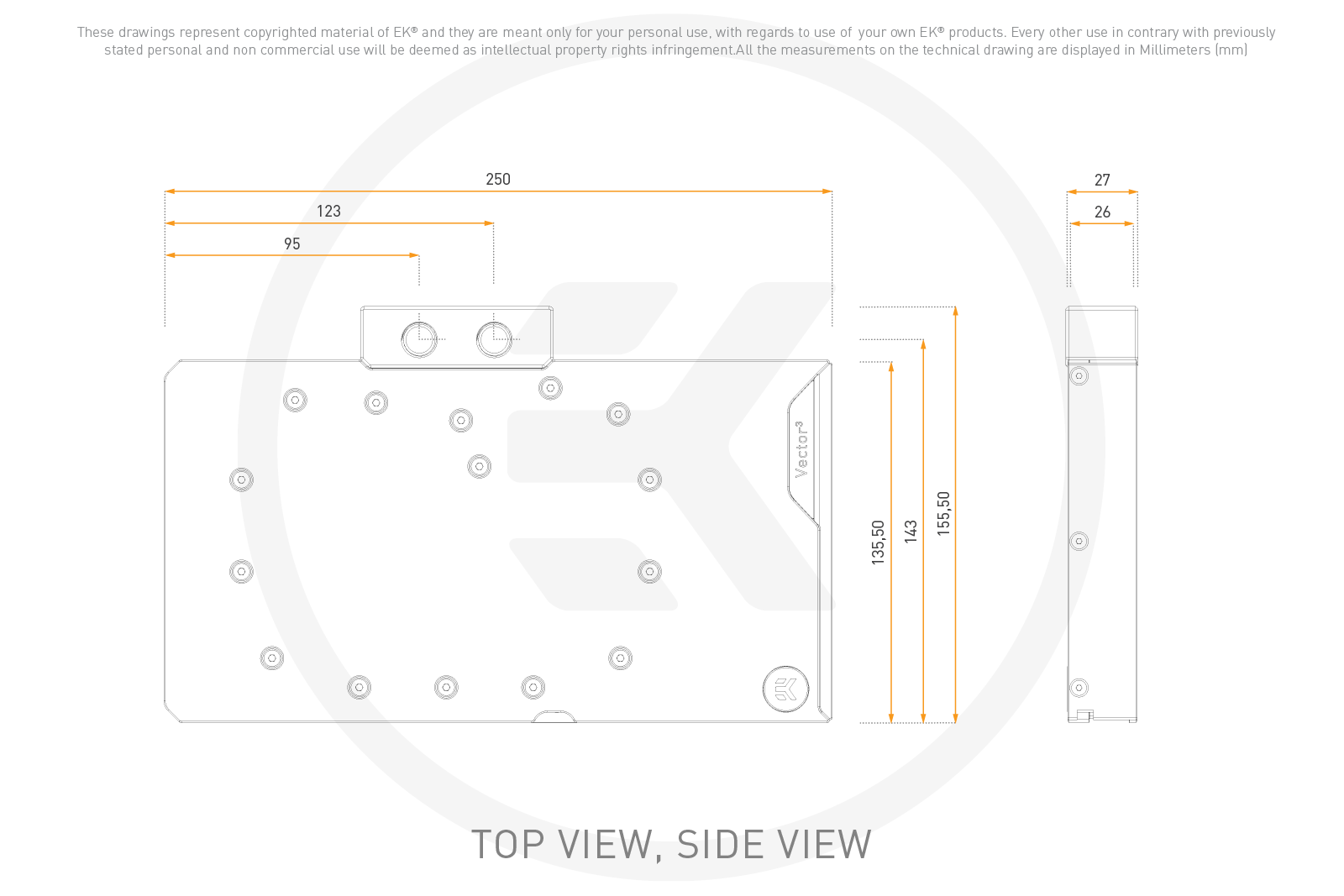

• Dimensions (L x H x W): 250 x 156 x 27 mm
• D-RGB LED Count: 13
• D-RGB Cable Length: 500 mm
• Connector: 3-pin 5V digital LED header

Compatibility:

• GIGABYTE Aorus GeForce RTX™ 5090 Master 32G
• GIGABYTE GeForce RTX™ 5090 Gaming OC 32G

Made in Slovenia – Europe!
